Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSE5-100301CURR SENSE XFMR 1:30 10A SMD |
3,714 | 1.92 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 250kHz Min | Invasive | 10 A | 180 µH | - | 1:30 | - | 870mOhm Secondary | - | Surface Mount | 0.272" L x 0.303" W (6.90mm x 7.70mm) | 0.210" (5.33mm) | Gull Wing |
|
|
CSE5-101001CURR SENSE XFMR 1:100 10A SMD |
3,881 | 1.92 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 250kHz Min | Invasive | 10 A | 2 mH | - | 1:100 | - | 5.5Ohm Secondary | - | Surface Mount | 0.272" L x 0.303" W (6.90mm x 7.70mm) | 0.210" (5.33mm) | Gull Wing |
|
|
CSE5-101251CURR SENSE XFMR 1:125 10A SMD |
3,265 | 1.92 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 250kHz Min | Invasive | 10 A | 3 mH | - | 1:125 | - | 8.5Ohm Secondary | - | Surface Mount | 0.272" L x 0.303" W (6.90mm x 7.70mm) | 0.210" (5.33mm) | Gull Wing |
|
T60404E4622X0114622X011 |
3,682 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | - | 105 H | - | 1:2000 | 2000:1 | 115Ohm | - | Free Hanging (In-Line) | 1.102" Dia (28.00mm) | 0.626" (15.90mm) | Wire Leads |
|
|
AS-301CURR SENSE XFMR 15A 1:100 VRT |
3,615 | 3.56 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.701" L x 0.902" W (17.80mm x 22.90mm) | 0.701" (17.80mm) | - |
|
|
AS-302CURR SENSE XFMR 15A 1:200 VRT |
2,031 | 3.56 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.701" L x 0.902" W (17.80mm x 22.90mm) | 0.701" (17.80mm) | - |
|
|
T60404E4626X1314626X131 |
2,308 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 100 A | 3.1 H | - | 1:2500 | 2500:1 | 49Ohm | - | Free Hanging (In-Line) | 1.500" L x 0.697" W (38.10mm x 17.70mm) | 1.571" (39.90mm) | Wire Leads |
|
AS-210CURR SENSE XFMR 15A 1:50CT VRT |
4,449 | 8.19 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.571" L x 0.772" W (14.50mm x 19.60mm) | 0.709" (18.00mm) | - |
|
ECST1V0703-1020-RCURR SENSE XFMR 20:1 9A SMD |
2,323 | 3.34 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 9 A | 53 µH | - | 20:1 | - | 1.5mOhm Primary, 420mOhm Secondary Max | - | Surface Mount | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.118" (3.00mm) | J Lead |
|
|
CSE5-100201CURR SENSE XFMR 1:200 10A SMD |
1,267 | 3.54 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 250kHz Min | Invasive | 10 A | 80 µH | - | 1:200 | - | 550mOhm Secondary | - | Surface Mount | 0.272" L x 0.303" W (6.90mm x 7.70mm) | 0.210" (5.33mm) | Gull Wing |
|
|
AS-406CURR SENSE XFMR 65A 1:500 VRT |
2,366 | 3.59 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 1.063" L x 0.709" W (27.00mm x 18.00mm) | 1.181" (30.00mm) | - |
|
|
AS-211CURR SENSE XFMR 15A 1:100CT VRT |
3,029 | 3.62 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.571" L x 0.772" W (14.50mm x 19.60mm) | 0.709" (18.00mm) | - |
|

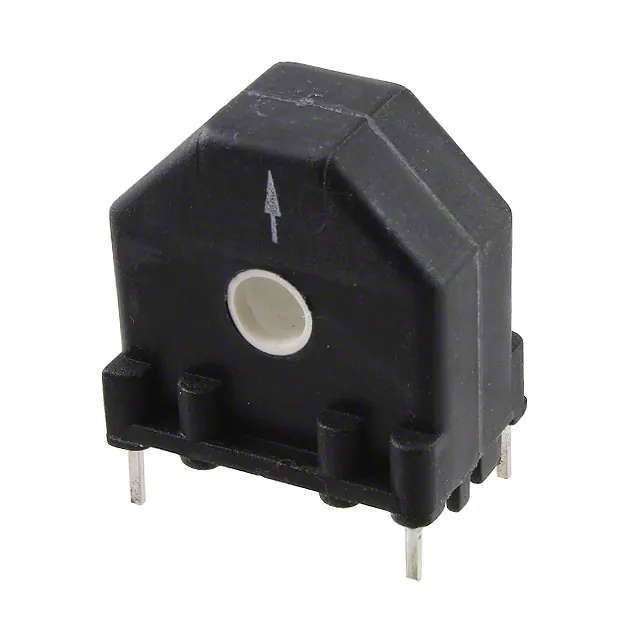

ASM-020CURR SENSE XFMR 10% 50/60HZ 20A |
3,049 | 3.59 |
|
Datasheet |
ASM | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | - | 0.906" L x 0.610" W (23.00mm x 15.50mm) | 0.984" (25.00mm) | PC Pin |
|
ACX-1050CURR SENSE XFMR 2500:1 50A T/H |
1,157 | 3.60 |
|
Datasheet |
ACX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 2500:1 | - | - | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
|
AS-212CURR SENSE XFMR 15A 1:200CT VRT |
3,639 | 3.68 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.571" L x 0.772" W (14.50mm x 19.60mm) | 0.709" (18.00mm) | - |
|
|
T60404E4622X1014622X101 |
1,724 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 20 A | 4.6 H | - | 1:2500 | 2500:1 | 54Ohm | - | Free Hanging (In-Line) | 1.122" L x 0.571" W (28.50mm x 14.50mm) | 1.181" (30.00mm) | Wire Leads |
|
|
T60404E4622X5054622X505 |
4,704 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 40 A | - | - | - | - | - | - | Through Hole | - | - | PC Pin |
|
|
AS-310CURR SENSE XFMR 15A 1:50CT VRT |
1,349 | 3.73 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 0.701" L x 0.902" W (17.80mm x 22.90mm) | 0.701" (17.80mm) | - |
|
|
ECST1V0703-1050-RCURR SENSE XFMR 50:1 9A SMD |
3,633 | 3.34 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 9 A | 333 µH | - | 50:1 | - | 1.5mOhm Primary, 2.76Ohm Secondary Max | - | Surface Mount | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.118" (3.00mm) | J Lead |
|
|
ECST1V0703-1150-RCURR SENSE XFMR 150:1 9A SMD |
1,117 | 3.34 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 9 A | 2.99 mH | - | 150:1 | - | 1.5mOhm Primary, 22.3Ohm Secondary Max | - | Surface Mount | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.118" (3.00mm) | J Lead |
