Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60404E4625X1314625X131 |
3,539 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 80 A | 3.33 H | - | 2500:1 | 2500:1 | 62Ohm | - | Free Hanging (In-Line) | 1.449" L x 0.685" W (36.80mm x 17.40mm) | 1.539" (39.10mm) | Wire Leads |
|
|
AS-407CURR SENSE XFMR 1:500 80A T/H |
1,219 | 4.02 |
|
Datasheet |
AS | Tape & Reel (TR) | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | - | 7500VµS | 1:500 | - | - | - | Through Hole | 1.280" L x 0.709" W (32.50mm x 18.00mm) | 1.398" (35.50mm) | PC Pin |
|
|
T60404E4624X1014624X101 |
2,477 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 60 A | 3 H | - | 1:2500 | 2500:1 | 55Ohm | - | Free Hanging (In-Line) | 1.201" L x 0.591" W (30.50mm x 15.00mm) | 1.240" (31.50mm) | Wire Leads |
|
|
AS-403CURR SENSE XFMR 10A 1:100 VRT |
3,730 | 4.61 |
|
Datasheet |
AS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 1.260" L x 0.807" W (32.00mm x 20.50mm) | 1.378" (35.00mm) | - |
|

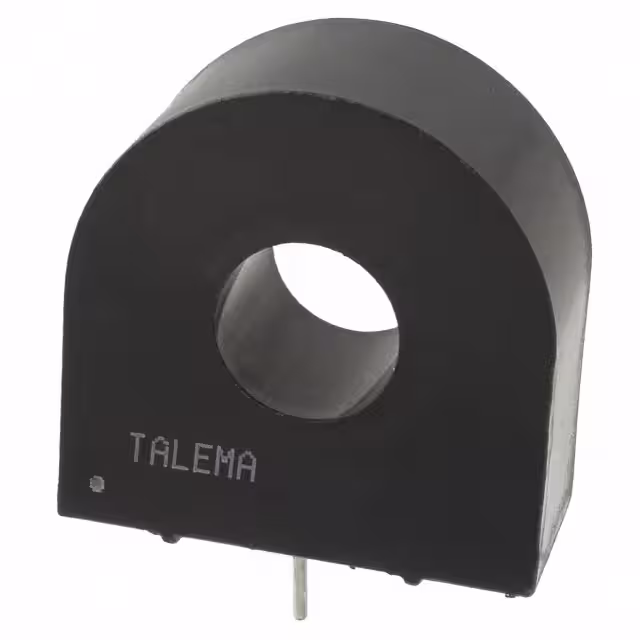

ACX-1075CURR SENSE XFMR 2500:1 75A T/H |
2,218 | 4.59 |
|
Datasheet |
ACX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 75 A | - | - | 2500:1 | - | - | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|

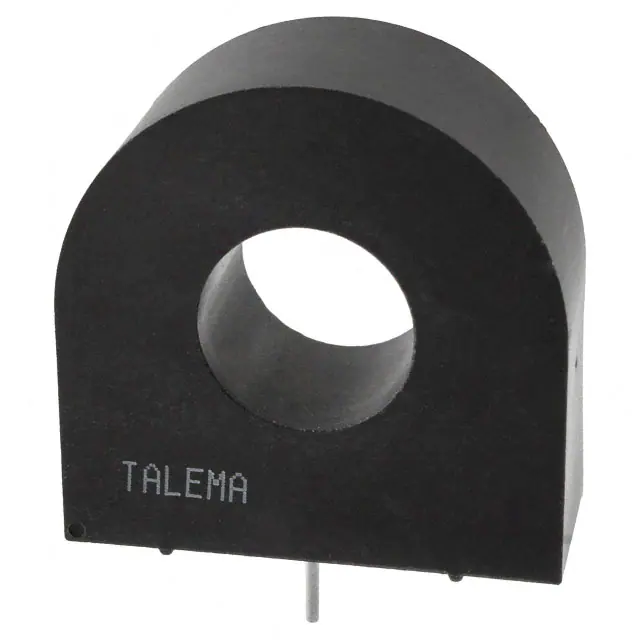

ACX-1100CURR SENSE XFMR 2500:1 100A T/H |
2,899 | 4.61 |
|
Datasheet |
ACX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 100 A | - | - | 2500:1 | - | - | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
|
T60404E4626X1014626X101 |
2,843 | 0.00 |
|
- |
- | Box | Active | 50Hz | Non-Invasive (Solid Core) | 100 A | 2.1 H | - | 1:2500 | 1:2500 | 44Ohm | - | Free Hanging (In-Line) | 1.378" L x 0.591" W (35.00mm x 15.00mm) | 1.378" (35.00mm) | Wire Leads |
|
|
T60404E4625X1014625X101 |
4,517 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 80 A | 2.38 H | - | 1:2500 | 2500:1 | 53.5Ohm | - | Free Hanging (In-Line) | 1.181" L x 0.559" W (30.00mm x 14.20mm) | 1.189" (30.20mm) | Wire Leads |
|
|
T60404E4625X5014625X501 |
1,060 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 80 A | 2.38 H | - | 1:2500 | 2500:1 | 53.5Ohm | - | Through Hole | 1.220" L x 0.551" W (31.00mm x 14.00mm) | 1.240" (31.50mm) | PC Pin |
|
ECST1V1308-1020-RCURR SENSE XFMR 20:1 15A SMD |
2,746 | 5.26 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 220 µH | - | 20:1 | - | 3.9mOhm Primary, 210mOhm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
ECST1V1308-1150-RCURR SENSE XFMR 150:1 15A SMD |
1,550 | 0.00 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 12.6 mH | - | 150:1 | - | 3.9mOhm Primary, 6.5Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
ECST1V1308-1080-RCURR SENSE XFMR 80:1 15A SMD |
2,514 | 5.26 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 3.5 mH | - | 80:1 | - | 3.9mOhm Primary, 1.3Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
PCS020-EE05320SCURRENT SENSE TRANSF 20A 320UH |
2,921 | 5.37 |
|
Datasheet |
PCS | Tape & Reel (TR) | Active | 1MHz | Invasive | 20 A | 320 mH | 21.6VµS | 1:40 | 40:1 | 7mOhm Primary, 1.14Ohm Secondary Max | - | Surface Mount | 0.245" L x 0.235" W (6.22mm x 5.97mm) | 0.209" (5.31mm) | Gull Wing |
|

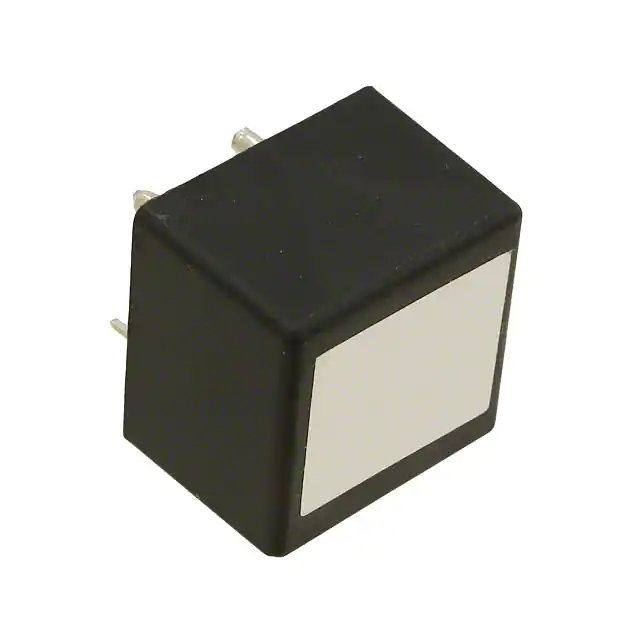

CSE187L-P-BCURR SENSE XFMR 1:500 30A T/H |
2,064 | 3.12 |
|
Datasheet |
CSE | Bulk | Active | 50Hz ~ 400Hz | Invasive | 30 A | - | - | 1:500 | - | 3mOhm Primary, 21Ohm Secondary | - | Through Hole | 0.875" L x 0.875" W (22.23mm x 22.23mm) | 0.720" (18.29mm) | PC Pin |
|

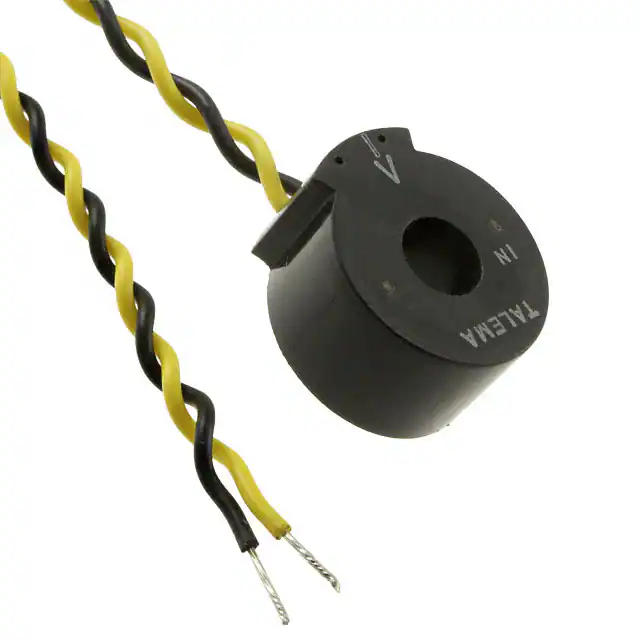

AZ-0750CURR SENSE XFMR 750:1 40A SMD |
4,557 | 5.08 |
|
Datasheet |
AZ | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 40 A | - | - | 750:1 | - | 35Ohm Primary | - | Surface Mount | 0.748" Dia (19.00mm) | 0.453" (11.50mm) | Wire Leads |
|

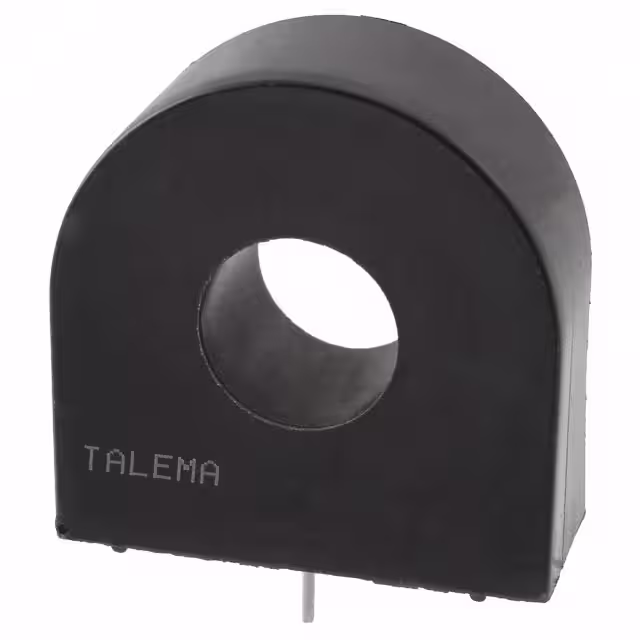

ACX-1150CURR SENSE XFMR 2500:1 150A T/H |
3,595 | 5.10 |
|
Datasheet |
ACX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | 2500:1 | - | - | - | Through Hole | 1.500" L x 0.626" W (38.10mm x 15.90mm) | 1.500" (38.10mm) | PC Pin |
|
|
T60404E4622X0124622X012 |
3,304 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | - | 238 H | - | 1:2000 | 2000:1 | 115Ohm | - | Free Hanging (In-Line) | 1.102" Dia (28.00mm) | 0.626" (15.90mm) | Wire Leads |
|
|
ECST1V1308-1070-RCURR SENSE XFMR 70:1 15A SMD |
4,736 | 5.26 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 2.7 mH | - | 70:1 | - | 3.9mOhm Primary, 1Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
ECST1V1308-1060-RCURR SENSE XFMR 60:1 15A SMD |
4,769 | 5.26 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 2 mH | - | 60:1 | - | 3.9mOhm Primary, 810mOhm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
ECST1V1308-1125-RCURR SENSE XFMR 125:1 15A SMD |
4,637 | 5.26 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 8.7 mH | - | 125:1 | - | 3.9mOhm Primary, 5.2Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
