Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GCS-100VCLFVERT CURRENT SENSE TRANSFORMER |
1,551 | 0.00 |
|
Datasheet |
GCSVC | Bulk | Active | - | Non-Invasive (Solid Core) | - | 20 mH | - | - | 100:1 | 1.4Ohm | - | Through Hole | 0.670" L x 0.375" W (17.02mm x 9.53mm) | 0.800" (20.32mm) | PC Pin |
|
|
T60404E4626X1514626X151 |
2,220 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 100 A | 1.97 H | - | 1:2500 | 1:2500 | 58Ohm | - | Free Hanging (In-Line) | 1.409" L x 0.677" W (35.80mm x 17.20mm) | 0.677" (17.20mm) | Wire Leads |
|

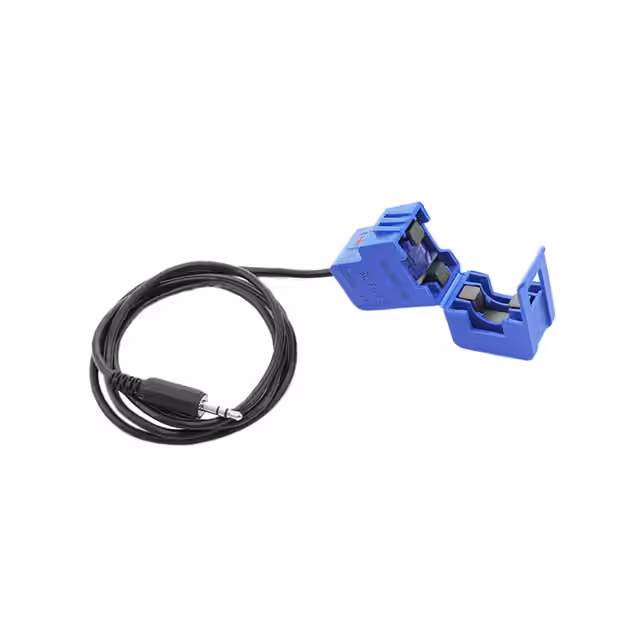

101990062CURR SENSE XFMR 25A CHAS MNT |
1,445 | 0.00 |
|
Datasheet |
SCT013 | Bulk | Obsolete | - | Non-Invasive (Split Core) | 25 A | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|

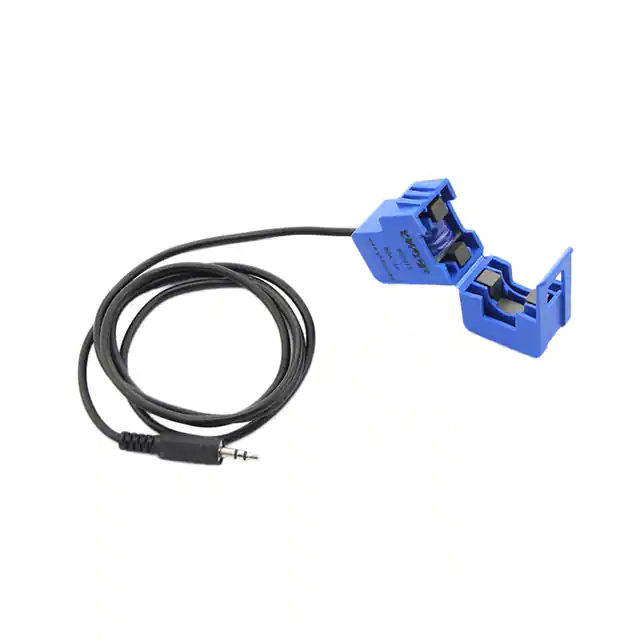

101990063CURR SENSE XFMR 50A CHAS MNT |
3,567 | 0.00 |
|
Datasheet |
SCT013 | Bulk | Obsolete | - | Non-Invasive (Split Core) | 50 A | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
|
PL2264NLTCURR SENSE XFMR 1:100 T PBC |
4,499 | 5.24 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PL2264TCURR SENSE XFMR 1:100 T PBC |
2,793 | 5.24 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

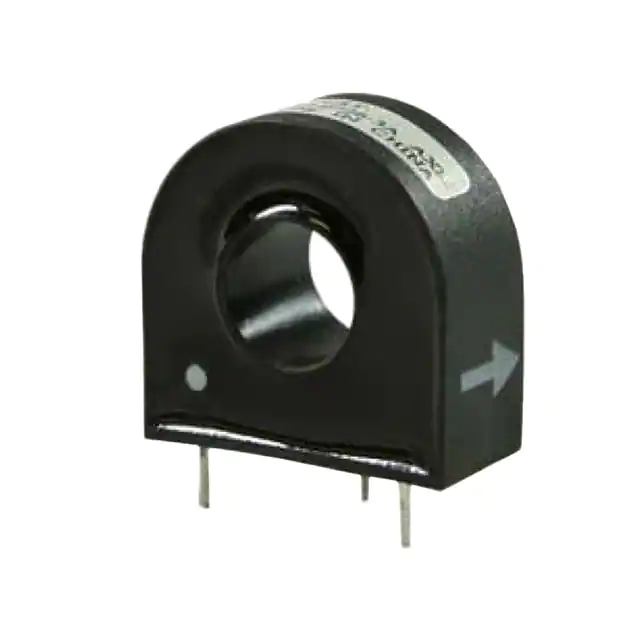

CST-1005-BCURR SENSE XFMR 5A T/H |
3,470 | 4.96 |
|
Datasheet |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
|
CST-1010-BCURR SENSE XFMR 10A T/H |
3,973 | 4.96 |
|
Datasheet |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
|
CST-1015-BCURR SENSE XFMR 15A T/H |
4,453 | 4.96 |
|
Datasheet |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
|
CST-1020-BCURR SENSE XFMR 20A T/H |
1,345 | 7.37 |
|
Datasheet |
CST | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
|
T60404E4627X1014627X101 |
4,370 | 0.00 |
|
- |
- | Box | Active | - | Non-Invasive (Solid Core) | 120 A | 1.8 H | - | 1:2500 | 2500:1 | 33.5Ohm | - | Free Hanging (In-Line) | 1.535" L x 0.689" W (39.00mm x 17.50mm) | 1.575" (40.00mm) | PC Pin |
|
CST206-1A-BCURR SENSE XFMR 110A T/H |
4,815 | 4.51 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 110 A | 14 mH | 2000VµS | - | 100:1 | 580mOhm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
CST206-1T-BCURR SENSE XFMR 110A T/H |
1,964 | 4.51 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 110 A | 14 mH | 2000VµS | - | 100:1 | 580mOhm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
|
CST206-2A-BCURR SENSE XFMR 80A T/H |
2,378 | 4.51 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 80 A | 56 mH | 4000VµS | - | 200:1 | 3.5Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
|
CST206-2T-BCURR SENSE XFMR 80A T/H |
4,996 | 4.51 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 80 A | 56 mH | 4000VµS | - | 200:1 | 3.5Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
|
CST206-3A-BCURR SENSE XFMR 70A T/H |
4,848 | 4.51 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 70 A | 130 mH | 6000VµS | - | 300:1 | 12.4Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
|
CST206-3T-BCURR SENSE XFMR 70A T/H |
4,250 | 4.51 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 70 A | 130 mH | 6000VµS | - | 300:1 | 12.4Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
|
CT1010CURRENT TRANSFORMER PRIM: 10A |
1,708 | 0.00 |
|
- |
CT | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 10 A | - | - | 1:1000 | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
|
CT1015CURRENT TRANSFORMER PRIM: 15A |
2,792 | 0.00 |
|
- |
CT | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 15 A | - | - | 1:1000 | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
|
CT1020CURRENT TRANSFORMER PRIM: 20A |
3,834 | 0.00 |
|
- |
CT | Tray | Active | 60Hz | Non-Invasive (Solid Core) | 20 A | - | - | 1:1000 | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
