Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT1005CURRENT TRANSFORMER PRIM: 5A |
1,795 | 0.00 |
|
- |
CT | Tray | Active | 50kHz ~ 60kHz | Non-Invasive (Solid Core) | 5 A | - | - | 1:1000 | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|

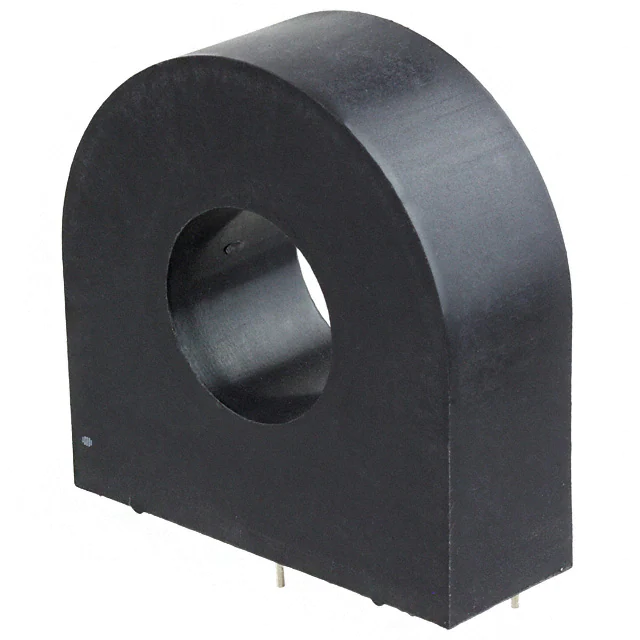

AC1150CURR SENSE XFMR 150A T/H |
4,472 | 13.25 |
|
Datasheet |
AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 150 A | - | - | - | 1000:1 | 11Ohm | - | Through Hole | 2.189" L x 0.811" W (55.60mm x 20.60mm) | 2.189" (55.60mm) | PC Pin |
|
CST-1025-BCURR SENSE XFMR 25A T/H |
3,978 | 6.06 |
|
Datasheet |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 25 A | - | - | - | 1000:1 | 46Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
|
CST-1030-BCURR SENSE XFMR 30A T/H |
1,472 | 6.06 |
|
Datasheet |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | 1000:1 | 46Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
|
CR8448-2000-FCURR SENSE XFMR 50A IN-LINE |
2,427 | 9.59 |
|
Datasheet |
CR8400 | Bulk | Active | 20Hz ~ 200kHz | Non-Invasive (Solid Core) | 50 A | - | - | - | 2000:1 | 90Ohm | - | Free Hanging (In-Line) | 1.160" L x 0.922" W (29.46mm x 23.42mm) | 0.435" (11.05mm) | Wire Leads |
|
|
CR8348-2000-FCURR SENSE XFMR 50A T/H |
2,720 | 9.59 |
|
Datasheet |
CR8300 | Bulk | Active | 20Hz ~ 200kHz | Non-Invasive (Solid Core) | 50 A | - | - | - | 2000:1 | 88Ohm | - | Through Hole | 0.925" L x 0.433" W (23.50mm x 11.00mm) | 0.984" (25.00mm) | PC Pin |
|
|
PL1839NLTPOWER |
1,319 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | 1:50 | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
|
PL1839TPOWER |
1,436 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | 1:50 | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
|
CR8320-1600 OR CR8320-1600-NGENERAL PURPOSE CURRENT TRANSFOR |
2,224 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CT1030CURRENT TRANSFORMER PRIM: 30A |
1,811 | 0.00 |
|
- |
CT | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 30 A | - | - | 1:1000 | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
|
CT1025CURRENT TRANSFORMER PRIM: 25A |
1,385 | 0.00 |
|
- |
CT | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 25 A | - | - | 1:1000 | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
|
PL1839NLPOWER |
4,491 | 0.00 |
|
Datasheet |
- | Tube | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | 1:50 | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
|
PL1839POWER |
1,302 | 0.00 |
|
Datasheet |
- | Tube | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | 1:50 | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
|
CR8401-1000CURR SENSE XFMR 10A IN-LINE |
4,035 | 11.18 |
|
Datasheet |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 49Ohm | - | Free Hanging (In-Line) | 0.880" L x 0.690" W (22.35mm x 17.53mm) | 0.325" (8.26mm) | Wire Leads |
|
|
SEN-11005NON-INVASIVE CURRENT SENSOR - 30 |
3,271 | 0.00 |
|
- |
- | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 30 A | - | - | 1:2000 | 30:15 | 250mOhm Max | - | Free Hanging (In-Line) | 1.024" L x 1.004" W (26.00mm x 25.50mm) | 1.575" (40.00mm) | Wire Leads with Connector |
|
|
CT1050CURRENT TRANSFORMER PRIM: 50A |
3,251 | 0.00 |
|
- |
CT | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 1:1000 | 1000:1 | 49.3Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
|
CT1040CURRENT TRANSFORMER PRIM: 40A |
1,443 | 0.00 |
|
- |
CT | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 40 A | - | - | 1:1000 | 1000:1 | 49.3Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
|
2723380000CMA-31-41-SNAP-ON |
4,463 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CR8448-2000CURR SENSE XFMR 50A IN-LINE |
4,985 | 12.55 |
|
Datasheet |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 50 A | - | - | - | 2000:1 | 106Ohm | - | Free Hanging (In-Line) | 1.160" L x 0.922" W (29.46mm x 23.42mm) | 0.435" (11.05mm) | Wire Leads |
|
|
PL2035CURR SENSE XFMR 1:50 20A SMD |
2,536 | 10.18 |
|
Datasheet |
- | Tube | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary Max, 1.5Ohm Secondary Max | - | Surface Mount | 0.330" L x 0.284" W (8.38mm x 7.21mm) | 0.217" (5.50mm) | Gull Wing |
