Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASM-075CURR SENSE XFMR 5-75A T/H |
3,409 | 6.57 |
|
Datasheet |
ASM | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 1.260" L x 0.807" W (32.00mm x 20.50mm) | 1.378" (35.00mm) | - |
|
CST306-1A-BCURR SENSE XFMR 35A T/H |
2,175 | 3.63 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 35 A | 3.5 mH | 500VµS | - | 50:1 | 340mOhm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
CST306-1T-BCURR SENSE XFMR 35A T/H |
3,651 | 3.63 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 35 A | 3.5 mH | 500VµS | - | 50CT:1 | 340mOhm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
|
CST306-3A-BCURR SENSE XFMR 25A T/H |
2,731 | 3.63 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 55 mH | 2000VµS | - | 200:1 | 3.75Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
|
CST306-3T-BCURR SENSE XFMR 25A T/H |
1,704 | 3.63 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 55 mH | 2000VµS | - | 200CT:1 | 3.75Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
|
CST306-2T-BCURR SENSE XFMR 25A T/H |
3,324 | 3.63 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 14 mH | 1000VµS | - | 100CT:1 | 1.55Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
|
ASM-100CURR SENSE XFMR 5-100A TH |
2,511 | 6.77 |
|
Datasheet |
ASM | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 1.260" L x 0.807" W (32.00mm x 20.50mm) | 1.378" (35.00mm) | - |
|
|
PL2035NLTCURR SENSE XFMR 1:50 20A SMD |
1,582 | 5.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary Max, 1.5Ohm Secondary Max | - | Surface Mount | 0.330" L x 0.284" W (8.38mm x 7.21mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PL2035TCURR SENSE XFMR 1:50 20A SMD |
3,376 | 5.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary Max, 1.5Ohm Secondary Max | - | Surface Mount | 0.330" L x 0.284" W (8.38mm x 7.21mm) | 0.217" (5.50mm) | Gull Wing |
|
ECSTA1V0504-1125-RCURR SENSE XFMR 125:1 7A SMD |
3,136 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 1.28 mH | - | 125:1 | - | 3Ohm Primary, 13Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1060-RCURR SENSE XFMR 60:1 7A SMD |
4,554 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 295 µH | - | 60:1 | - | 3Ohm Primary, 3.6Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1030-RCURR SENSE XFMR 30:1 7A SMD |
4,362 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 74 µH | - | 30:1 | - | 3Ohm Primary, 800mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
T60404E4624X1514624X151 |
3,149 | 0.00 |
|
- |
- | Box | Active | 50Hz | Non-Invasive (Solid Core) | 60 A | 3 H | - | 2500:1 | 2500:1 | 55Ohm | - | Free Hanging (In-Line) | 1.295" L x 0.673" W (32.90mm x 17.10mm) | 1.327" (33.70mm) | Wire Leads |
|
|
GCS-050VCVERT CURRENT SENSE TRANSFORMER |
1,659 | 0.00 |
|
Datasheet |
GCSVC | Bulk | Active | - | Non-Invasive (Solid Core) | - | 8 mH | - | - | 50:1 | 800mOhm | - | Through Hole | 0.670" L x 0.375" W (17.02mm x 9.53mm) | 0.800" (20.32mm) | PC Pin |
|

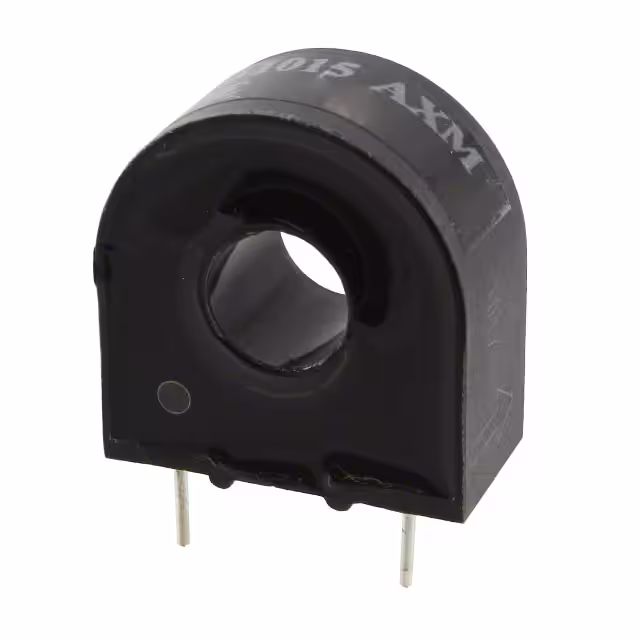

CST-1015CURR SENSE XFMR 15A T/H |
1,850 | 7.30 |
|
Datasheet |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
CST206-2TCURR SENSE XFMR 80A T/H |
3,272 | 7.48 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 80 A | 56 mH | 4000VµS | - | 200:1 | 3.5Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
|
ECSTA1V0504-1150-RCURR SENSE XFMR 150:1 7A SMD |
1,812 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 1.8 mH | - | 150:1 | - | 3Ohm Primary, 21Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1020-RCURR SENSE XFMR 20:1 7A SMD |
2,243 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 33 µH | - | 20:1 | - | 3Ohm Primary, 350mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1040-RCURR SENSE XFMR 40:1 7A SMD |
4,782 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 132 µH | - | 40:1 | - | 3Ohm Primary, 1.6Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
GCS-100VCVERT CURRENT SENSE TRANSFORMER |
4,179 | 0.00 |
|
Datasheet |
GCSVC | Bulk | Active | - | Non-Invasive (Solid Core) | - | 20 mH | - | - | 100:1 | 1.4Ohm | - | Through Hole | 0.670" L x 0.375" W (17.02mm x 9.53mm) | 0.800" (20.32mm) | PC Pin |
