EMI/RFI Filters (LC, RC Networks)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height
ECLAMP2455P.TCT FILTER RC(PI) ESD SMD Semtech Corporation	8,812	1.06	RFQ	-	EMIClamp®	8-UFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	3rd	RC (Pi)	3	-	-	47, 100	-	R = 47Ohms, 100Ohms, C = 20pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.083" L x 0.063" W (2.10mm x 1.60mm)	0.026" (0.65mm)
PMR209MC6100M047R30 FILTER RC 47 OHM/0.1UF TH KEMET	146	4.78	RFQ	-	PMR209	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	47	-	R = 47Ohms, C = 0.1µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.945" L x 0.299" W (24.00mm x 7.60mm)	0.551" (14.00mm)

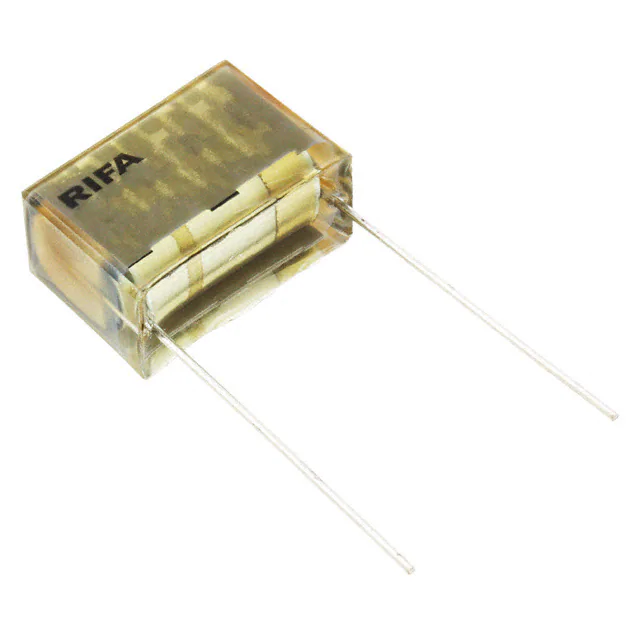

PMR209MC6100M470R30 FILTER RC 470 OHM/0.1UF TH KEMET	836	6.04	RFQ	-	PMR209	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	470	-	R = 470Ohms, C = 0.1µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.945" L x 0.299" W (24.00mm x 7.60mm)	0.551" (14.00mm)
ECLAMP2410PQTCT FILTER RC(PI) 45 OHM/15PF SMD Semtech Corporation	7,410	1.45	RFQ	-	EMIClamp®	16-UFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	6	-	-	45	-	R = 45Ohms, C = 15pF	Yes	-40°C ~ 125°C	-	-	-	-	Surface Mount	0.157" L x 0.063" W (4.00mm x 1.60mm)	0.026" (0.65mm)
PMR209MC6220M100R30 FILTER RC 100 OHM/0.22UF TH KEMET	611	6.04	RFQ	-	PMR209	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	100	-	R = 100Ohms, C = 0.22µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.945" L x 0.299" W (24.00mm x 7.60mm)	0.551" (14.00mm)
PMR209MB5470M047R30 FILTER RC 47 OHM/0.047UF TH KEMET	3,244	4.61	RFQ	-	PMR209	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	47	-	R = 47Ohms, C = 0.047µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.728" L x 0.287" W (18.50mm x 7.30mm)	0.512" (13.00mm)
PMR209MC6220M022R30 FILTER RC 22 OHM/0.22UF TH KEMET	863	6.04	RFQ	-	PMR209	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	22	-	R = 22Ohms, C = 0.22µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.945" L x 0.299" W (24.00mm x 7.60mm)	0.551" (14.00mm)

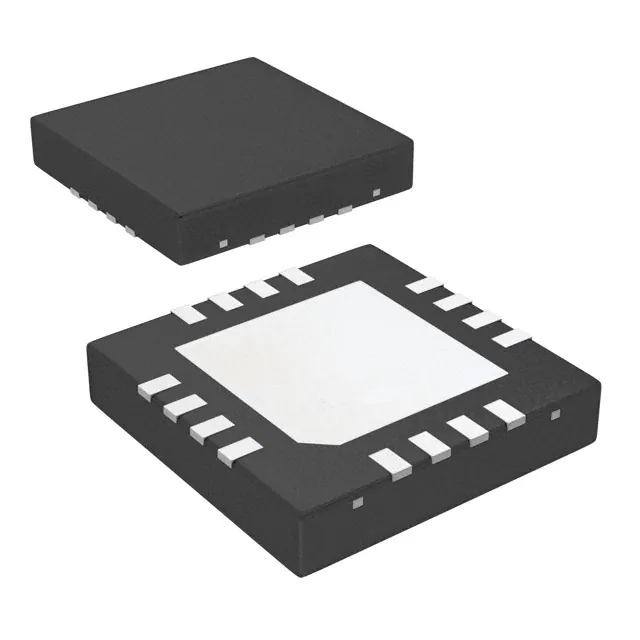

ECLAMP2357NQTLT FILTER LC(PI) 100 OHM/12PF SMD Semtech Corporation	15,094	1.65	RFQ	-	EMIClamp®	16-UFQFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	3rd	RC (Pi)	6	-	30dB @ 1.8GHz	100	-	R = 100Ohms, C = 12pF	Yes	-40°C ~ 125°C	-	-	Automotive	AEC-Q100	Surface Mount	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.028" (0.70mm)

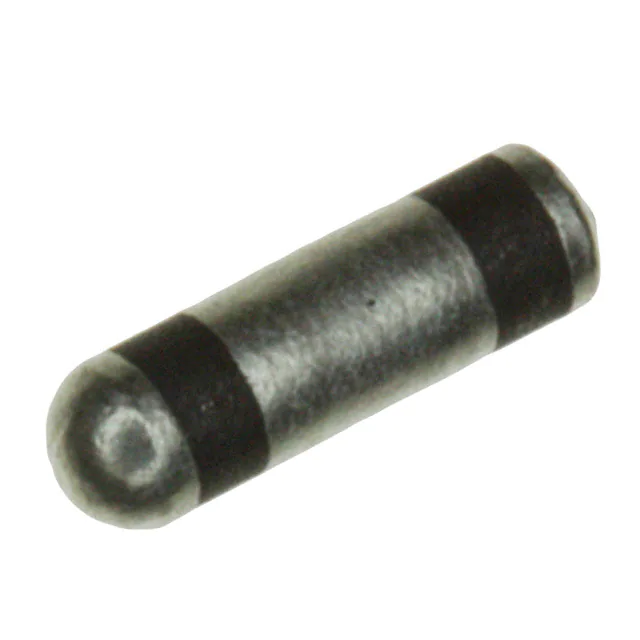

4700-056MLF FILTER LC(PI) 0.1UH/5000PF SMD Tusonix a Subsidiary of CTS Electronic Components	3,673	2.76	RFQ	-	4700	Pill, Round	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	55dB @ 100MHz	-	10 A	L = 0.1µH, C = 5000pF	No	-55°C ~ 125°C	General Purpose	100V	-	-	Surface Mount	0.085" Dia x 0.315" L (2.16mm x 8.00mm)	-
PMR209MC6220M047R30 FILTER RC 47 OHM/0.22UF TH KEMET	846	6.04	RFQ	-	PMR209	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	47	-	R = 47Ohms, C = 0.22µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.945" L x 0.299" W (24.00mm x 7.60mm)	0.551" (14.00mm)
PMR209MC6100M022R30 FILTER RC 22 OHM/0.1UF TH KEMET	923	0.00	RFQ	-	PMR209	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	22	-	R = 22Ohms, C = 0.1µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.945" L x 0.299" W (24.00mm x 7.60mm)	0.551" (14.00mm)
P409CE104M275AH220 FILTER RC 22 OHM/0.1UF TH KEMET	156	2.19	RFQ	-	P409	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	22	-	R = 22Ohms, C = 0.1µF	No	-40°C ~ 85°C	General Purpose	275VAC	-	-	Through Hole	0.945" L x 0.299" W (24.00mm x 7.60mm)	0.551" (14.00mm)

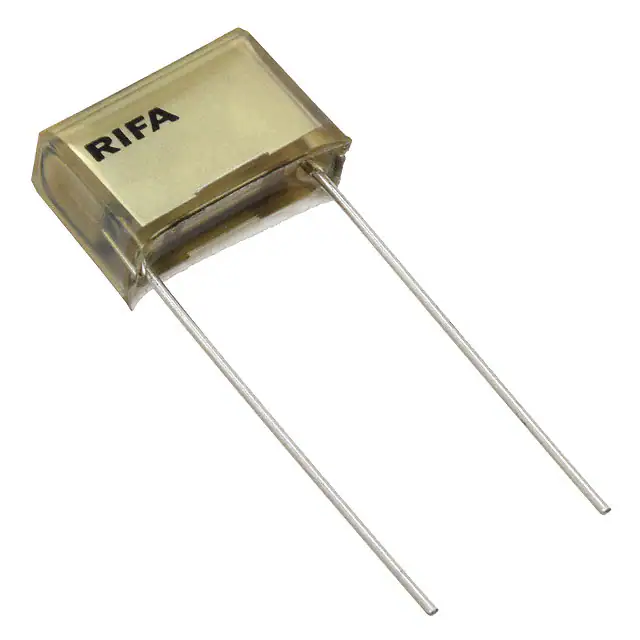

PMR210MB5220M100R30 FILTER RC 100 OHM/0.022UF TH KEMET	2,621	4.31	RFQ	-	PMR210	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	100	-	R = 100Ohms, C = 0.022µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.728" L x 0.287" W (18.50mm x 7.30mm)	0.512" (13.00mm)
PMR209MB5470M100R30 FILTER RC 100 OHM/0.047UF TH KEMET	1,151	4.61	RFQ	-	PMR209	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	100	-	R = 100Ohms, C = 0.047µF	No	-40°C ~ 85°C	General Purpose	250VAC	-	-	Through Hole	0.728" L x 0.287" W (18.50mm x 7.30mm)	0.512" (13.00mm)
SBSPP1000470MCT FILTER LC(PI) 47PF SMD Knowles Syfer	2,820	3.15	RFQ	-	SBSP	1206 (3216 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	4dB @ 100MHz	-	1 A	C = 47pF	No	-	General Purpose	100V	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.071" (1.80mm)
SBSPP1000471MCT FILTER LC(PI) 470PF SMD Knowles Syfer	6,168	3.25	RFQ	-	SBSP	1206 (3216 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	25dB @ 100MHz	-	1 A	C = 470pF	No	-	General Purpose	100V	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.071" (1.80mm)

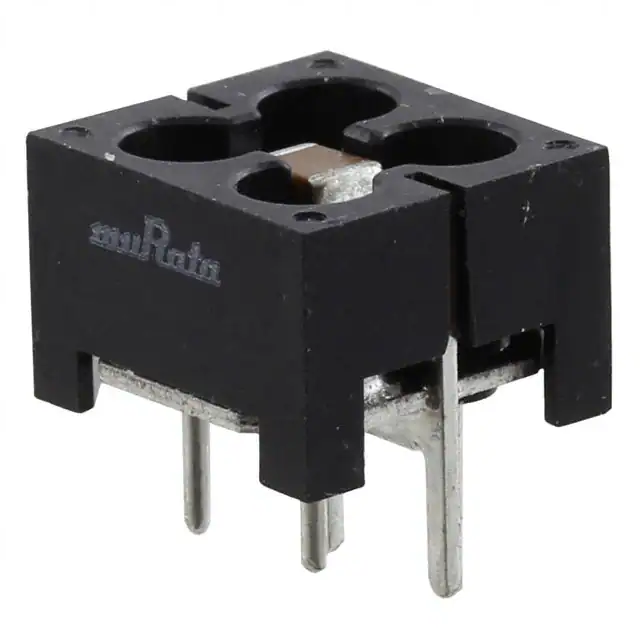

BNX012H01 FILTER LC TH Murata Electronics	384	7.09	RFQ	-	EMIFIL®, BNX	Block, 4 Lead	Bulk	Active	Low Pass	5th	LC	2	-	40dB @ 1MHz ~ 1GHz	-	15 A	-	No	-55°C ~ 125°C	-	50V	-	-	Through Hole	0.472" L x 0.433" W (12.00mm x 11.00mm)	0.335" (8.50mm)
BNX027H01L FILTER LC 22UF SMD Murata Electronics	684	7.09	RFQ	-	EMIFIL®, BNX	4-SMD, No Lead	Tape & Reel (TR)	Active	Low Pass	5th	LC	2	-	35dB @ 40kHz ~ 1GHz	0.00043	20 A	C = 22µF	No	-55°C ~ 125°C	-	16V	-	-	Surface Mount	0.476" L x 0.358" W (12.10mm x 9.10mm)	0.146" (3.70mm)
254M06QD100 FILTER RC 100 OHM/0.25UF TH Cornell Dubilier Knowles	5,386	11.53	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	-	-	-	100	-	R = 100Ohms, C = 0.25µF	No	-55°C ~ 85°C	General Purpose	600V	-	-	Through Hole	1.449" L x 0.417" W (36.80mm x 10.60mm)	0.748" (19.00mm)
SBSGP5000472MXT FILTER LC(PI) 4700PF SMD Knowles Syfer	2,171	8.48	RFQ	-	SBSG	1812 (4532 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	39dB @ 100MHz	-	5 A	C = 4700pF	No	-	General Purpose	500V	-	-	Surface Mount	0.179" L x 0.126" W (4.55mm x 3.20mm)	0.104" (2.64mm)

Total 1980 Record«Prev 1... 5 6 7 8910 11 12...99 Next»
