DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS7H4003EVMEVAL BOARD FOR TPS7H4003 |
2,365 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 18A | 3V ~ 7V | Buck | - | Board(s) | TPS7H4003 |
|
|
EVL250WMG1LEVAL BOARD FOR L6599A MASTERGAN1 |
3,913 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 250 W | 24V | 10.5A | 400V | Resonant | - | Board(s) | L6599A, MasterGaN1, SRK2001A |
|

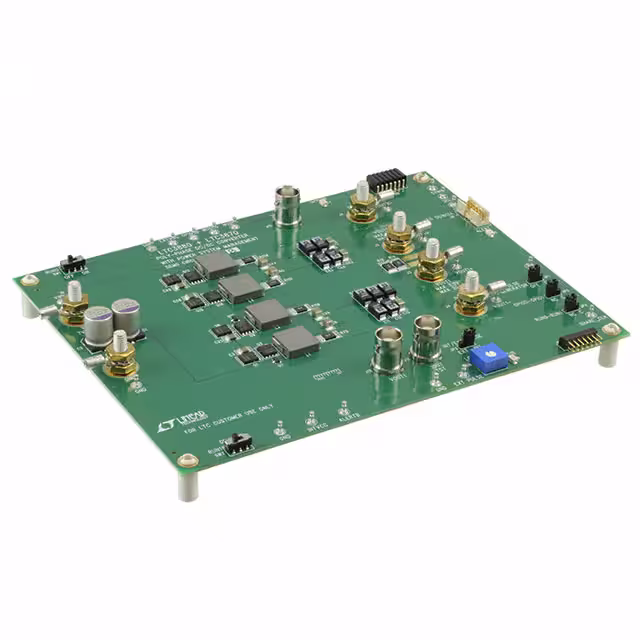

DC2089A-BEVAL BOARD FOR LTC3870 LTC3880 |
4,669 | 310.73 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 80A | 7V ~ 14V | Buck | 350kHz | Board(s) | LTC3870, LTC3880 |
|
|
DC2605AEVAL BOARD FOR LTC38741 LTC38841 |
4,405 | 310.73 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 120A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3874-1, LTC3884-1 |
|
|
EVM3695-100-BH-00DEVAL BOARD FOR MPM3695100 |
1,279 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600A | 4V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|
|
TLD60982DPVB2GEVALTOBO1EVAL BOARD FOR TLD60982ES |
2,299 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 43V ~ 52V | 7A, 7A | 8V ~ 27V | Boost | 200kHz | Board(s) | TLD6098-2ES |
|
|
LGA110-EVAL-KITEVAL BOARD FOR LGA110D |
2,660 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 3 Non-Isolated Outputs | 350 W | 0.5V ~ 5.2V | 55A, 55A, 55A | 0.5V ~ 5V | - | - | Board(s) | LGA110D |
|

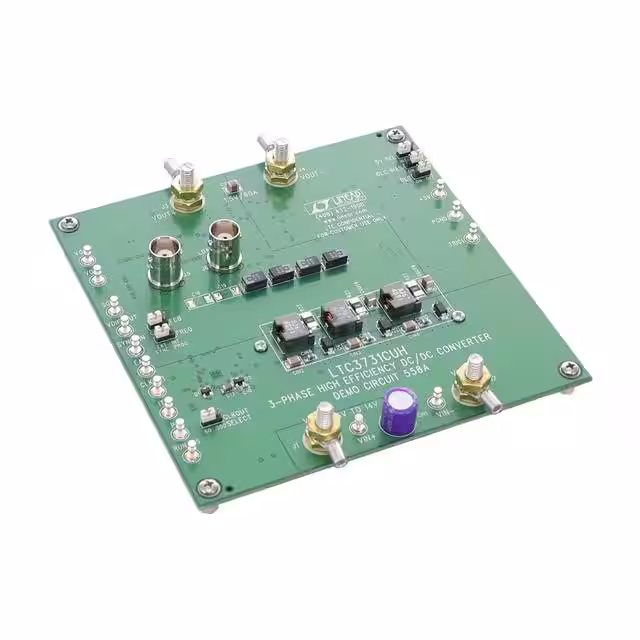

DC558AEVAL BOARD FOR LTC3731 |
3,019 | 317.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 60A | 5V ~ 14V | Buck | 400kHz | Board(s) | LTC3731 |
|
|
BM2P061MF-EVK-001EVAL BOARD FOR BM2P061 |
2,812 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs, 1 Non-Isolated Output | 24 W | 5V, 12V, 18.7V | 2A, 1A, 100mA | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P061 |
|

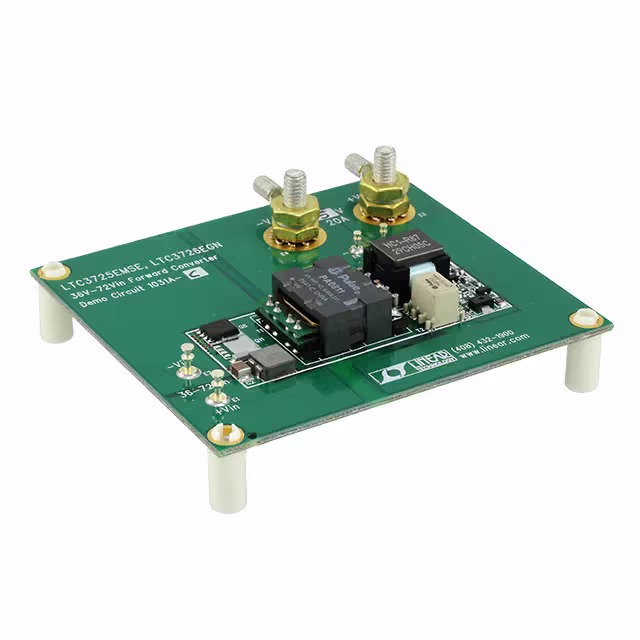

DC1031A-CEVAL BOARD FOR LTC3725 LTC3726 |
4,881 | 353.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 20A | 36V ~ 72V | Forward Converter | 300kHz | Board(s) | LTC3725, LTC3726 |
|
|
ADP5140-EVALZEVAL BOARD FOR ADP5140 |
1,804 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Up or Down with LDO | 12 Non-Isolated Outputs | - | 5V | 3A, 3A, 2.5A, 2.5A, 2.3A, 1.4A, 1.2A, 500mA, 400mA, 400mA, 300mA, 50mA | 2.7V ~ 5.5V | Boost, Buck | 2.2MHz | Board(s) | ADP5140 |
|
|
TPS50601ASPEVM-SEVAL BOARD FOR TPS50601ASP |
1,409 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 2.49V | 6A | 4.5V ~ 6.3V | - | 100kHz | Board(s) | TPS50601A-SP |
|
|
EVM3695-100-BH-00EEVAL BOARD FOR MPM3695100 |
1,229 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 800A | 4V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|
|
DC3170A-BEVAL BOARD FOR LTC7051 LTC7883 |
1,475 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC7051, LTC7883 |
|
|
DC3170A-AEVAL BOARD FOR LTC7051 LTC7883 |
1,610 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V, 0.9V, 1V, 1.2V | 50A, 50A, 50A, 50A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC7051, LTC7883 |
|
DC1755AEVAL BOARD FOR LTC3860 |
2,349 | 385.58 |
|
Datasheet |
PolyPhase® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 50A, 50A | 6V ~ 14V | Buck | 500kHz | Board(s) | LTC3860 |
|
|
DC2652A-BEVAL BOARD FOR LTC38881 |
4,827 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1V | 120A, 120A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3888-1 |
|

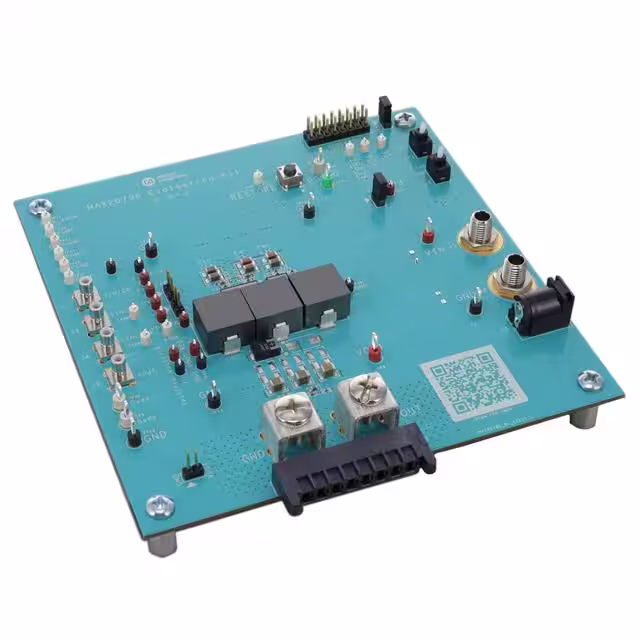

MAX20796DL3EVKIT#EVAL BOARD FOR MAX20796 |
4,103 | 391.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V ~ 5V | 20A | 4.5V ~ 16V | Boost | 800kHz | Board(s) | MAX20796 |
|
|
MAX20796DL2EVKIT#EVAL BOARD FOR MAX20796 |
1,006 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 1.8V | - | 4.5V ~ 16V | Buck | - | Board(s) | MAX20796 |
|
|
DC2888A-AEVAL BOARD FOR LTC3888 LTC7051 |
1,745 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | LTC3888, LTC7051 |
