DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2888A-BEVAL BOARD FOR LTC3888 LTC7051 |
2,821 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | LTC3888, LTC7051 |
|
|
TPS7H4011EVM-CVALEVAL BOARD FOR TPS7H4001SP |
2,690 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 4.5V ~ 14V | Buck | - | Board(s) | TPS7H4001-SP |
|
|
EPC91106EVAL BOARD FOR EPC23104 |
2,333 | 0.00 |
|
- |
eGaN® | Box | Active | - | - | - | - | - | - | - | - | Board(s) | EPC23104 |
|
|
REF1KWPSU5GSICTOBO1EVAL BOARD |
1,401 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 1 kW | 12V | 83A | 230VAC | - | - | Board(s) | - |
|
PFH05W28-100-EVK-S1EVAL BOARD FOR PFH500F28100R |
4,276 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 500 W | 28V | 18A | 85 ~ 265 VAC | - | - | Board(s) | PFH500F-28-100-R |
|
|
REF1KWPSU5GGANTOBO1EVAL BOARD |
2,027 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 1 kW | 12V | 83A | 230VAC | - | - | Board(s) | - |
|
|
1KW-DCDC-48V12VEVAL BOARD FOR SIC464 |
4,549 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Bidirectional | 1 Non-Isolated Output | 1 kW | 12V or 48V | 83A or 21A | 9V ~ 15V or 36V ~ 56V | Buck-Boost | 185kHz | Board(s) | SIC464 |
|
|
DCM3623E50T0680M70EVAL BOARD DCM3623X50T0680YZZ |
4,931 | 908.30 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 80 W | 5V | 16A | 9V ~ 50V | Buck | - | Board(s) | DCM3623x50T0680yzz |
|

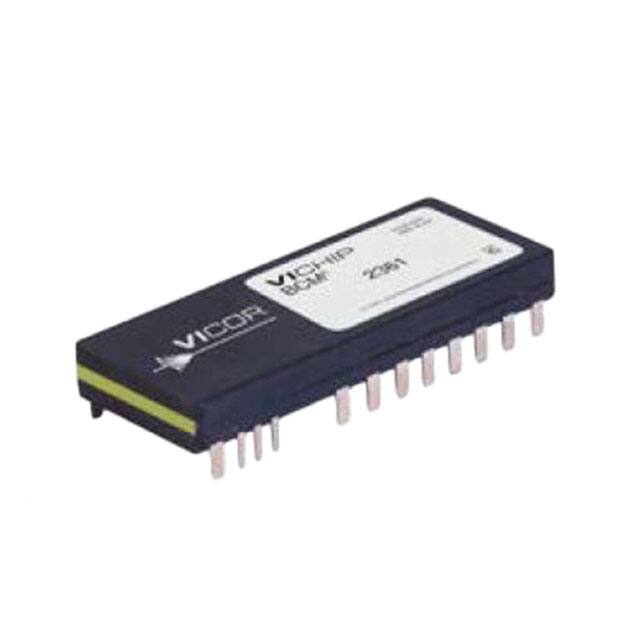

BCM6123ED1E1368T01EVAL BOARD BCM6123XD1E1368YZZ |
1,575 | 990.49 |
|
Datasheet |
VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 13V | 68A | 260V ~ 410V | Buck | 1.03MHz | Board(s) | BCM6123xD1E1368yzz |
|

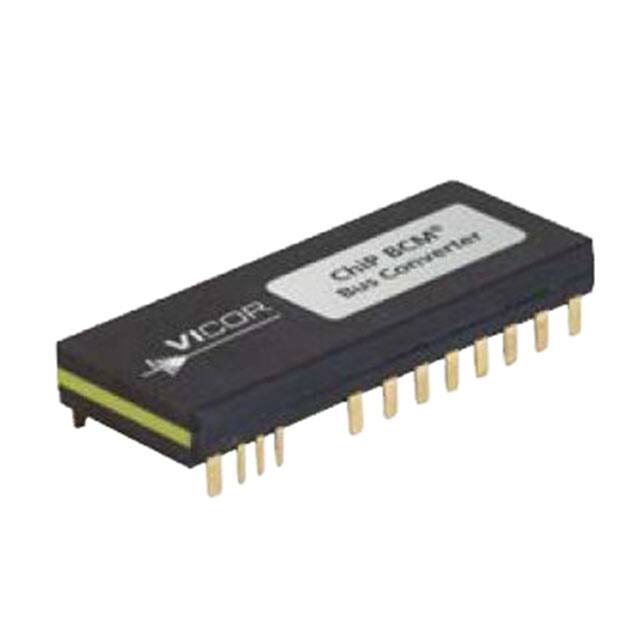

BCM6123ED1E13A3T01EVAL BOARD BCM6123XD1E13A3YZZ |
4,082 | 1041.77 |
|
Datasheet |
VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 125A | 260V ~ 410V | Buck | 1MHz | Board(s) | BCM6123xD1E13A3yzz |
|
|
MAX881REVKIT#EVAL BOARD FOR MAX881R |
3,552 | 0.00 |
|
- |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -2V | 4mA | 2.5V ~ 5.5V | Inverting | - | Board(s) | MAX881R |
|

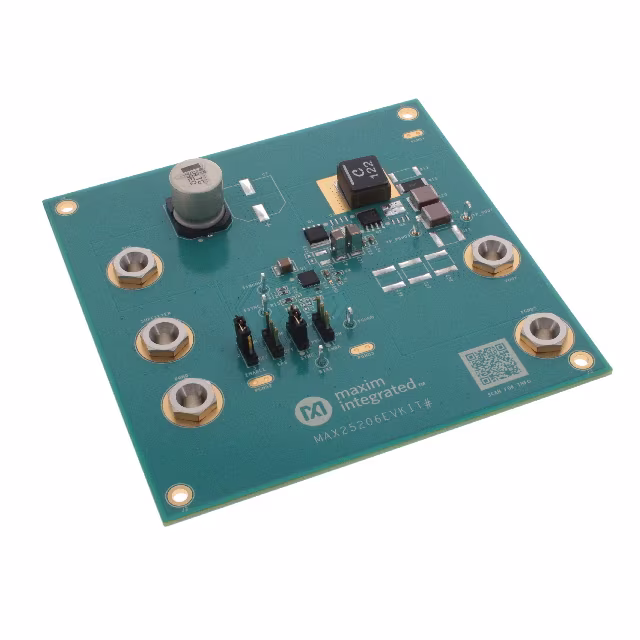

MAX25206EVKIT#EVAL BOARD FOR MAX25206 |
1,745 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 2.26 W | 0.7V ~ 20V, 3.3V, 5V | 20A | 3.5V ~ 60V | Buck | 2.2MHz | Board(s) | MAX25206 |
|
DFR08492-WAY FAST CHARGE BUCK MODULE (C |
3,311 | 5.90 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | 24 W | 3V ~ 12V | 3A | 6V ~ 32V | Buck | - | Board(s) | - |
|

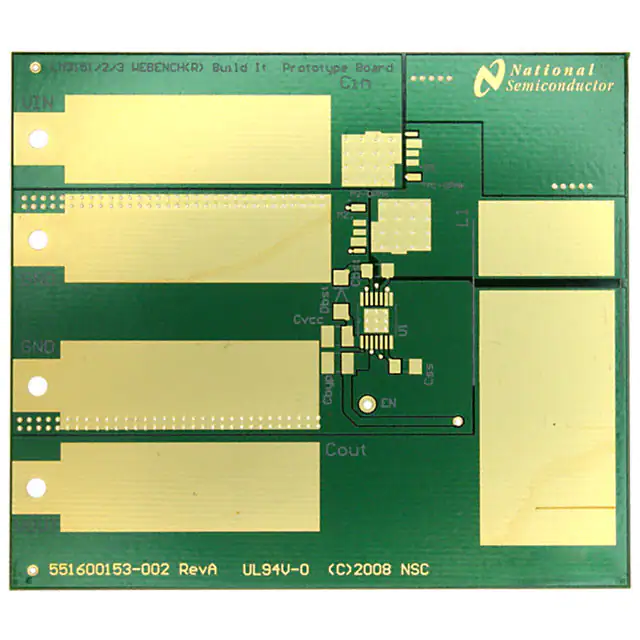

551600153-002/NOPBEVAL BOARD FOR LM3151/2/3 |
3,135 | 12.00 |
|
Datasheet |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | - | - | - | Unpopulated (Bare) Board(s) | LM3151/2/3 |
|

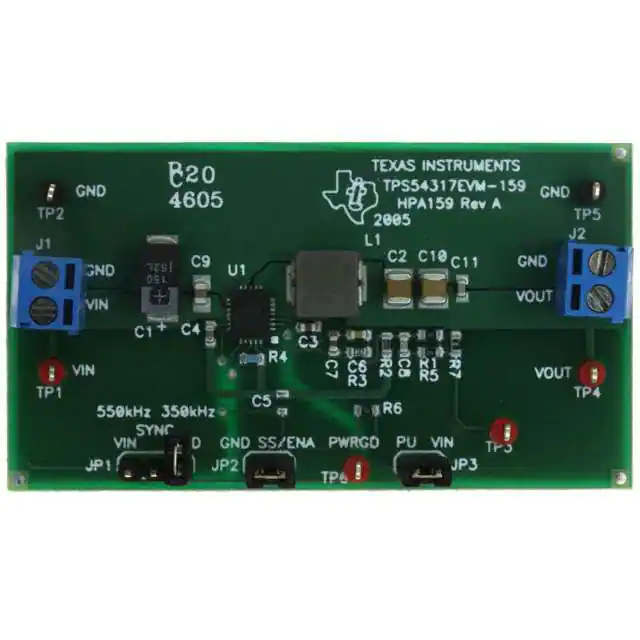

TPS54317EVM-159EVAL BOARD FOR TPS54317 |
4,851 | 12.00 |
|
Datasheet |
SWIFT™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 3.1V ~ 3.5V | Buck | 1.1MHz | Board(s) | TPS54317 |
|
551011367-031EVAL BOARD FOR LM2595 |
1,824 | 11.70 |
|
Datasheet |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LM2595 |
|
EVAL5987AEVAL BOARD FOR L5987 |
3,971 | 13.96 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.9V ~ 18V | Buck | - | Board(s) | L5987 |
|

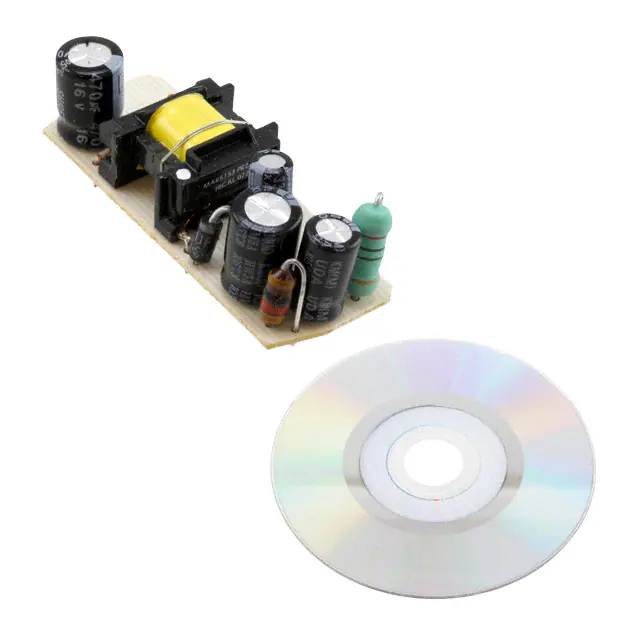

EVALTSM1052EVAL BOARD FOR TSM1052 VIPER12A |
2,766 | 13.96 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 3 W | 5.1V | 600mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | TSM1052, VIPer12A |
|

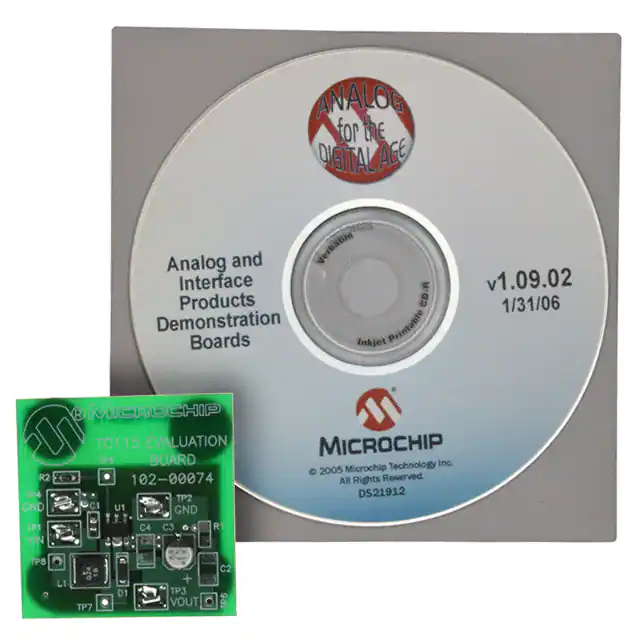

TC115EVEVAL BOARD FOR TC115 |
3,735 | 15.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3V | 110mA | 0.9V ~ 3V | Boost | 100kHz | Board(s) | TC115 |
|
STEVAL-1PS01AJREVAL BOARD FOR ST1PS01 |
3,299 | 19.95 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.9V ~ 2.8V | 400mA | 1.8V ~ 5.5V | Buck | - | Board(s) | ST1PS01 |
