DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

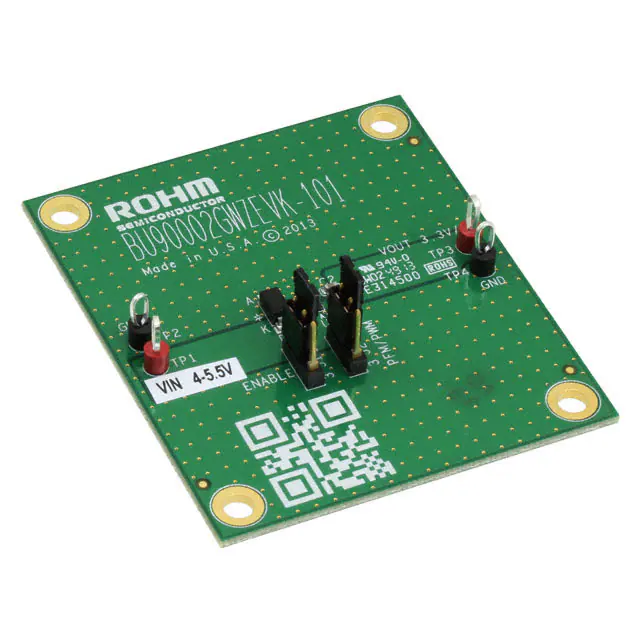

BU90002GWZ-EVK-101EVAL BOARD FOR BU90002 |
2,939 | 31.25 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4V ~ 5.5V | Buck | 6MHz | Board(s) | BU90002 |
|

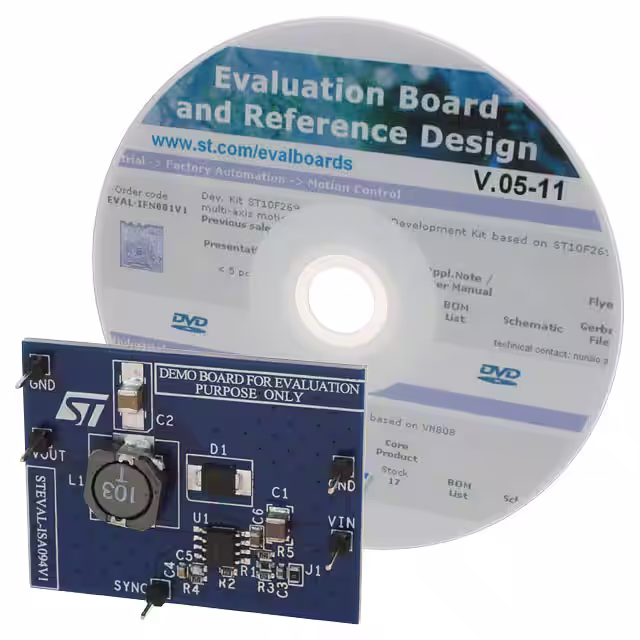

STEVAL-ISA094V1EVAL BOARD FOR L7981 |
2,722 | 31.25 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 28V | Buck | 250kHz | Board(s) | L7981 |
|

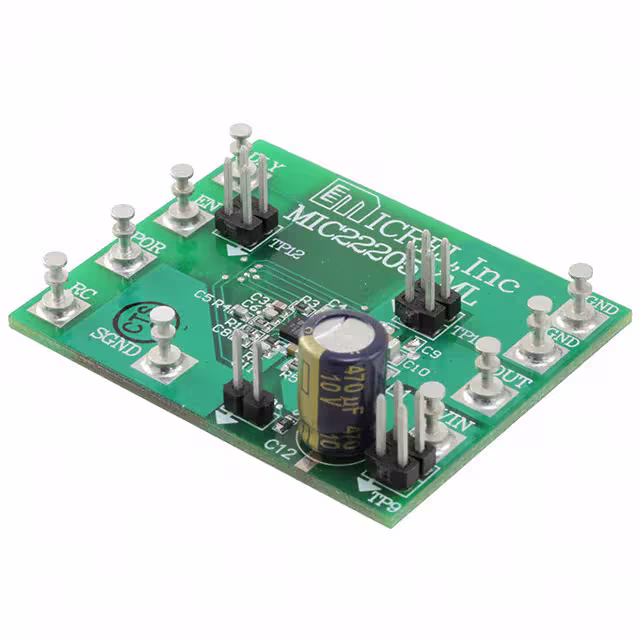

MIC22205YML-EVEVAL BOARD FOR MIC22205 |
1,157 | 31.99 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.9V ~ 5.5V | Buck | 1MHz | Board(s) | MIC22205 |
|

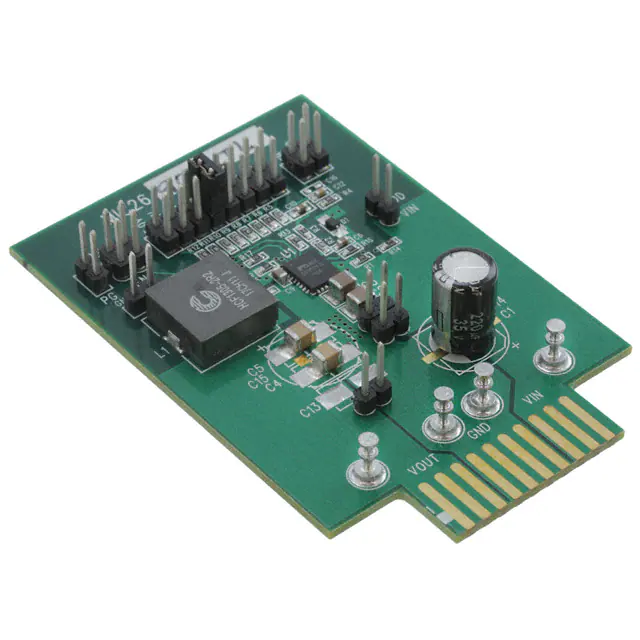

MIC26903YJL-EVEVAL BOARD FOR MIC26903 |
3,494 | 32.50 |
|
Datasheet |
HyperLight Load®, SuperSwitcher IIG™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 9A | 5.5V ~ 28V | Buck | 600kHz | Board(s) | MIC26903 |
|

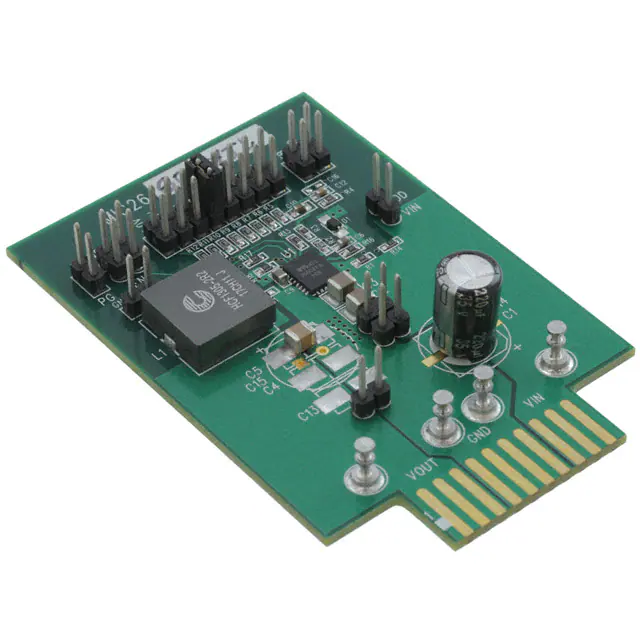

MIC26603YJL-EVEVAL BOARD FOR MIC26603 |
1,724 | 32.50 |
|
Datasheet |
HyperLight Load®, SuperSwitcher IIG™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 5V | Buck | 600kHz | Board(s) | MIC26603 |
|

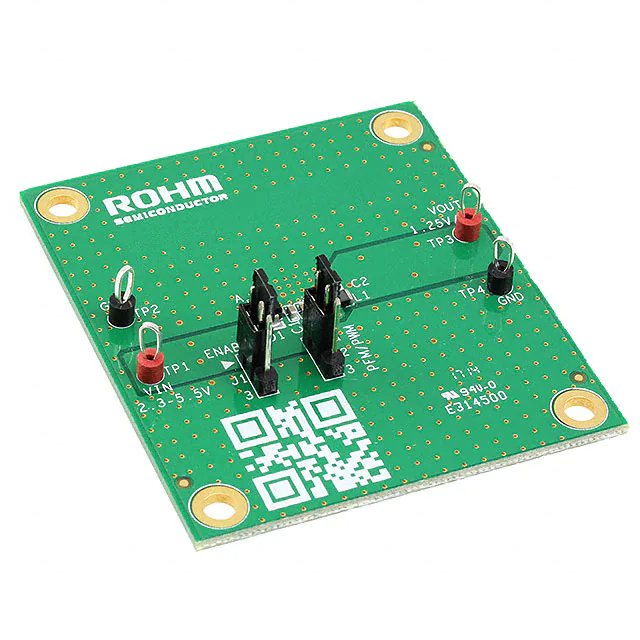

BU90007GWZ-E2EVK-101EVAL BOARD FOR BU90007 |
4,003 | 34.72 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V | 1A | 2.3V ~ 5.5V | Buck | 4MHz | Board(s) | BU90007 |
|

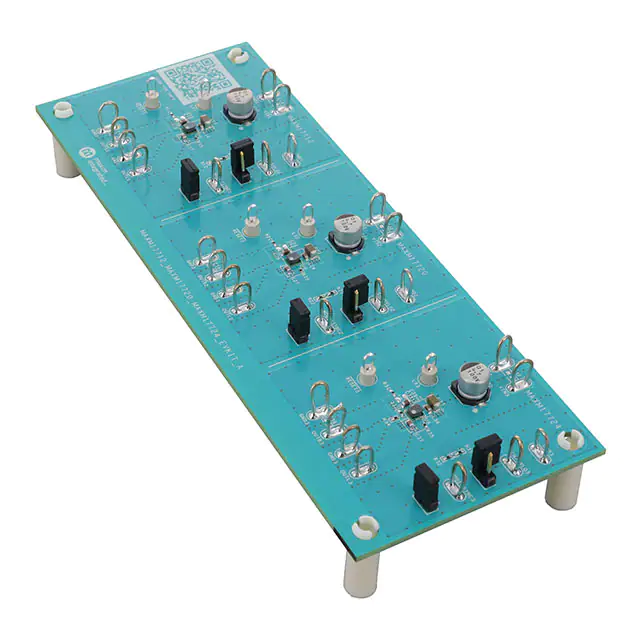

MAXM17712EVKIT#EVAL BOARD FOR MAXM17712 |
3,233 | 36.42 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | MAXM17712 |
|
RTKA210610DE0000BUEVAL BOARD FOR RAA210610 |
2,400 | 43.88 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 15A | 7V ~ 54V | Buck | 300kHz | Board(s) | RAA210610 |
|

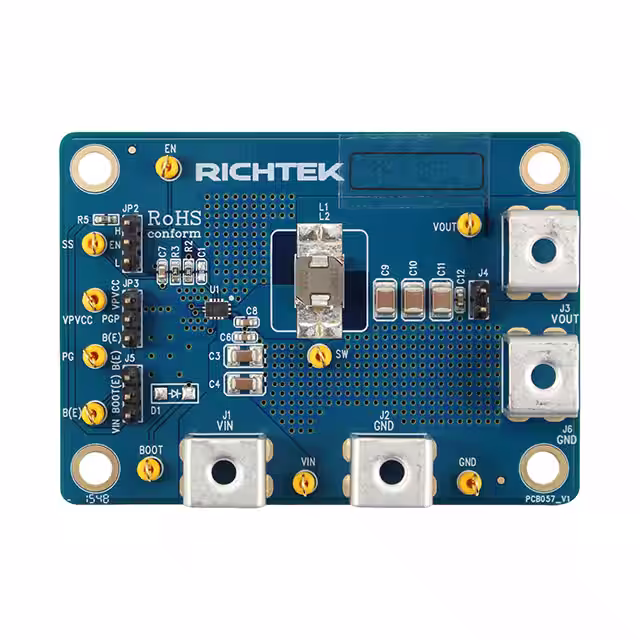

EVB_RT6236AHGQUFEVAL BOARD FOR RT6236A |
2,283 | 43.75 |
|
Datasheet |
ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | RT6236A |
|

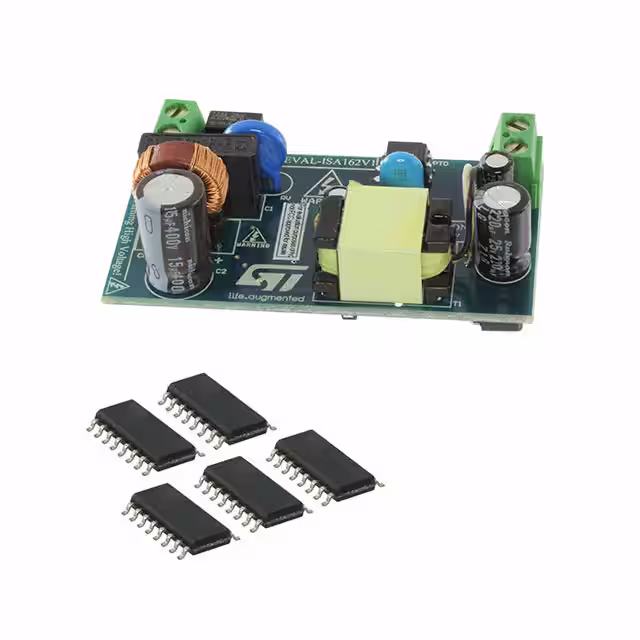

STEVAL-ISA162V1EVAL BOARD FOR VIPER25 |
4,882 | 45.00 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 12V | 840mA | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPer25 |
|
|
ATI2202EV1EVAL BOARD FOR ATI2202 |
1,176 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.75V ~ 18V | Buck | 340kHz | Board(s) | ATI2202 |
|
TC1303DM-DDBK2EVAL BOARD FOR TC1303 |
2,394 | 41.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 500mA, 300mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | TC1303 |
|
EVB-EP53A8HQIEVAL BOARD FOR EP53A8HQI |
4,030 | 49.00 |
|
Datasheet |
Enpirion® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.1V, 2.2V, 2.5V, 2.6V, 2.9V, 3V or 3.3V | 1A | 2.4V ~ 5.5V | Buck | 5MHz | Board(s) | EP53A8HQI |
|

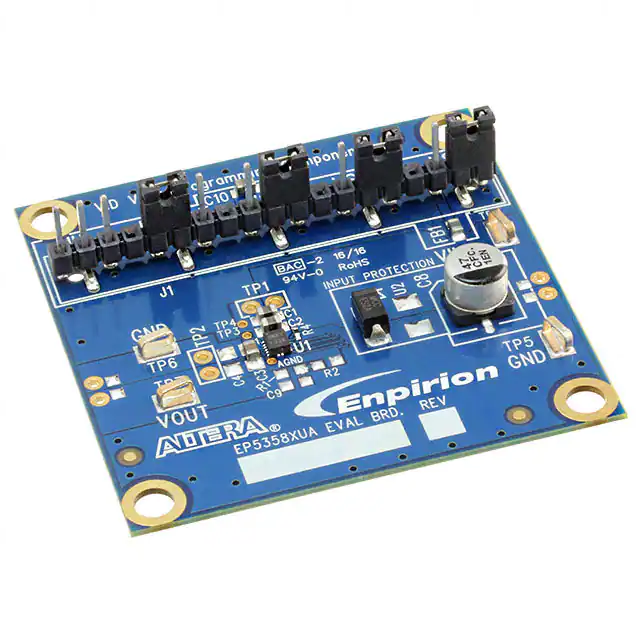

EVB-EP5358HUAEVAL BOARD FOR EP5358HUA |
4,885 | 49.00 |
|
Datasheet |
Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 600mA | 2.4V ~ 5.5V | Buck | 5MHz | Board(s) | EP5358HUA |
|
EVB-EP53A8HQAEVAL BOARD FOR EP53A8HQA |
1,729 | 49.00 |
|
Datasheet |
Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1A | 2.4V ~ 5.5V | Buck | 5MHz | Board(s) | EP53A8HQA |
|
STEVAL-SMACH15V1EVAL BOARD FOR STCH03 |
1,923 | 48.75 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | - | 5V | 3A | 90 ~ 265 VAC | Flyback | 167kHz | Board(s) | STCH03 |
|

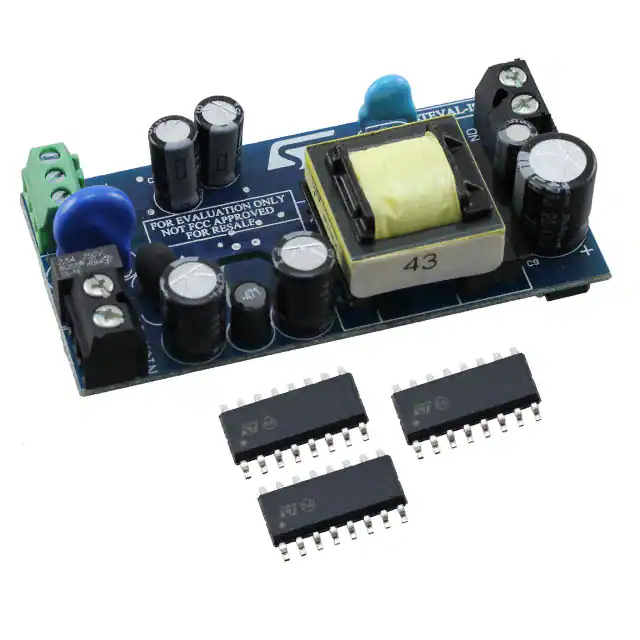

STEVAL-ISA183V1EVAL BOARD FOR VIPER35LD |
4,988 | 48.75 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output, 2 Non-Isolated Outputs | 16 W | 5V, 12V, 15V | 200mA, 200mA, 1A | 175 ~ 275 VAC | Flyback | 136kHz | Board(s) | VIPER35LD |
|

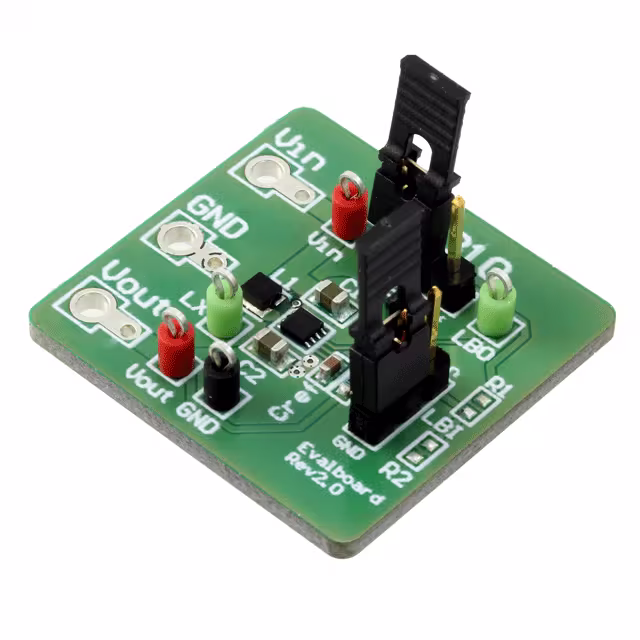

AS1310-25 EBEVAL BOARD FOR AS1310 |
3,916 | 48.75 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.5V | 60mA | 0.7V ~ 3.6V | Boost | - | Board(s) | AS1310 |
|
AS1310-TD-33_EK_STEVAL BOARD FOR AS1310 |
1,755 | 60.45 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 60mA | 0.7V ~ 3.6V | Boost | - | Board(s) | AS1310 |
|

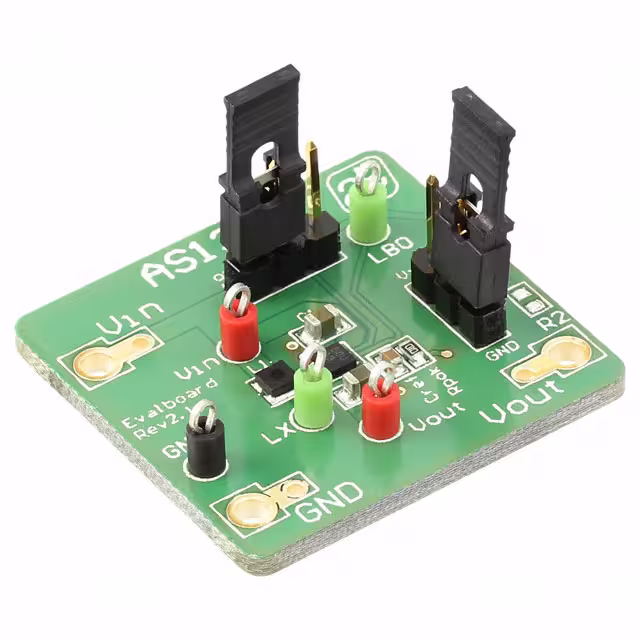

AS1310-TD-30_EK_STEVAL BOARD FOR AS1310 |
2,686 | 60.45 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3V | 60mA | 0.7V ~ 3.6V | Boost | - | Board(s) | AS1310 |
