DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

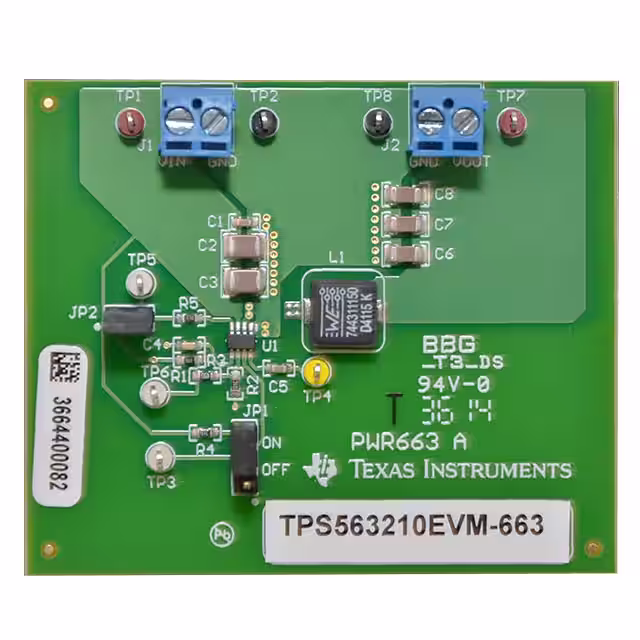

TPS563210EVM-663EVAL BOARD FOR TPS563210 |
4,025 | 58.80 |
|
Datasheet |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 17V | Buck | - | Board(s) | TPS563210 |
|

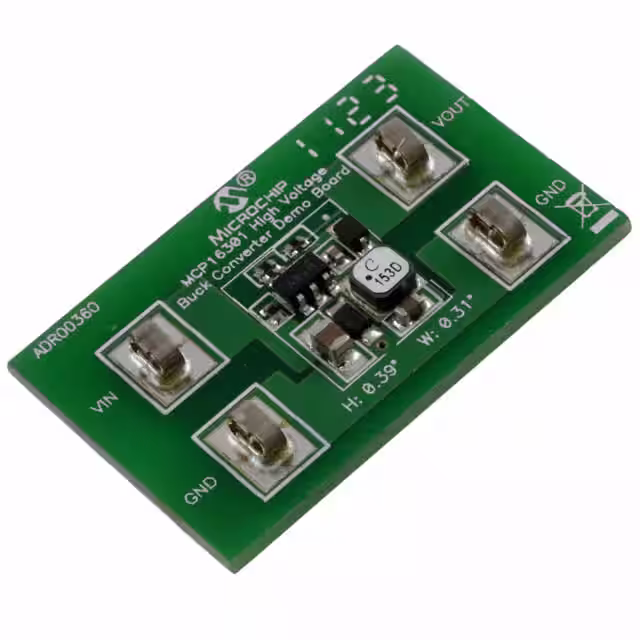

ADM00360EVAL BOARD FOR MCP16301 |
4,183 | 33.65 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4V ~ 26V | Buck | 500kHz | Board(s) | MCP16301 |
|

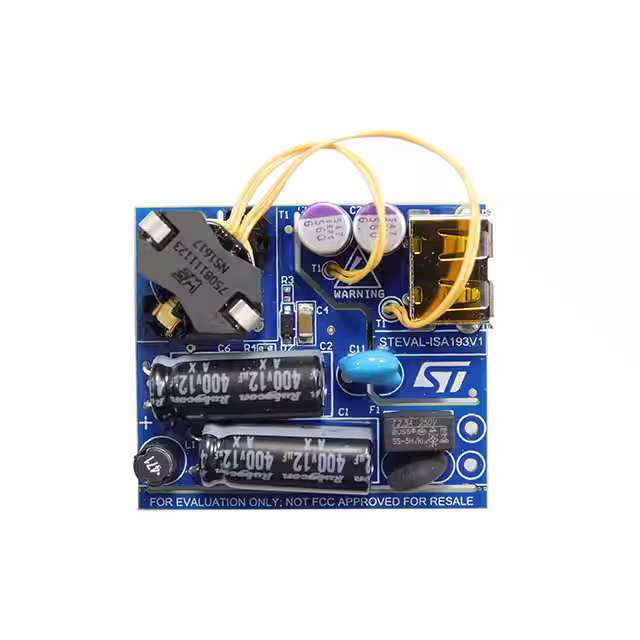

STEVAL-ISA193V1EVAL BOARD FOR STCH02 |
1,663 | 50.00 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | Flyback | - | Board(s) | STCH02 |
|
EVQ2179-LE-00AEVAL BOARD FOR MPQ2179AEC1 |
2,142 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.5V ~ 5.5V | Buck | 2.4MHz | Board(s) | MPQ2179-AEC1 |
|
EVBL4420H-J-00AEVAL BOARD FOR MP4420H MPQ4420H |
3,352 | 50.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4V ~ 36V | Buck | 410kHz | Board(s) | MP4420H, MPQ4420H |
|
|
EVQ4321-D-00AEVAL BOARD FOR MPQ4321AEC1 |
3,690 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 3.3V ~ 36V | Buck | 2.2MHz | Board(s) | MPQ4321-AEC1 |
|
EVBL4415A-QB-00AEVAL BOARD FOR MP4415A MPQ4415A |
3,108 | 50.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 36V | Buck | 2.2MHz | Board(s) | MP4415A, MPQ4415A |
|

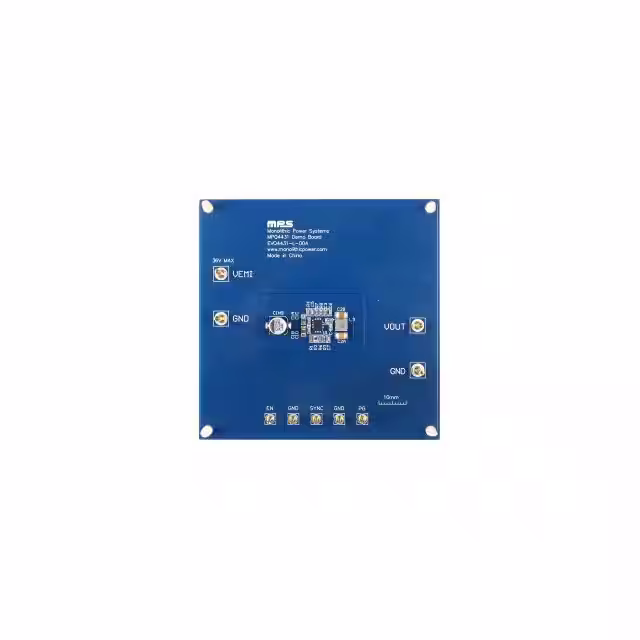

EVQ4431-L-00AEVAL BOARD FOR MP4431 MPQ4431 |
1,862 | 50.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3.3V ~ 36V | Buck | 450kHz | Board(s) | MP4431, MPQ4431 |
|

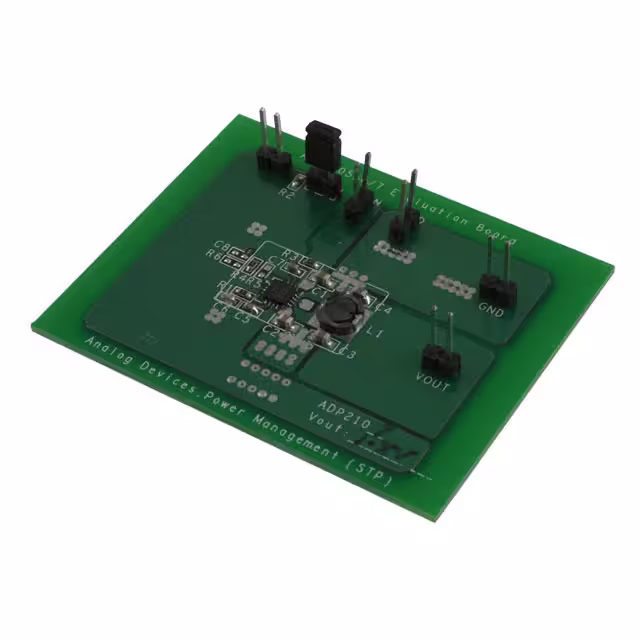

ADP2107-1.8-EVALEVAL BOARD FOR ADP2107 |
3,860 | 61.20 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 1.2MHz | Board(s) | ADP2107 |
|

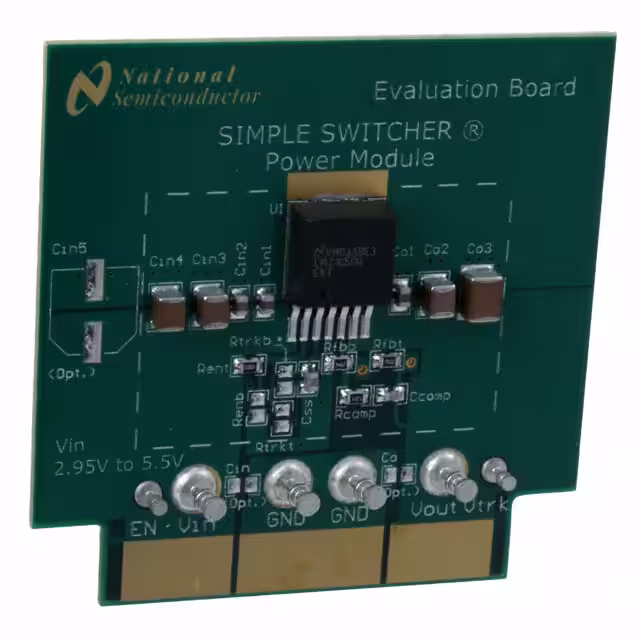

LMZ10504EXTEVAL/NOPBEVAL BOARD FOR LMZ10504EXT |
2,755 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 4A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10504EXT |
|

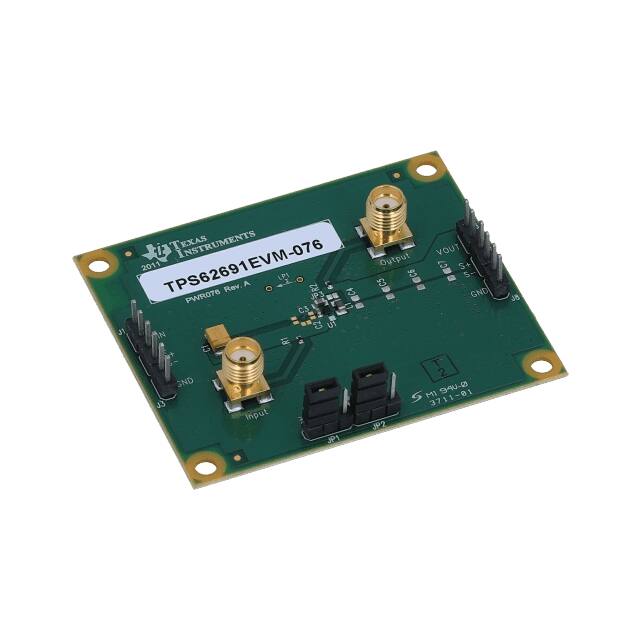

TPS62691EVM-076EVAL BOARD FOR TPS62691 |
1,812 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.2V | 600mA | 2.3V ~ 4.8V | Buck | 4MHz | Board(s) | TPS62691 |
|
TPS65276EVMEVAL BOARD FOR TPS65276 |
3,393 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 6A, 3.5A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65276 |
|

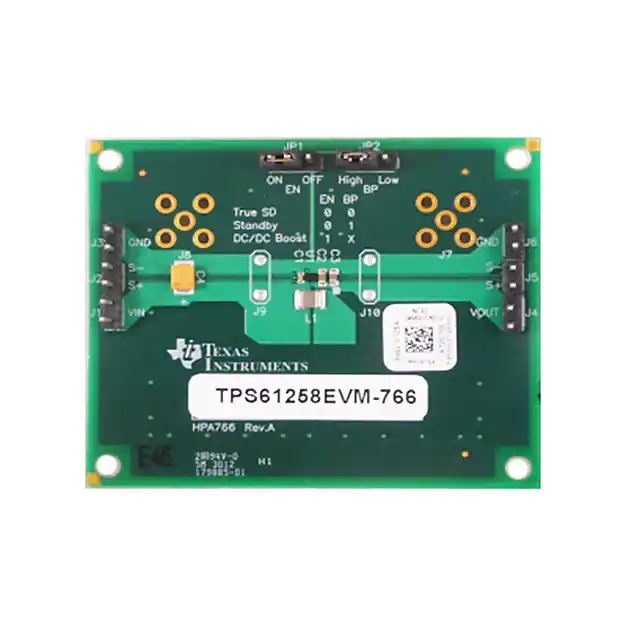

TPS61258EVM-766EVAL BOARD FOR TPS61258 |
4,286 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 4.5V | - | 2.65V ~ 4.35V | Boost | 3.5MHz | Board(s) | TPS61258 |
|

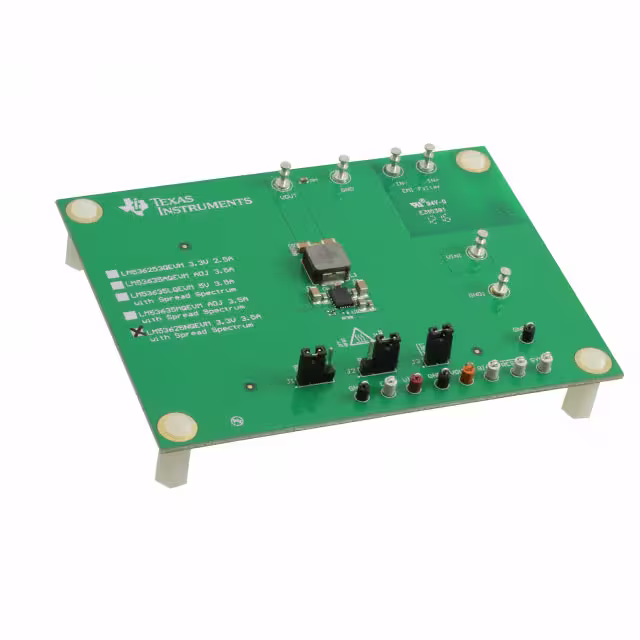

LM53635NQEVMEVAL BOARD FOR LM53635NQ1 |
4,234 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3.5A | 3.8V ~ 36V | Buck | - | Board(s) | LM53635N-Q1 |
|
TPS622312EVM-574EVAL BOARD TPS622312 TPS622313 |
1,752 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.3V, 1.5V, 2V | 500mA, 500mA, 500mA | 2.05V ~ 6V | Buck | 3MHz | Board(s) | TPS622312, TPS622313, TPS622314 |
|

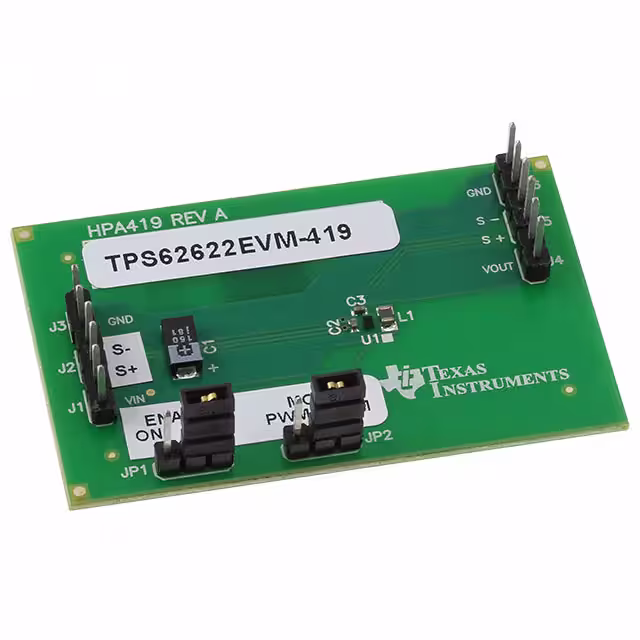

TPS62622EVM-419EVAL BOARD FOR TPS62622 |
4,897 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | TPS62622 |
|

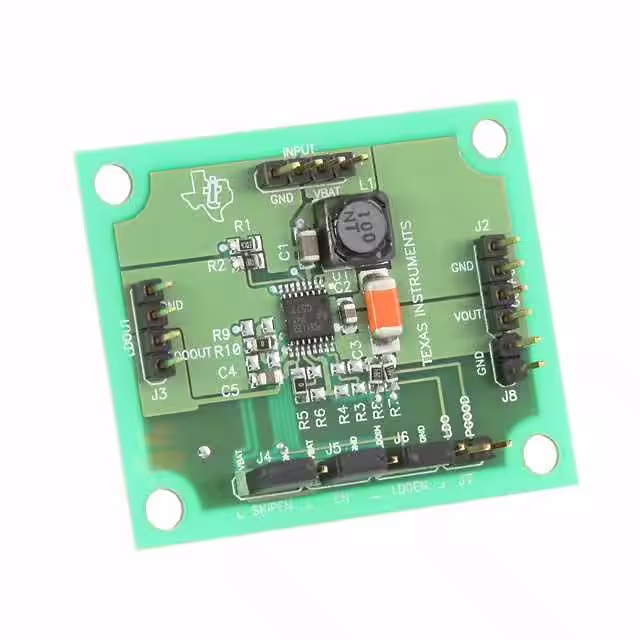

TPS61122EVM-205EVAL BOARD FOR TPS61122 |
4,181 | 64.87 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 3.3V, 3.6V | 250mA, 200mA | 1.8V ~ 5.5V | Boost | - | Board(s) | TPS61122 |
|

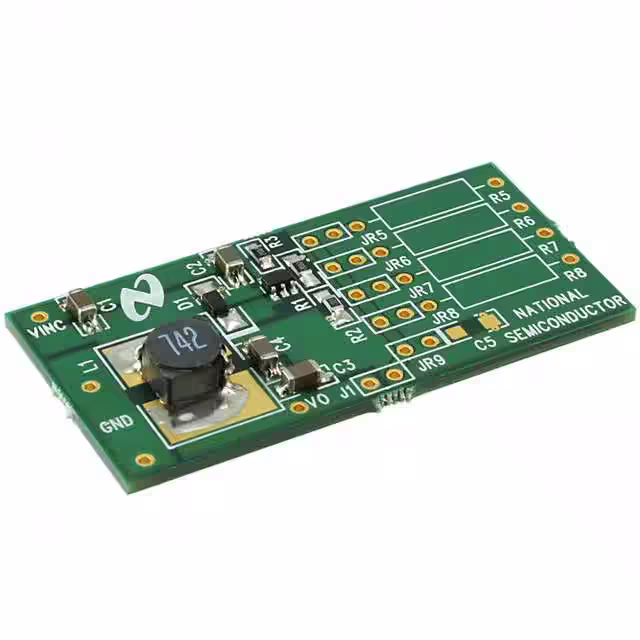

LM2831YMF EVALEVAL BOARD FOR LM2831 |
2,649 | 64.87 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 1.5A | 3V ~ 5.5V | Buck | 550kHz | Board(s) | LM2831 |
|

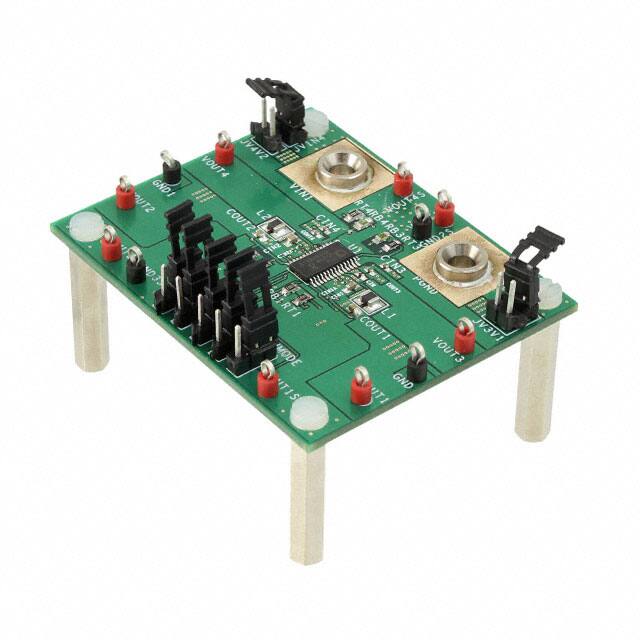

ADP5034RE-EVALZEVAL BOARD FOR ADP5034 |
3,107 | 52.42 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1.2A, 1.2A, 300mA, 300mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5034 |
|

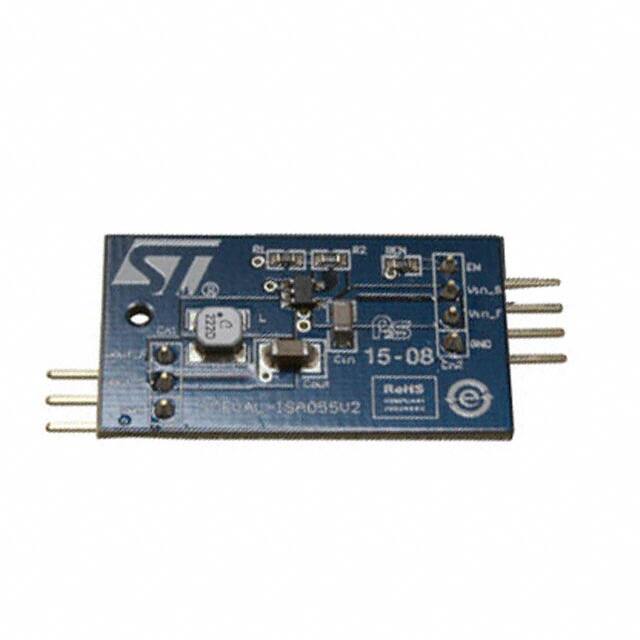

STEVAL-ISA055V2EVAL BOARD FOR ST1S12 |
3,704 | 52.50 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 700mA | 2.5V ~ 5.5V | Buck | 1.7MHz | Board(s) | ST1S12 |
