DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLS412533VBOARDTOBO1EVAL BOARD FOR TLS4125D0EPV33 |
3,370 | 55.00 |
|
Datasheet |
OPTIREG™ | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 3.7V ~ 35V | Buck | - | Board(s) | TLS4125D0EPV33 |
|

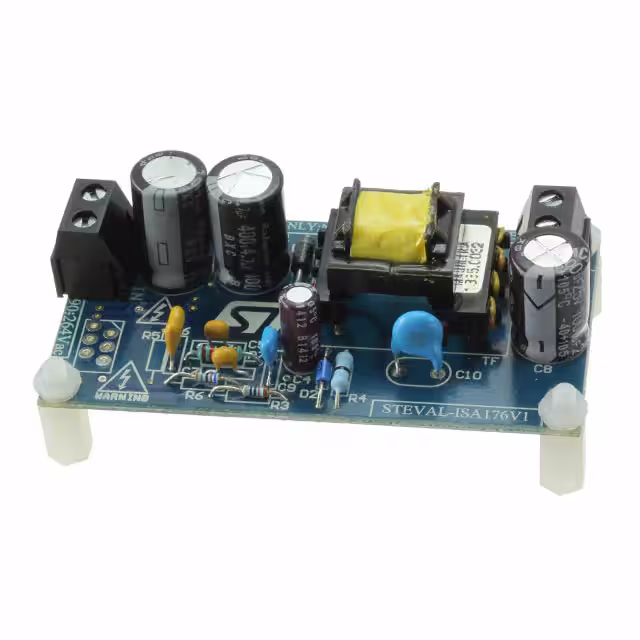

STEVAL-ISA176V1EVAL BOARD FOR ALTAIR05T800 |
4,198 | 56.25 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 90 ~ 264 VAC | Flyback | - | Board(s) | ALTAIR05T-800 |
|

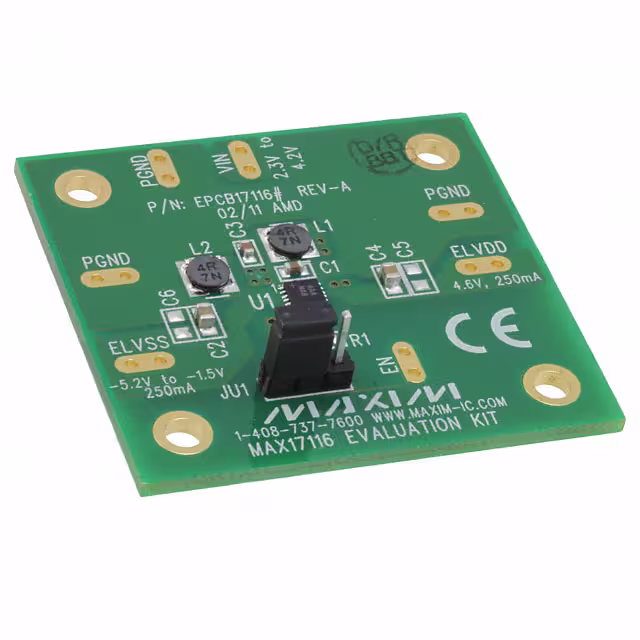

MAX17116EVKIT#EVAL BOARD FOR MAX17116 |
2,647 | 74.40 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Active Matrix OLED | 2 Non-Isolated Outputs | - | 4.6V, -1.5V ~ -5.4V | 250mA, 250mA | 2.3V ~ 4.2V | Boost, Inverting | 1.4MHz | Board(s) | MAX17116 |
|

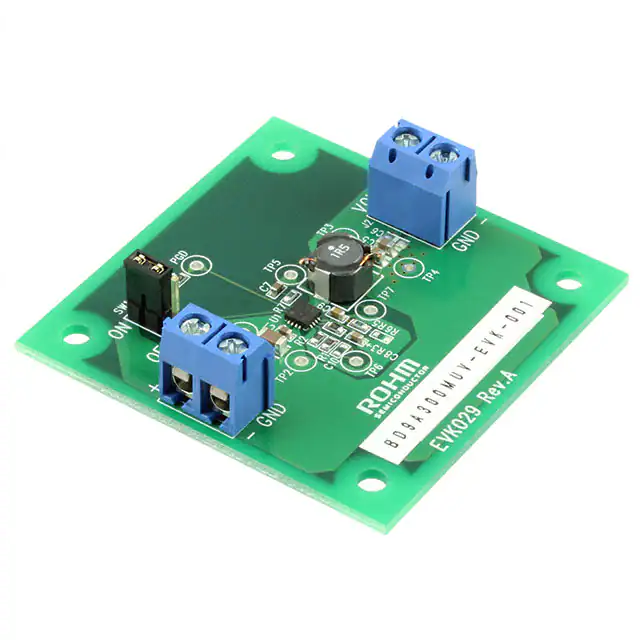

BD9A300MUV-EVK-001EVAL BOARD FOR BD9A300 |
2,174 | 57.89 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | BD9A300 |
|

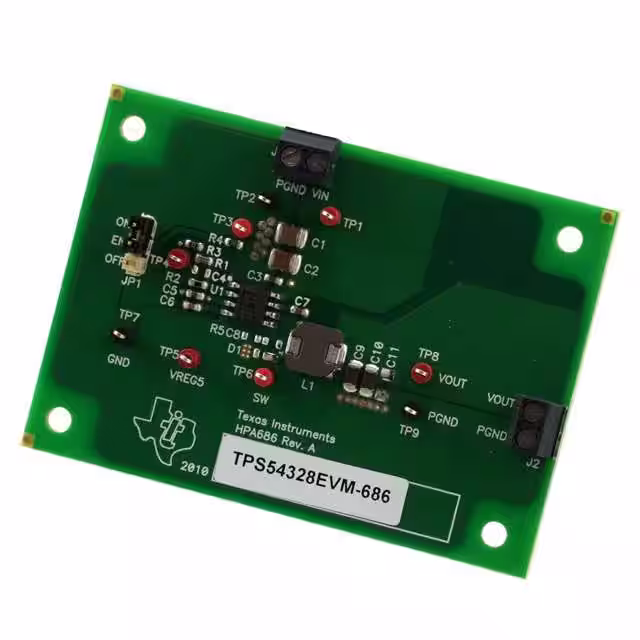

TPS54328EVM-686EVAL BOARD FOR TPS54328 |
3,032 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 675kHz | Board(s) | TPS54328 |
|

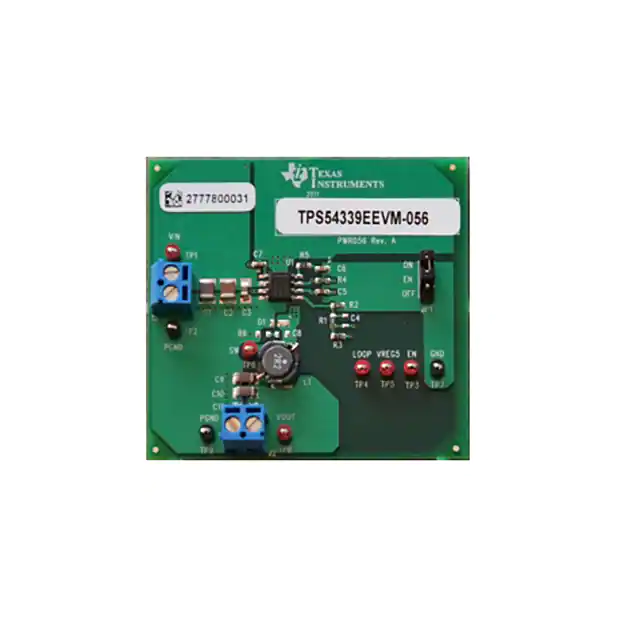

TPS54339EEVM-056EVAL BOARD FOR TPS54339E |
2,105 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 23V | Buck | 600kHz | Board(s) | TPS54339E |
|
TPS62220EVM-014EVAL BOARD FOR TPS62220 |
3,763 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 400mA | 2.5V ~ 6V | Buck | 1.25MHz | Board(s) | TPS62220 |
|

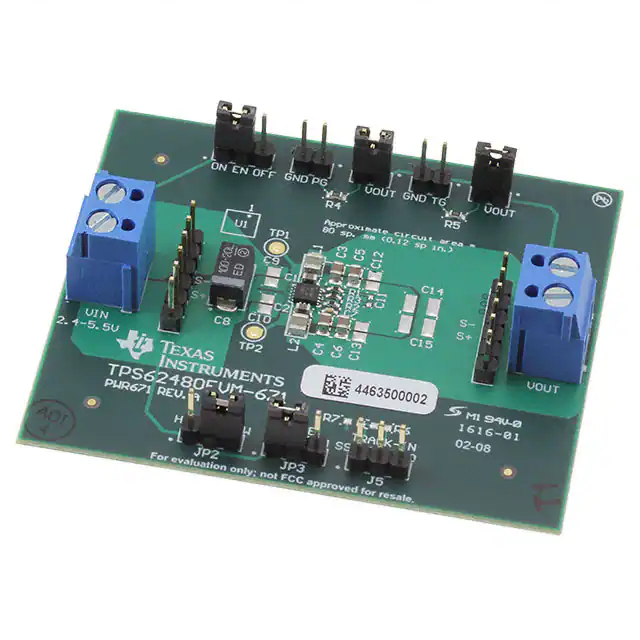

TPS62480EVM-671EVAL BOARD FOR TPS62480 |
3,293 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V or 2.5V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPS62480 |
|

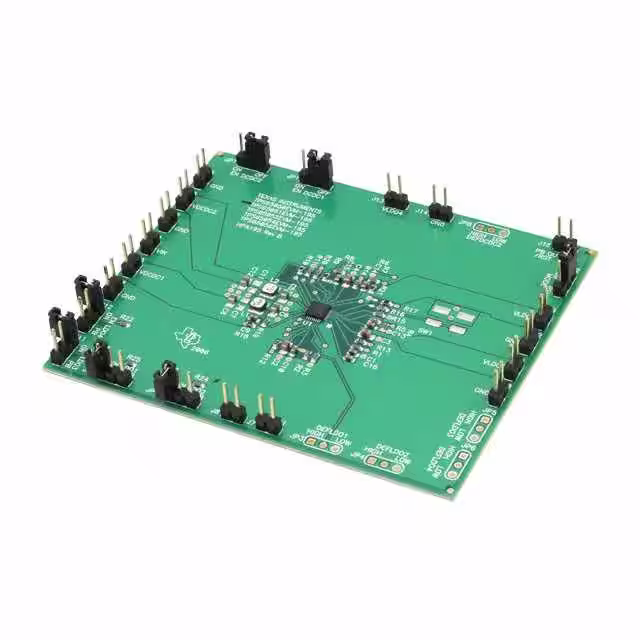

TPS65051EVM-195EVAL BOARD FOR TPS65051 |
3,616 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | 1.2V, 1.2V, 1.6V, 3.3V, 3.3V, 3.3V | 1A, 600mA, 400mA, 400mA, 200mA, 200mA | 2.5V ~ 6V | Buck | 2.25MHz | Board(s) | TPS65051 |
|
TPS60151EVM-359EVAL BOARD FOR TPS60151 |
1,143 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 140mA | 2.7V ~ 5.5V | Boost | 1.5MHz | Board(s) | TPS60151 |
|

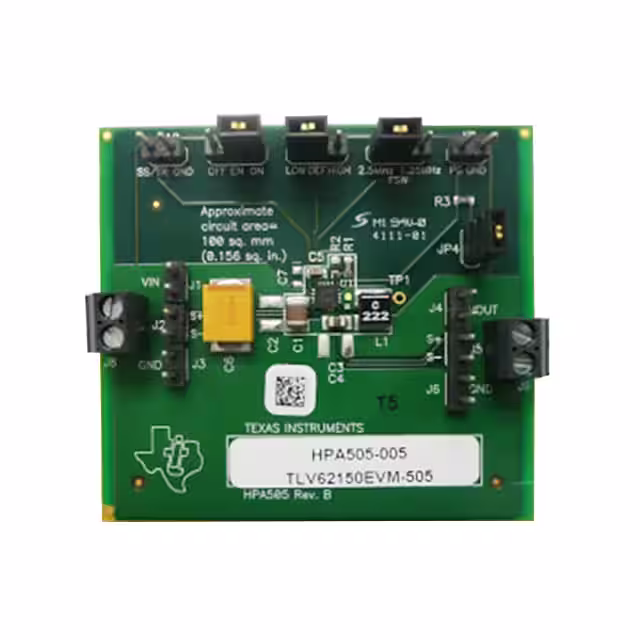

TLV62150EVM-505EVAL BOARD FOR TLV62150 |
1,864 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4V ~ 17V | Buck | 1.25MHz, 2.5MHz | Board(s) | TLV62150 |
|
LM53600NAEVMEVAL BOARD FOR LM53600Q1 |
4,893 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 650mA | 3.8V ~ 36V | Buck | 2.1MHz | Board(s) | LM53600-Q1 |
|

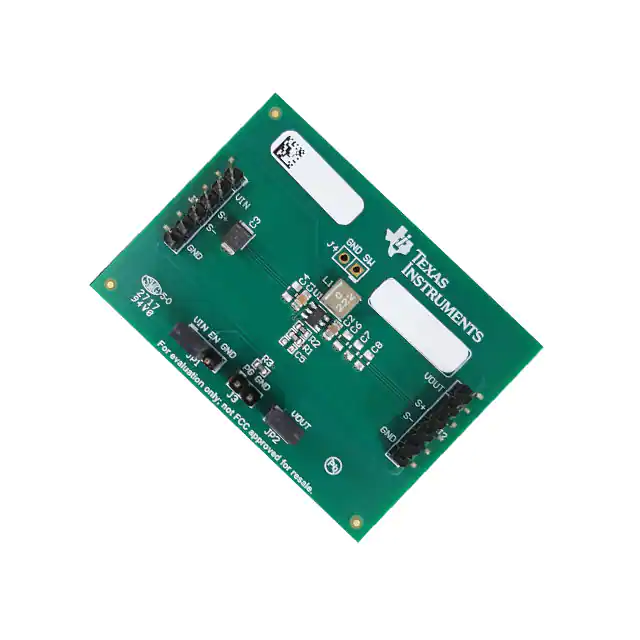

TLV62569PEVM-884EVAL BOARD FOR TLV62569P |
1,872 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | TLV62569P |
|

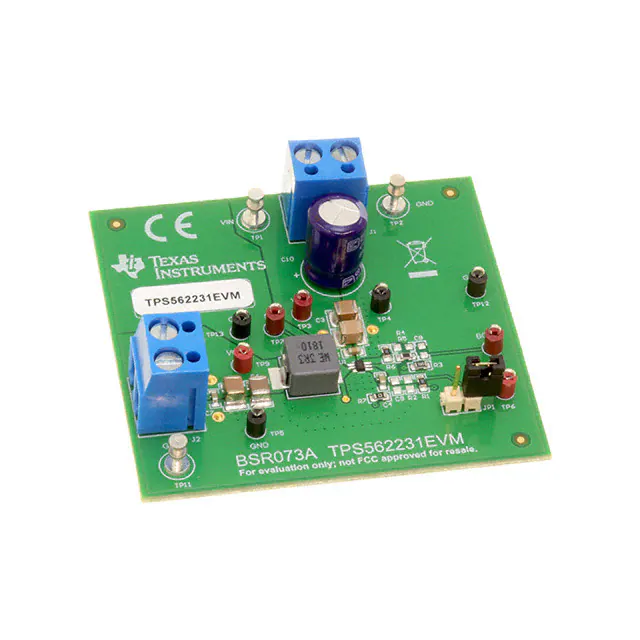

TPS562231EVMEVAL BOARD FOR TPS562231 |
1,684 | 58.80 |
|
Datasheet |
D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 17V | Buck | 850kHz | Board(s) | TPS562231 |
|

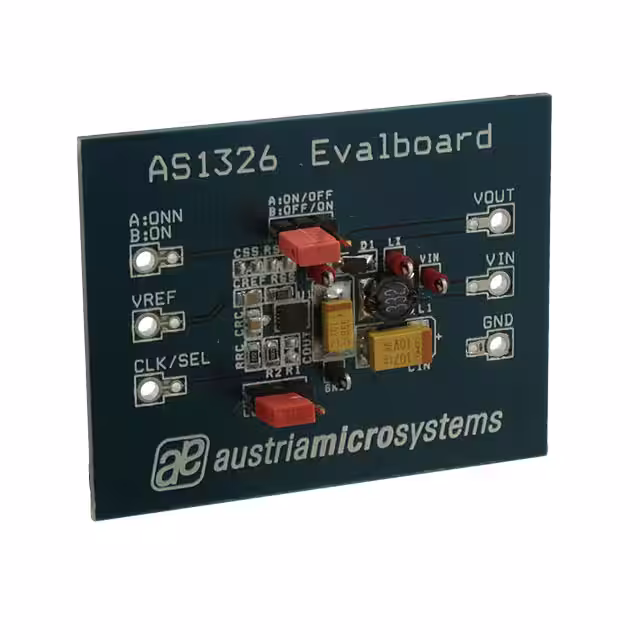

AS1326A-TD_EK_STEVAL BOARD FOR AS1326 |
4,176 | 58.75 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 800mA | 0.7V ~ 5V | Boost | 1MHz | Board(s) | AS1326 |
|
EVB_RT6158HWSCEVAL BOARD FOR RT6158H |
4,490 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.1V ~ 5.2V | 3A | 2.5V ~ 5.5V | Buck | 1.2MHz | Board(s) | RT6158H |
|
|
EVB_RT5760AHGH6FEVAL BOARD FOR RT5760A |
1,634 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 1A | 2.5V ~ 6V | Buck | 2.2MHz | Board(s) | RT5760A |
|
|
EVB_RTQ2822AGQVFEVAL BOARD FOR RTQ2822A |
4,413 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 12A | 4.5V ~ 17V | Buck | 800kHz | Board(s) | RTQ2822A |
|
|
EVB_RTQ2823AGQVFEVAL BOARD FOR RTQ2823A |
4,430 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 8A | 4.5V ~ 17V | Buck | 800kHz | Board(s) | RTQ2823A |
|
|
EVB_RTQ6365GQWEVAL BOARD FOR RTQ6365 |
2,836 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 8V ~ 60V | Buck | 400kHz | Board(s) | RTQ6365 |
