DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

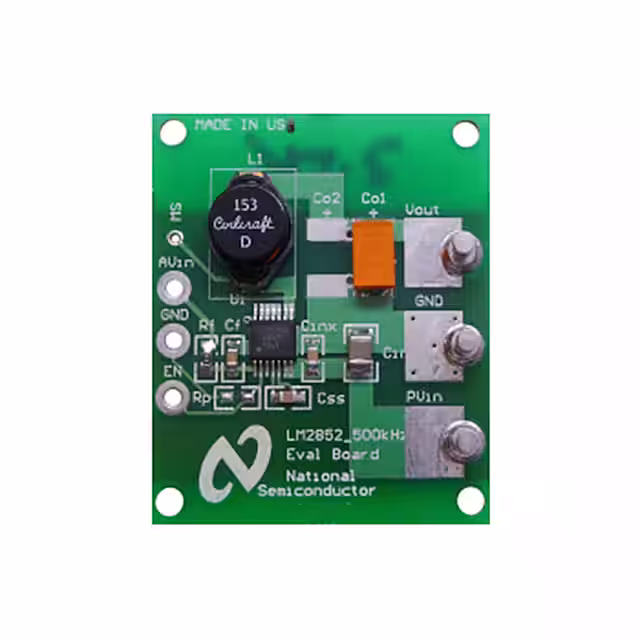

LM2852Y-3.3EVALEVAL BOARD FOR LM2852 |
1,804 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 2.85V ~ 5.5V | Buck | 500kHz | Board(s) | LM2852 |
|

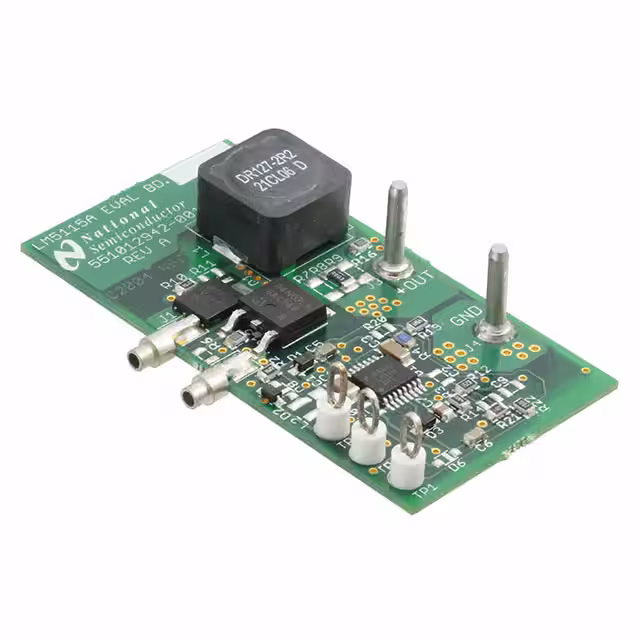

LM5115AEVALEVAL BOARD FOR LM5115A |
2,966 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 9A | 4.5V ~ 30V | Buck | - | Board(s) | LM5115A |
|

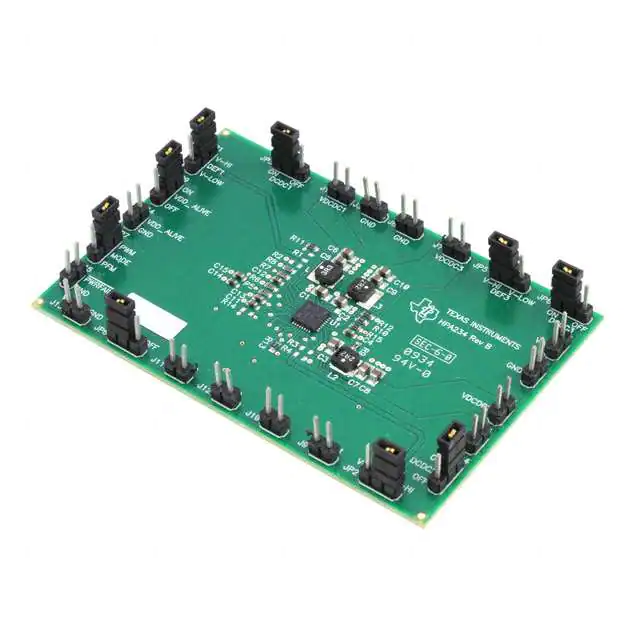

TPS650241EVM-234EVAL BOARD FOR TPS650241 |
4,421 | 57.33 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | 1.2V, 1.375V, 1.5V, 1.5V, 2.5V, 3.3V | 1.6A, 1A, 800mA, 200mA, 200mA, 30mA | 3V ~ 5.5V | Buck | 2.25MHz | Board(s) | TPS650241 |
|

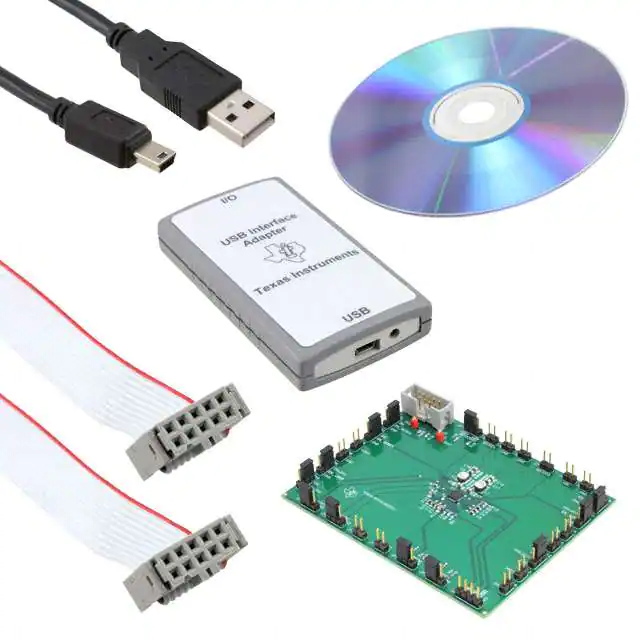

TPS65055EVM-258EVAL BOARD FOR TPS65055 |
4,207 | 57.33 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | - | 600mA, 600mA, 400mA, 400mA, 200mA, 200mA | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | TPS65055 |
|

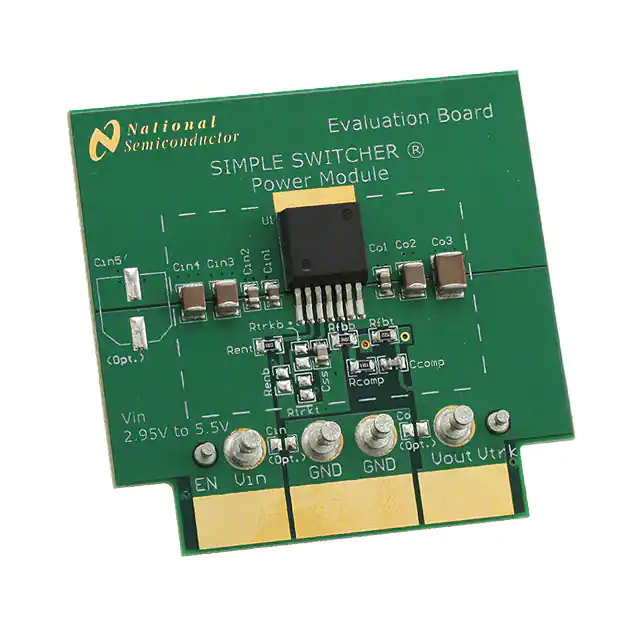

LMZ10505EXTEVAL/NOPBEVAL BOARD FOR LMZ10505EXT |
2,773 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10505EXT |
|

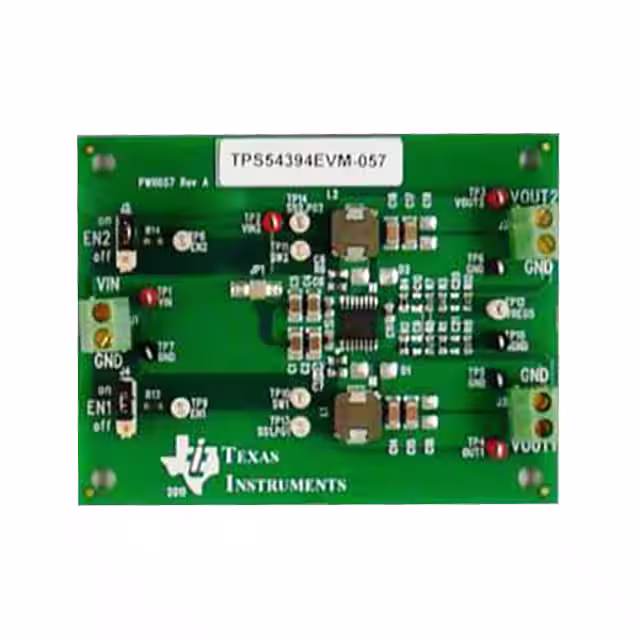

TPS54394EVM-057EVAL BOARD FOR TPS54394 |
4,244 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 3A, 3A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS54394 |
|
XRP7708EVBEVAL BOARD FOR XRP7708 |
2,645 | 77.50 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | XRP7708 |
|
TS3300DBEVAL BOARD FOR TS3300 |
1,967 | 61.25 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | DC/DC, Step Up | 1 Non-Isolated Output | - | 3V | - | 0.6V ~ 3V | Boost | - | Board(s) | TS3300 |
|

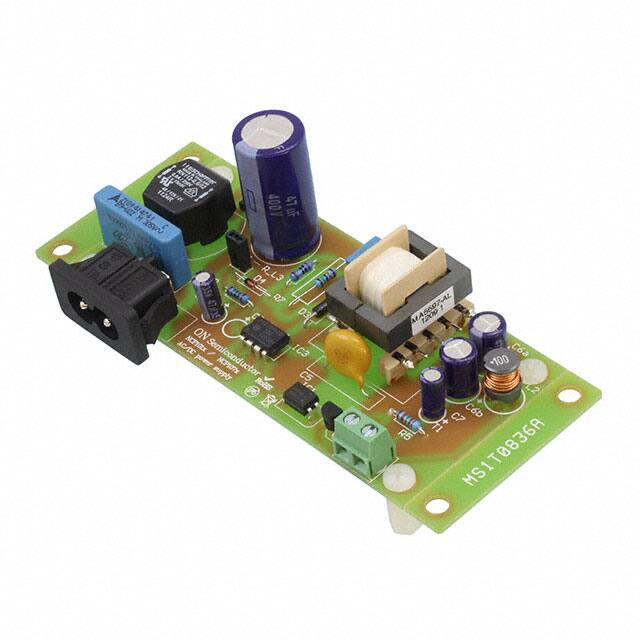

NCP1072DIPGEVBEVAL BOARD FOR NCP1072 |
3,900 | 62.50 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 6 W | 12V | 500mA | 50 ~ 265 VAC | Flyback | 100kHz | Board(s) | NCP1072 |
|

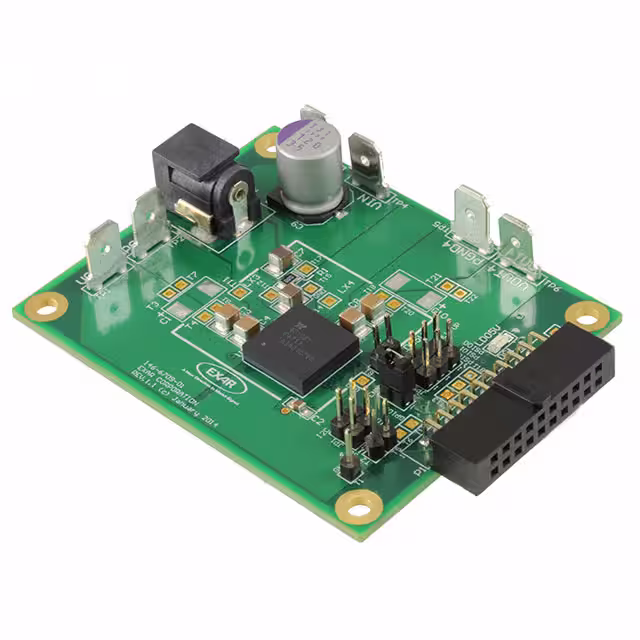

XRP9710EVB-DEMO-1EVAL BOARD FOR XRP9710 |
4,897 | 62.50 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 6A, 6A | 5.5V ~ 22V | Buck | - | Board(s) | XRP9710 |
|
STEVAL-ISA192V1EVAL BOARD FOR VIPER0P |
1,617 | 62.50 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 7 W | 7V, -5V | 800mA, 400mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer0P |
|

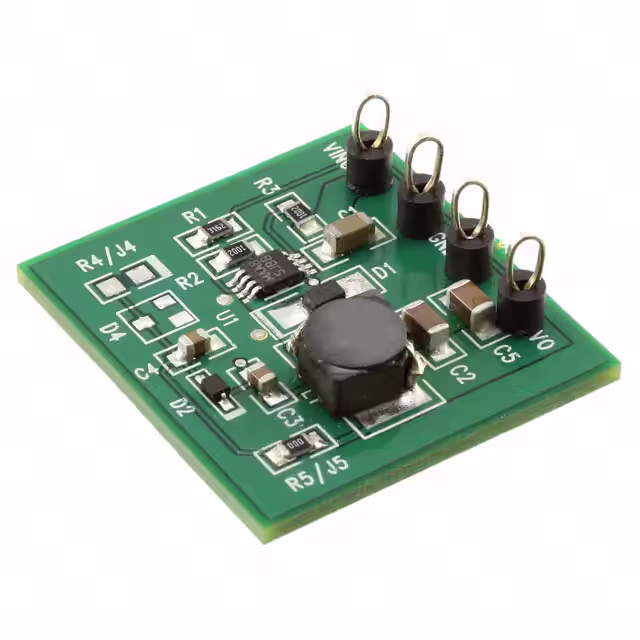

LM2738YMYEVALEVAL BOARD FOR LM2738 |
3,135 | 59.67 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 3V ~ 20V | Buck | 550kHz | Board(s) | LM2738 |
|

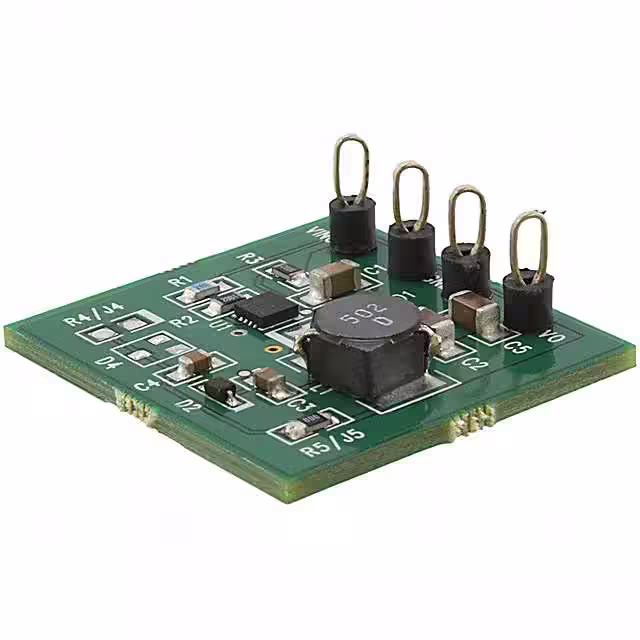

LM2738XSDEVALEVAL BOARD FOR LM2738 |
2,757 | 59.90 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 3V ~ 20V | Buck | 1.6MHz | Board(s) | LM2738 |
|

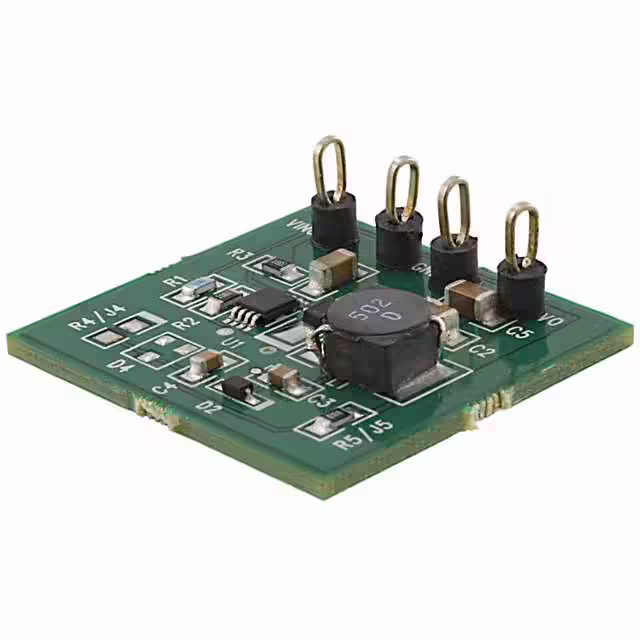

LM2738XMYEVALEVAL BOARD FOR LM2738 |
1,768 | 59.90 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 3V ~ 20V | Buck | 1.6MHz | Board(s) | LM2738 |
|

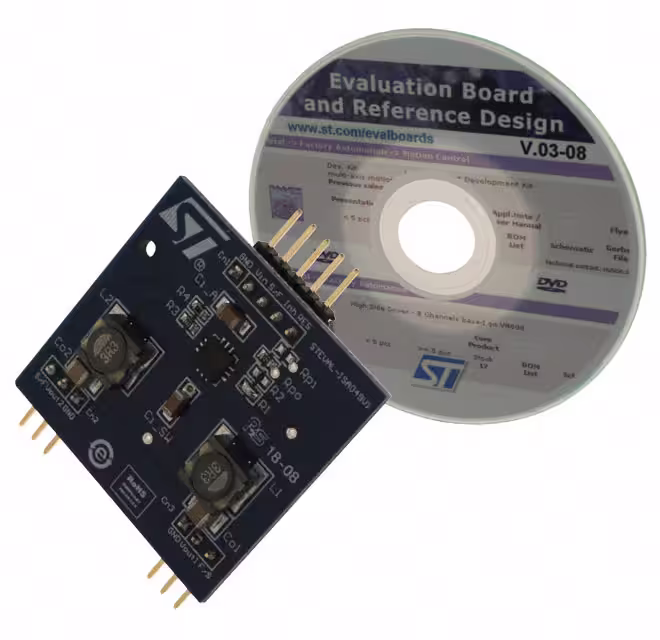

STEVAL-ISA049V1EVAL BOARD FOR ST2S06A |
4,142 | 64.31 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 500mA | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST2S06A |
|

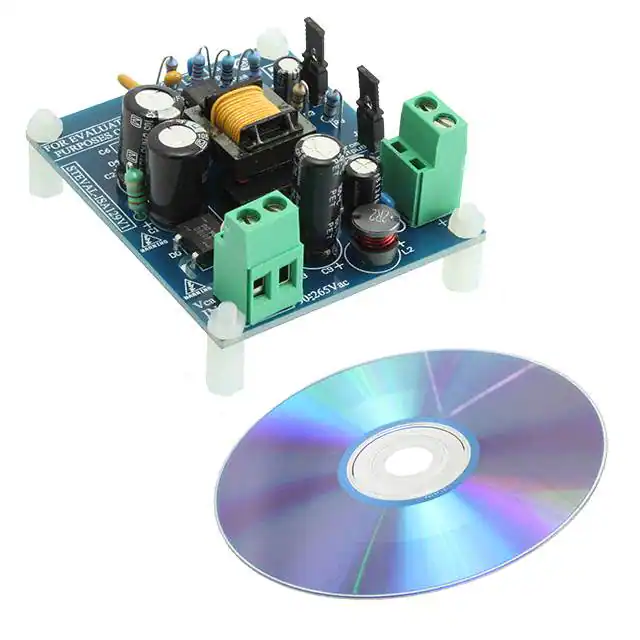

STEVAL-ISA129V1EVAL BOARD FOR VIPER16 |
1,585 | 65.00 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | - | 16V | 280mA | 90 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer16 |
|

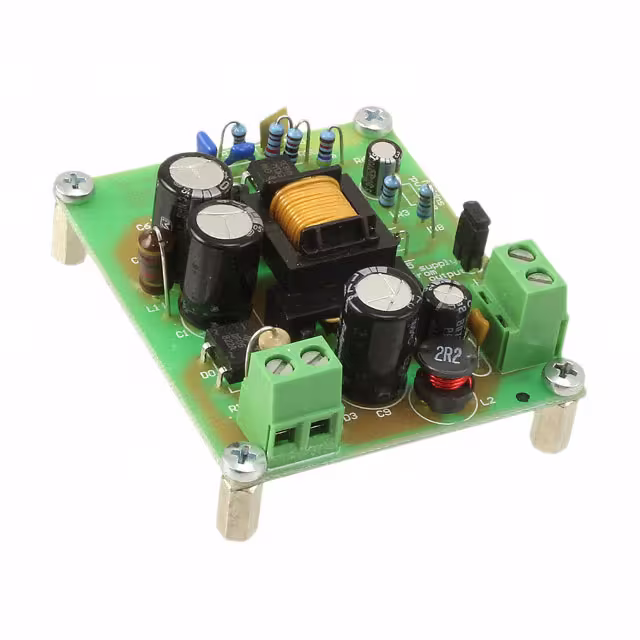

EVLVIP16L-4WFNEVAL BOARD FOR VIPER16 |
4,234 | 65.62 |
|
Datasheet |
VIPer™ plus | Box | Obsolete | AC/DC, Primary Side | 1 Non-Isolated Output | 4 W | 16V | 250mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer16 |
|
MAX5066EVKITEVAL BOARD FOR MAX5066 |
1,783 | 67.61 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V, 1.3V | 10A, 10A | 5V ~ 16V | Buck | 500kHz | Board(s) | MAX5066 |
|
EVB-ER6230QIEVAL BOARD FOR ER6230QI |
2,137 | 69.00 |
|
Datasheet |
Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 3A | 2.7V ~ 6.6V | Buck | 1.9MHz | Board(s) | ER6230QI |
|

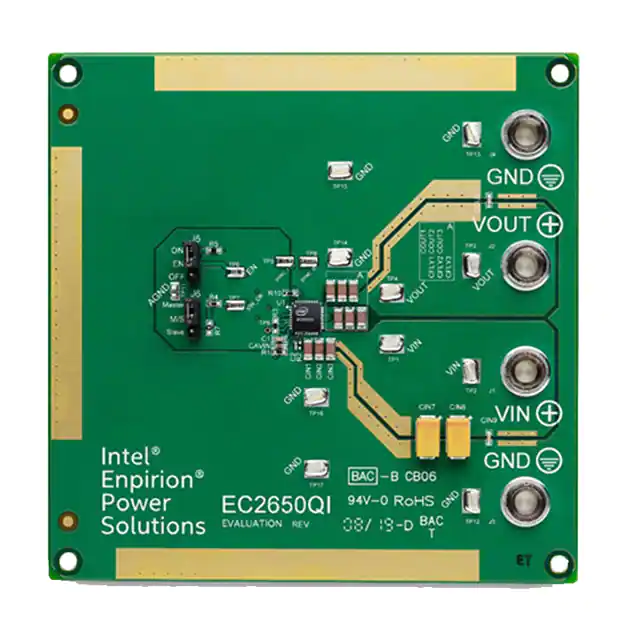

EVB-EC2650QIEVAL BOARD FOR EC2650QI |
4,388 | 69.00 |
|
- |
Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 6A | 8V ~ 13.2V | Buck | - | Board(s) | EC2650QI |
