DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX17014EVKIT+EVAL BOARD FOR MAX17014 |
2,834 | 75.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.3V, 16V, 35V, -6V | 2A, 1.5A, 100mA, 50mA | 10.8V ~ 13.2V | Boost, Buck, Inverting | 1.2MHz | Board(s) | MAX17014 |
|
MAX17113EVKIT+EVAL BOARD FOR MAX17113 |
1,671 | 75.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.3V, 16V, 35V, -6V | 2A, 1.5A, 100mA, 100mA | 10.8V ~ 13.2V | Boost, Buck, Inverting | 450kHz | Board(s) | MAX17113 |
|

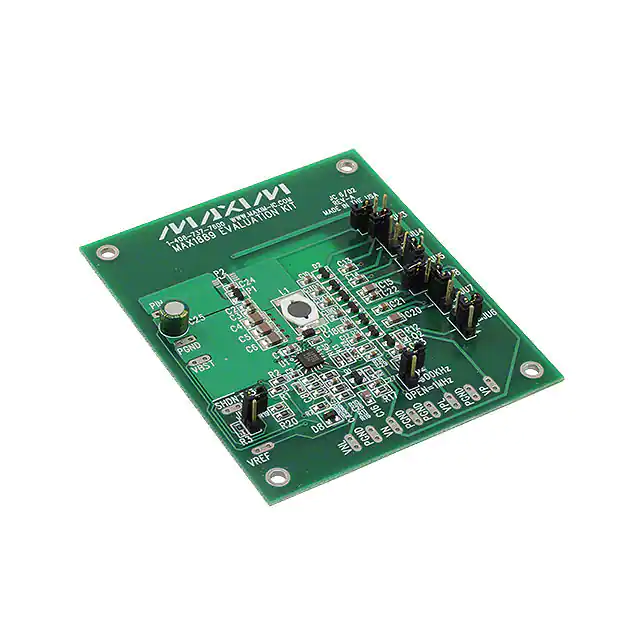

MAX1889EVKITEVAL BOARD FOR MAX1889 |
2,851 | 75.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 9V, 20V, -7V | 200mA, 10mA, 10mA | 2.7V ~ 5.5V | Boost | 1MHz | Board(s) | MAX1889 |
|
EVKT-8843EVAL BOARD FOR MP8843 |
4,018 | 75.00 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 2.5V ~ 6V | Buck | - | Board(s), Cable(s), Accessories | MP8843 |
|

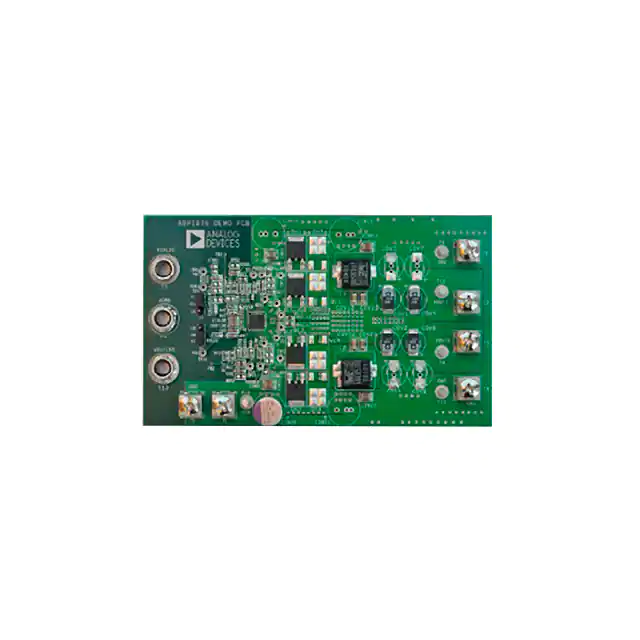

ADP1876-EVALZEVAL BOARD FOR ADP1876 |
2,368 | 75.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 5V | 13A, 13A | 10V ~ 20V | Buck | 600kHz | Board(s) | ADP1876 |
|

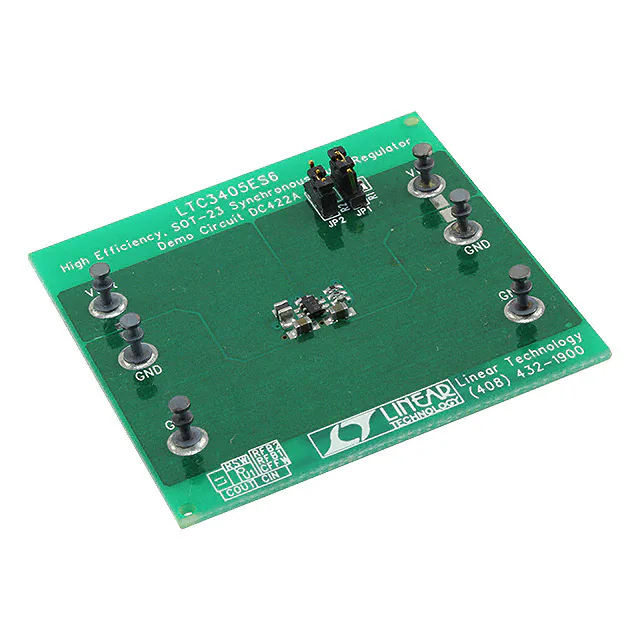

DC422A-AEVAL BOARD FOR LTC3405 |
4,246 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 250mA | 2.65V ~ 6V | Buck | 1.5MHz | Board(s) | LTC3405 |
|

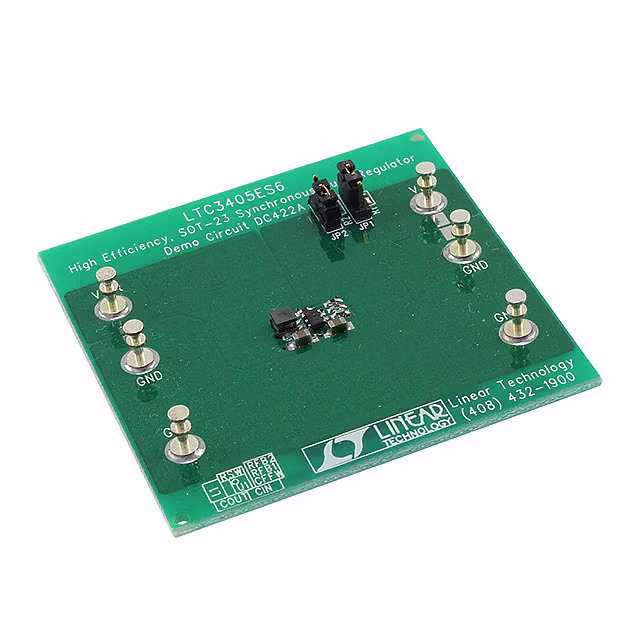

DC422A-BEVAL BOARD FOR LTC3405 |
3,677 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 250mA | 2.65V ~ 6V | Buck | 1.5MHz | Board(s) | LTC3405 |
|

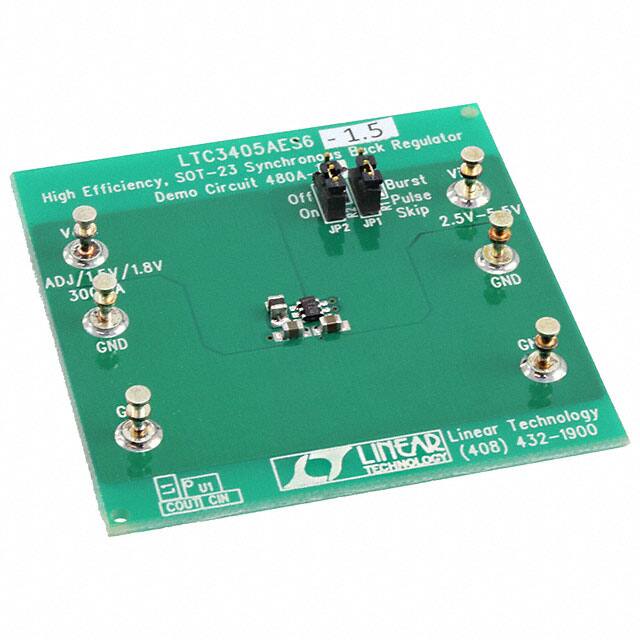

DC480A-AEVAL BOARD FOR LTC3405A1.5 |
4,646 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 300mA | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3405A-1.5 |
|
|
EVKT-8847EVAL BOARD FOR MP8847 |
3,202 | 95.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 6A | 2.7V ~ 6V | Buck | - | Board(s), Cable(s), Accessories | MP8847 |
|
|
EVKT-MP8862EVAL BOARD FOR MP8862 |
1,070 | 95.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2A | 2.8V ~ 22V | Buck-Boost | 500kHz | Board(s), Cable(s), Accessories | MP8862 |
|

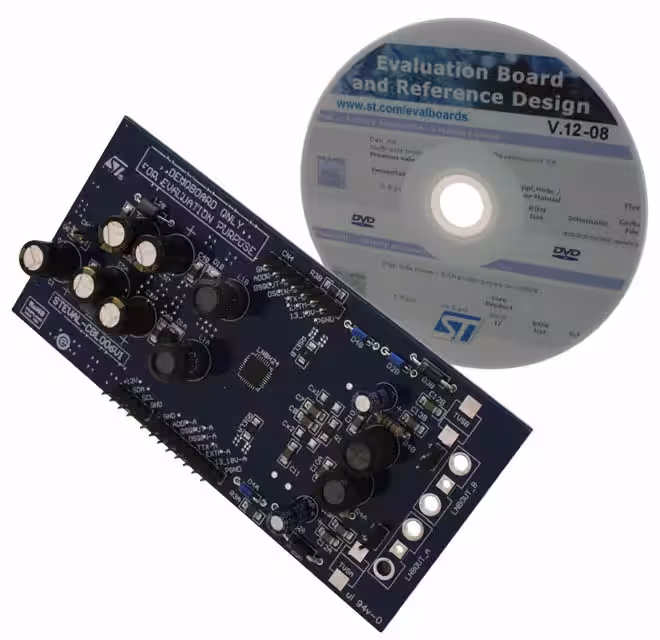

STEVAL-CBL006V1EVAL BOARD FOR LNBH24 |
4,197 | 76.12 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 15V | Boost | - | Board(s) | LNBH24 |
|
MAX16920BEVKIT+EVAL BOARD FOR MAX16920B |
2,744 | 76.52 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V | 1.5A, 600mA, 150mA, 150mA | 5.5V ~ 18V | Buck | 2.2MHz | Board(s) | MAX16920B |
|

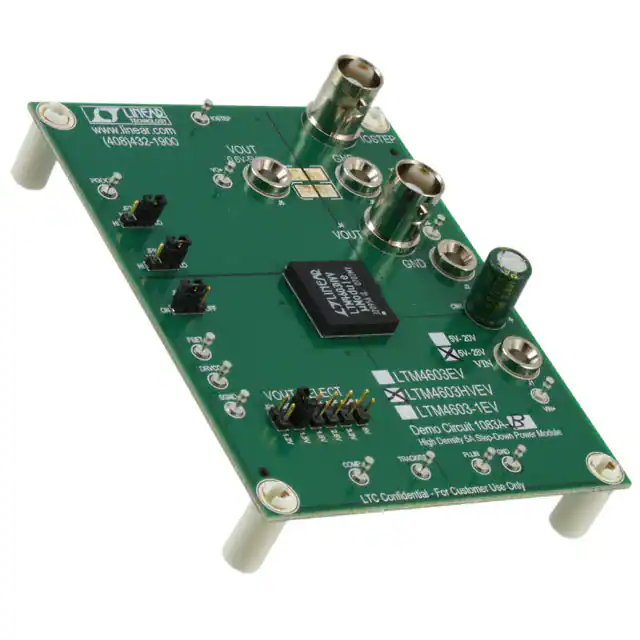

DC1083A-BEVAL BOARD FOR LTM4603HV |
4,882 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 6A | 4.5V ~ 28V | Buck | 1MHz | Board(s) | LTM4603HV |
|

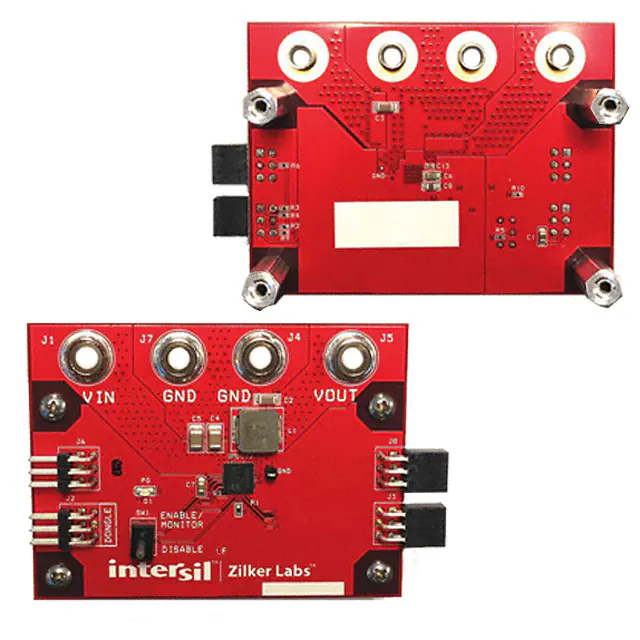

ZL2102DEMO1ZEVAL BOARD FOR ZL2102 |
1,511 | 78.00 |
|
Datasheet |
Zilker Labs™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 7.5V ~ 14V | Buck | 600kHz | Board(s), Cable(s) | ZL2102 |
|
ISL8206MEVAL1ZEVAL BOARD FOR ISL8206M |
2,324 | 78.12 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 6A | 1V ~ 20V | Buck | 600kHz | Board(s) | ISL8206M |
|
TPSM82135EVM-045EVAL BOARD FOR TPSM82135 |
4,146 | 68.99 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 12V | 4A | 3V ~ 17V | Buck | - | Board(s) | TPSM82135 |
|

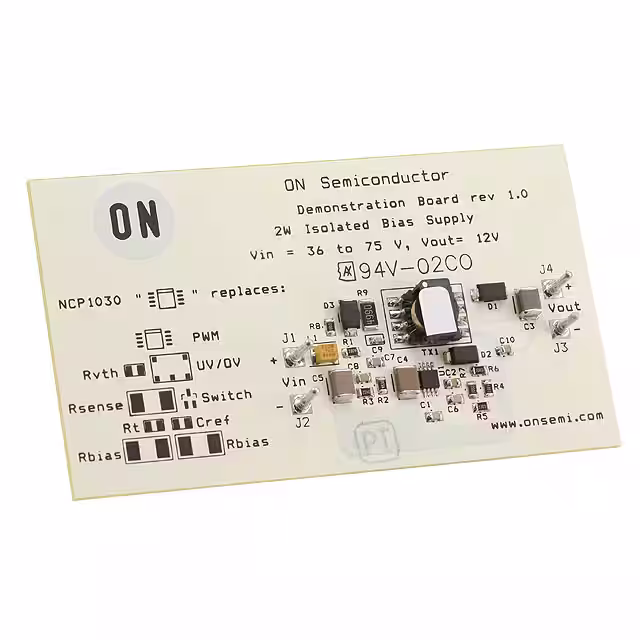

NCP1030GEVBEVAL BOARD FOR NCP1030 |
2,087 | 81.25 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 12V | 170mA | 36V ~ 76V | Flyback | 250kHz | Board(s) | NCP1030 |
|

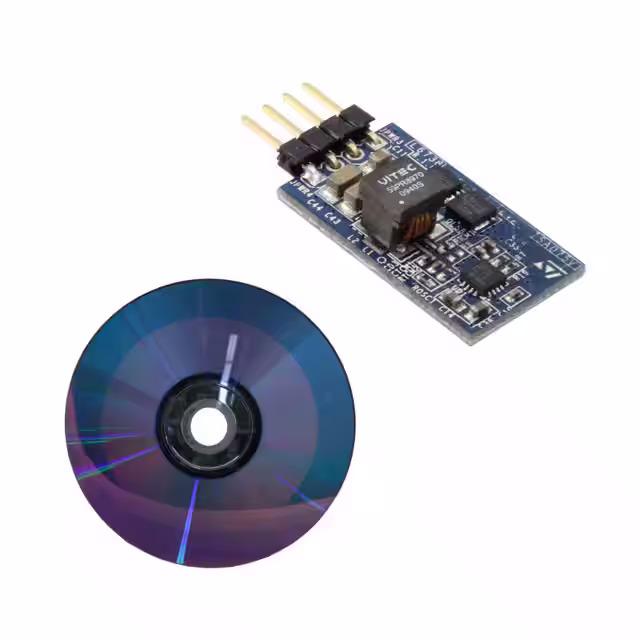

STEVAL-ISA075V1EVAL BOARD FOR L6738 |
2,462 | 81.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | 600kHz | Board(s) | L6738 |
|

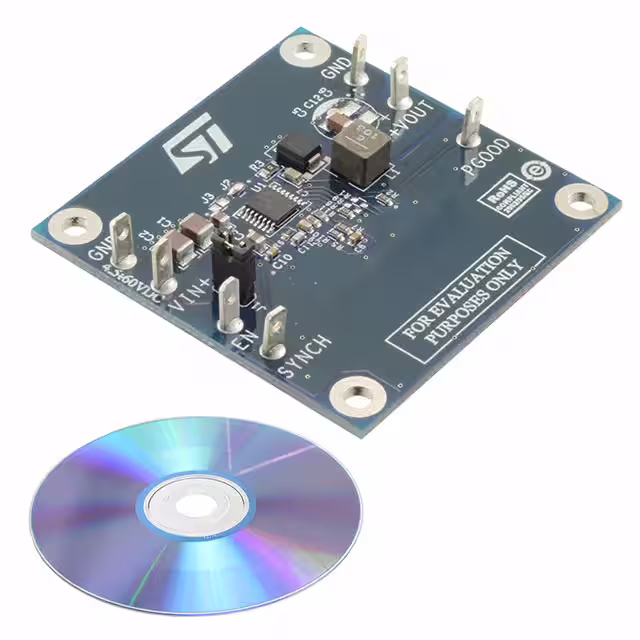

STEVAL-ISA152V1EVAL BOARD FOR L7987 |
1,050 | 81.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | L7987 |
|
|
LM3670MF-1.5EVEVAL BOARD FOR LM3670 |
1,283 | 77.22 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 350mA | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LM3670 |
