DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1158AEVAL BOARD FOR LTC3564 |
2,821 | 82.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V or 1.8V | 1.25A | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3564 |
|
STEVAL-CBL003V1EVAL BOARD FOR LNBH23 |
2,752 | 83.88 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | 13V ~ 18V | - | 8V ~ 15V | Boost | 220kHz | Board(s) | LNBH23 |
|
MAX15039EVKIT+EVAL BOARD FOR MAX15039 |
2,329 | 85.15 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 4.5V | 6A | 2.9V ~ 5.5V | Buck | - | Board(s) | MAX15039 |
|

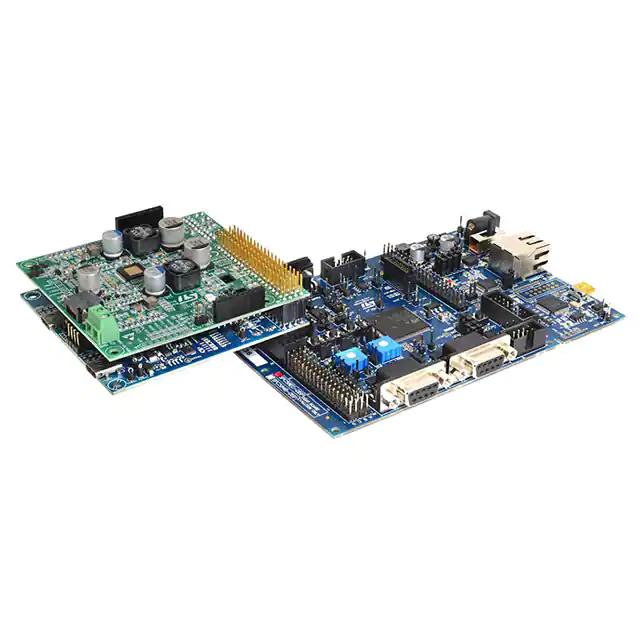

AEK-POW-L5964V1EVAL BOARD FOR L5964 |
2,195 | 85.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V ~ 11V | 3A, 3A | 6V ~ 14V | Buck | - | Board(s) | L5964 |
|

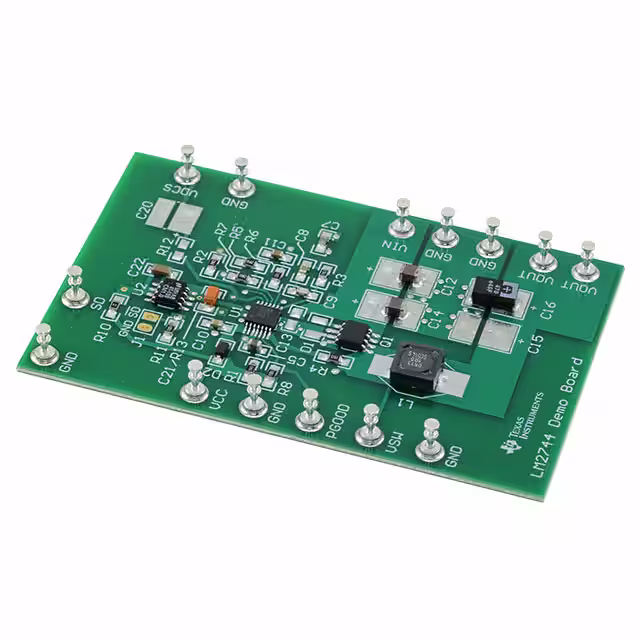

LM2744EVALEVAL BOARD FOR LM2744 |
1,361 | 81.34 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3.5A | 1.8V ~ 5.5V | Buck | 1MHz | Board(s) | LM2744 |
|

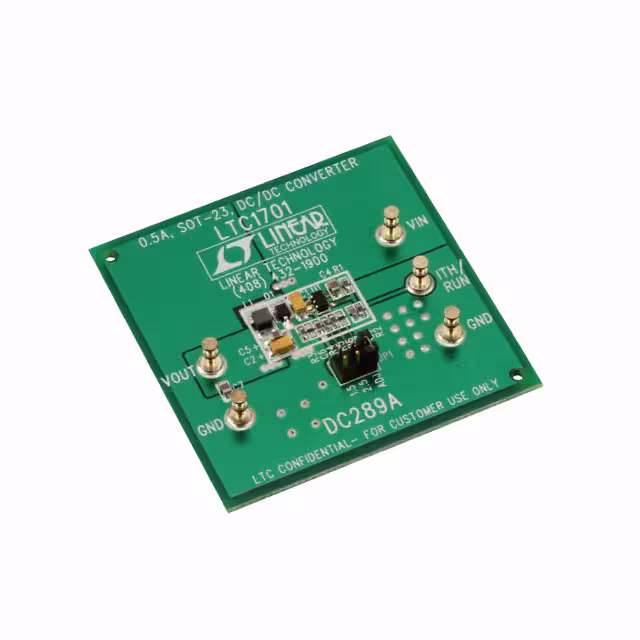

DC289AEVAL BOARD FOR LTC1701 |
4,866 | 86.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V, 2.5V or 3.3V | 500mA | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LTC1701 |
|

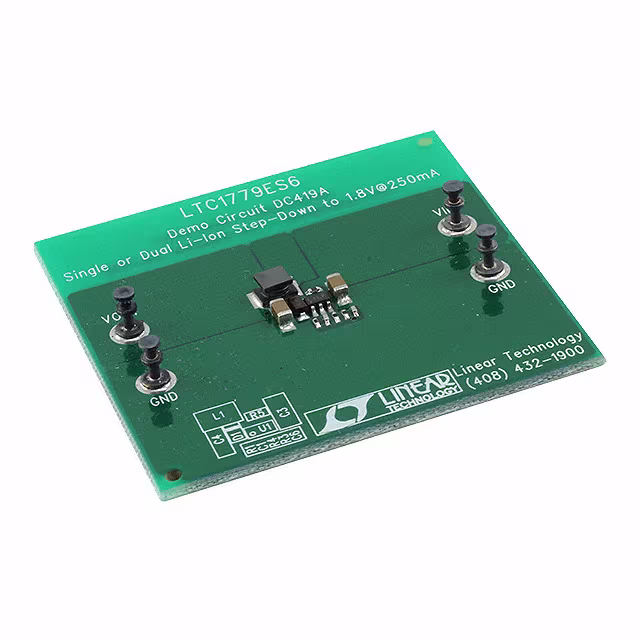

DC419AEVAL BOARD FOR LTC1779 |
4,182 | 86.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 250mA | 2.7V ~ 4.2V | Buck | 550kHz | Board(s) | LTC1779 |
|

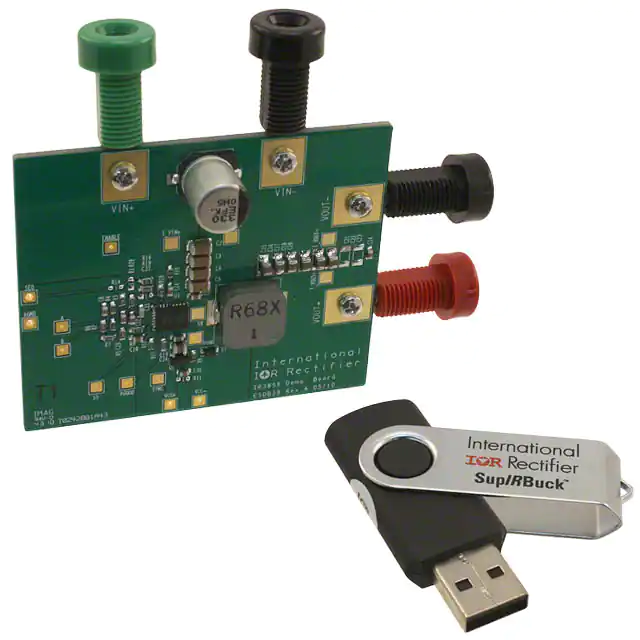

IRDC3859EVAL BOARD FOR IR3859 |
2,205 | 90.75 |
|
Datasheet |
SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 9A | 12V | Buck | 600kHz | Board(s) | IR3859 |
|

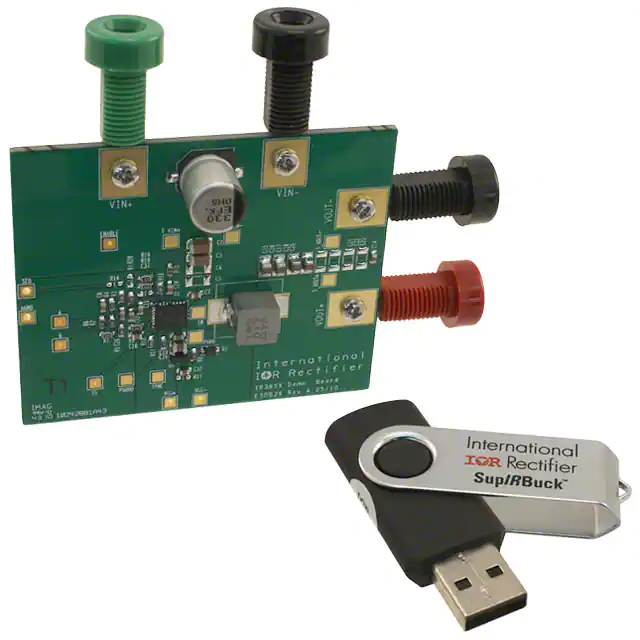

IRDC3853EVAL BOARD FOR IR3853 |
1,310 | 90.75 |
|
Datasheet |
SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 12V | Buck | 600kHz | Board(s) | IR3853 |
|

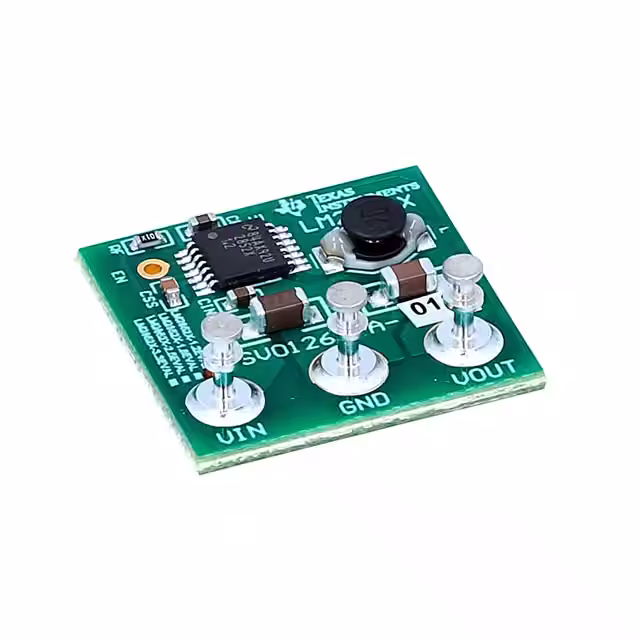

LM2852X-1.2EVALEVAL BOARD FOR LM2852 |
1,958 | 90.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.85V ~ 5.5V | Buck | 1.5MHz | Board(s) | LM2852 |
|

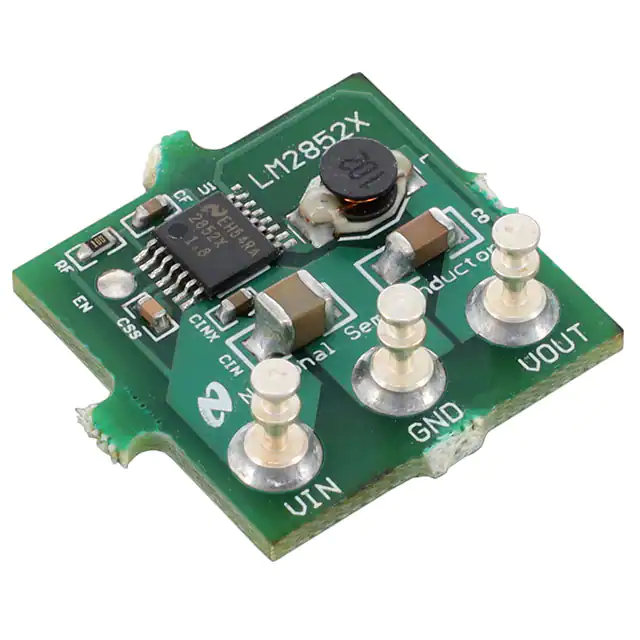

LM2852X-1.8EVALEVAL BOARD FOR LM2852 |
4,707 | 90.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.85V ~ 5.5V | Buck | 1.5MHz | Board(s) | LM2852 |
|
LM2852X-2.5EVALEVAL BOARD FOR LM2852 |
4,662 | 90.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 2A | 2.85V ~ 5.5V | Buck | 1.5MHz | Board(s) | LM2852 |
|

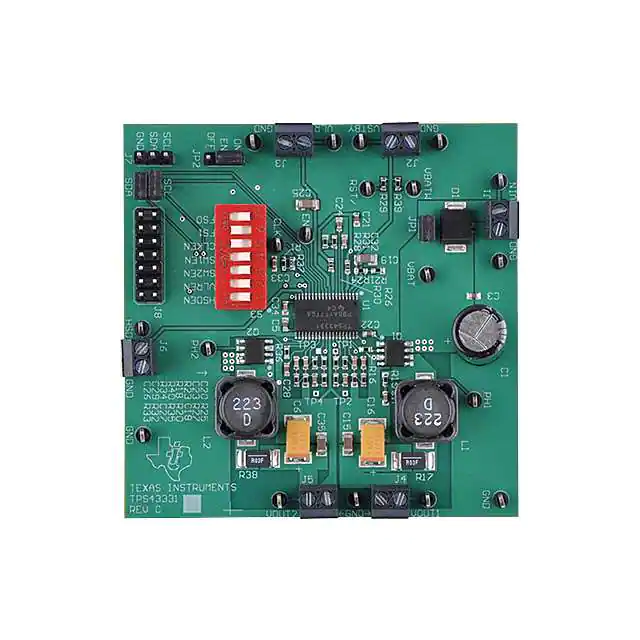

TPS43331EVMEVAL BOARD FOR TPS43331 |
4,188 | 90.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 2.5V, 3.3V, 5V, 8V | - | 5V ~ 30V | Buck | - | Board(s) | TPS43331 |
|

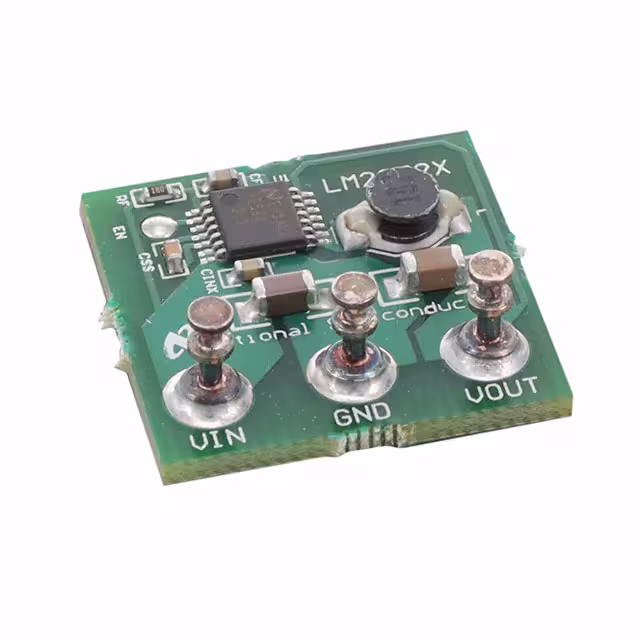

LM2852X-3.3EVALEVAL BOARD FOR LM2852 |
3,686 | 90.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 2.85V ~ 5.5V | Buck | 1.5MHz | Board(s) | LM2852 |
|

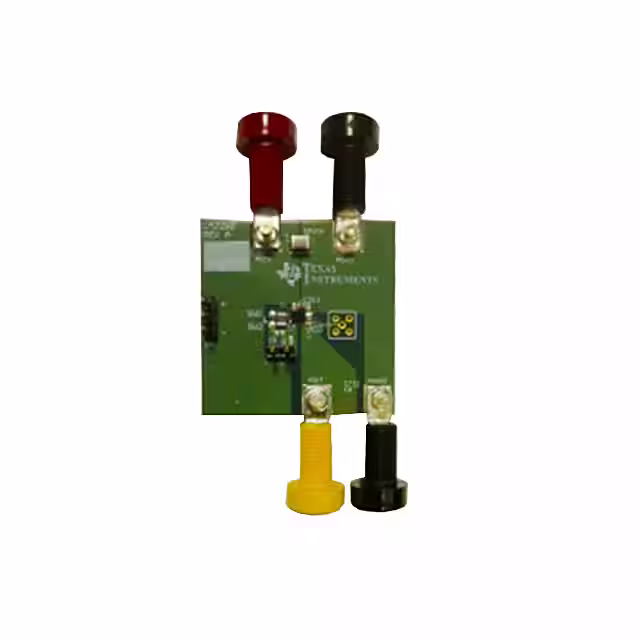

LM3269EVM/NOPBEVAL BOARD FOR LM3269 |
1,006 | 90.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.6V ~ 4.2V | 750mA | 2.7V ~ 5.5V | Buck-Boost | 2.4MHz | Board(s) | LM3269 |
|
IRDC38063EVAL BOARD FOR IR38063 |
1,816 | 102.27 |
|
Datasheet |
SupIRBuck® | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 12V | Buck | 600kHz | Board(s) | IR38063 |
|
APEK8650KLY-01-MH-DKEVAL BOARD FOR A8650 |
1,956 | 93.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 2.5V ~ 5.5V | Buck | - | Board(s) | A8650 |
|
STEVAL-ISA181V1EVAL BOARD FOR VIPER0P |
4,217 | 93.75 |
|
Datasheet |
VIPer™ plus | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 7.2 W | 12V | 600mA | 85 ~ 265 VAC | Flyback | 120kHz | Board(s) | VIPer0P |
|

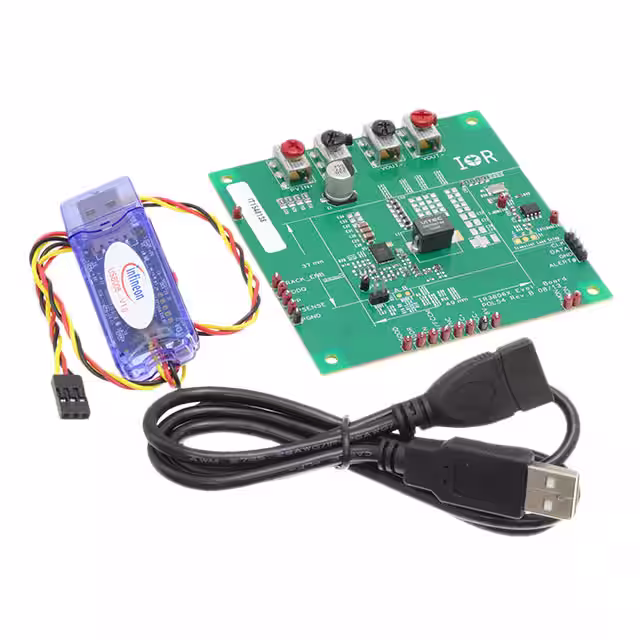

IRDC38062EVAL BOARD FOR IR38062 |
4,101 | 98.01 |
|
Datasheet |
SupIRBuck® | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 15A | 12V | Buck | 600kHz | Board(s) | IR38062 |
|

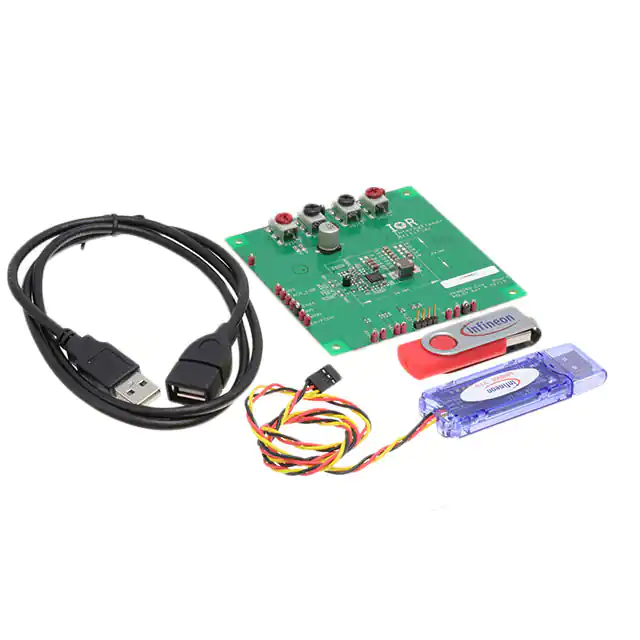

IRDC38060EVAL BOARD FOR IR38060 |
3,617 | 102.28 |
|
Datasheet |
SupIRBuck® | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 12V | Buck | 600kHz | Board(s) | IR38060 |
