DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCL206B303-EVBEVAL BOARD FOR XCL206B303ARG |
2,352 | 28.12 |
|
Datasheet |
XCL206 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V | 600mA | 2V ~ 6V | Buck | - | Board(s) | XCL206B303AR-G |
|
XC9145B33CE-EVB-01EVAL BOARD FOR XC9145B33 |
4,553 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 800mA | 0.65V ~ 5.5V | Boost | 1.2MHz | Board(s) | XC9145B33 |
|
STEVAL-VP12201BEVAL BOARD FOR VIPER122 |
2,710 | 27.50 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 30 mW | 15V | 200mA | 85 ~ 265 VAC | Buck, Flyback | 60kHz | Board(s) | VIPER122 |
|
|
R1800K009A-EVEVAL BOARD FOR R1800K009A |
3,540 | 28.41 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | - | 2V ~ 5.5V | Buck | - | Board(s) | R1800K009A |
|
RP604Z331B-EVEVAL BOARD FOR RP604Z |
2,889 | 28.41 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.6V ~ 5.2V | 300mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | RP604Z |
|
|
RP402K501A-EVEVAL BOARD FOR RP402K |
2,935 | 28.41 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V ~ 5.5V | 800mA | 0.6V ~ 4.8V | Boost | 1.2MHz | Board(s) | RP402K |
|

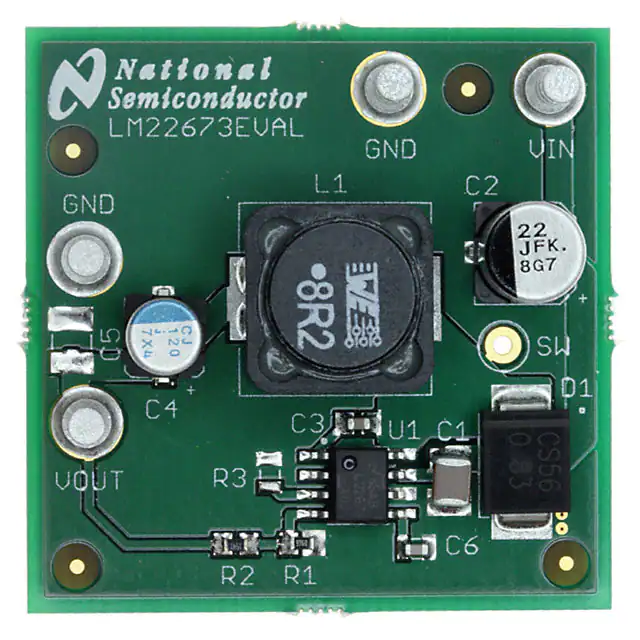

LM22673EVAL/NOPBEVAL BOARD FOR LM22673 |
3,003 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22673 |
|

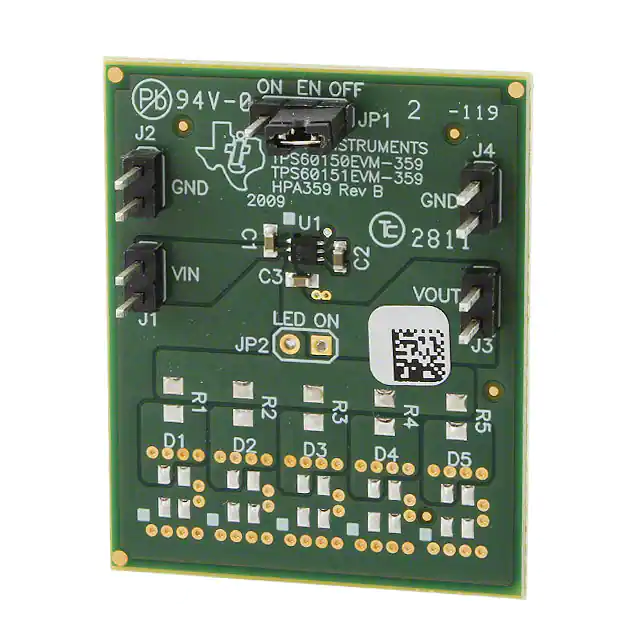

TPS60150EVM-359EVAL BOARD FOR TPS60150 |
2,185 | 30.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 140mA | 2.7V ~ 5.5V | Boost | 1.5MHz | Board(s) | TPS60150 |
|

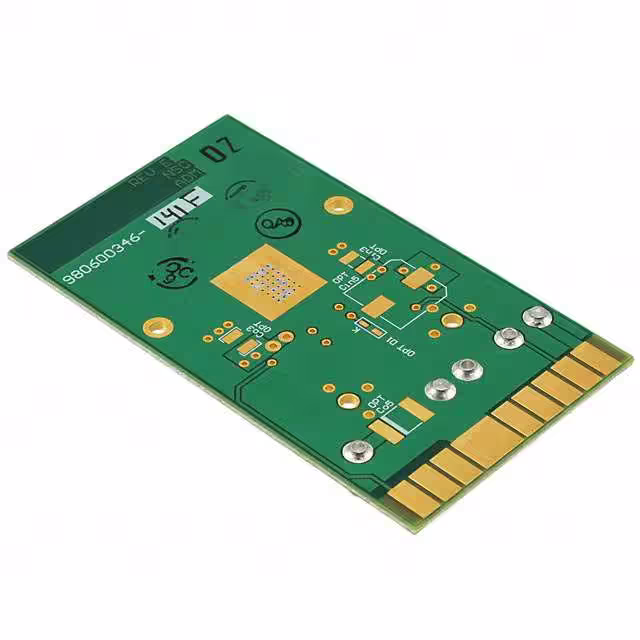

LMZ14201EVAL/NOPBEVAL BOARD FOR LMZ14201 |
1,952 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 6V ~ 24V | Buck | - | Board(s) | LMZ14201 |
|

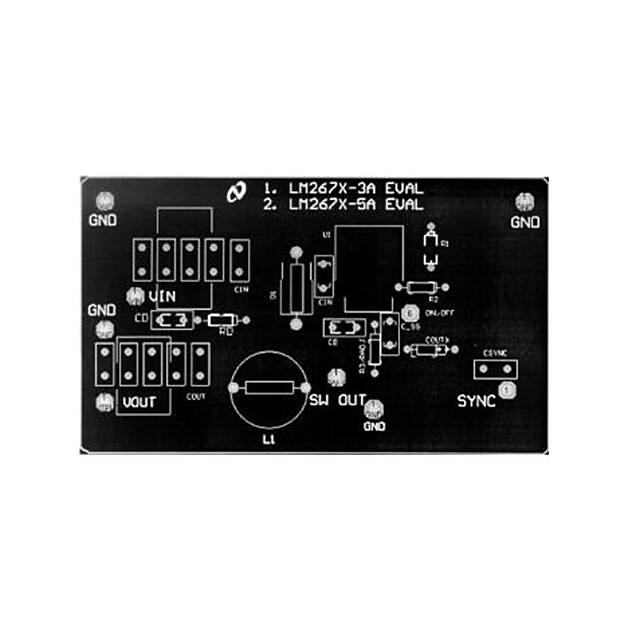

LM2679-5.0EVAL/NOPBEVAL BOARD FOR LM2679 |
2,582 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 14V ~ 28V | Buck | 260kHz | Board(s) | LM2679 |
|
LMZ14202EVAL/NOPBEVAL BOARD FOR LMZ14202 |
2,571 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 6V ~ 42V | Buck | - | Board(s) | LMZ14202 |
|

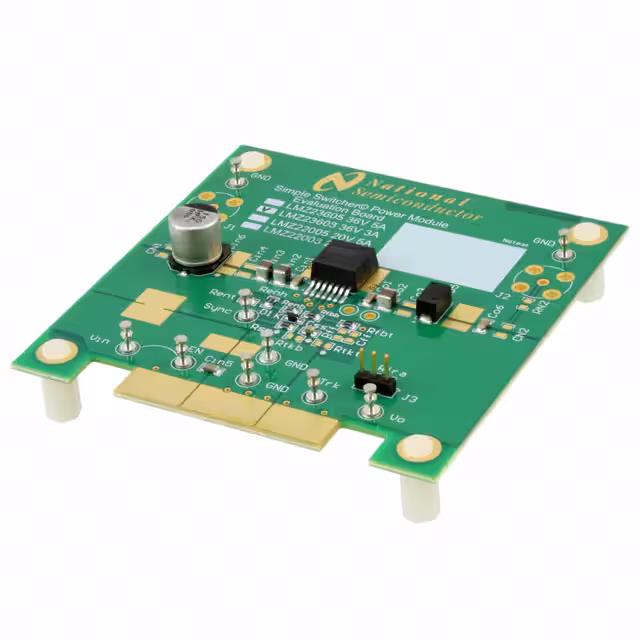

LMZ23603EVAL/NOPBEVAL BOARD FOR LMZ23603 |
1,234 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 6V ~ 36V | Buck | 812kHz | Board(s) | LMZ23603 |
|

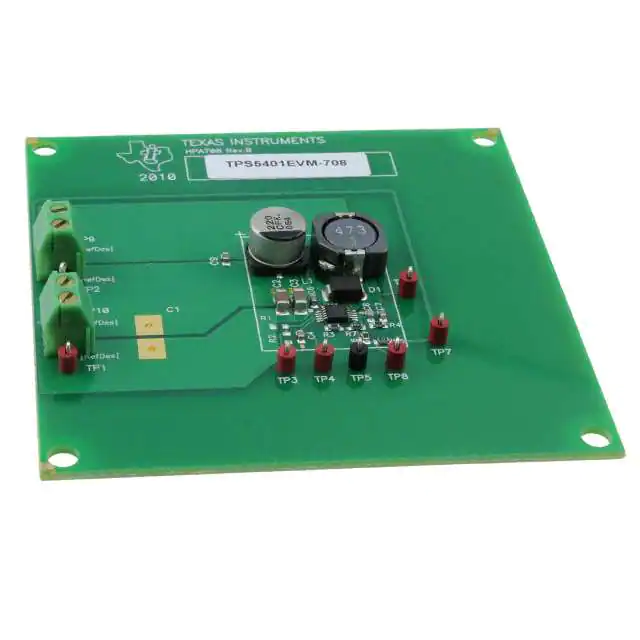

TPS5401EVM-708EVAL BOARD FOR TPS5401 |
1,459 | 30.00 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 7.5V ~ 35V | Buck | 700kHz | Board(s) | TPS5401 |
|

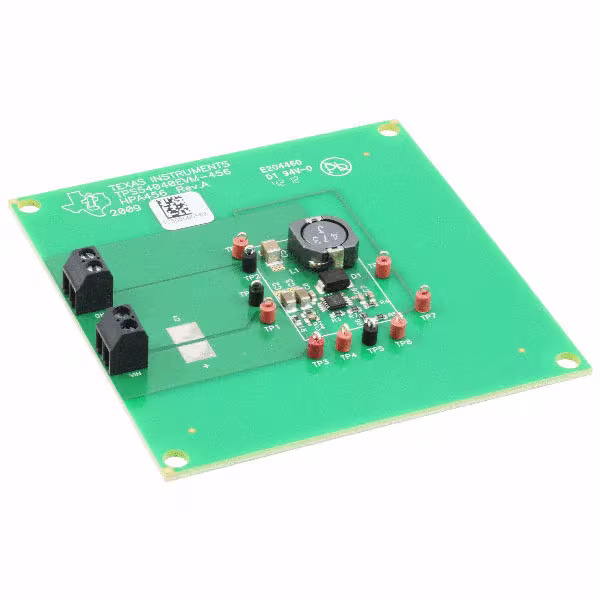

TPS54040EVM-456EVAL BOARD FOR TPS54040 |
1,318 | 30.00 |
|
Datasheet |
SWIFT™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 12V ~ 42V | Buck | 700kHz | Board(s) | TPS54040 |
|

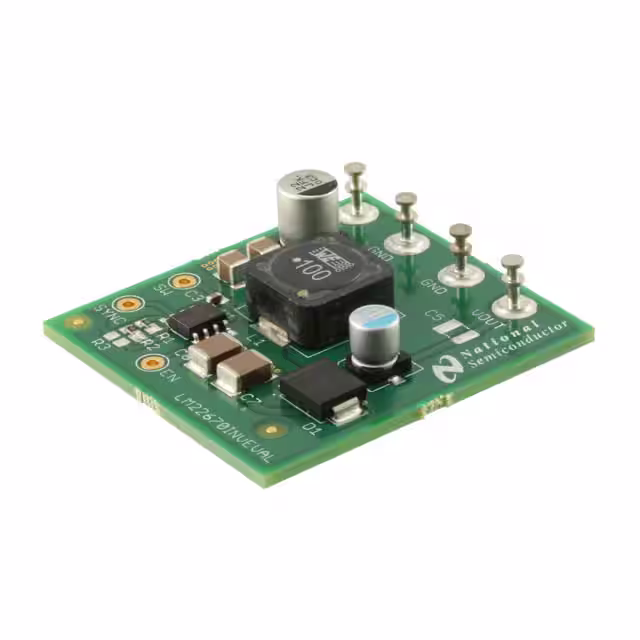

LM22670INVEVAL/NOPBEVAL BOARD FOR LM22670 |
4,925 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 5V ~ 35V | Buck | 500kHz | Board(s) | LM22670 |
|

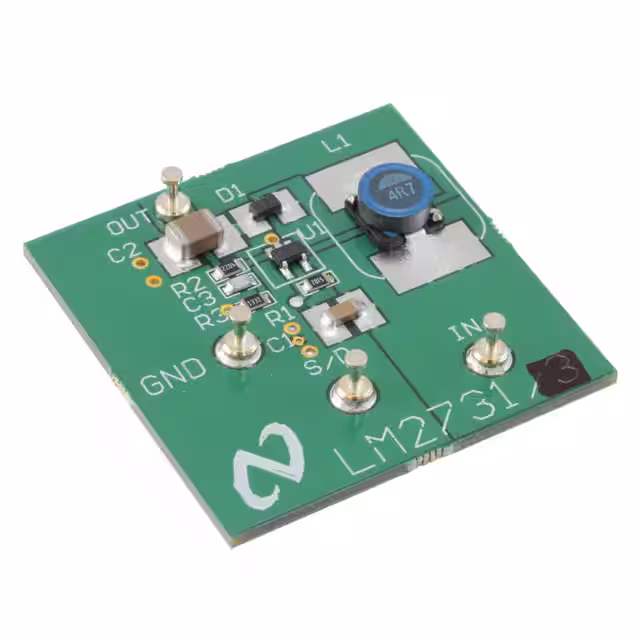

LM2731YEVAL/NOPBEVAL BOARD FOR LM2731 |
3,669 | 30.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 1.8A | 2.7V ~ 14V | Boost | 600kHz | Board(s) | LM2731 |
|
LM2621EVAL/NOPBEVAL BOARD FOR LM2621 |
2,572 | 30.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 1.2V ~ 14V | Boost | - | Board(s) | LM2621 |
|

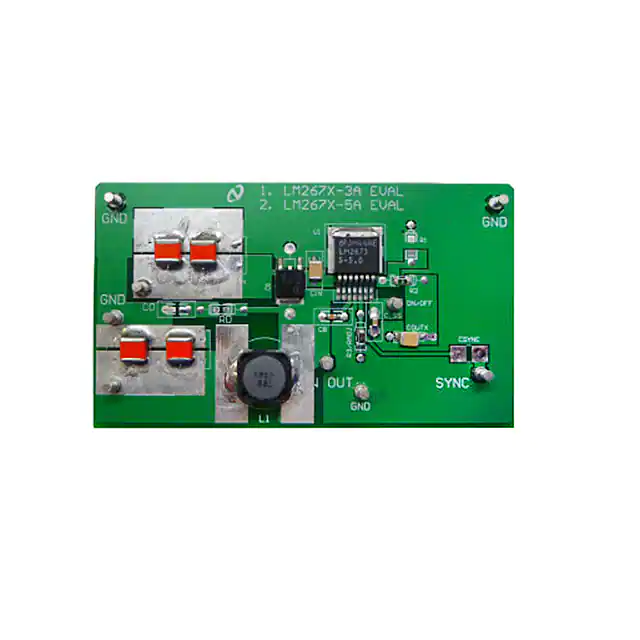

LM2673-5.0EVAL/NOPBEVAL BOARD FOR LM2673 |
4,852 | 30.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 25V | Buck | 260kHz | Board(s) | LM2673 |
|

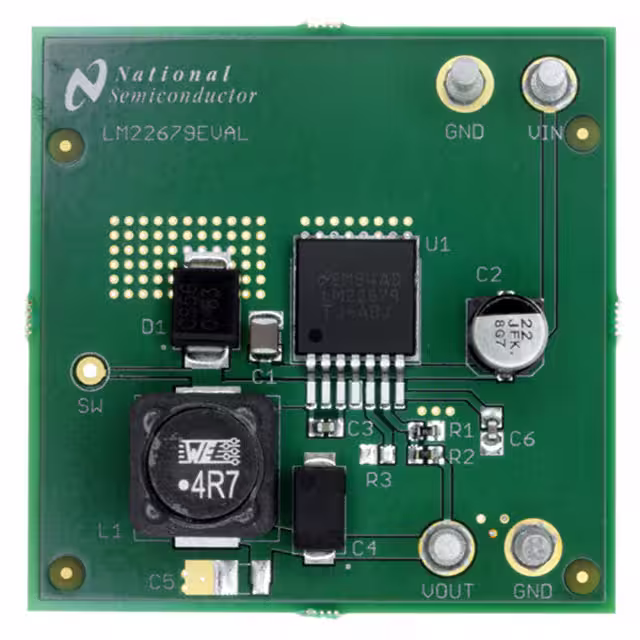

LM22679EVAL/NOPBEVAL BOARD FOR LM22679 |
1,942 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22679 |
|

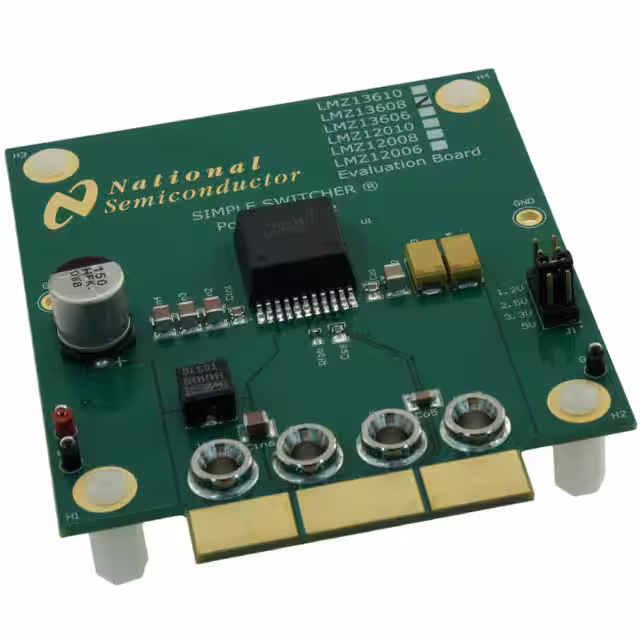

LMZ13608EVAL/NOPBEVAL BOARD FOR LMZ13608 |
4,683 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 2.5V, 3.3V, 5V | 8A | 6V ~ 36V | Buck | - | Board(s) | LMZ13608 |
