DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

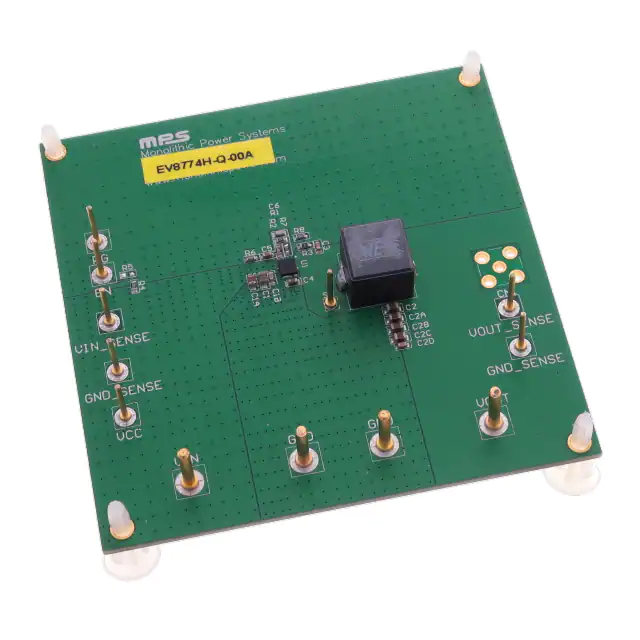

EV8774H-Q-00AEVAL BOARD FOR MP8774H |
2,486 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 12V | - | 1.4MHz | Board(s) | MP8774H |
|

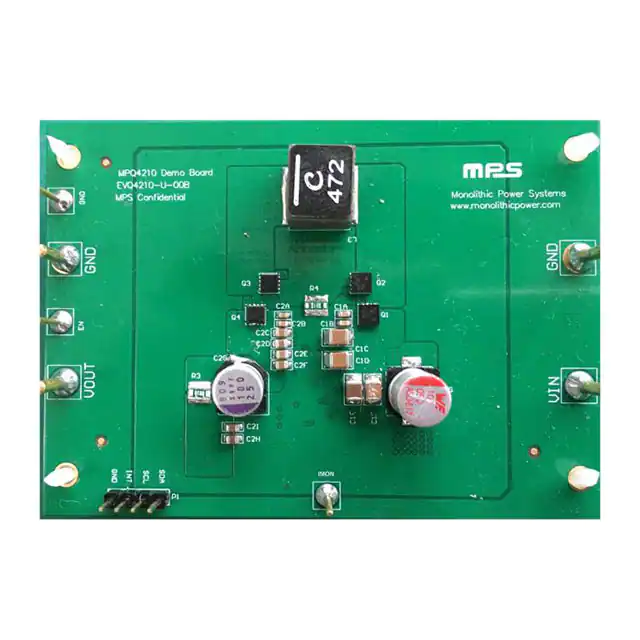

EVQ4210-U-00BEVAL BOARD FOR MPQ4210 |
1,029 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 5A | 6V ~ 40V | Buck-Boost | - | Board(s) | MPQ4210 |
|

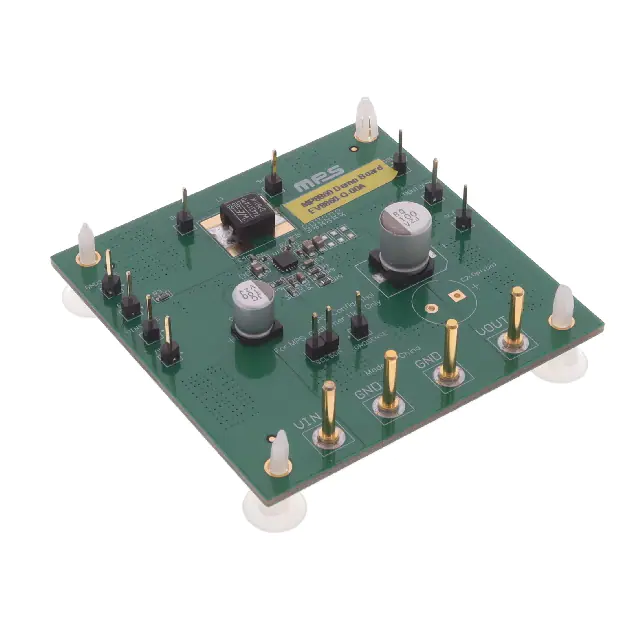

EV8860-Q-00AEVAL BOARD FOR MP8860 |
4,689 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | 2.8V ~ 22V | Buck-Boost | 500kHz | Board(s) | MP8860 |
|

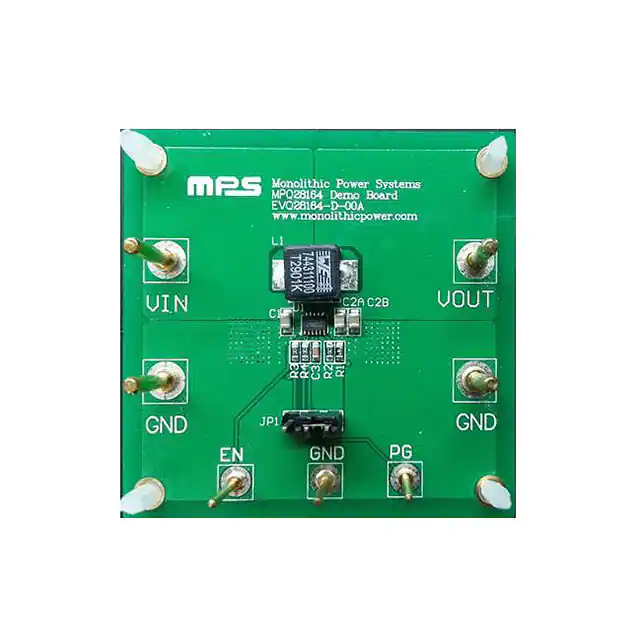

EVQ28164-D-00AEVAL BOARD FOR MPQ28164 |
3,356 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.5V ~ 5V | 4A | 1.2V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | MPQ28164 |
|

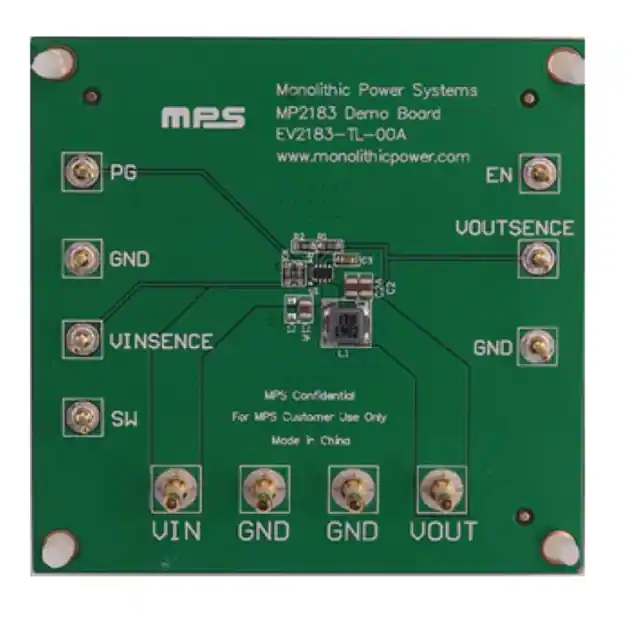

EV2183-TL-00AEVAL BOARD FOR MP2183 |
1,715 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.5V ~ 5.5V | Buck | 1.2MHz | Board(s) | MP2183 |
|

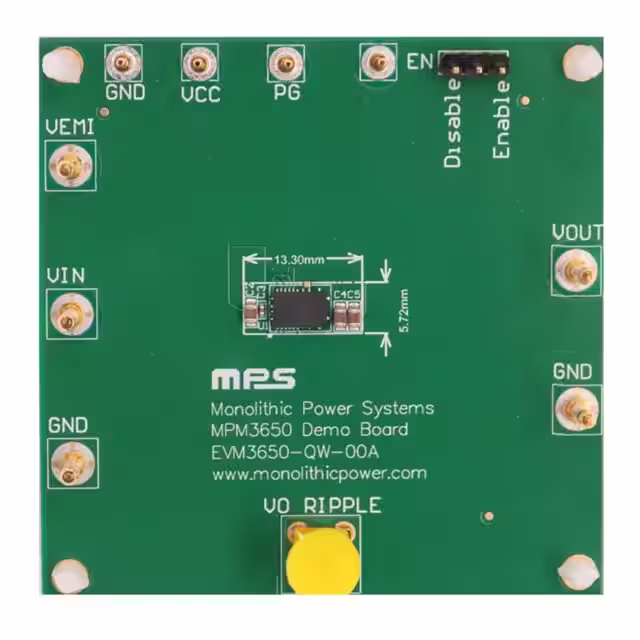

EVM3650-QW-00AEVAL BOARD FOR MPM3650 |
1,506 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 5A | 2.75V ~ 17V | Buck | 1.2MHz | Board(s) | MPM3650 |
|
EVQ7920-R-00AEVAL BOARD FOR MPQ7920 |
1,385 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 9 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck | - | Board(s) | MPQ7920 |
|

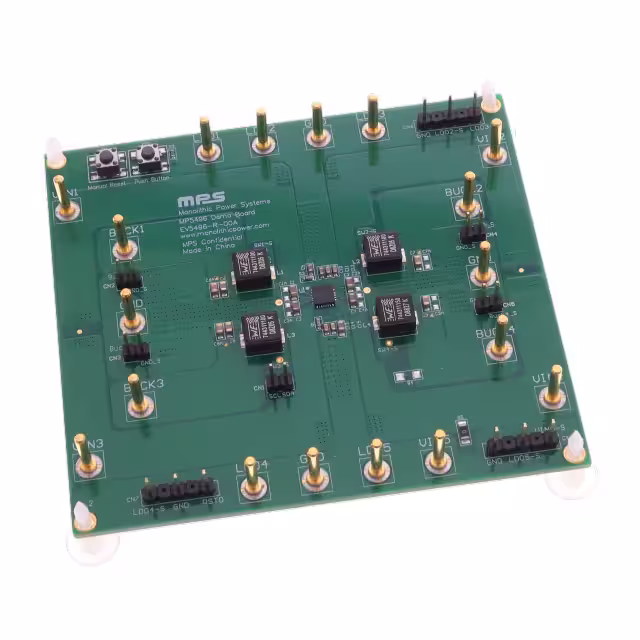

EV5496-R-00AEVAL BOARD FOR MP5496 |
1,407 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 9 Non-Isolated Outputs | - | 0.9V, 0.9V, 0.9V, 1V, 1.2V, 1.2V, 1.8V, 1.8V, 3V | 3.6A, 3.6A, 1.5A, 300mA, 150mA, 100mA, 25mA, 15mA, 1mA | 3V ~ 3.6V | Buck | 1.5MHz | Board(s) | MP5496 |
|

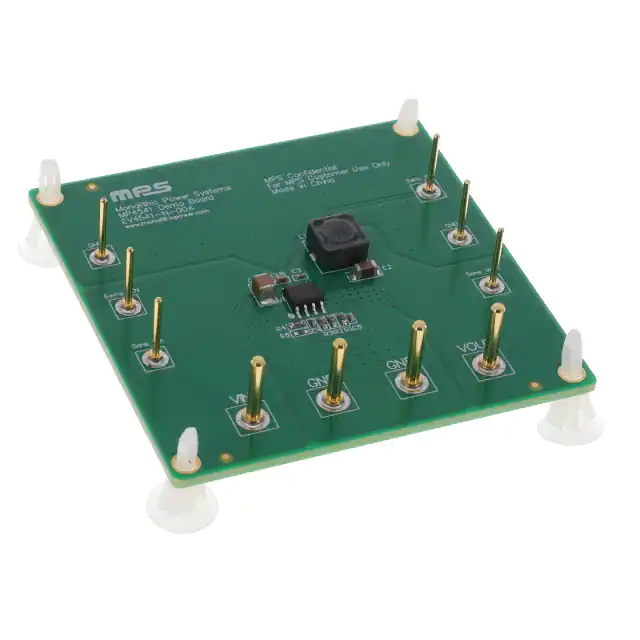

EV4541-N-00AEVAL BOARD FOR MP4541 |
1,884 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 3.2 W | 5V | 800mA | 8V ~ 80V | Buck | - | Board(s) | MP4541 |
|
EVL3424A-G-00AEVAL BOARD FOR MP3424A |
4,196 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 2.55 W | 3V ~ 5.5V | 3.1A | 2V ~ 5.5V | Boost | 580kHz | Board(s) | MP3424A |
|

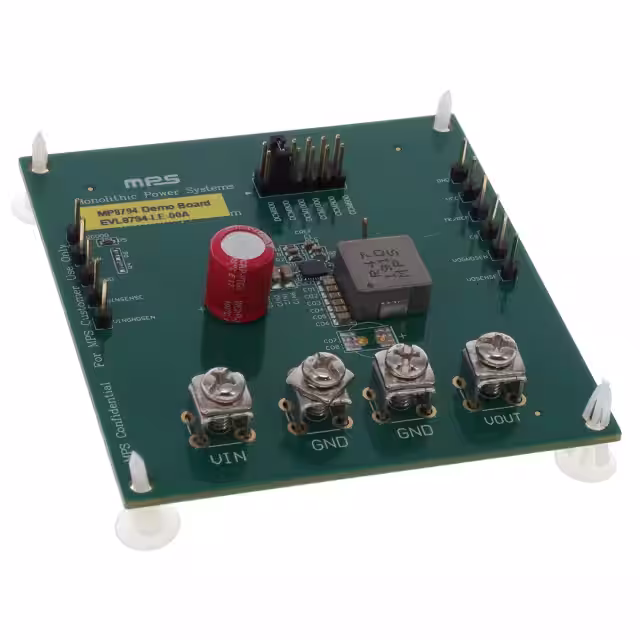

EVL8794-LE-00AEVAL BOARD FOR MP8794 |
2,332 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 8V ~ 16V | Buck | - | Board(s) | MP8794 |
|
|
EVL2460-J-00AEVAL BOARD FOR MP2460 |
2,069 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 600mA | 12.5V ~ 45V | Buck | 1.7MHz | Board(s) | MP2460 |
|

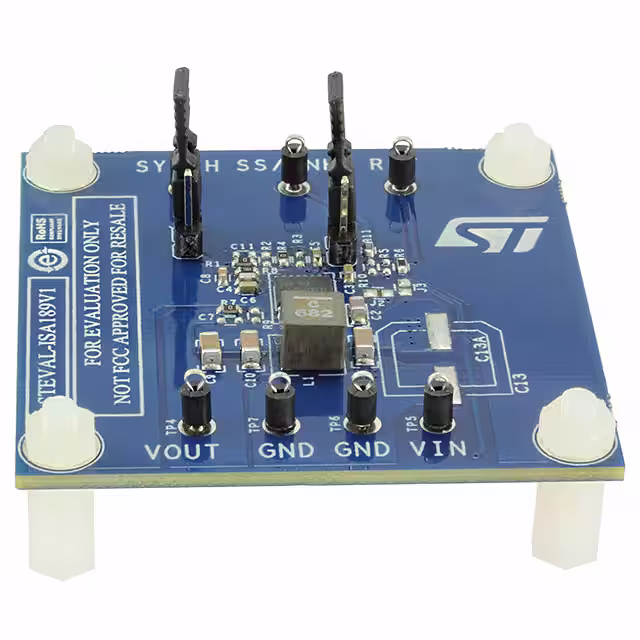

STEVAL-ISA189V1EVAL BOARD FOR A6986F5V |
1,915 | 25.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986F5V |
|
EVQ4480-V-00AEVAL BOARD FOR MPQ4480 |
3,799 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 4.2V ~ 36V | Buck | 440kHz | Board(s) | MPQ4480 |
|
EV8770C-Q-00AEVAL BOARD FOR MP8770C |
4,254 | 25.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 8A | 12V | Buck | 700kHz | Board(s) | MP8770C |
|

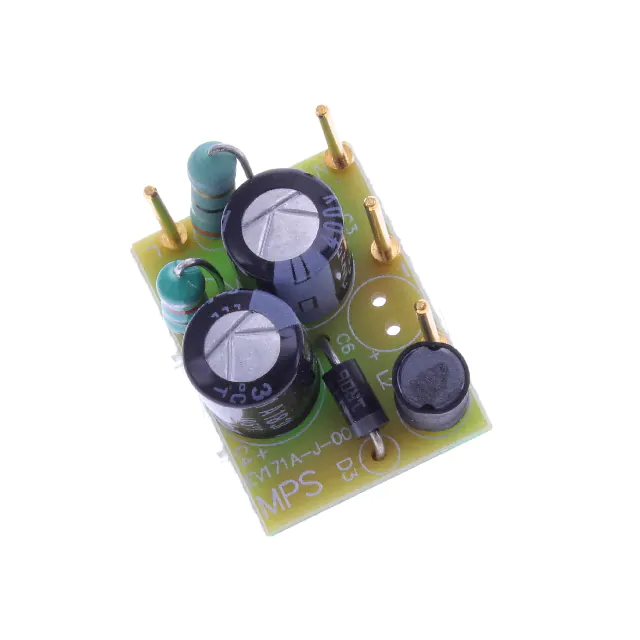

EV171A-J-00AEVAL BOARD FOR MP171A |
4,870 | 25.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 2 W | 5V | 50mA | 85 ~ 265 VAC | Buck | - | Board(s) | MP171A |
|

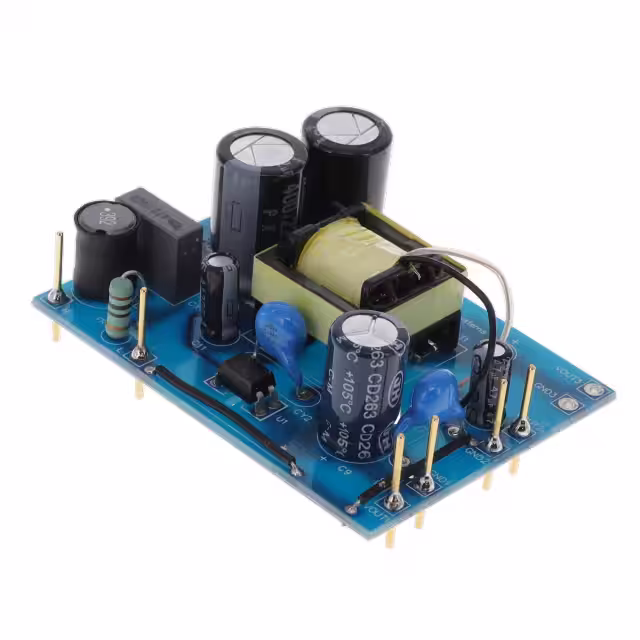

EVHF920-S-00BEVAL BOARD FOR HF920 |
2,591 | 25.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 2 Isolated Outputs | - | 16.5V, 16.5V | 300mA, 100mA | 85 ~ 350 VAC | Flyback | 150kHz | Board(s) | HF920 |
|
|
ISL85418DEMO1ZEVAL BOARD FOR ISL85418 |
1,343 | 25.88 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85418 |
|
|
XC9145B50CE-EVB-01EVAL BOARD FOR XC9145B50CE |
3,392 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V ~ 5.5V | 430mA | 0.65V ~ 5.5V | Boost | 1.2MHz | Board(s) | XC9145B50CE |
|

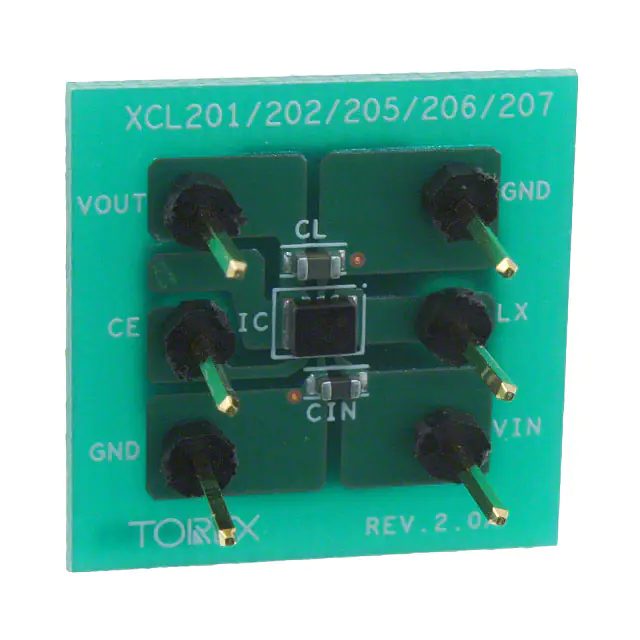

XCL206B123-EVBEVAL BOARD FOR XCL206B123ARG |
2,043 | 28.12 |
|
Datasheet |
XCL206 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2V ~ 6V | Buck | - | Board(s) | XCL206B123AR-G |
