DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2529AEVAL BOARD FOR LTC7810 |
3,135 | 211.86 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 10A, 5A | 16V ~ 130V | Buck | - | Board(s) | LTC7810 |
|
LM5046EVAL/NOPBEVAL BOARD FOR LM5046 |
1,123 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | - | 36V ~ 75V | Full-Bridge | 420kHz | Board(s) | LM5046 |
|
MAXREFDES33#EVAL BOARD FOR MAX15062 |
3,209 | 1.50 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4.5V ~ 60V | Buck | 500kHz | Board(s) | MAX15062 |
|

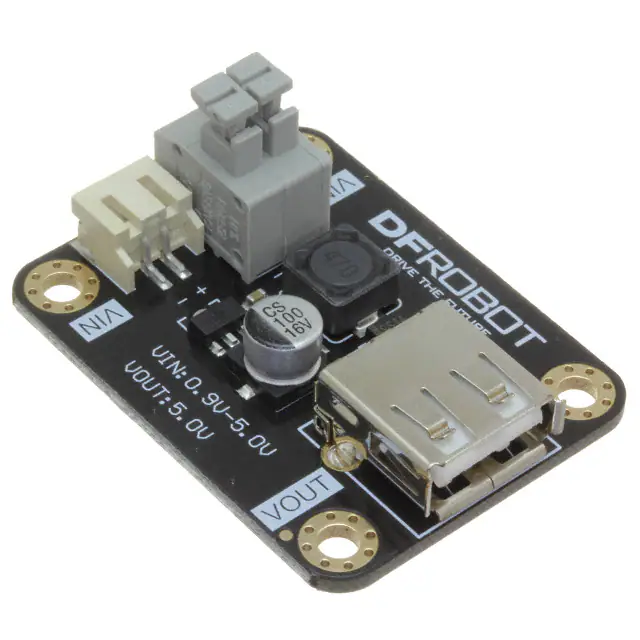

FIT0471EVAL BOARD FOR CE8301 |
4,843 | 3.90 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 600mA | 0.9V ~ 5V | Boost | - | Board(s) | CE8301 |
|

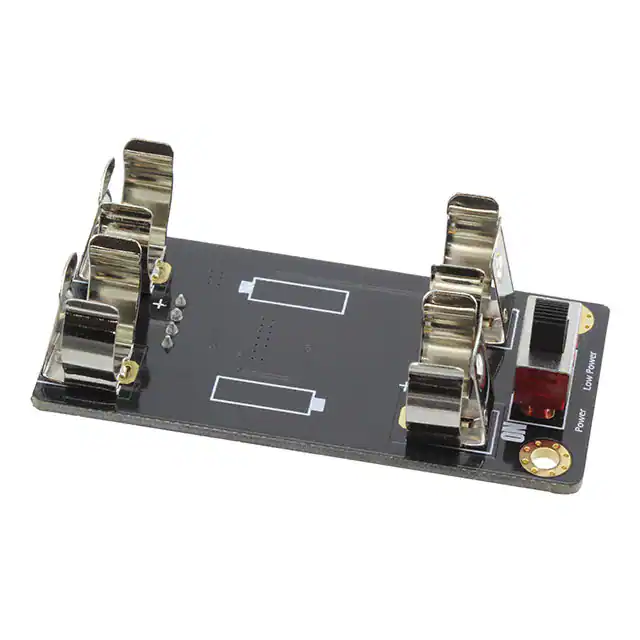

DFR0250EVAL BOARD FOR TPS61032 |
4,068 | 5.90 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 1.8V ~ 4.5V | Boost | - | Board(s) | TPS61032 |
|

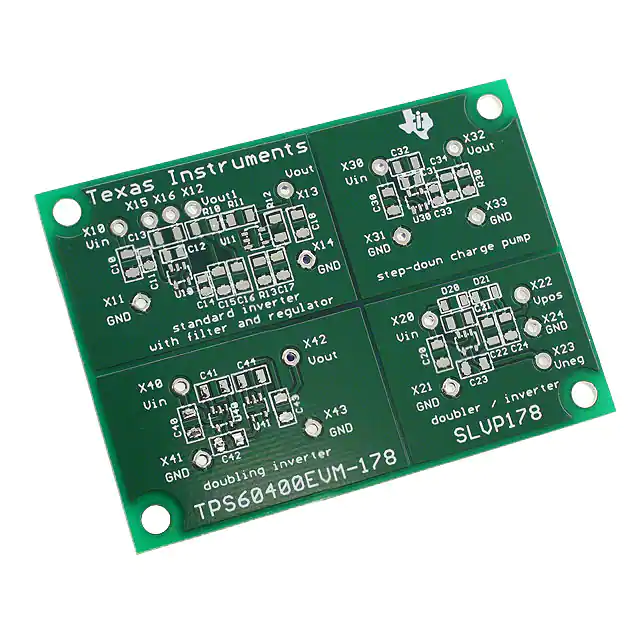

TPS60400EVM-178EVAL BOARD FOR TPS60400 TPS60401 |
3,040 | 6.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Negative Inverter | - | - | - | - | - | Inverting | - | Unpopulated (Bare) Board(s) | TPS60400, TPS60401, TPS60402, TPS60403 |
|

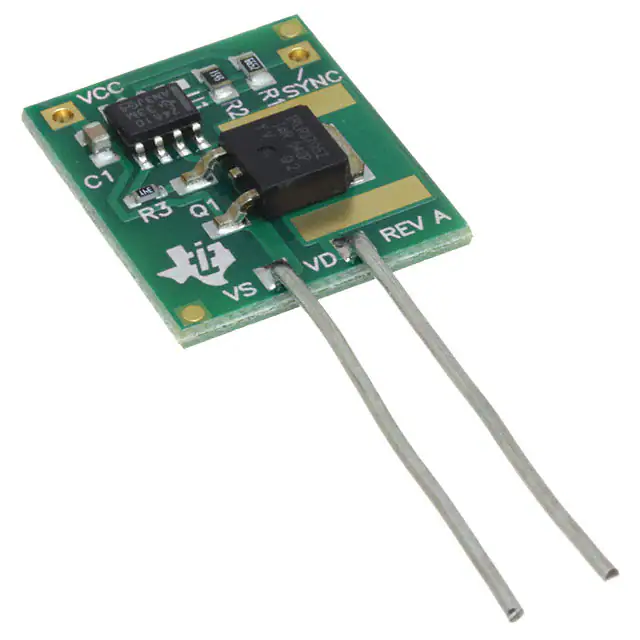

UCC24610EVM-693EVAL BOARD FOR UCC24610 |
3,679 | 12.00 |
|
Datasheet |
GREEN Rectifier™ | Box | Active | AC/DC, Secondary Side | 1 Isolated Output | 10 W | 5V | - | - | Flyback | 1MHz | Board(s) | UCC24610 |
|

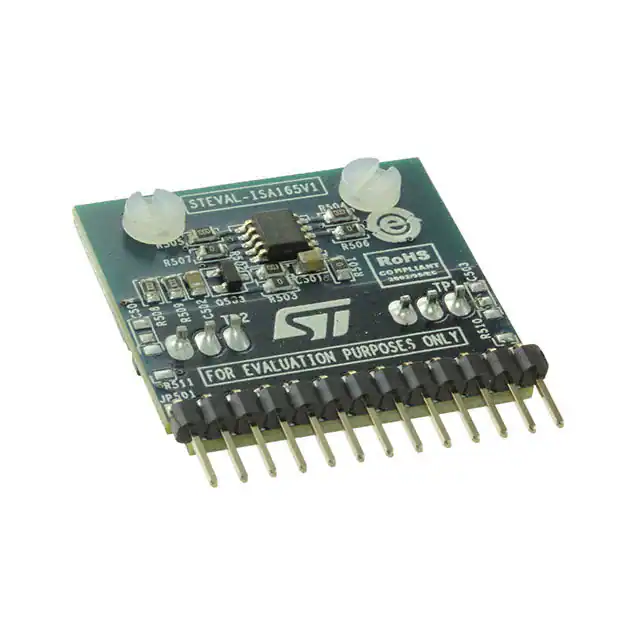

STEVAL-ISA165V1EVAL BOARD SRK2001 STP120N4F6 |
1,167 | 16.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 4.5V ~ 32V | Resonant | 500kHz | Board(s) | SRK2001, STP120N4F6 |
|
STEVAL-L7983ADJEVAL BOARD FOR L7983PUR |
3,912 | 19.95 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 300mA | 12V ~ 60V | Buck | 1MHz | Board(s) | L7983PUR |
|

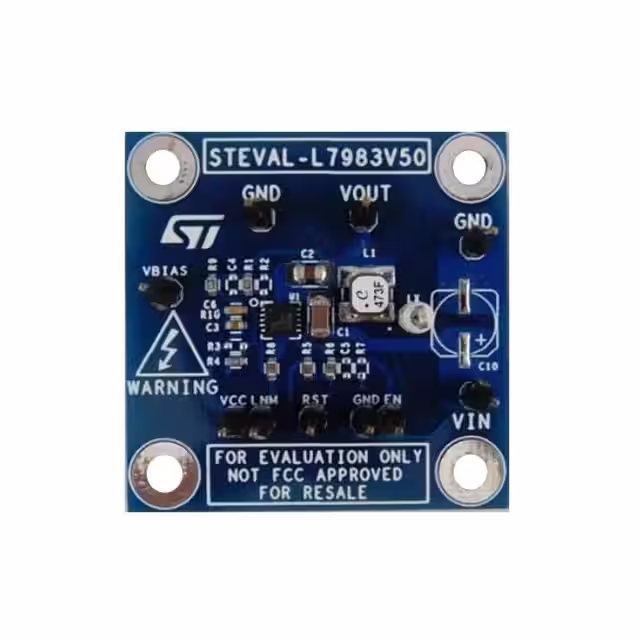

STEVAL-L7983V50EVAL BOARD FOR L7983PU50R |
2,294 | 19.95 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 5V ~ 60V | Buck | 1MHz | Board(s) | L7983PU50R |
|

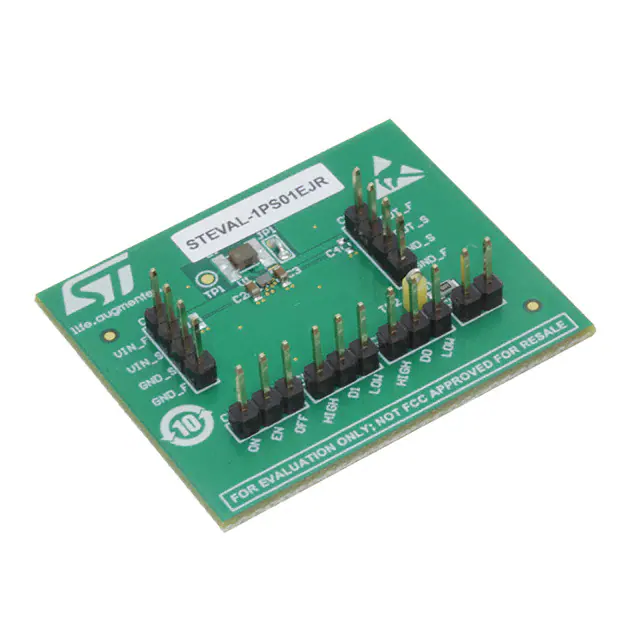

STEVAL-1PS01EJREVAL BOARD FOR ST1PS01 |
3,767 | 19.95 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 3.3V | 400mA | 1.8V ~ 5.5V | Buck | - | Board(s) | ST1PS01 |
|

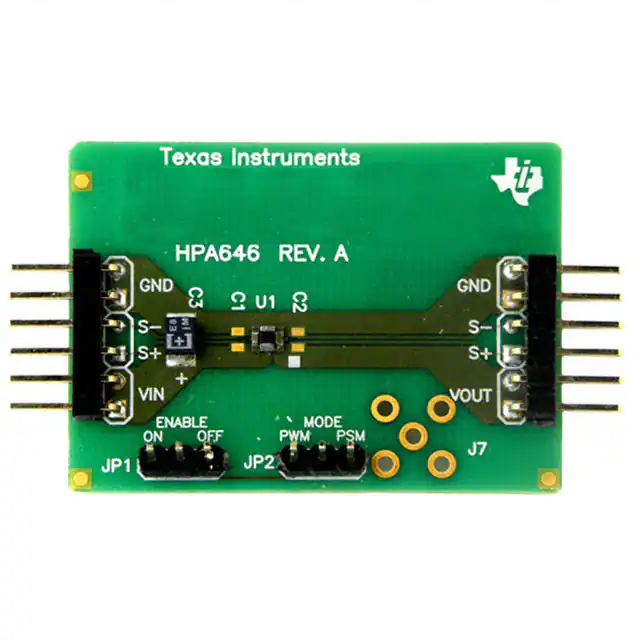

TPS82671EVM-646EVAL BOARD FOR TPS82671646 |
2,489 | 24.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.3V ~ 4.8V | Buck | 6MHz | Board(s) | TPS82671-646 |
|

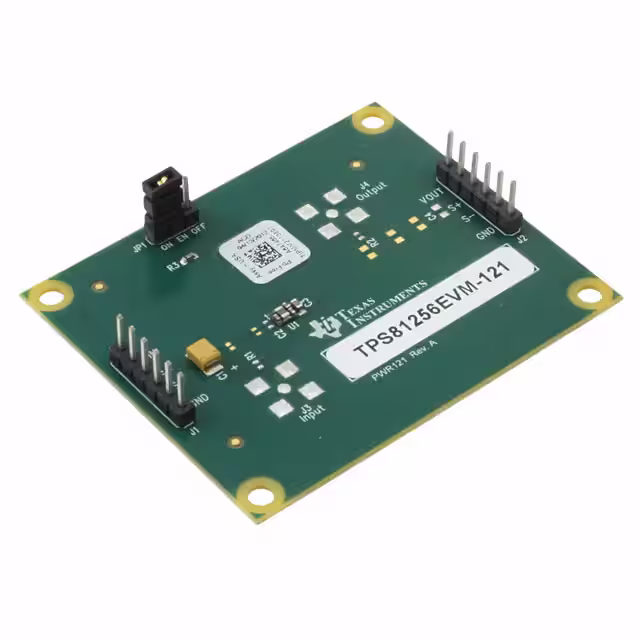

TPS81256EVM-121EVAL BOARD FOR TPS81256 |
3,015 | 24.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | - | 2.5V ~ 4.85V | Boost | 4.5MHz | Board(s) | TPS81256 |
|

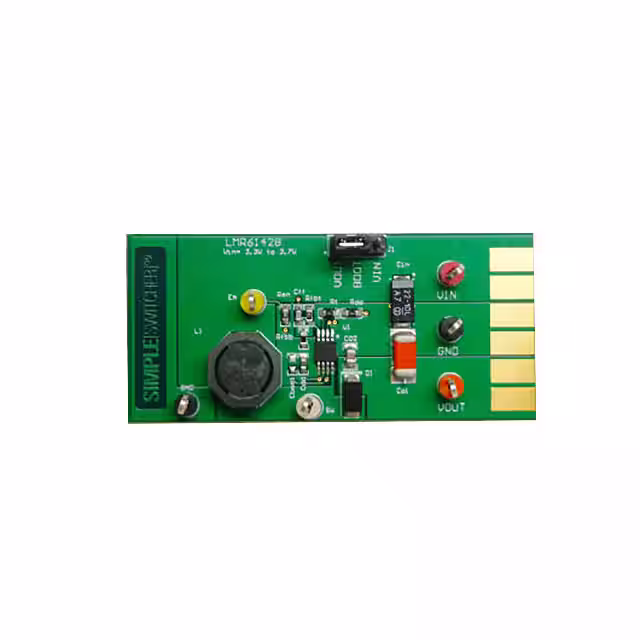

LMR61428XMMEVM/NOPBEVAL BOARD FOR LMR61428 |
2,610 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 500mA | 3.3V ~ 3.7V | Boost | 1.2MHz | Board(s) | LMR61428 |
|

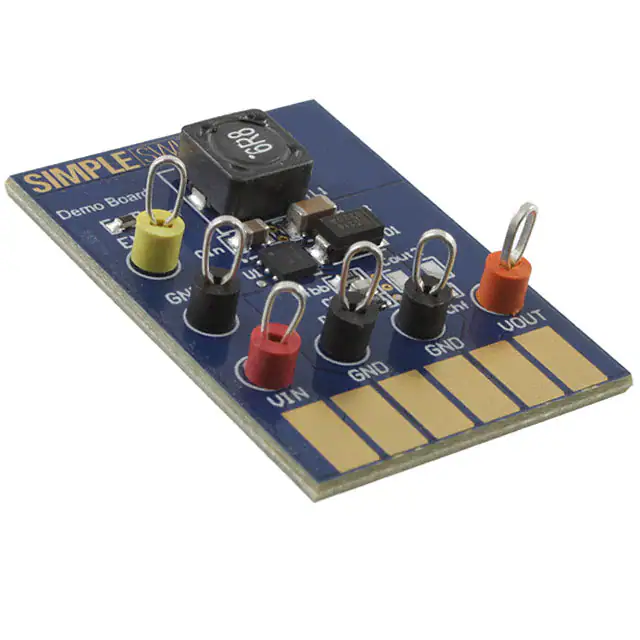

LMR62421XSDDEMO/NOPBEVAL BOARD FOR LMR62421 |
1,073 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 2.7V ~ 5.5V | Boost | 1.6MHz | Board(s) | LMR62421 |
|
LM5116BUCKEVM-BLDTEVAL BOARD FOR LM5116 |
4,629 | 24.00 |
|
Datasheet |
WEBENCH® Buildit Board | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 20A | 7V ~ 100V | Buck | - | Unpopulated (Bare) Board(s) | LM5116 |
|

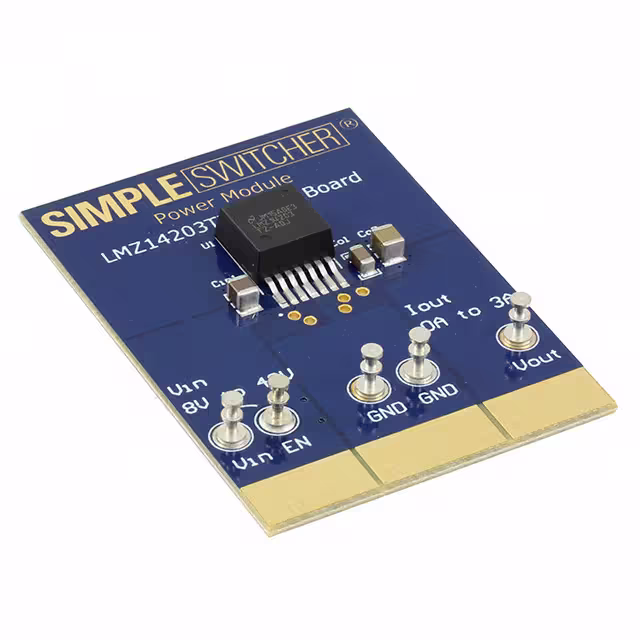

LMZ14203DEMO/NOPBEVAL BOARD FOR LMZ14203 |
3,863 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 6V ~ 42V | Buck | - | Board(s) | LMZ14203 |
|
LMR64010XMFDEMO/NOPBEVAL BOARD FOR LMR64010 |
3,435 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 125mA | 2.7V ~ 12V | Boost | 1.6MHz | Board(s) | LMR64010 |
|

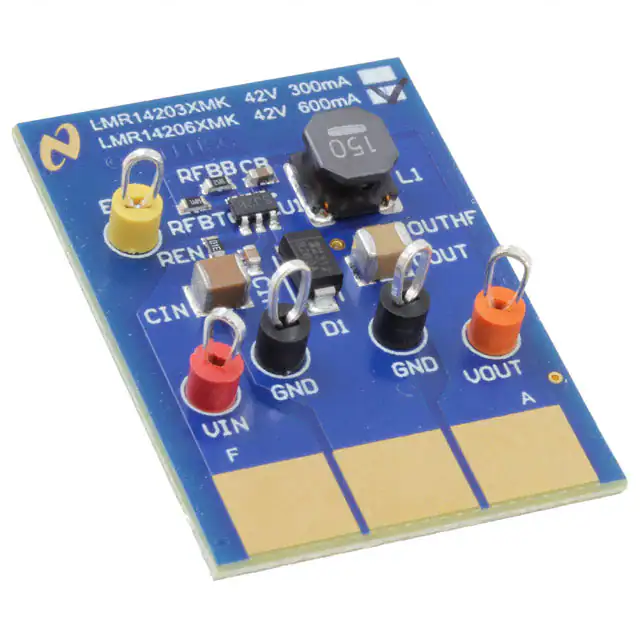

LMR14206XMKDEMO/NOPBEVAL BOARD FOR LMR14206 |
4,587 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 4.5V ~ 42V | Buck | 1.25MHz | Board(s) | LMR14206 |
|

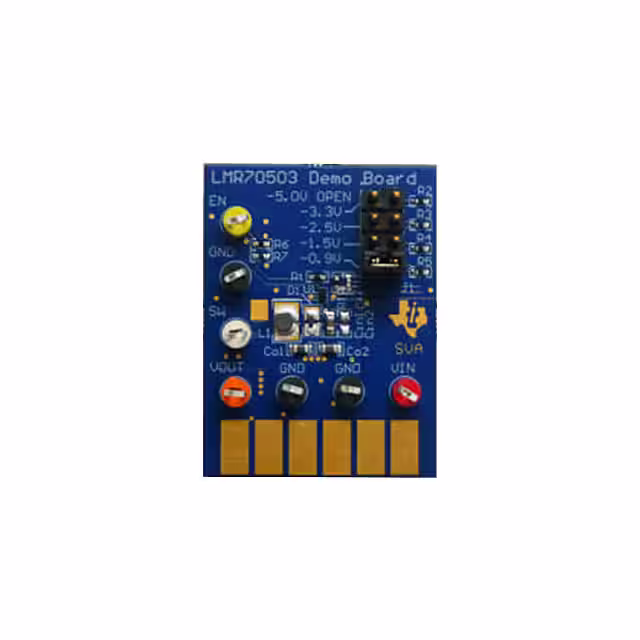

LMR70503EVM/NOPBEVAL BOARD FOR LMR70503 |
2,797 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -0.9V ~ -5.5V | 320mA | 2.8V ~ 5.5V | Buck-Boost | 500kHz | Board(s) | LMR70503 |
