DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
COM-21337EVAL BOARD FOR AP3429A |
3,014 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 2.7V ~ 5.5V | Buck | - | Board(s) | AP3429A |
|
|
DFR1025EVAL BOARD FOR NAE12S20 |
3,913 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 60 W | 0.6V ~ 5.1V | 18A | 9V ~ 15V | Buck | - | Board(s) | NAE12S20 |
|

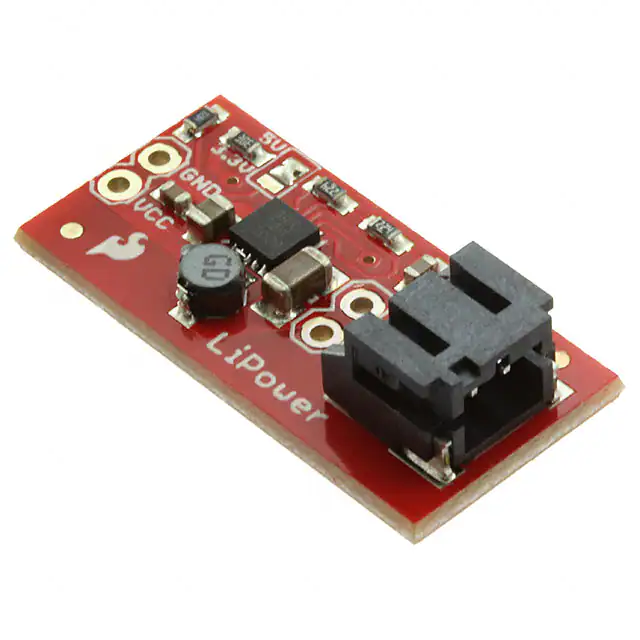

PRT-10255EVAL BOARD FOR TPS61200 |
3,826 | 17.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V or 5V | 600mA | 0.3V ~ 5.5V | Boost | - | Board(s) | TPS61200 |
|

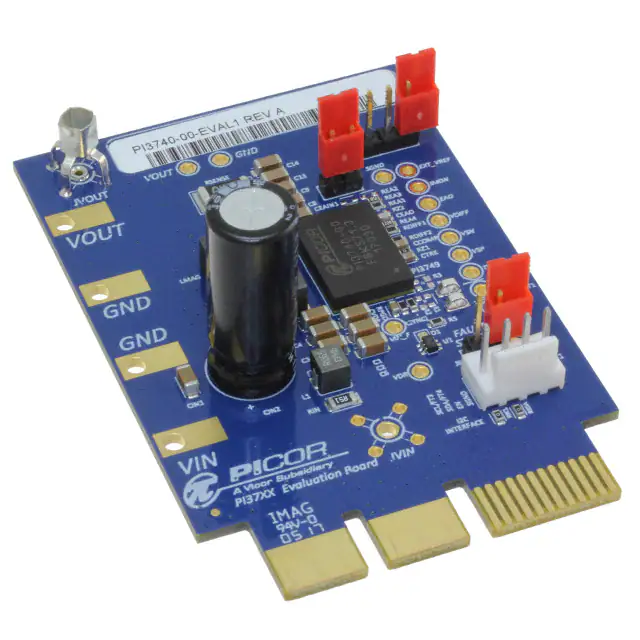

PI3740-00-EVAL1EVAL BOARD FOR PI374000 |
2,075 | 53.34 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | - | 60 W | 24V | - | 8V ~ 60V | Buck-Boost | - | Board(s) | PI3740-00 |
|

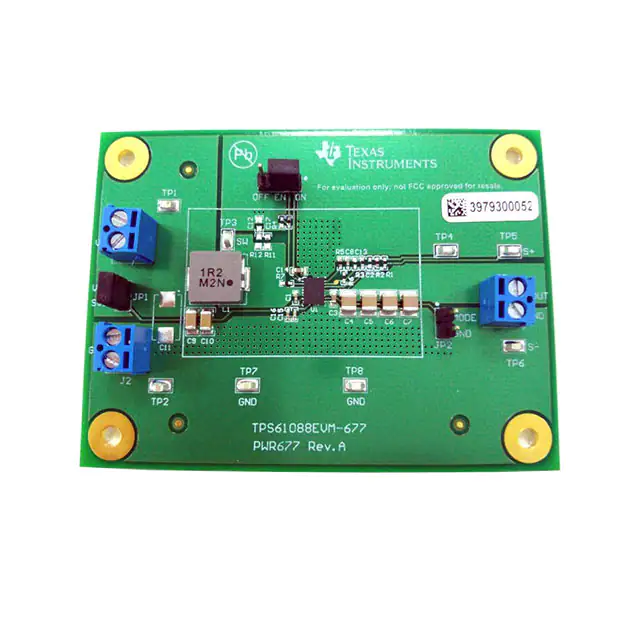

TPS61088EVM-677EVAL BOARD FOR TPS61088 |
1,025 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 9V | 3A | 3V ~ 5V | Boost | 600kHz | Board(s) | TPS61088 |
|
TPS61089EVM-742EVAL BOARD FOR TPS61089 |
2,728 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 9V | 7A | 3V ~ 5V | Boost | - | Board(s) | TPS61089 |
|

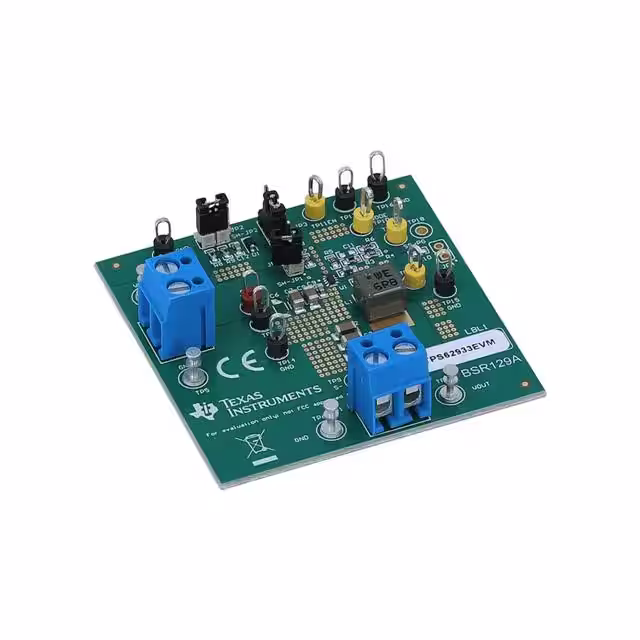

TPS62933EVMEVAL BOARD FOR TPS62933 |
1,894 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 22V | 3A | 3.8V ~ 30V | Buck | - | Board(s) | TPS62933 |
|
|
TPSM63610EVMEVAL BOARD FOR TPSM63610 |
2,248 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 3V ~ 36V | Buck | - | Board(s) | TPSM63610 |
|

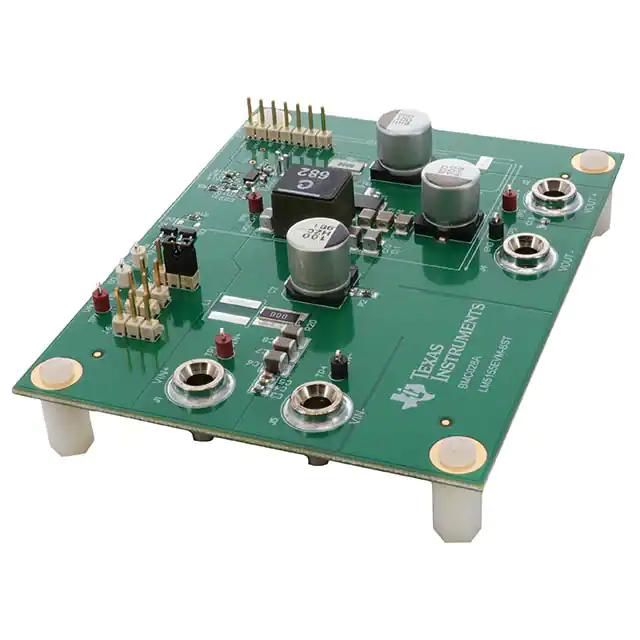

LM5155EVM-BSTEVAL BOARD FOR LM5155 |
4,556 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 2A | 6V ~ 18V | Boost | 440kHz | Board(s) | LM5155 |
|
|
EVLVIPGAN50FLEVAL BOARD FOR VIPERGAN50 |
3,039 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 50 W | 15V | 3.35A | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPERGAN50 |
|

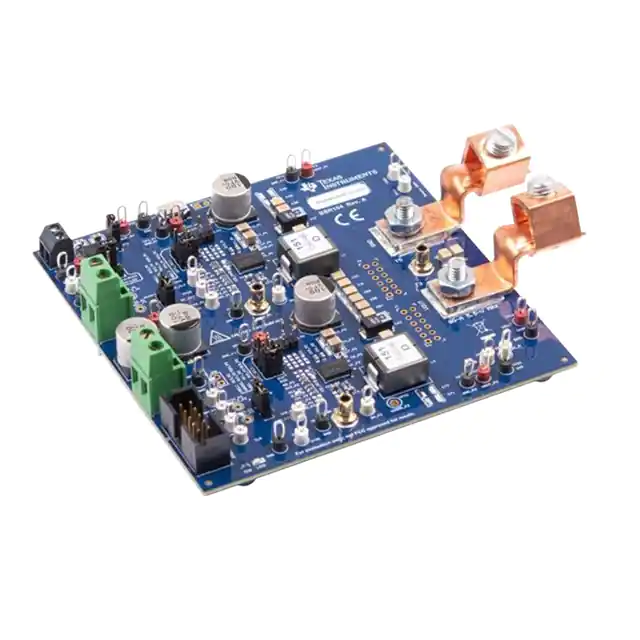

TPS546D24AEVM-2PHEVAL BOARD FOR TPS546D24A |
1,564 | 136.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V | 80A | 5V ~ 16V | Buck | 550kHz | Board(s) | TPS546D24A |
|
|
TPS55289Q1EVM-011EVAL BOARD FOR TPS55289Q1 |
2,635 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 22V | 3A | 3V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS55289-Q1 |
|

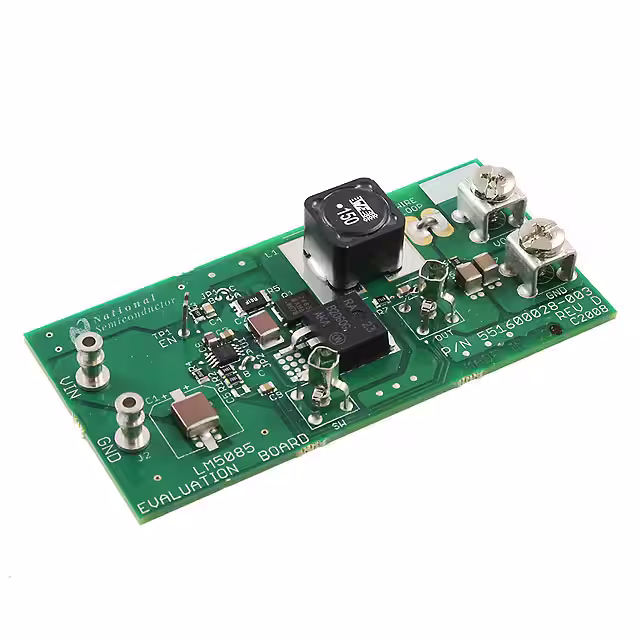

LM5085EVAL/NOPBEVAL BOARD FOR LM5085 |
4,527 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4.5A | 5.5V ~ 55V | Buck | 300kHz | Board(s) | LM5085 |
|
|
LM70880QEVMEVAL BOARD FOR LM70880Q1 |
4,517 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 8V ~ 72V | Buck | 400kHz | Board(s) | LM70880-Q1 |
|
|
I7A33A-C01-EVK-S1EVAL BOARD FOR I7A4W033A033V |
4,006 | 138.47 |
|
Datasheet |
i7x | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 500 W | 3.3V ~ 24V | 33A | 18V ~ 60V | Buck | - | Board(s) | I7A4W033A033V |
|

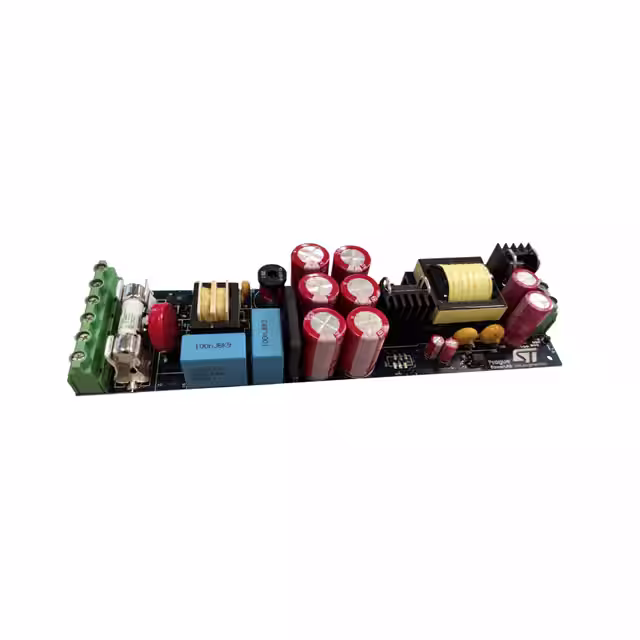

STEVAL-ISA211V1EVAL BOARD L6566BH STW12N170K5 |
3,484 | 156.25 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 100 W | - | - | 230 ~ 690 VAC, 250V ~ 1000V | Flyback | - | Board(s) | L6566BH, STW12N170K5 |
|

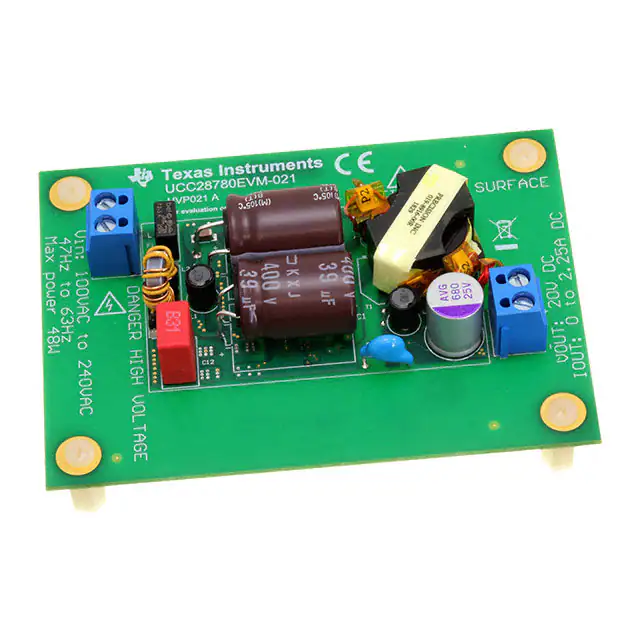

UCC28780EVM-021EVAL BOARD FOR UCC24612 UCC28780 |
4,518 | 178.80 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | - | 20V | 2.25A | 90 ~ 264 VAC | Flyback | - | Board(s) | UCC24612, UCC28780 |
|

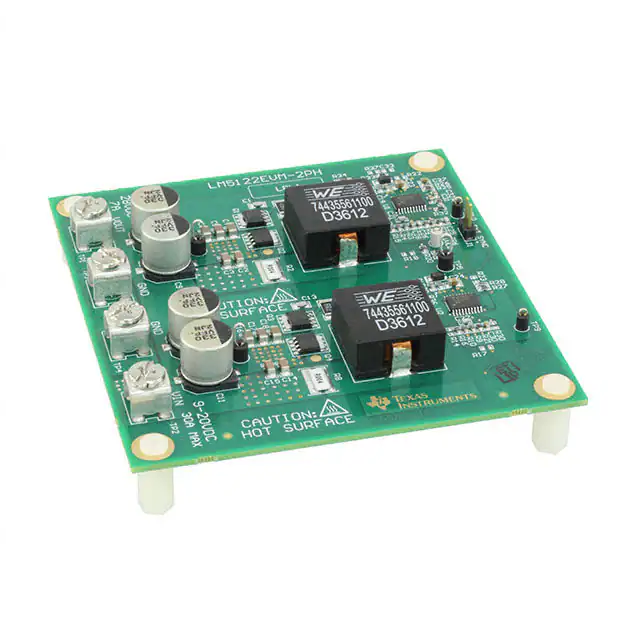

LM5122EVM-2PHEVAL BOARD FOR LM5122 |
1,478 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 28V | 7A | 9V ~ 20V | Boost | 250kHz | Board(s) | LM5122 |
|
CM1EVAL BOARD FOR CA SERIES |
2,375 | 184.69 |
|
Datasheet |
CA | Box | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | CA Series |
|

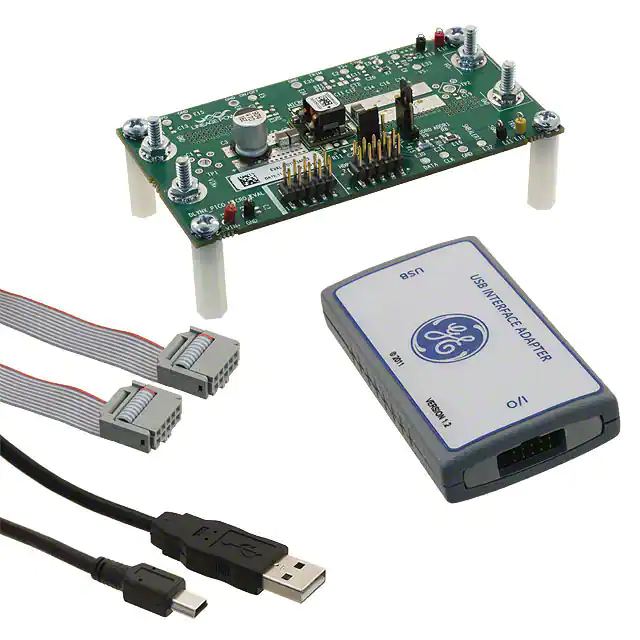

DIGITAL_POL_EVAL_KITEVAL BOARD FOR PDT012 |
2,438 | 189.06 |
|
- |
Digital Power Insight™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.45V ~ 5.5V | 12A | 3V ~ 14.4V | Buck | - | Board(s), Cable(s), Accessories | PDT012 |
