DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPSM560R6HEVMEVAL BOARD FOR TPSM560R6H |
4,330 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 12V or 15V | 600mA | 4.2V ~ 60V | Buck | - | Board(s) | TPSM560R6H |
|

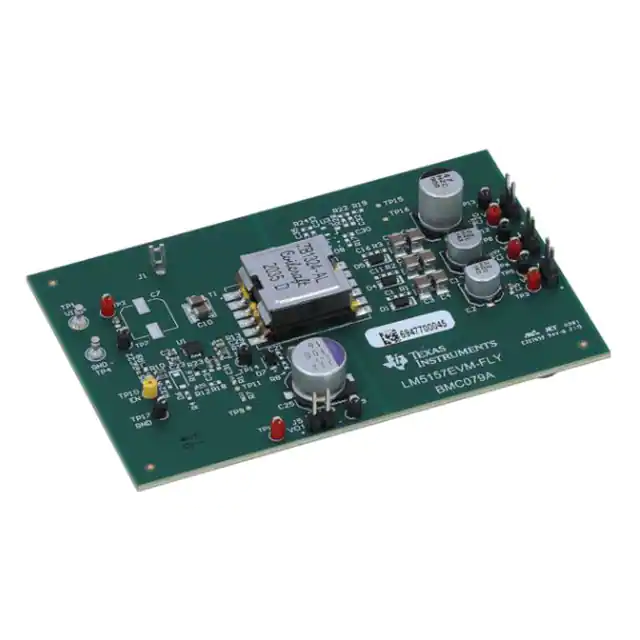

LM5157EVM-FLYEVAL BOARD FOR LM5157 |
1,438 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 4 Isolated Outputs | 8.5 W | 10V, 20V, 20V, 20V | 250mA, 150mA, 75mA, 75mA | 8V ~ 16V | Flyback | 250kHz | Board(s) | LM5157 |
|
TPS548B27EVM-162EVAL BOARD FOR TPS548B27 |
1,203 | 58.80 |
|
Datasheet |
D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 4V ~ 16V | Buck | 800kHz | Board(s) | TPS548B27 |
|

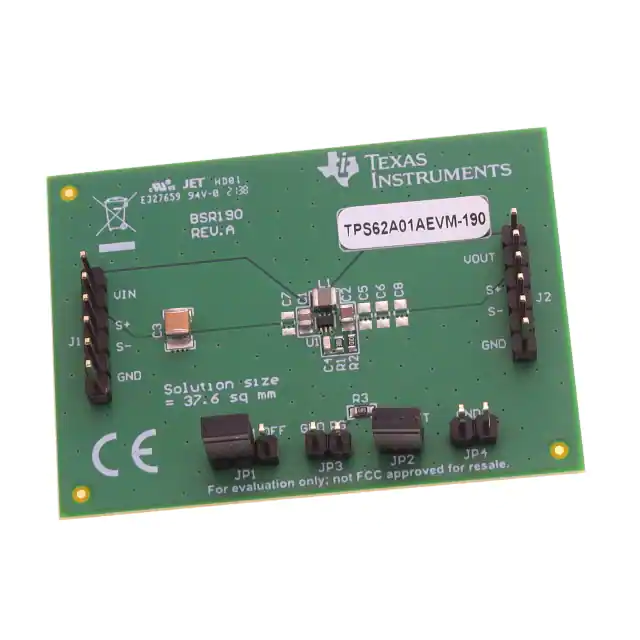

TPS62A01AEVM-190EVAL BOARD FOR TPS62A01A |
4,698 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | 2.4MHz | Board(s) | TPS62A01A |
|

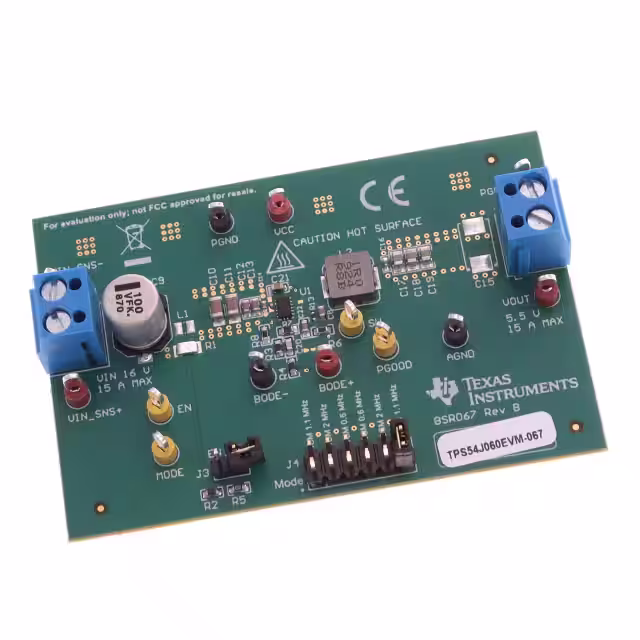

TPS54J060EVM-067EVAL BOARD FOR TPS54J060 |
2,884 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1.8V | 6A | 4V ~ 16V | Buck | 1.1MHz | Board(s) | TPS54J060 |
|
TPS62843678EVM-167EVAL BOARD FOR TPS62843 |
3,325 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 3.6V | 600mA | 1.8V ~ 5.5V | Buck | - | Board(s) | TPS62843 |
|

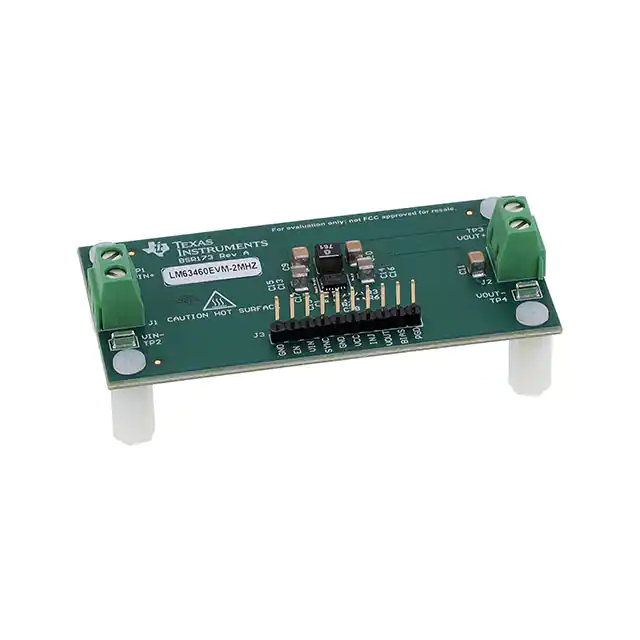

LM63460EVM-2MHZEVAL BOARD FOR LM63460Q1 |
2,976 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | LM63460-Q1 |
|

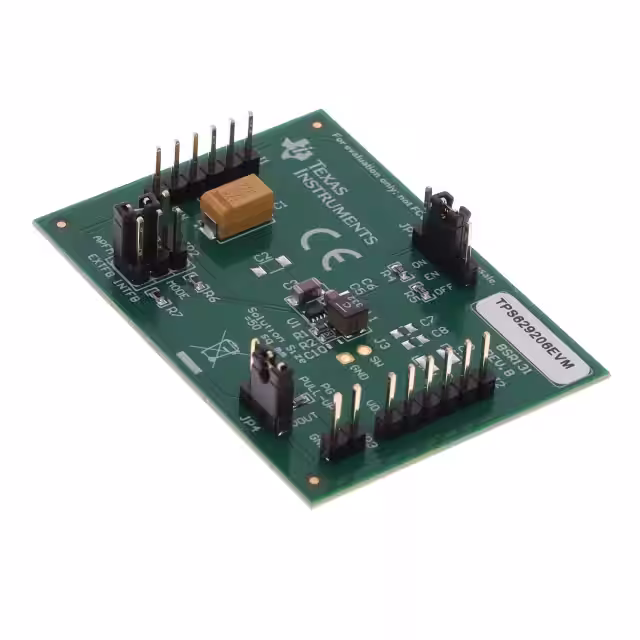

TPS629206EVMEVAL BOARD FOR TPS629206 |
3,903 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 5V ~ 17V | Buck | 2.5MHz | Board(s) | TPS629206 |
|
TPSM82903EVMEVAL BOARD FOR TPSM82903 |
1,589 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 17V | Buck | - | Board(s) | TPSM82903 |
|

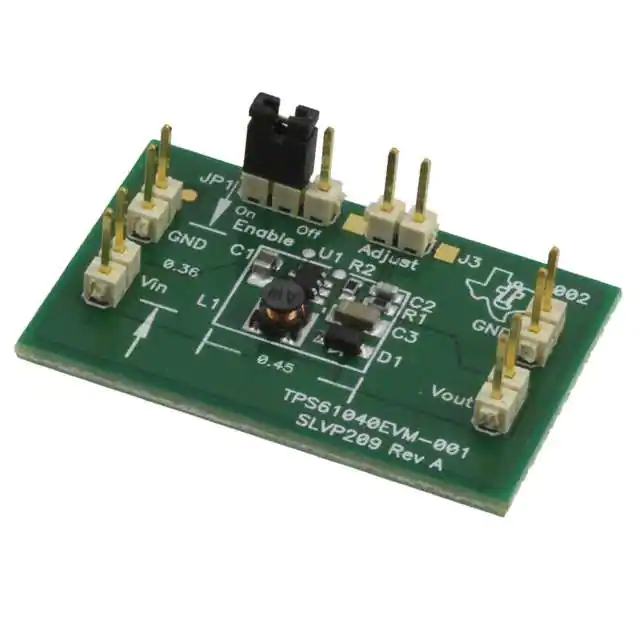

TPS61040EVM-001EVAL BOARD FOR TPS61040 |
3,547 | 58.80 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, LCD Supply | 1 Non-Isolated Output | 360 mW | 18V | 20mA | 3V ~ 5V | Boost | - | Board(s) | TPS61040 |
|

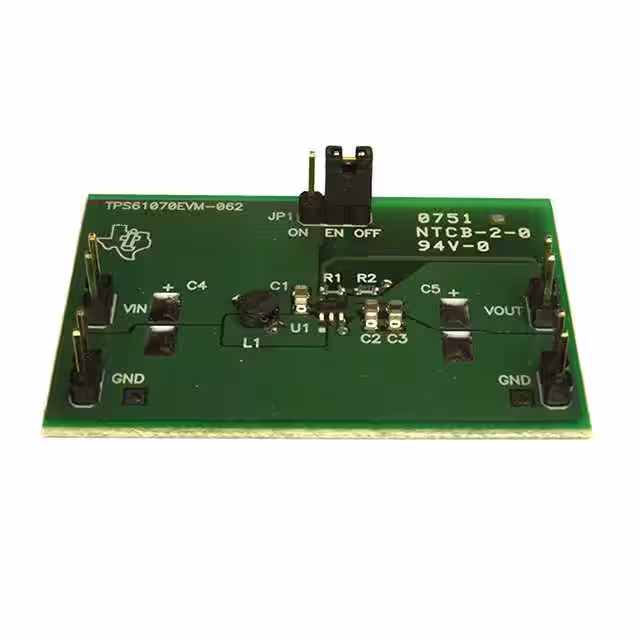

TPS61070EVM-062EVAL BOARD FOR TPS61070 |
2,346 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 300mA | 0.9V ~ 5.5V | Boost | 1.2MHz | Board(s) | TPS61070 |
|

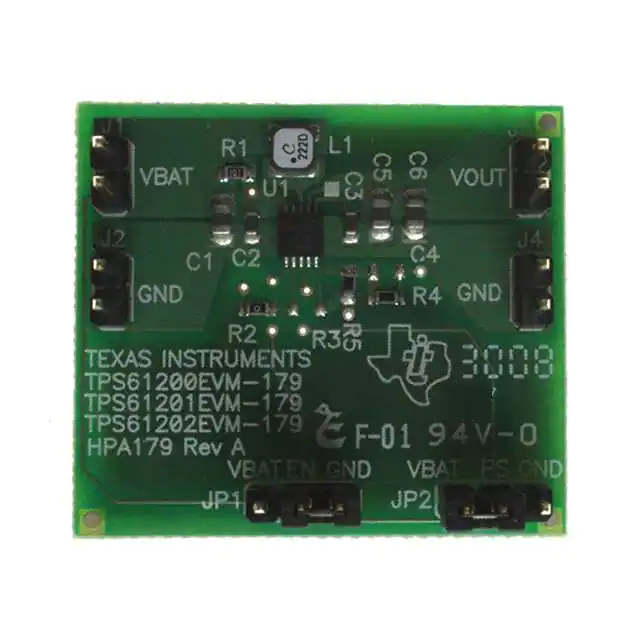

TPS61200EVM-179EVAL BOARD FOR TPS61200 |
4,091 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 0.3V ~ 5.5V | Boost | - | Board(s) | TPS61200 |
|

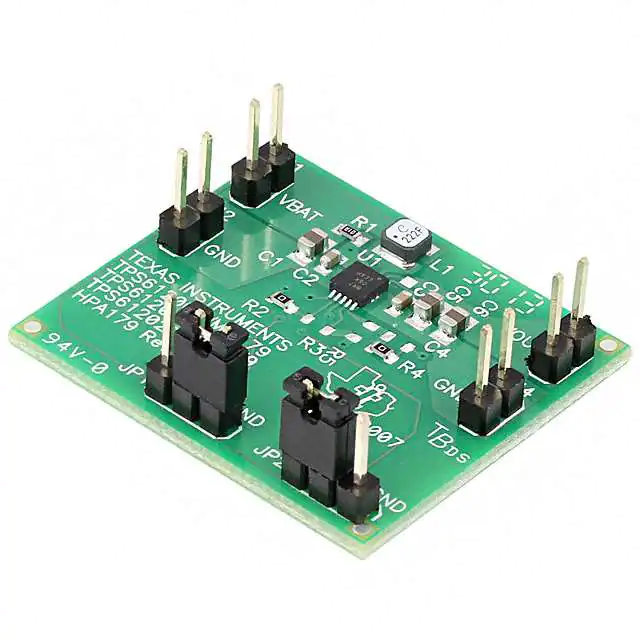

TPS61202EVM-179EVAL BOARD FOR TPS61202 |
4,419 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 600mA | 0.3V ~ 5.5V | Boost | - | Board(s) | TPS61202 |
|
TPS62240EVM-229EVAL BOARD FOR TPS62240 |
4,822 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 300mA, 300mA | 2V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62240 |
|

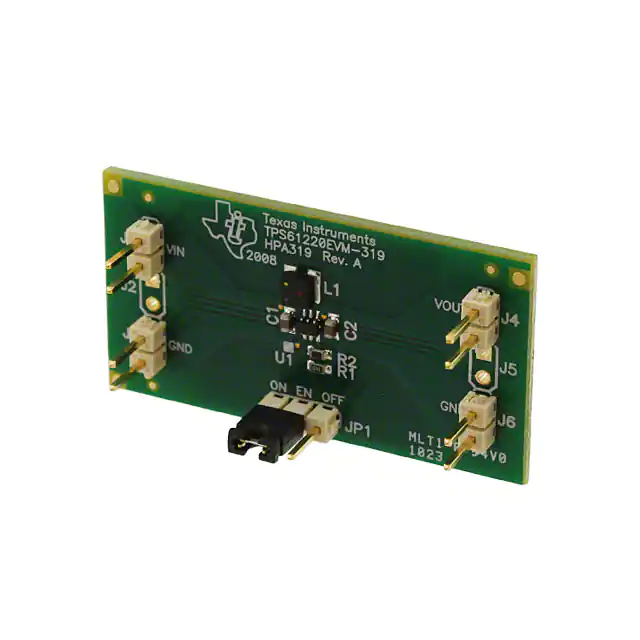

TPS61220EVM-319EVAL BOARD FOR TPS61220 |
1,852 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | - | 0.7V ~ 5.5V | Boost | - | Board(s) | TPS61220 |
|

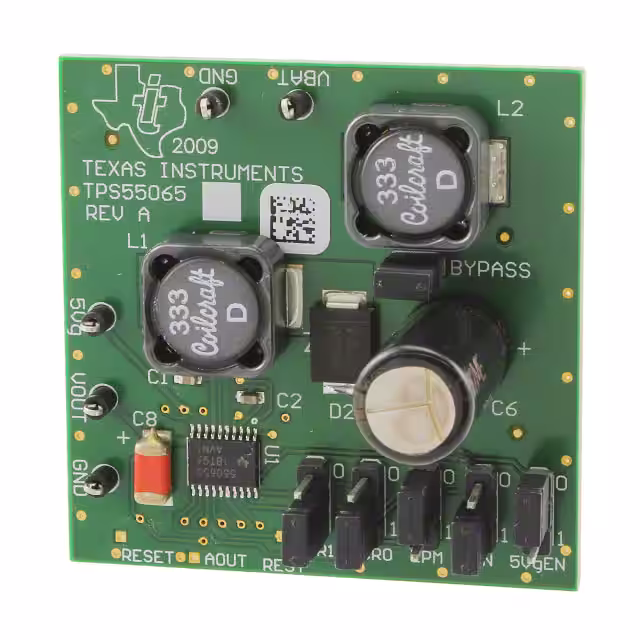

TPS55065EVMEVAL BOARD FOR TPS55065 |
1,794 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 500mA | 1.5V ~ 40V | Buck-Boost | 440kHz | Board(s) | TPS55065 |
|

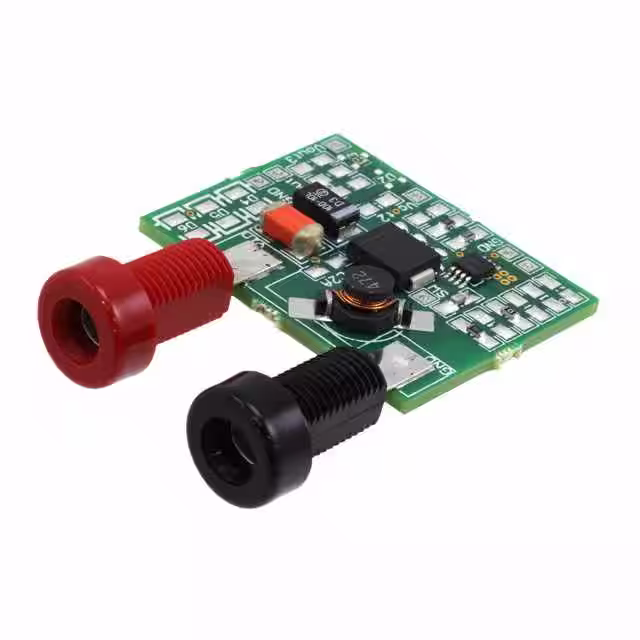

LM2623EV/NOPBEVAL BOARD FOR LM2623 |
2,414 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2A | 2.3V ~ 5.5V | Boost | - | Board(s) | LM2623 |
|

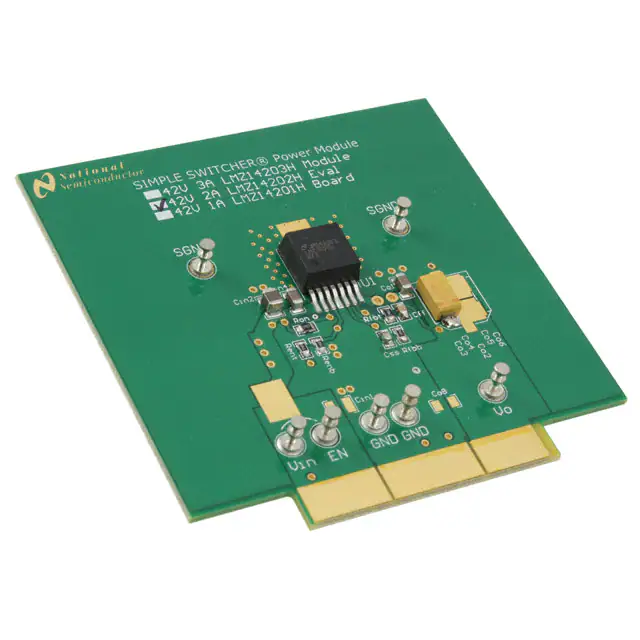

LMZ14202HEVAL/NOPBEVAL BOARD FOR LMZ14202H |
1,689 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 2A | 15V ~ 42V | Buck | 400kHz | Board(s) | LMZ14202H |
|

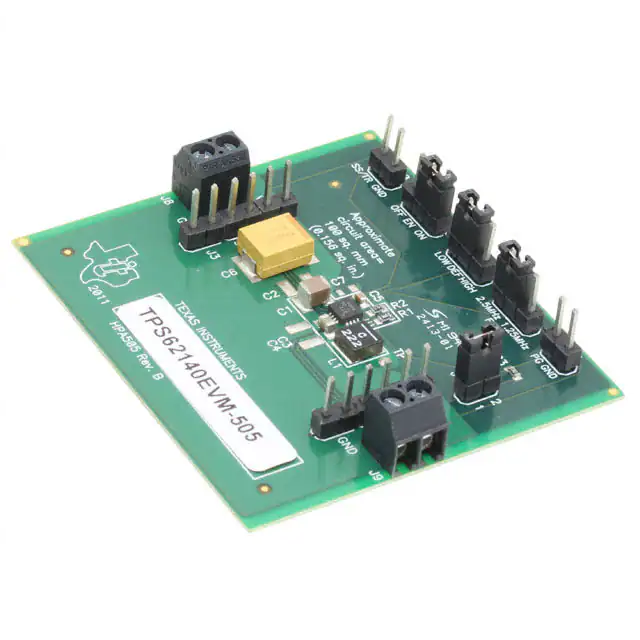

TPS62140EVM-505EVAL BOARD FOR TPS62140 |
4,205 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3.7V ~ 17V | Buck | - | Board(s) | TPS62140 |
|

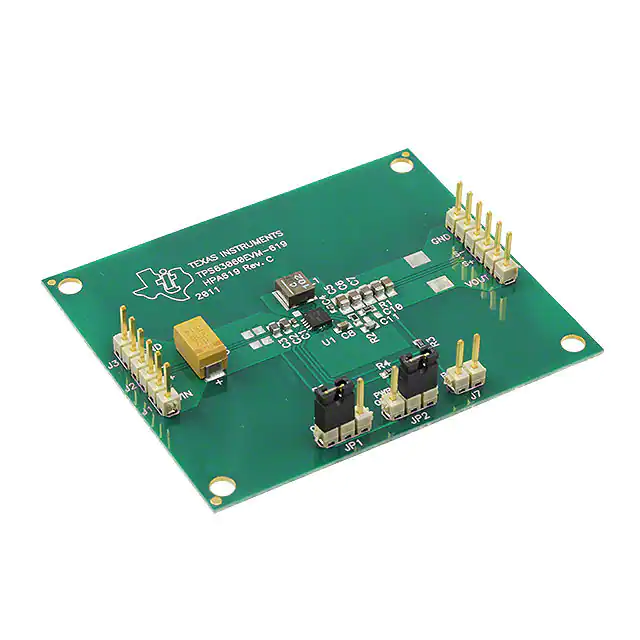

TPS63060EVM-619EVAL BOARD FOR TPS63060 |
2,959 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 800mA | 2.5V ~ 12V | Buck-Boost | 2.4MHz | Board(s) | TPS63060 |
