DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS543C20AEVM-054EVAL BOARD FOR TPS543C20 |
4,333 | 83.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 40A | 5V ~ 16V | Buck | 500kHz | Board(s) | TPS543C20 |
|

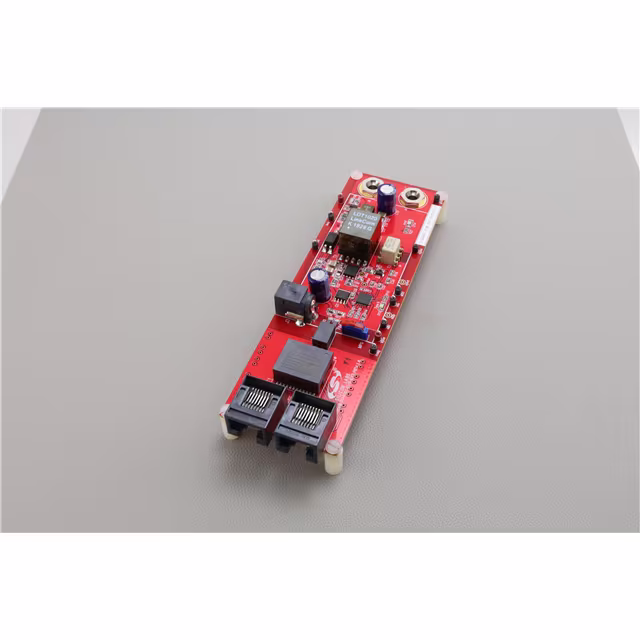

SI34061FB5VC4KITEVAL BOARD FOR SI34061 |
2,146 | 92.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 30 W | 5V | 6A | 48V | Flyback | - | Board(s) | Si34061 |
|
SI34061FB12V4KITEVAL BOARD FOR SI34061 |
2,630 | 92.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 30 W | 12V | 2.5A | 48V | Flyback | - | Board(s) | Si34061 |
|
ISL85014EVAL1ZEVAL BOARD FOR ISL85014 |
1,703 | 93.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 14A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | ISL85014 |
|
ISL78268EVAL1ZEVAL BOARD FOR ISL78268 |
4,730 | 93.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V ~ 55V | 25A | 5V ~ 55V | Buck | - | Board(s) | ISL78268 |
|
LM5150RUMEVMEVAL BOARD FOR LM5150Q1 |
4,212 | 90.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 8.5V | 2.94A | 2.5V ~ 40V | Boost | 440kHz | Board(s) | LM5150-Q1 |
|
MXC 270C1-EB-10EVAL BOARD 2D024010A 2I048010A |
1,872 | 93.75 |
|
Datasheet |
MxC® 200 | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | - | 48V | - | - | Board(s) | 2D-024-010A, 2I-048-010A |
|
|
EV1406-0600-AEVAL BOARD FOR FS1406 |
3,625 | 0.00 |
|
Datasheet |
µPOL™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 12V | Buck | 2.2MHz | Board(s) | FS1406 |
|

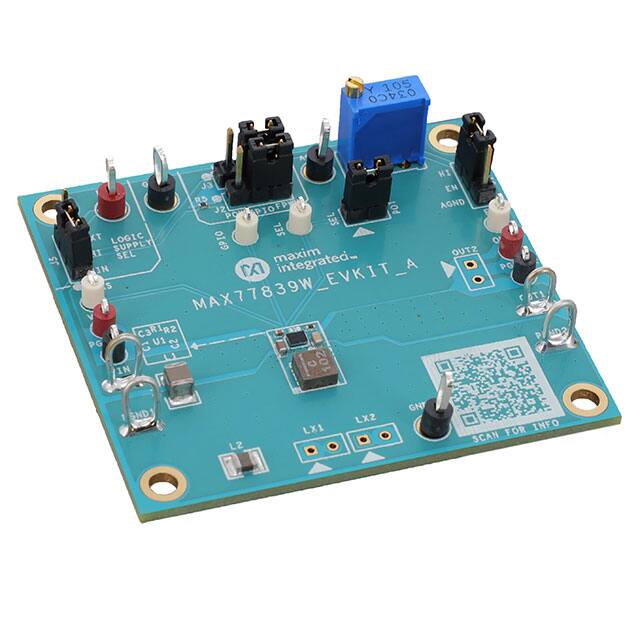

MAX77839WEVKIT#EVAL BOARD FOR MAX77839 |
3,725 | 87.45 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 1.8V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | MAX77839 |
|

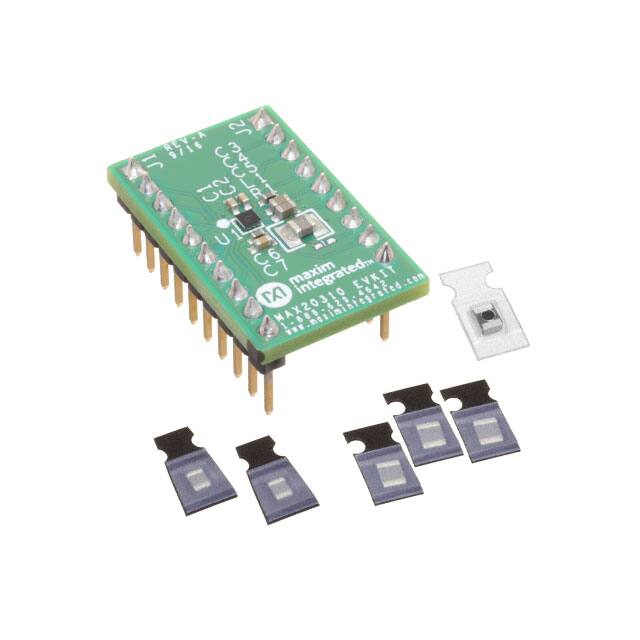

MAX20310EVKIT#EVAL BOARD FOR MAX20310 |
4,010 | 87.22 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | - | -0.8V ~ -2V | Buck-Boost | - | Board(s) | MAX20310 |
|

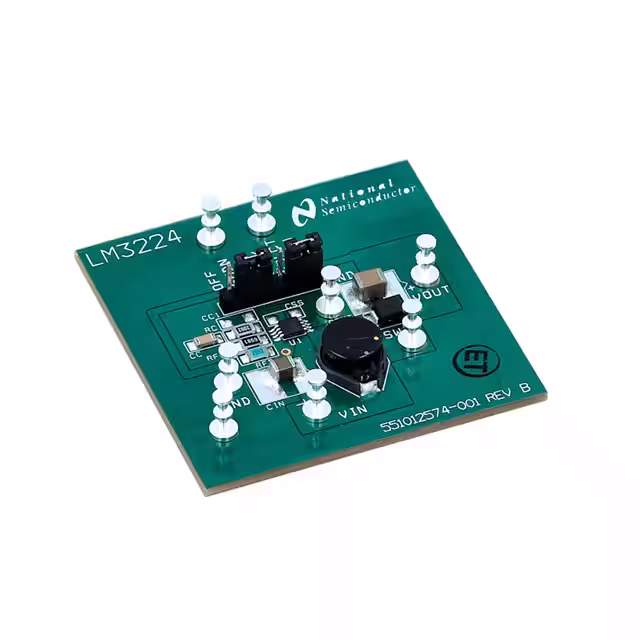

LM3224MM-ADJEV/NOPBEVAL BOARD FOR LM3224 |
3,875 | 94.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 650mA | 2.7V ~ 4.2V | Boost | 1.25MHz | Board(s) | LM3224 |
|

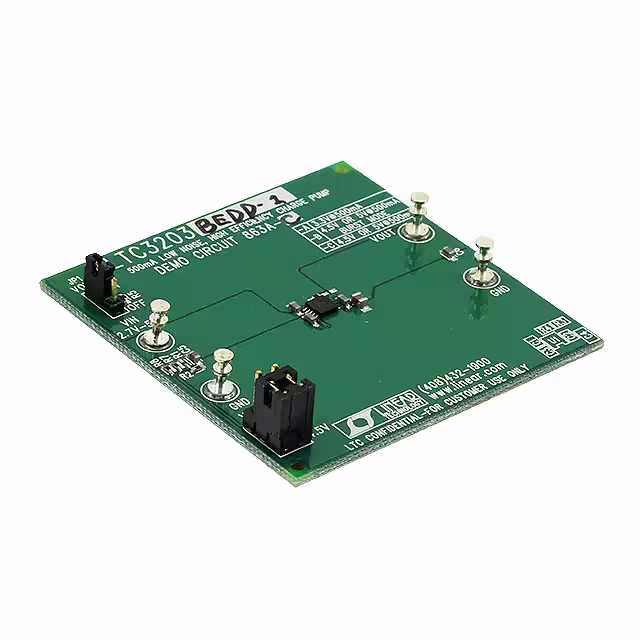

DC863A-CEVAL BOARD FOR LTC3203B1 |
4,017 | 85.60 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 4.5V or 5V | 500mA | 2.7V ~ 5.5V | Boost | 900kHz, 1MHz | Board(s) | LTC3203B-1 |
|

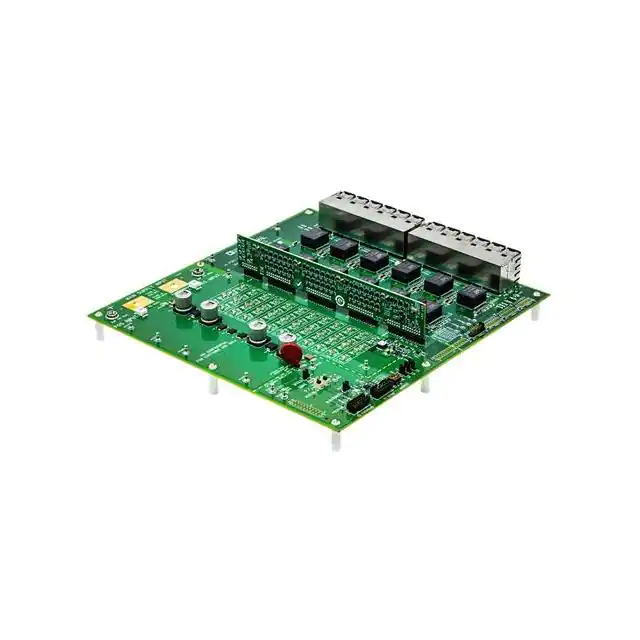

DC2879AEVAL BOARD FOR LTM4660 |
4,212 | 94.16 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 300 W | 12V | 25A | 36V ~ 60V | Buck | 430kHz | Board(s) | LTM4660 |
|
|
EVKT-MP8860EVAL BOARD FOR MP8860 |
2,345 | 95.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | 2.8V ~ 22V | Buck-Boost | 500kHz | Board(s), Cable(s), Accessories | MP8860 |
|

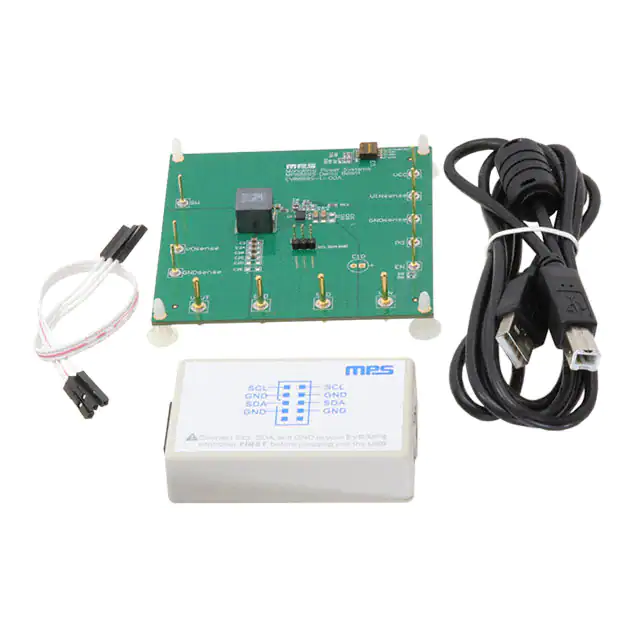

EVKT-8869SEVAL BOARD FOR MP8869S |
4,011 | 95.00 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 2.85V ~ 18V | Buck | - | Board(s), Cable(s), Accessories | MP8869S |
|

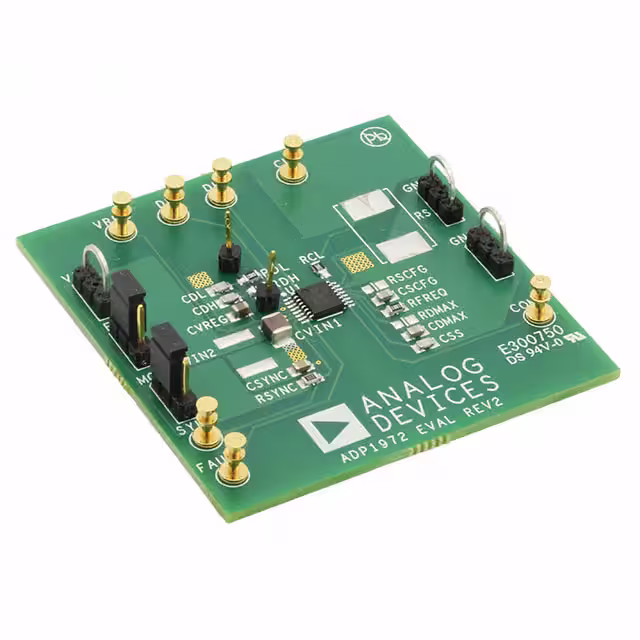

ADP1972-EVALZEVAL BOARD FOR ADP1972 |
3,099 | 96.30 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down with LDO | 1 Non-Isolated Output | - | - | - | 6V ~ 60V | Boost, Buck | - | Board(s) | ADP1972 |
|

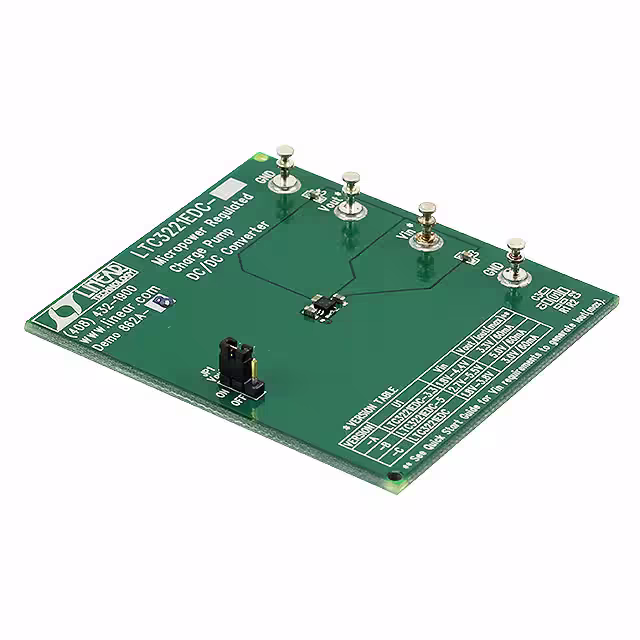

DC862A-BEVAL BOARD FOR LTC32215 |
3,462 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 60mA | 2.7V ~ 5.5V | Boost | 600kHz | Board(s) | LTC3221-5 |
|

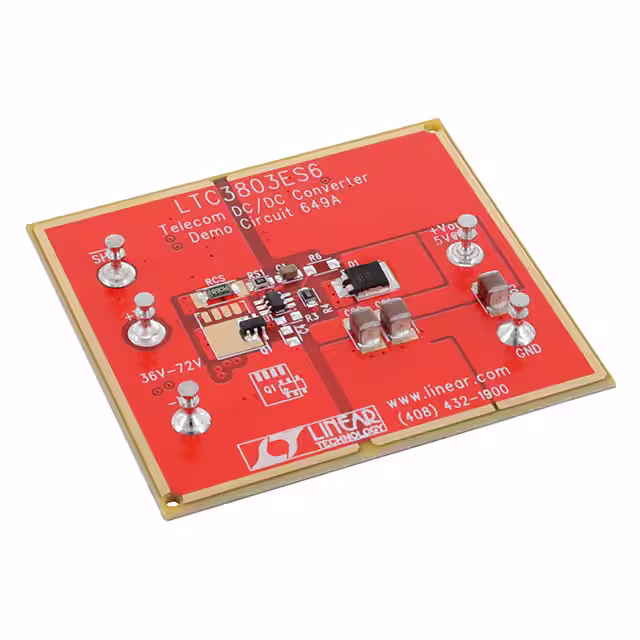

DC649AEVAL BOARD FOR LTC3803 |
3,014 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 10 W | 5V | 2A | 36V ~ 72V | Flyback | 200kHz | Board(s) | LTC3803 |
|
MAX8815AEVKIT+EVAL BOARD FOR MAX8815A |
3,682 | 91.82 |
|
Datasheet |
True Shutdown™ | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 5 W | 5V | 1A | 1.2V ~ 5.5V | Boost | 2MHz | Board(s) | MAX8815A |
|

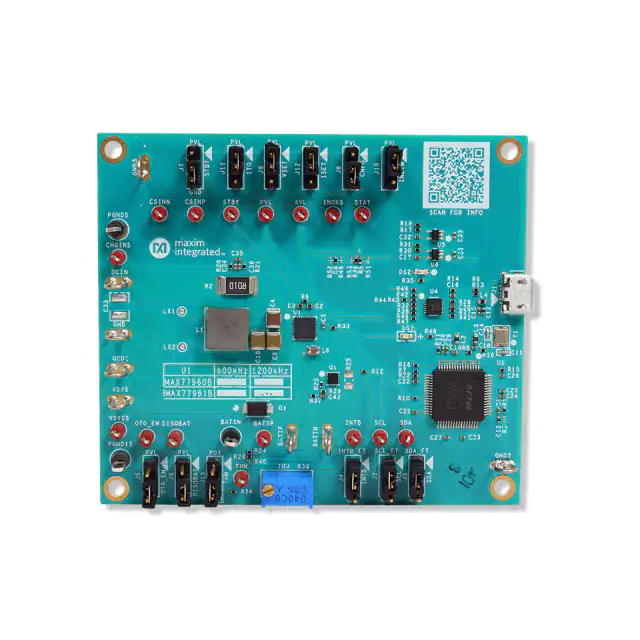

MAX77961BEVKIT12#EVAL BOARD FOR MAX77961B |
4,370 | 92.75 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Charger | 1 Non-Isolated Output | - | - | 6A | 3.5V ~ 25.4V | Buck-Boost | 1.2MHz | Board(s) | MAX77961B |
