DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL85415DEMO1ZEVAL BOARD FOR ISL85415 |
1,630 | 25.88 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85415 |
|

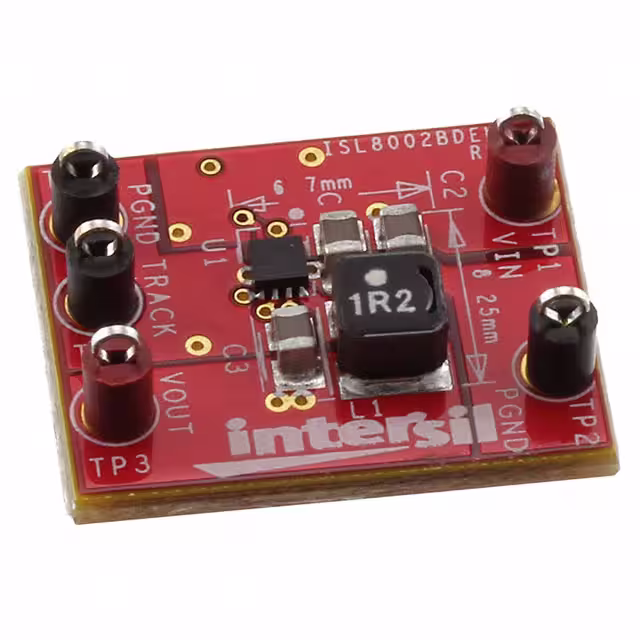

ISL8002BDEMO1ZEVAL BOARD FOR ISL8002B |
3,555 | 25.88 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL8002B |
|
|
ISL85412DEMO1ZEVAL BOARD FOR ISL85412 |
2,842 | 25.88 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 150mA | 3.5V ~ 40V | Buck | 700kHz | Board(s) | ISL85412 |
|

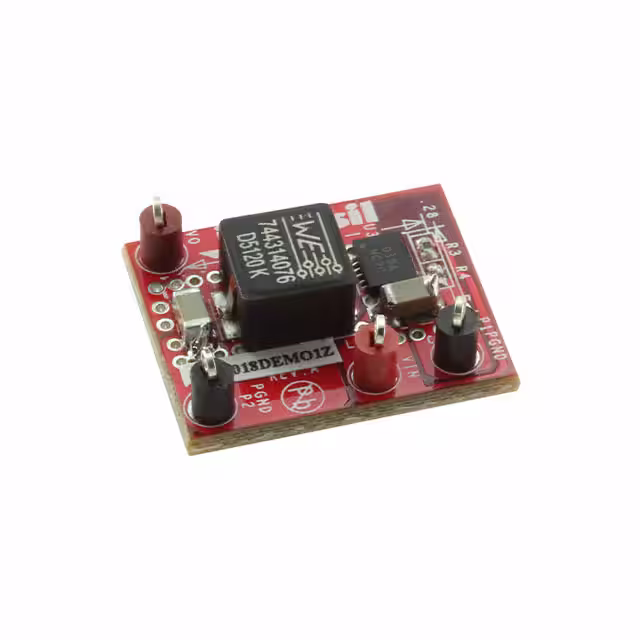

ISL8018DEMO1ZEVAL BOARD FOR ISL8018 |
2,546 | 25.88 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 8A | 2.7V ~ 5.5V | Buck | - | Board(s) | ISL8018 |
|

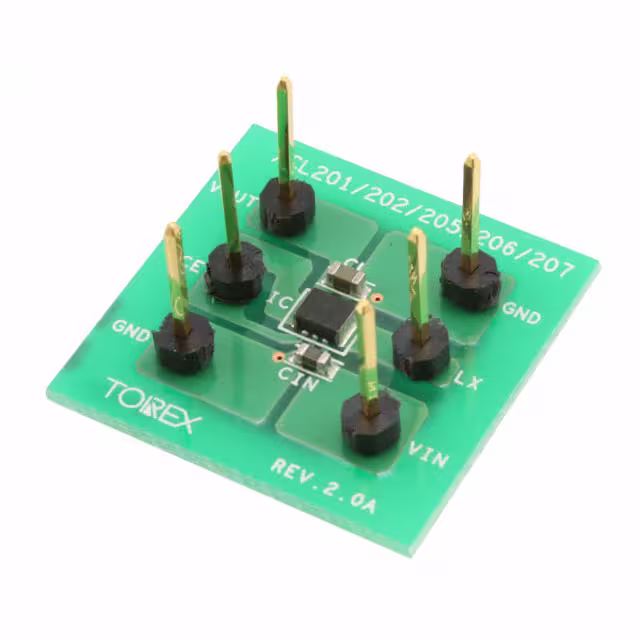

XCL206B153-EVBEVAL BOARD FOR XCL206B153ARG |
1,565 | 28.12 |
|
Datasheet |
XCL206 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2V ~ 6V | Buck | - | Board(s) | XCL206B153AR-G |
|

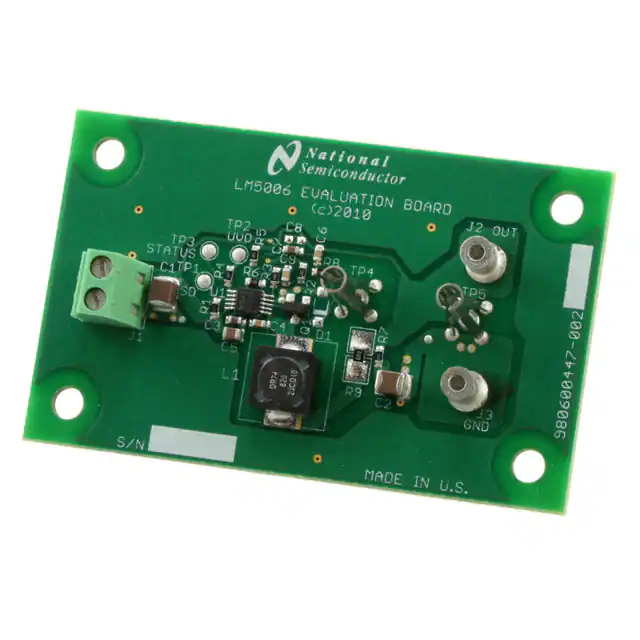

LM5006EVAL/NOPBEVAL BOARD FOR LM5006 |
2,946 | 30.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 6V ~ 75V | Buck | 200kHz | Board(s) | LM5006 |
|

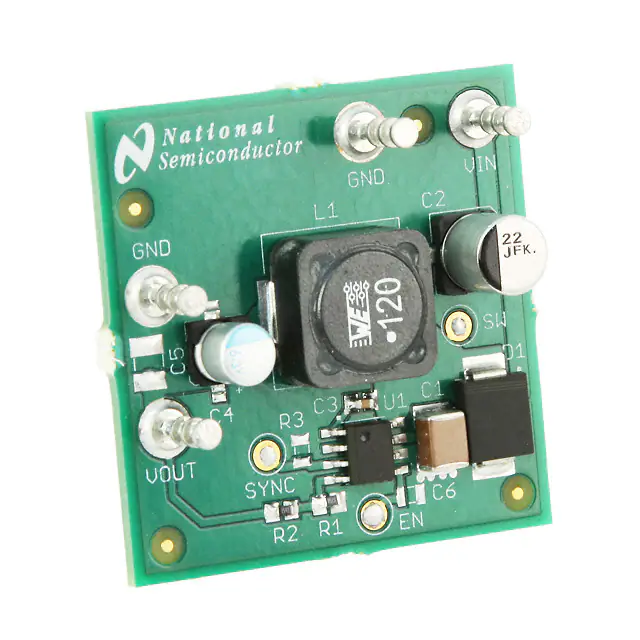

LM22680EVAL/NOPBEVAL BOARD FOR LM22680 |
3,756 | 30.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22680 |
|
LMZ10505EVAL/NOPBEVAL BOARD FOR LMZ10505 |
3,205 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10505 |
|

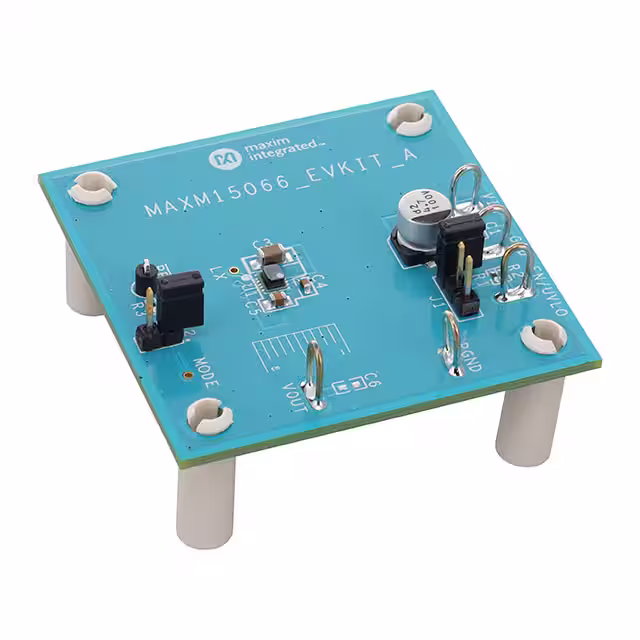

MAXM15066EVKIT#EVAL BOARD FOR MAXM15066 |
4,039 | 34.76 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 8.5V ~ 60V | Buck | 550kHz | Board(s) | MAXM15066 |
|

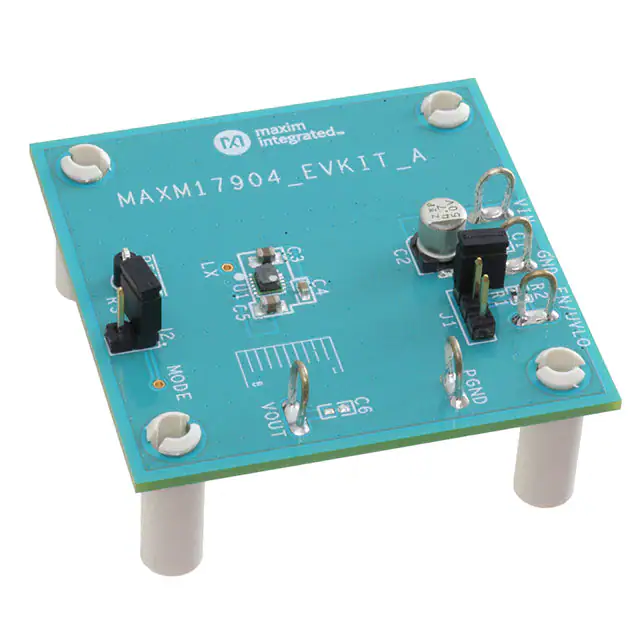

MAXM17904EVKIT#EVAL BOARD FOR MAXM17904 |
3,386 | 34.76 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 24V | Buck | 550kHz | Board(s) | MAXM17904 |
|

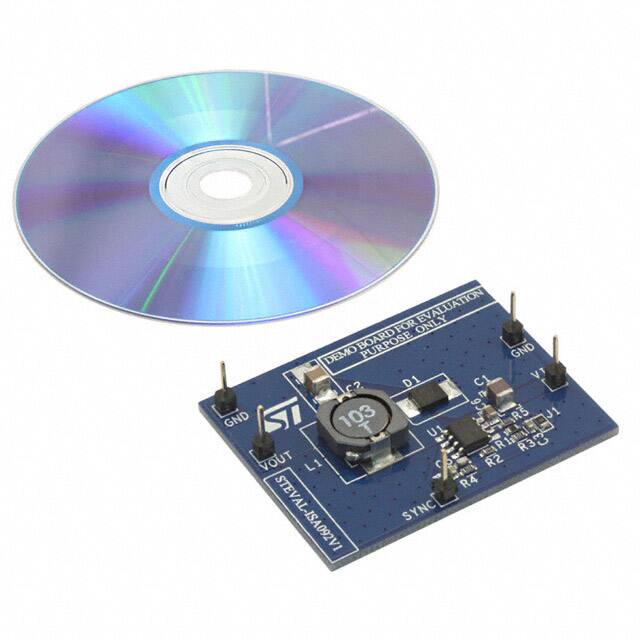

STEVAL-ISA092V1EVAL BOARD FOR L7980 |
2,317 | 31.25 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 28V | Buck | 250kHz | Board(s) | L7980 |
|

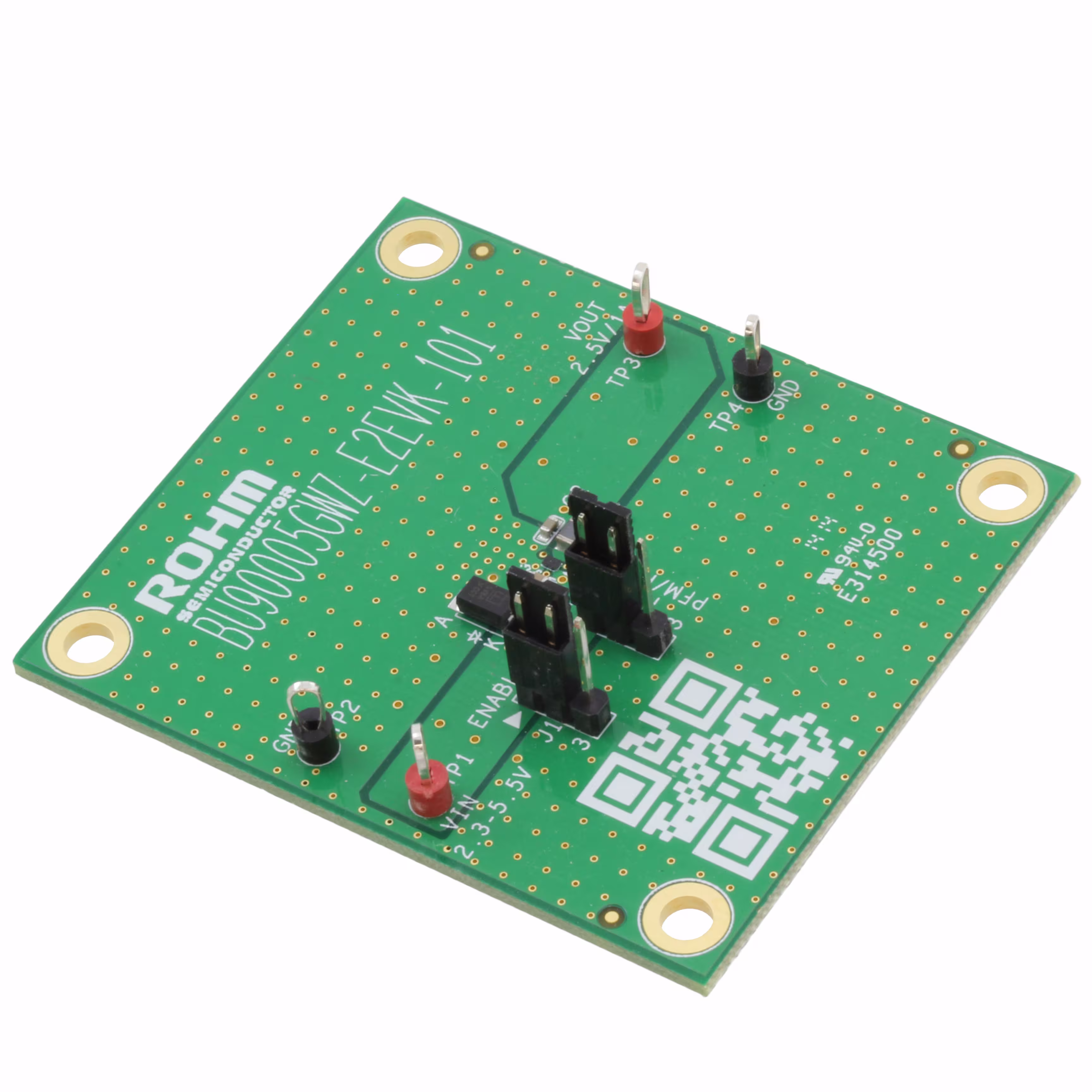

BU90005GWZ-E2-EVK-101EVAL BOARD FOR BU90005 |
4,425 | 31.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1A | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | BU90005 |
|

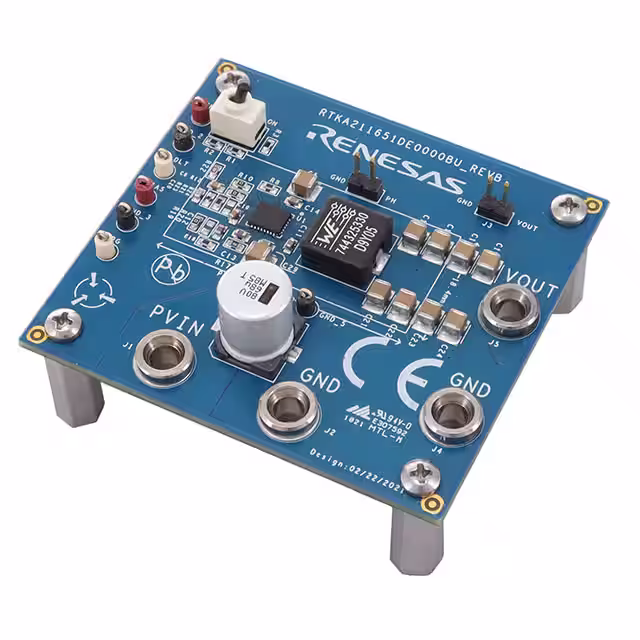

RTKA211651DE0000BUEVAL BOARD FOR RAA211651 |
2,177 | 32.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | RAA211651 |
|

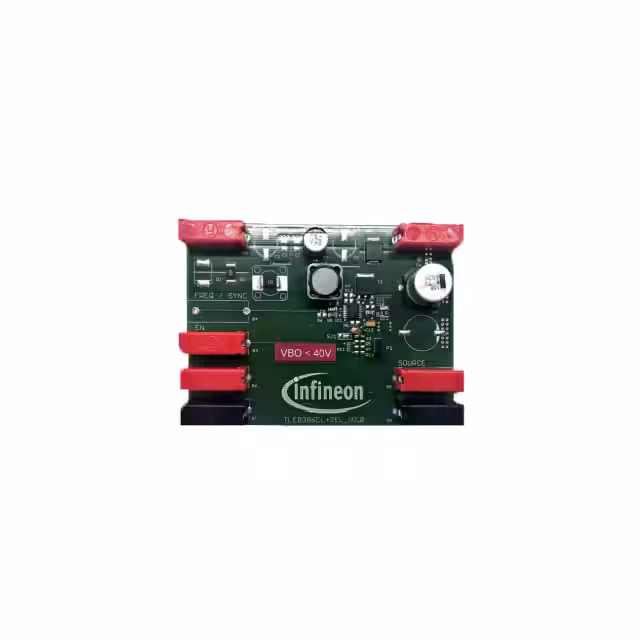

DEMOBOARDTLE83862ELTOBO1EVAL BOARD FOR TLE83862EL |
3,730 | 37.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 27V | - | - | Boost | - | Board(s) | TLE8386-2EL |
|
178960501EVAL BOARD FOR WPMDB1960501 |
4,609 | 36.35 |
|
Datasheet |
MagI3C | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 600mA | 2.7V ~ 5.5V | Buck | 2.25MHz | Board(s) | WPMDB1960501 |
|

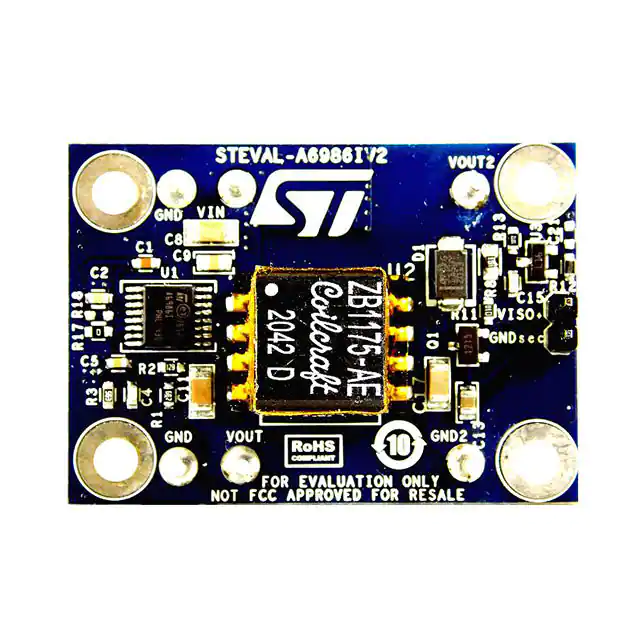

STEVAL-A6986IV2EVAL BOARD FOR A6986I |
4,893 | 33.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 5 W | 2.9V ~ 3.6V | - | 4V ~ 38V | Buck | - | Board(s) | A6986I |
|
|
ISL85003DEMO1ZEVAL BOARD FOR ISL85003 |
3,513 | 34.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | ISL85003 |
|
|
SECO-LVDCDC3064-SIC-GEVBEVAL BOARD FOR NCV3064 |
1,498 | 34.62 |
|
Datasheet |
- | Box | Active | DC/DC Isolated Power Supply | 3 Isolated Outputs | 1.5 W | -5V, 5V, 20V | 150mA | 6V ~ 18V | Flyback | 150kHz | Board(s) | NCV3064 |
|
SECO-LVDCDC3064-IGBT-GEVBEVAL BOARD FOR NCV3064 |
1,797 | 34.62 |
|
Datasheet |
- | Box | Active | DC/DC Isolated Power Supply | 3 Isolated Outputs | - | -7.5V, 7.5V, 15V | - | 6V ~ 18V | Flyback | - | Board(s) | NCV3064 |
|

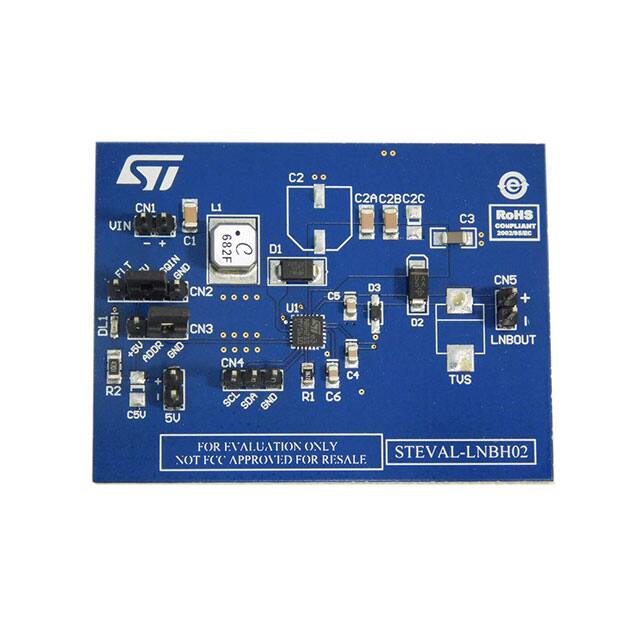

STEVAL-LNBH02EVAL BOARD FOR LNBH25S |
3,492 | 35.00 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25S |
