DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX17541GTAEVKIT#EVAL BOARD FOR MAX17541 |
4,694 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 5V ~ 42V | Buck | 600kHz | Board(s) | MAX17541 |
|
AP3917BEV3EVAL BOARD FOR AP3917B |
3,918 | 38.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | 316 mW | 3.8V, 12V | 20mA, 20mA | 85 ~ 264 VAC | Buck | - | Board(s) | AP3917B |
|
STEVAL-ISA010V1EVAL BOARD FOR VIPER16 |
1,092 | 38.75 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 2.55 W | 5V, 12V | 150mA, 100mA | 85 ~ 500 VAC | Buck | 60kHz | Board(s) | VIPer16 |
|

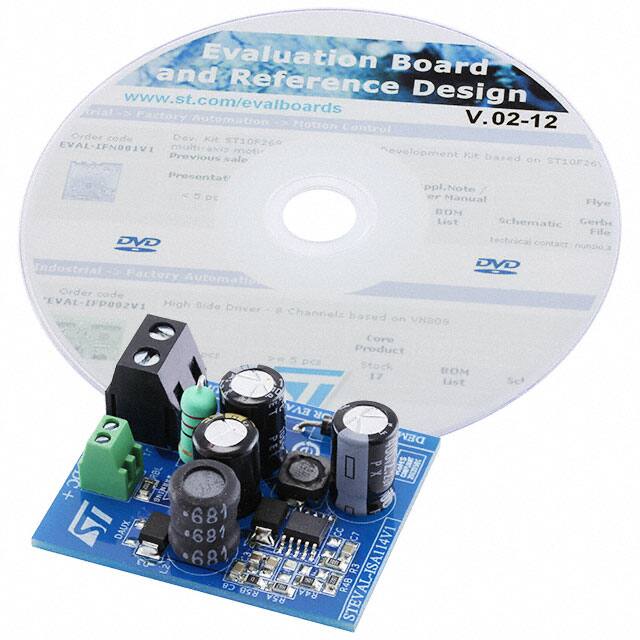

STEVAL-ISA114V1EVAL BOARD FOR VIPER06 |
1,010 | 38.75 |
|
Datasheet |
VIPER™ | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 80 mW | 5V | 160mA | 80 ~ 265 VAC | Buck | 30kHz | Board(s) | VIPer06 |
|

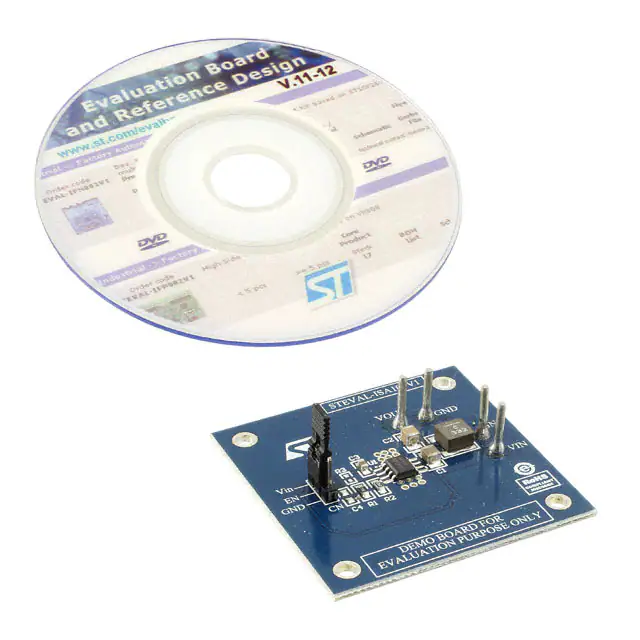

STEVAL-ISA107V1EVAL BOARD FOR ST1S41 |
4,690 | 38.75 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 4V ~ 18V | Buck | 850kHz | Board(s) | ST1S41 |
|

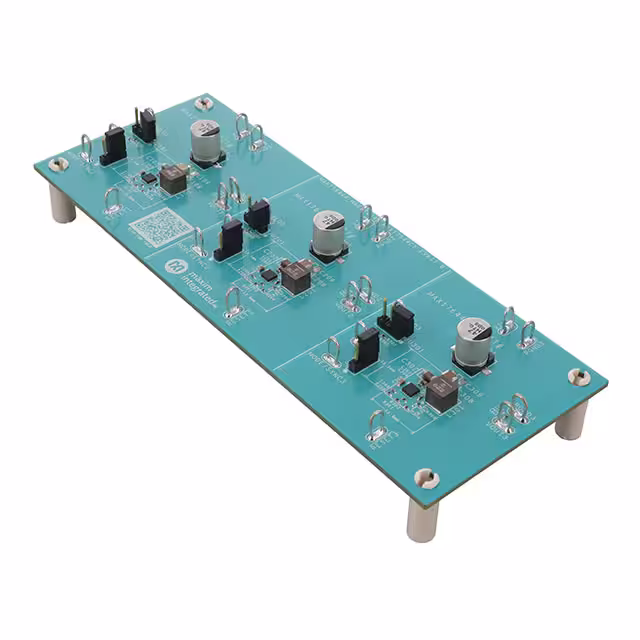

MAX17644AEVKIT#EVAL BOARD FOR MAX17644A |
3,511 | 36.42 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 1.847 W | 3.3V | 2.7A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | MAX17644A |
|
MAX17634BEVKIT#EVAL BOARD FOR MAX17634B |
2,377 | 36.42 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4.25A | 6.5V ~ 36V | Buck | 400kHz | Board(s) | MAX17634B |
|
MAX15462BEVKIT#EVAL BOARD FOR MAX15462B |
1,191 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 6.5V ~ 42V | Buck | 500kHz | Board(s) | MAX15462B |
|

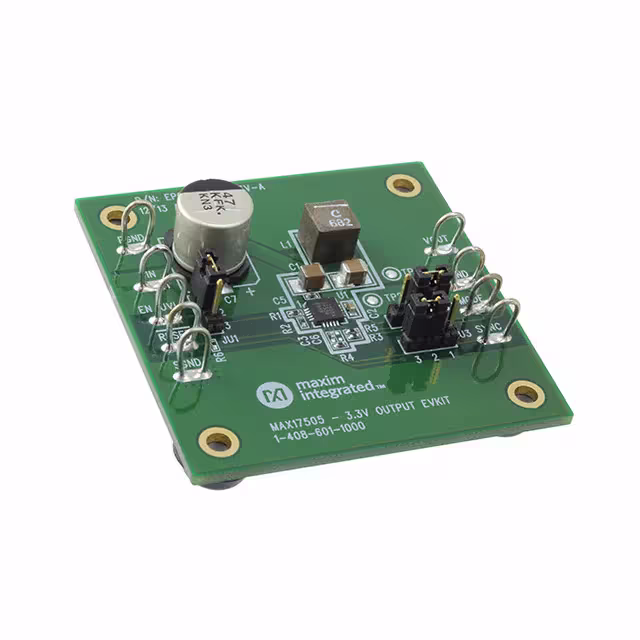

MAX17505EVKITA#EVAL BOARD FOR MAX17505 |
3,418 | 38.24 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.7A | 4.5V ~ 60V | Buck | 450kHz | Board(s) | MAX17505 |
|

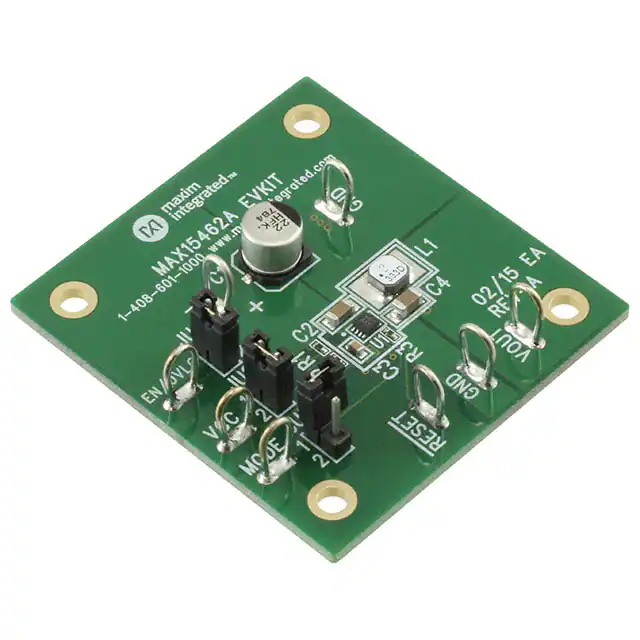

MAX15462AEVKIT#EVAL BOARD FOR MAX15462 |
2,020 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4.5V ~ 42V | Buck | 500kHz | Board(s) | MAX15462 |
|

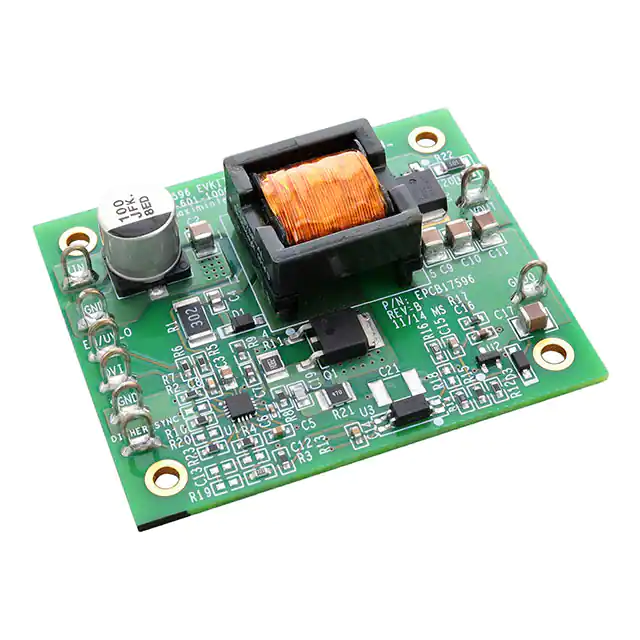

MAX17596EVKIT#EVAL BOARD FOR MAX17596 |
3,610 | 38.24 |
|
- |
- | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 24V | 833mA | 18V ~ 36V | Flyback | 200kHz | Board(s) | MAX17596 |
.jpg)
|

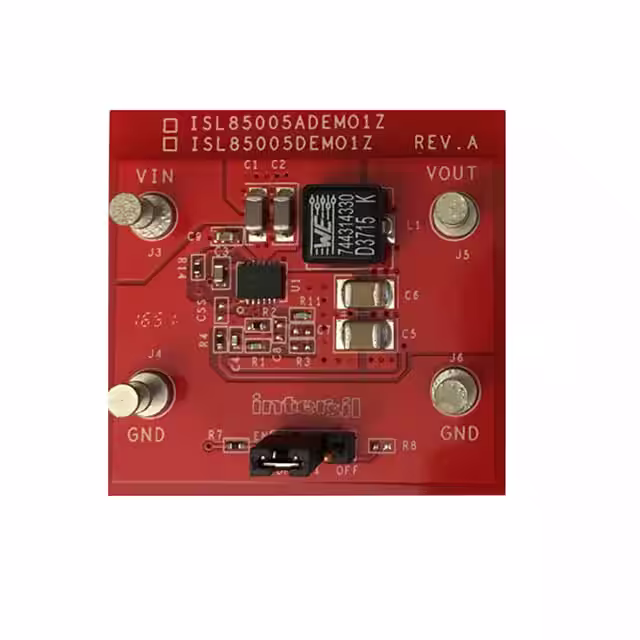

ISL85005DEMO1ZEVAL BOARD FOR ISL85005 |
1,920 | 41.40 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 15V | Buck | 500kHz | Board(s) | ISL85005 |
|
STEVAL-ISA096V1EVAL BOARD FOR VIPER06 |
1,297 | 43.75 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2 W | 12V | 150mA | 85 ~ 264 VAC | Buck-Boost | - | Board(s) | VIPer06 |
|

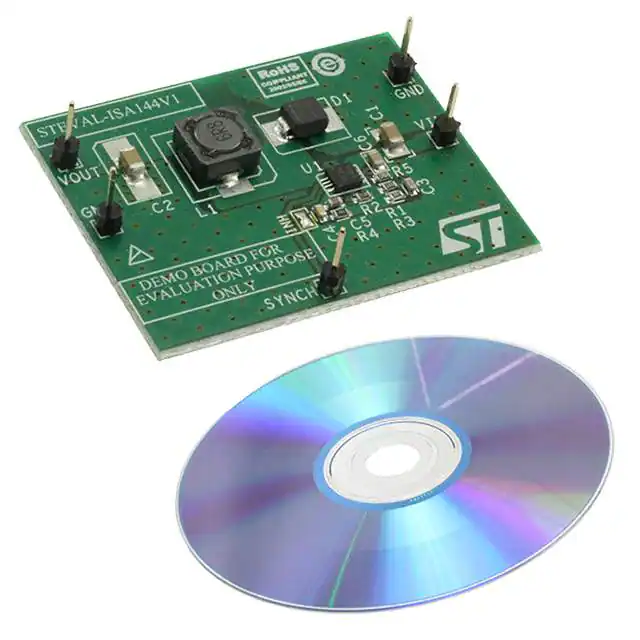

STEVAL-ISA144V1EVAL BOARD FOR L5983 |
2,423 | 43.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 2.9V ~ 18V | Buck | 250kHz | Board(s) | L5983 |
|

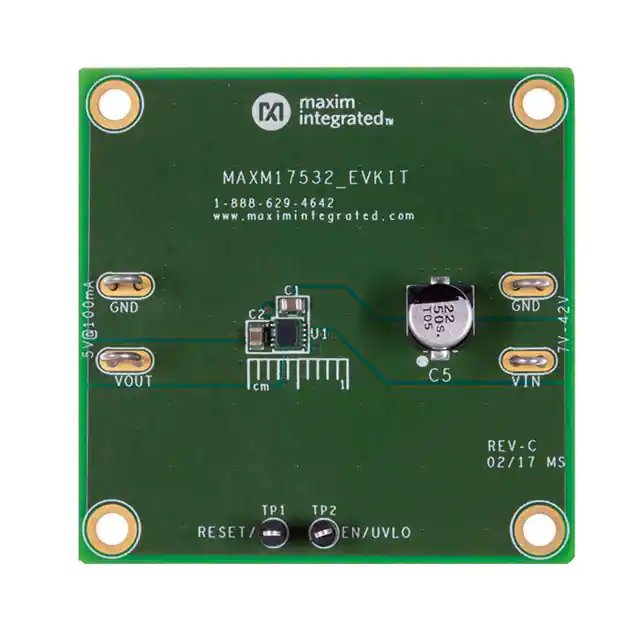

MAXM17532EVKIT#EVAL BOARD FOR MAXM17532 |
4,769 | 34.76 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 100mA | 10V ~ 42V | Buck | 600kHz | Board(s) | MAXM17532 |
|

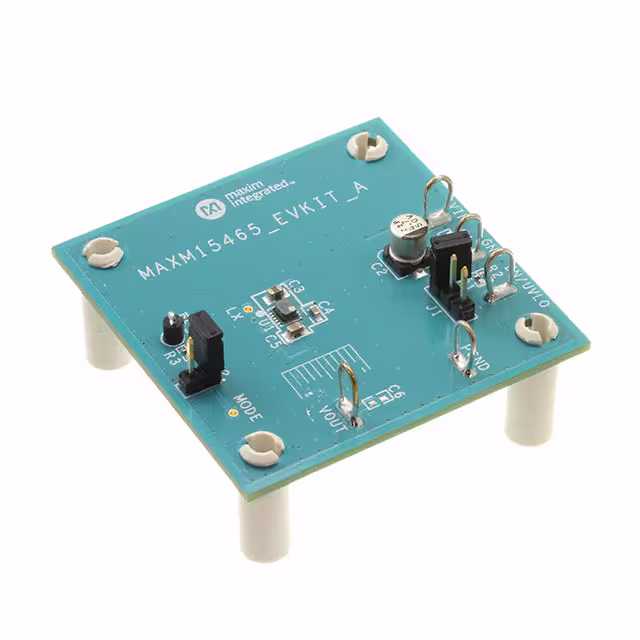

MAXM15465EVKIT#EVAL BOARD FOR MAXM15465 |
3,540 | 34.76 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 42V | Buck | 550kHz | Board(s) | MAXM15465 |
|
|
AP3983EEV1EVAL BOARD FOR AP3983E |
2,848 | 45.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | - | - | - | - | - | - | - | Board(s) | AP3983E |
|

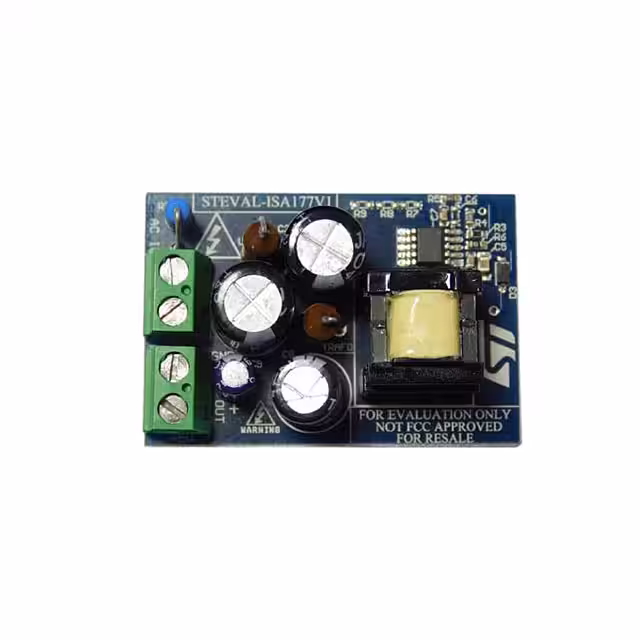

STEVAL-ISA177V1EVAL BOARD FOR VIPER01 |
1,770 | 46.25 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 4.25 W | - | 850mA | 85 ~ 265 VAC | Flyback | - | Board(s) | VIPer01 |
|

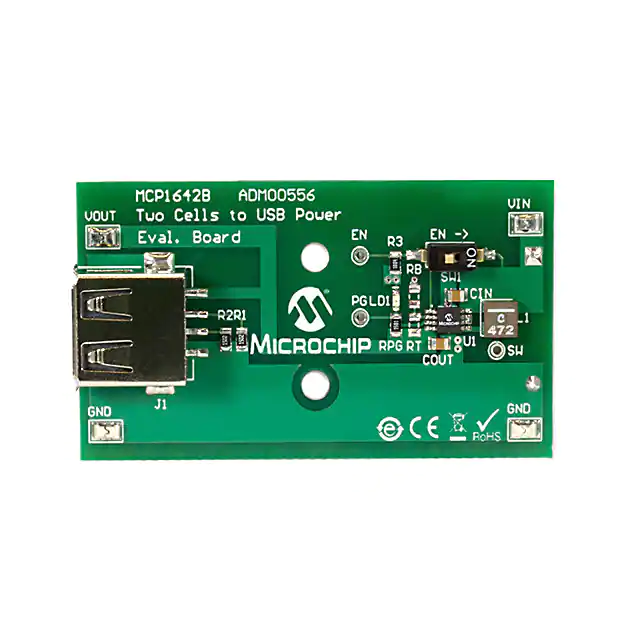

ADM00556EVAL BOARD FOR MCP1642B |
1,925 | 41.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 700mA | 1.8V ~ 5.5V | Boost | 1MHz | Board(s), Cable(s) | MCP1642B |
|

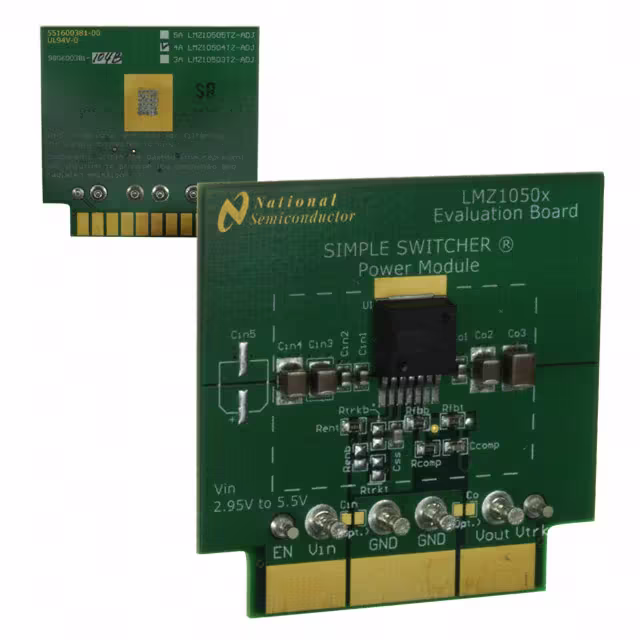

LMZ10504EVAL/NOPBEVAL BOARD FOR LMZ10504 |
2,321 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 4A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10504 |
