DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

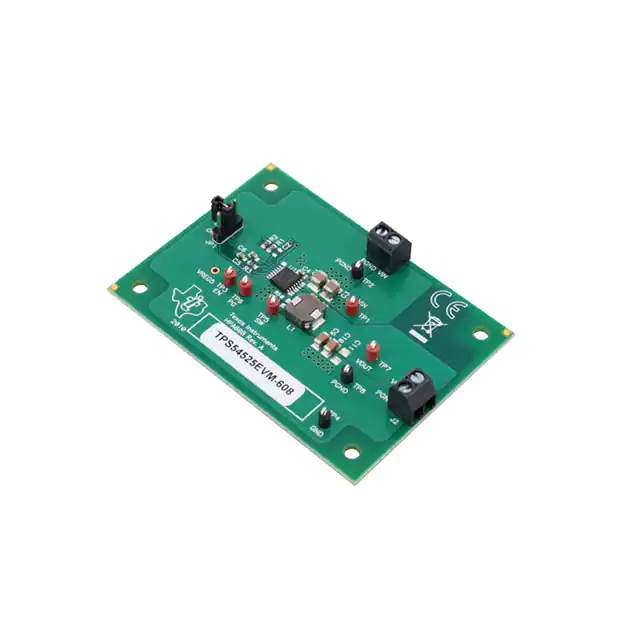

TPS54525EVM-608EVAL BOARD FOR TPS54525 |
4,827 | 58.80 |
|
Datasheet |
D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 5.5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54525 |
|

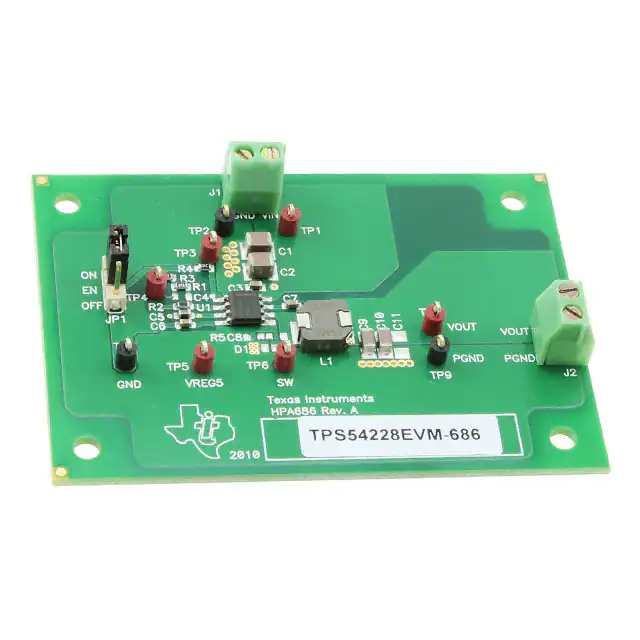

TPS54228EVM-686EVAL BOARD FOR TPS54228 |
3,330 | 58.80 |
|
Datasheet |
D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54228 |
|

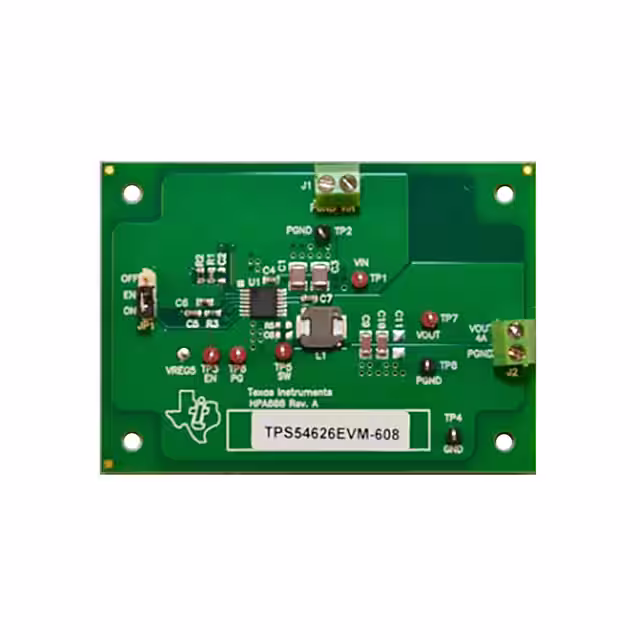

TPS54626EVM-608EVAL BOARD FOR TPS54626 |
3,895 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 6.5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54626 |
|

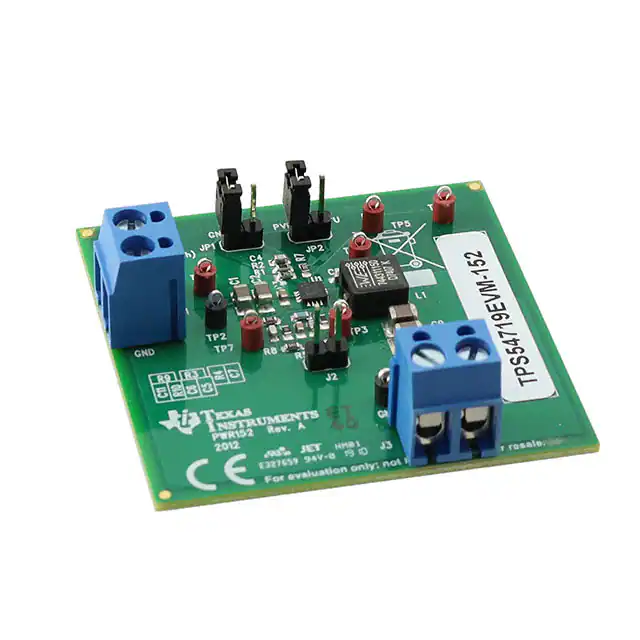

TPS54719EVM-152EVAL BOARD FOR TPS54719 |
1,434 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 7A | 3V ~ 6V | Buck | 500kHz | Board(s) | TPS54719 |
|

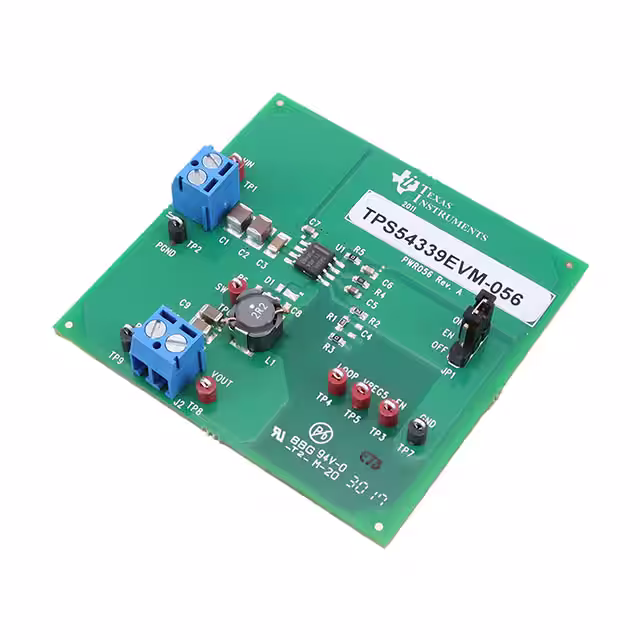

TPS54339EVM-056EVAL BOARD FOR TPS54339 |
3,549 | 30.00 |
|
Datasheet |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 23V | Buck | 600kHz | Board(s) | TPS54339 |
|

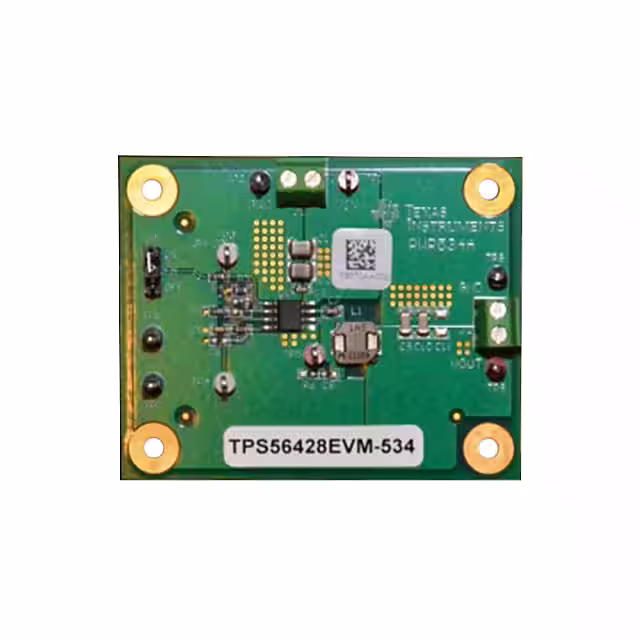

TPS56428EVM-534EVAL BOARD FOR TPS56428 |
4,444 | 58.80 |
|
Datasheet |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS56428 |
|
TPS54425EVM-608EVAL BOARD FOR TPS54425 |
2,089 | 30.00 |
|
Datasheet |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 18V | Buck | 675kHz | Board(s) | TPS54425 |
|

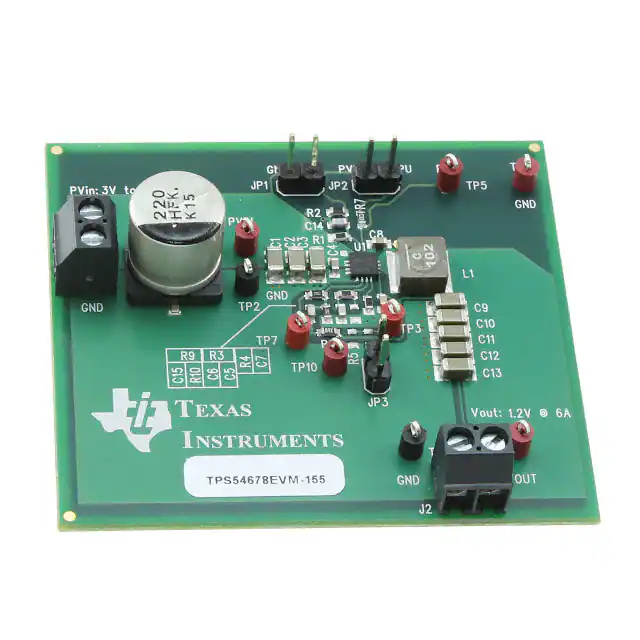

TPS54678EVM-155EVAL BOARD FOR TPS54678 |
4,137 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 3V ~ 6V | Buck | 500kHz | Board(s) | TPS54678 |
|

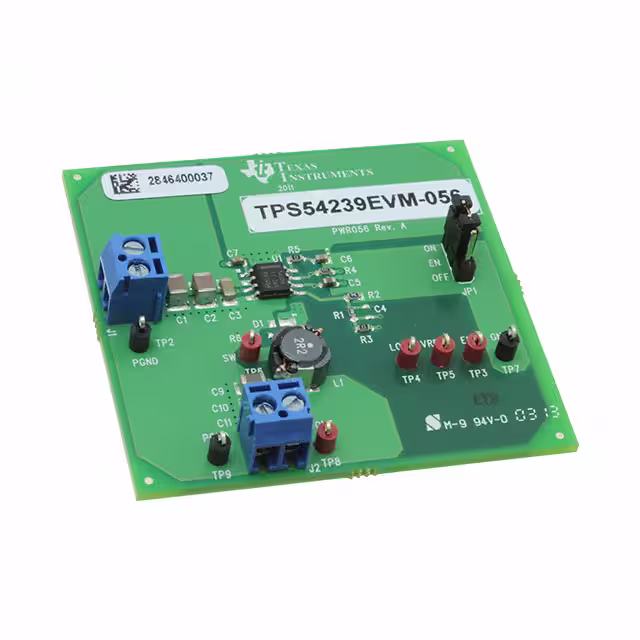

TPS54239EVM-056EVAL BOARD FOR TPS54239 |
1,417 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 23V | Buck | 600kHz | Board(s) | TPS54239 |
|

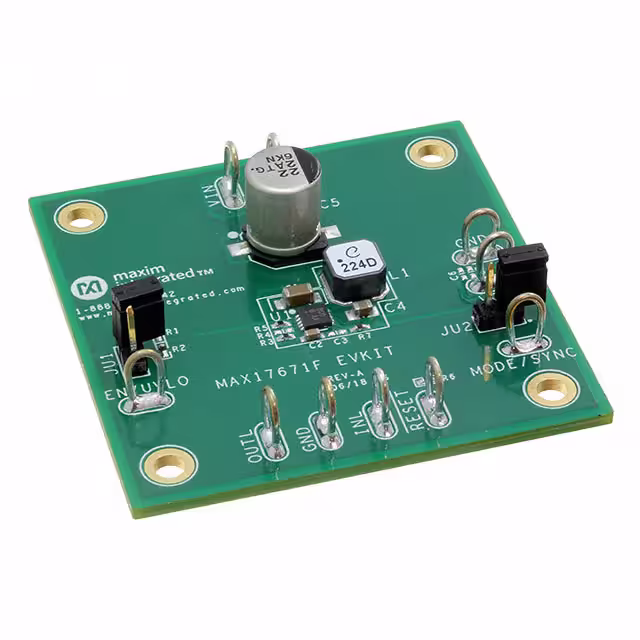

MAX17671FEVKIT#EVAL BOARD FOR MAX17671F |
1,674 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 150mA, 50mA | 6.5V ~ 60V | Buck | 200kHz | Board(s) | MAX17671F |
|

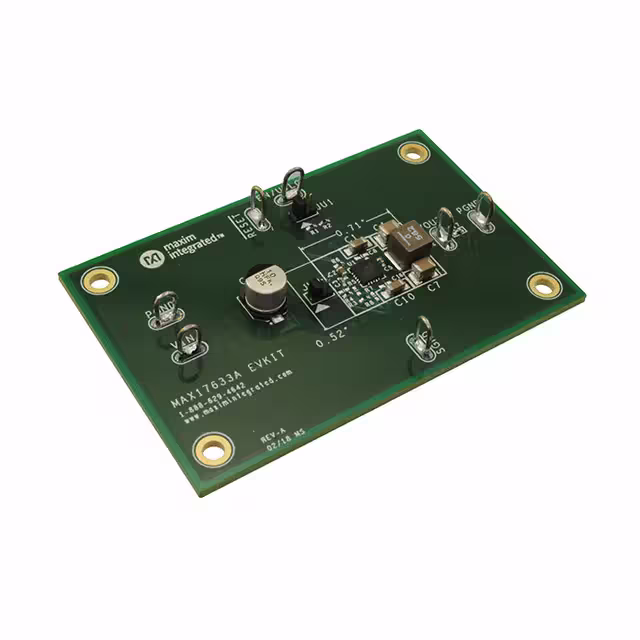

MAX17633AEVKIT#EVAL BOARD FOR MAX17633 |
3,182 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3.5A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | MAX17633 |
|
MAX17633CEVKIT#EVAL BOARD FOR MAX17633 |
2,364 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 6.5V ~ 36V | Buck | 500kHz | Board(s) | MAX17633 |
|
RPM3.3-6.0-EVM-1EVAL BOARD FOR RPM3.36.0 |
4,899 | 49.97 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4V ~ 15V | Buck | - | Board(s) | RPM3.3-6.0 |
|
MAXREFDES48#EVAL BOARD FOR MAX17599 |
3,119 | 48.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 40 W | 12V | 3.5A | 18V ~ 36V | Forward Converter | 250kHz | Board(s) | MAX17599 |
|

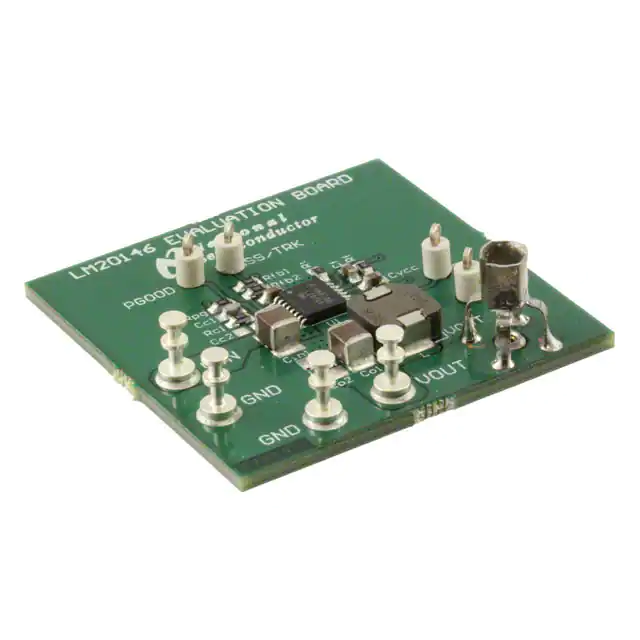

LM20146MHEVALEVAL BOARD FOR LM20146 |
1,574 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.95V ~ 5.5V | Buck | - | Board(s) | LM20146 |
|

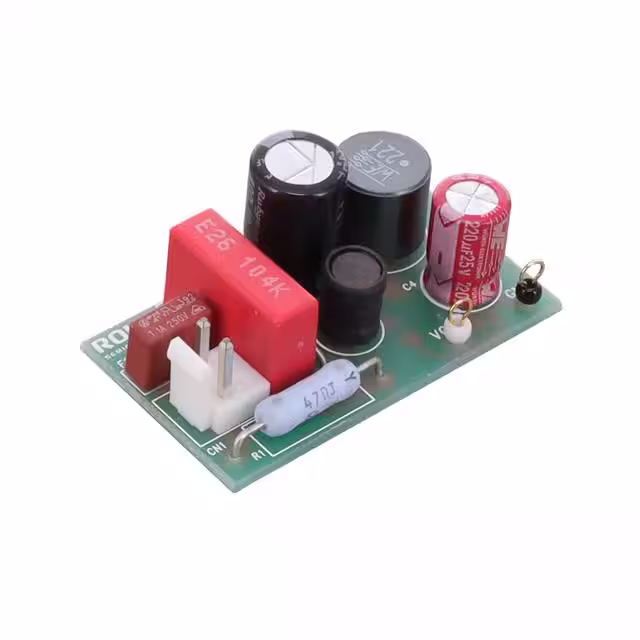

BM2P129TF-EVK-002EVAL BOARD FOR BM2P129T |
1,516 | 50.00 |
|
Datasheet |
- | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2 W | -12V | 167mA | 90 ~ 264 VAC | Inverting | 100kHz | Board(s) | BM2P129T |
|
EVQ4323M-G-00AEVAL BOARD FOR MPQ4323MAEC1 |
1,855 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3.3V ~ 36V | Buck | 2.2MHz | Board(s) | MPQ4323M-AEC1 |
|

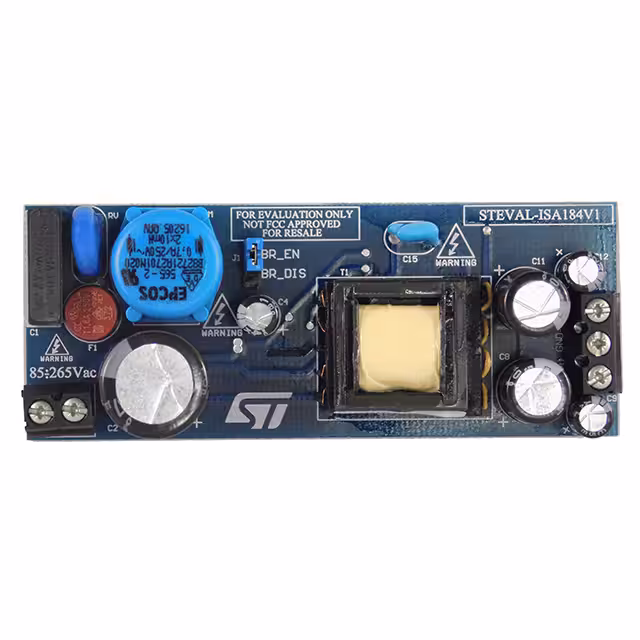

STEVAL-ISA184V1EVAL BOARD FOR VIPER37 |
1,277 | 50.00 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 15 W | 5V, 12V | 1.2A, 750mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer37 |
|
TPS563210AEVM-663EVAL BOARD FOR TPS563210A |
3,729 | 58.80 |
|
Datasheet |
D-CAP2™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS563210A |
|

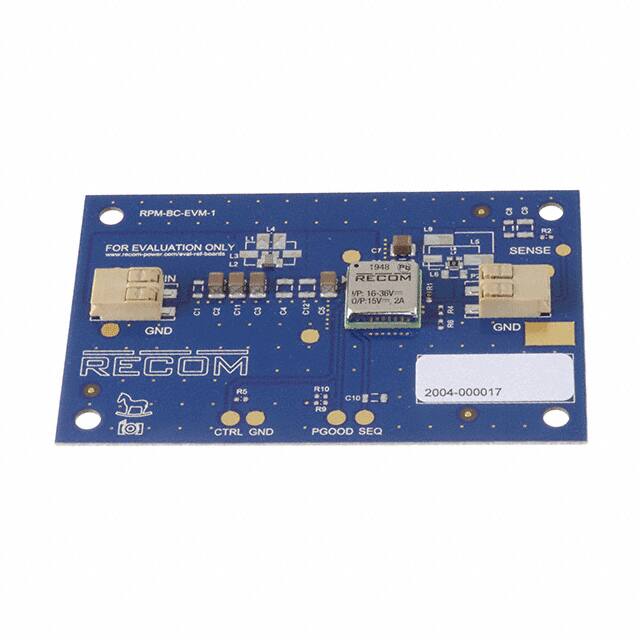

RPMB15-2.0-EVM-1RPMB15-2.0 EVALUATION MODULE |
4,081 | 53.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | 2A | 16V ~ 36V | - | - | Board(s) | - |
