DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCP-LT1964-EVALZEVAL BOARD FOR LT1964 |
1,831 | 66.21 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | -19.57V | 200mA | -20V | Buck | - | Board(s) | LT1964 |
|

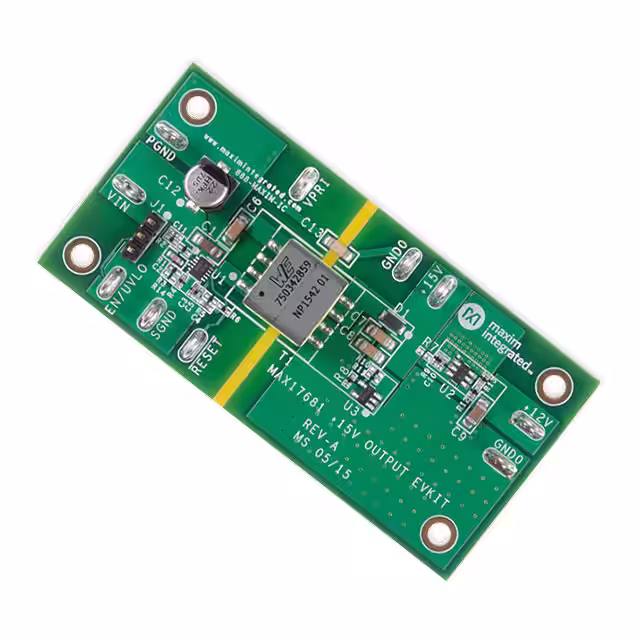

MAX17681EVKITC#EVAL BOARD 750342859 MAX17681 |
1,558 | 63.06 |
|
- |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 15V | 200mA | 17V ~ 36V | Buck | 200kHz | Board(s) | 750342859, MAX17681 |
|

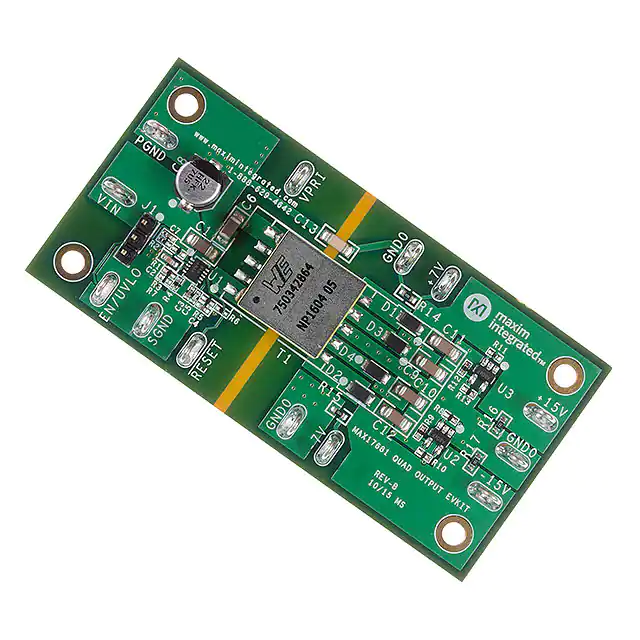

MAX17681EVKITE#EVAL BOARD 750342864 MAX17681 |
2,209 | 63.06 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 75mA | 17V ~ 36V | Buck | 200kHz | Board(s) | 750342864, MAX17681 |
|

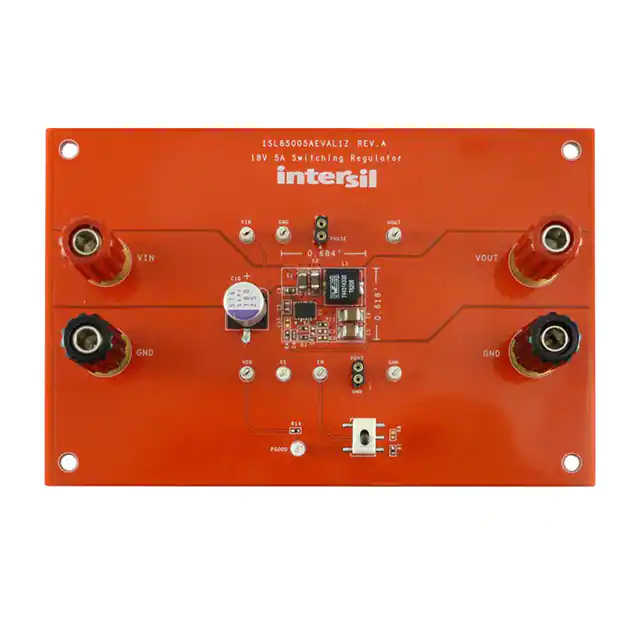

ISL85005AEVAL1ZEVAL BOARD FOR ISL85005A |
2,227 | 68.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 15V | Buck | 500kHz | Board(s) | ISL85005A |
|

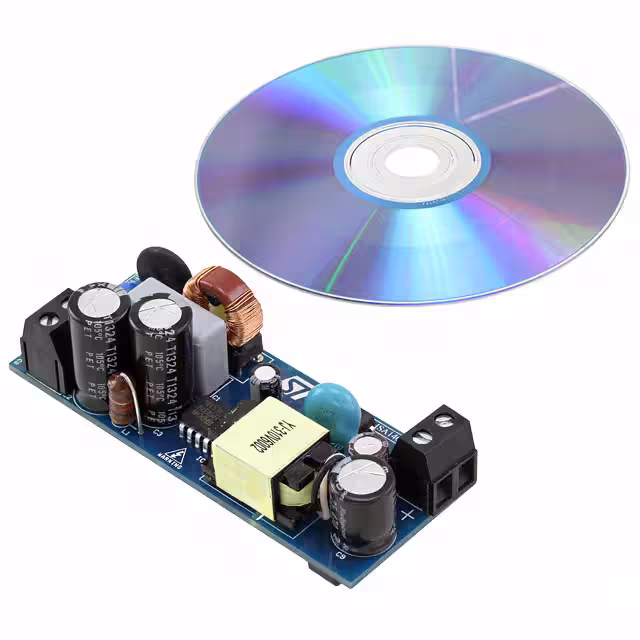

STEVAL-ISA140V1EVAL BOARD FOR VIPER37 |
1,462 | 68.75 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 15 W | 12V | 1.25A | 100 ~ 265 VAC | - | - | Board(s) | VIPer37 |
|

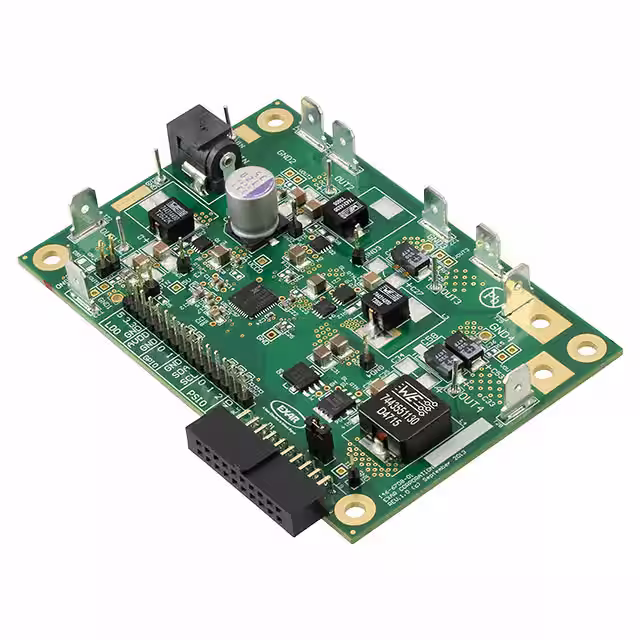

XR77128EVB-DEMO-1-KITAEVAL BOARD FOR XR77128 |
3,632 | 87.50 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.5V, 2.5V, 3.3V | 10A, 5A, 3A, 3A | 5.5V ~ 25V | Buck | - | Board(s) | XR77128 |
|
MAX20012EVKIT#EVAL BOARD FOR MAX20012 |
4,554 | 65.59 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V, 1.5875V | 24A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20012 |
|

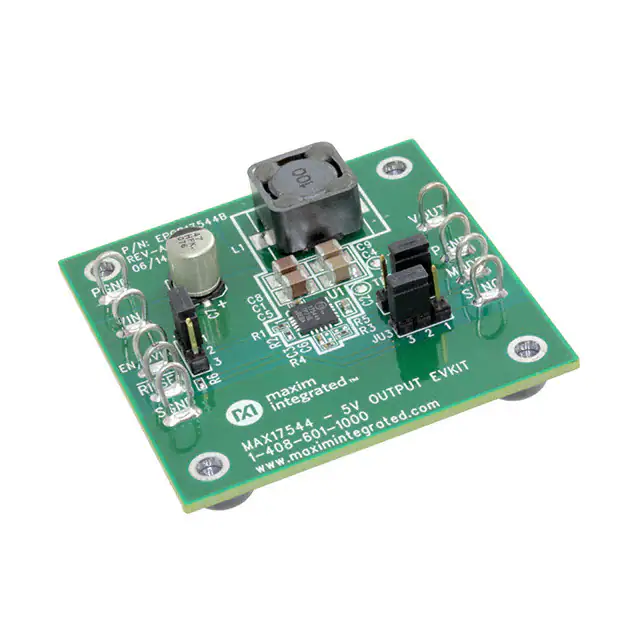

MAX17544EVKITB#EVAL BOARD FOR MAX17544 |
4,771 | 69.56 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 7.5V ~ 42V | Buck | 500kHz | Board(s) | MAX17544 |
|

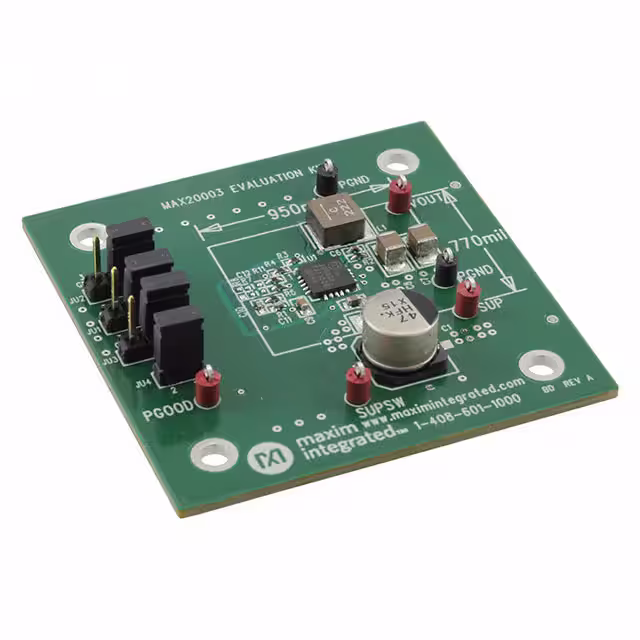

MAX20003EVKIT#EVAL BOARD FOR MAX20002 MAX20003 |
3,141 | 82.65 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3.5V ~ 36V | Buck | - | Board(s) | MAX20002, MAX20003 |
|
MAX16935EVKIT#EVAL BOARD FOR MAX16935 |
3,962 | 68.88 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.5V ~ 36V | Buck | - | Board(s) | MAX16935 |
|
MAX16992EVKIT#EVAL BOARD FOR MAX16992 |
4,498 | 68.88 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 8V | 2A | 4.5V ~ 36V | Boost | 2.2MHz | Board(s) | MAX16992 |
|

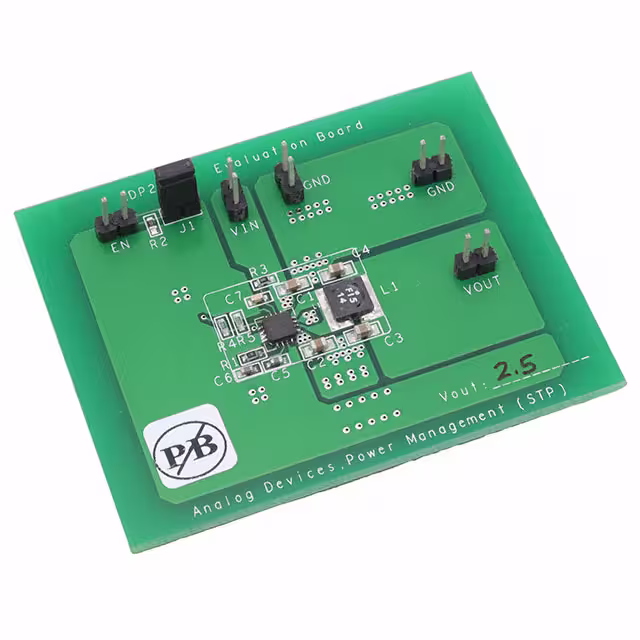

ADP2106-EVALZEVAL BOARD FOR ADP2106 |
1,605 | 66.91 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1.5A | 2.7V ~ 5.5V | Buck | 1.2MHz | Board(s) | ADP2106 |
|
|
MAX25223EVKIT#EVAL BOARD FOR MAX25223 |
1,531 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3.5A | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | MAX25223 |
|
MAX1797EVKITEVAL BOARD FOR MAX1797 |
1,046 | 69.56 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 500mA | 2V ~ 3.3V | Boost | - | Board(s) | MAX1797 |
|

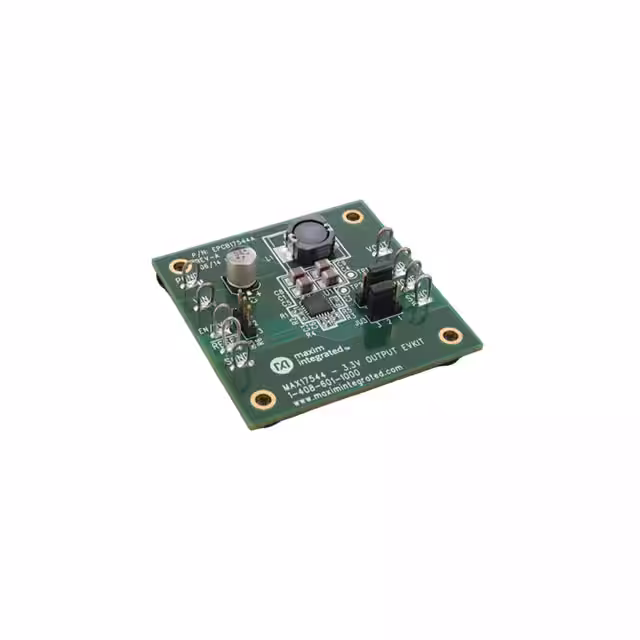

MAX17544EVKITA#EVAL BOARD FOR MAX17544 |
2,805 | 69.56 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3.5A | 5V ~ 42V | Buck | 450kHz | Board(s) | MAX17544 |
|
MYSGK1R830FRSR-EVMEVAL BOARD FOR MYSGK1R830FRSR |
1,890 | 62.50 |
|
Datasheet |
MYSGK1R830 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 54 W | 0.7V ~ 1.8V | 30A | 4.5V ~ 5.5V | - | 425kHz | Board(s) | MYSGK1R830FRSR |
|

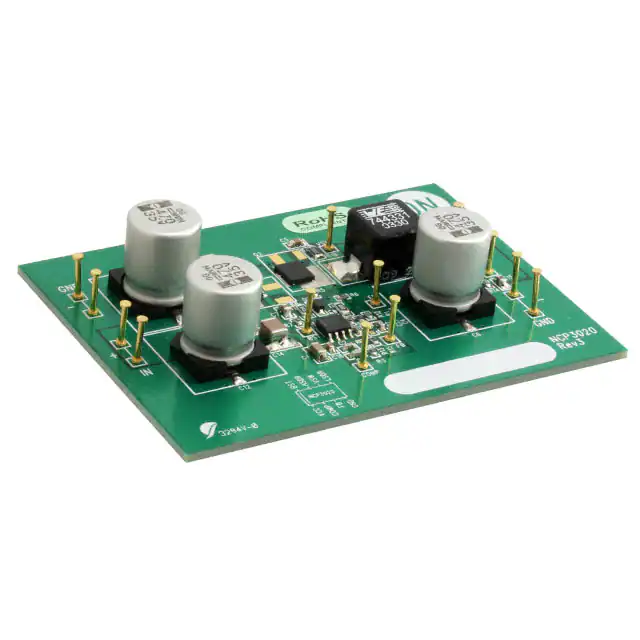

NCP3020BGEVBEVAL BOARD FOR NCP3020B |
4,035 | 75.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 9V ~ 18V | Buck | 600kHz | Board(s) | NCP3020B |
|
NCP3064DFBSTGEVBEVAL BOARD FOR NCP3064 |
1,505 | 75.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 1.5A | 3V ~ 40V | Buck-Boost | 150kHz | Board(s) | NCP3064 |
|
MAX15046BEVKIT+EVAL BOARD FOR MAX15046B |
1,842 | 75.12 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 5V ~ 40V | Buck | 350kHz | Board(s) | MAX15046B |
|
DC1041A-AEVAL BOARD FOR LTM4601 |
3,617 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 12A | 4.5V ~ 20V | Buck | 850kHz | Board(s) | LTM4601 |
