DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

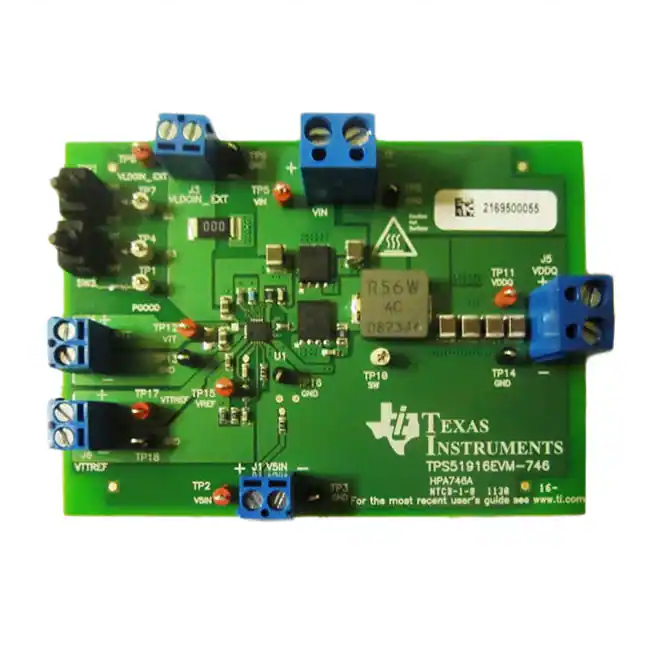

TPS51916EVM-746EVAL BOARD FOR TPS51916 |
3,416 | 58.80 |
|
Datasheet |
D-CAP™, D-CAP2™ | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 1 Non-Isolated Output | - | 1.2V ~ 1.5V | 20A | 8V ~ 20V | Buck | 500kHz | Board(s) | TPS51916 |
|

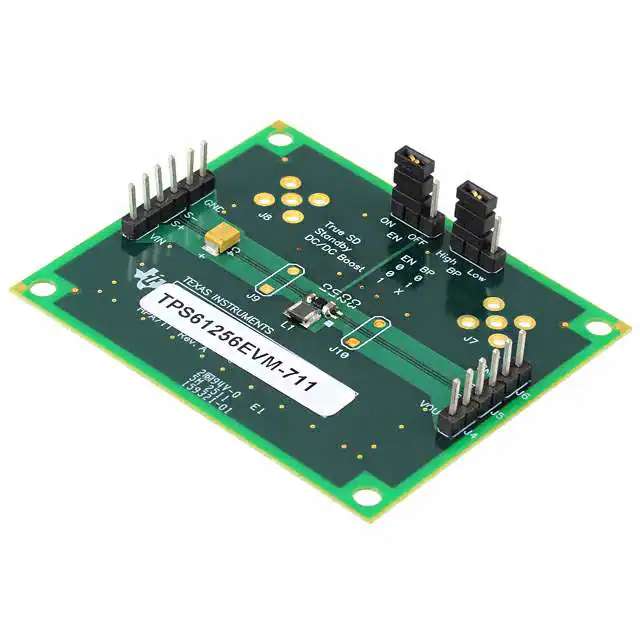

TPS61256EVM-711EVAL BOARD FOR TPS61256 |
4,550 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 800mA | 2.3V ~ 5.5V | Boost | 3.5MHz | Board(s) | TPS61256 |
|
TPS61259EVM-766EVAL BOARD FOR TPS61259 |
3,503 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.1V | 1A | 2.65V ~ 4.85V | Boost | 3.5MHz | Board(s) | TPS61259 |
|

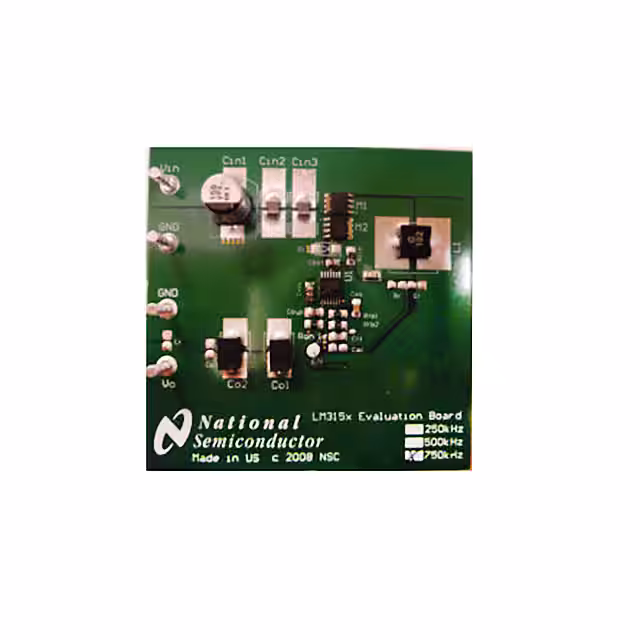

LM3150-750EVALEVAL BOARD FOR LM3150 |
2,865 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 8V ~ 17V | Buck | 750kHz | Board(s) | LM3150 |
|

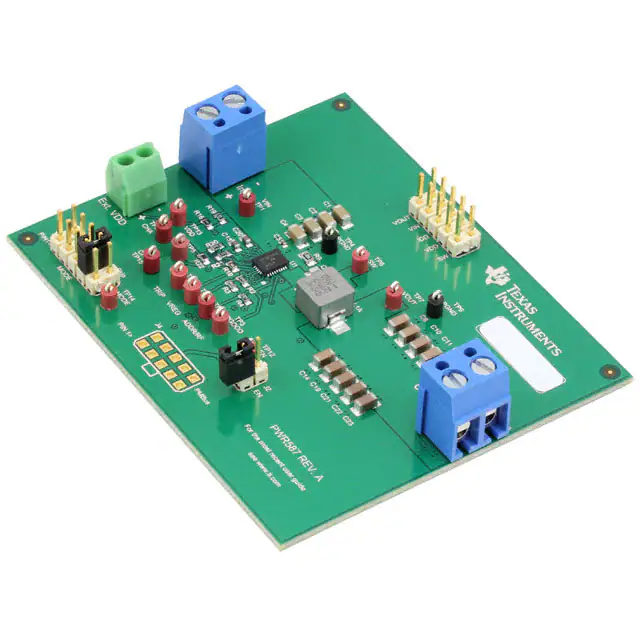

TPS53513EVM-587EVAL BOARD FOR TPS53513 |
2,815 | 58.80 |
|
Datasheet |
D-CAP3™, Eco-Mode™, SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 8A | 5V ~ 18V | Buck | 1MHz | Board(s) | TPS53513 |
|

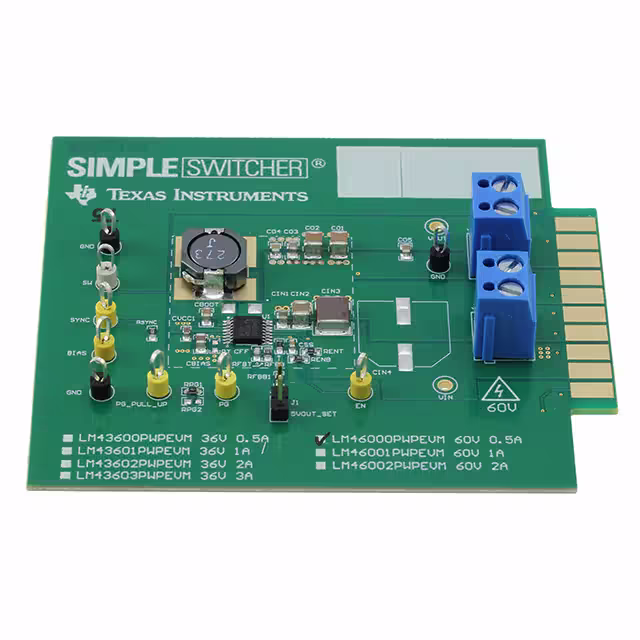

LM46000PWPEVMEVAL BOARD FOR LM46000 |
4,480 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 3.5V ~ 60V | Buck | 500kHz | Board(s) | LM46000 |
|
LM34919CQSDEVMEVAL BOARD FOR LM34919CQ1 |
4,957 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 4.5V ~ 24V | Buck | 1.5MHz | Board(s) | LM34919C-Q1 |
|

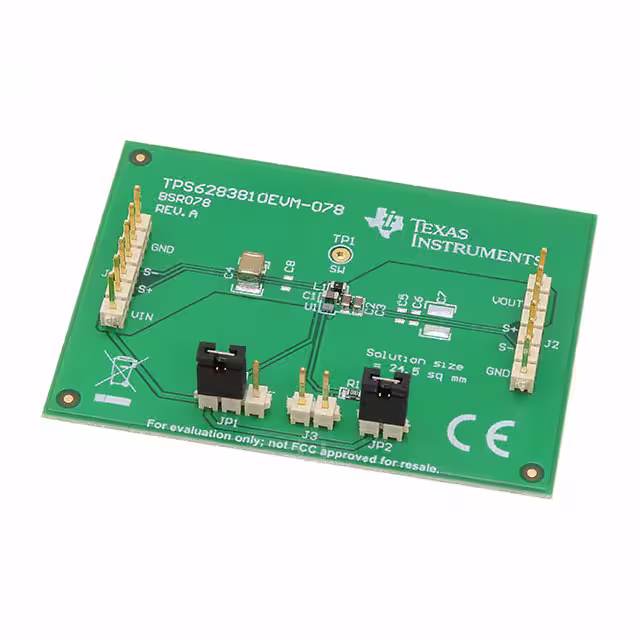

TPS6283810EVM-078EVAL BOARD FOR TPS6283810 |
2,344 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 3A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPS6283810 |
|

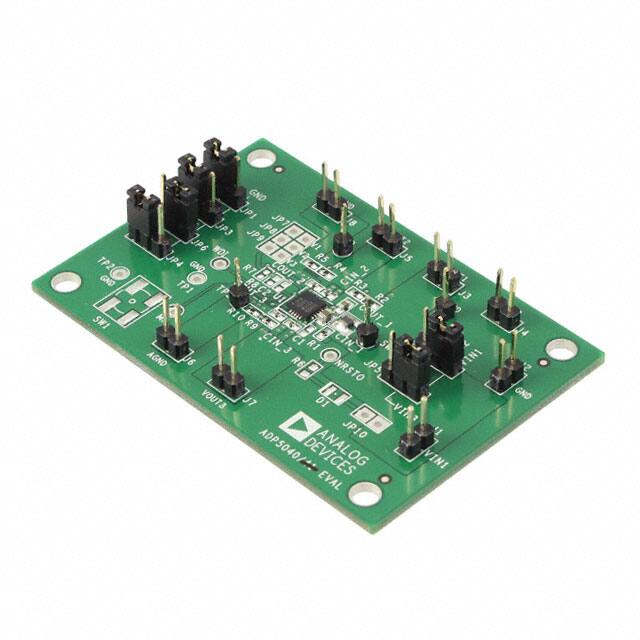

ADP5040CP-1-EVALZEVAL BOARD FOR ADP5040 |
3,851 | 57.68 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | - | 1.2A, 300mA, 300mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5040 |
|

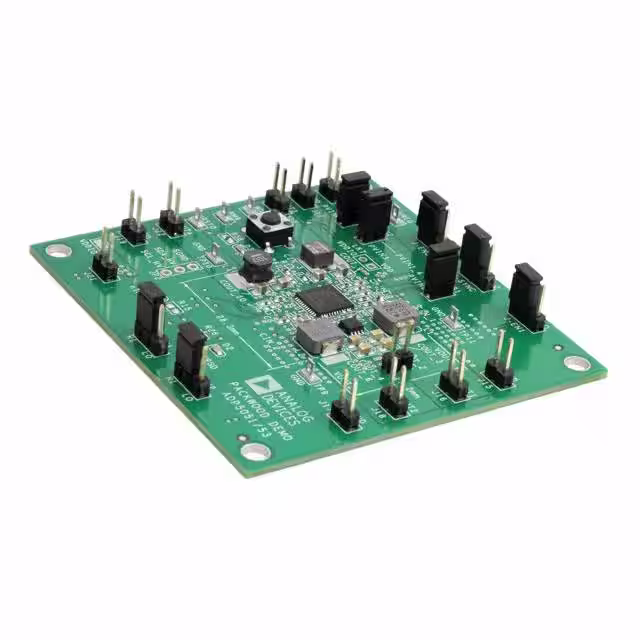

ADP5053-EVALZEVAL BOARD FOR ADP5053 |
1,777 | 57.68 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 4A, 4A, 1.2A, 1.2A | 4.5V ~ 15V | Buck | 650kHz | Board(s) | ADP5053 |
|
ISL85003AEVAL2ZEVAL BOARD FOR ISL85003A |
3,222 | 58.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | ISL85003A |
|
|
ISL85003EVAL2ZEVAL BOARD FOR ISL85003 |
3,560 | 58.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | ISL85003 |
|
STEVAL-ISA112V1EVAL BOARD FOR VIPER06 |
3,131 | 58.75 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 4 W | 12V | 350mA | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPer06 |
|
MXC 290C1-EB9P-12EVAL BOARD FOR 2D048015A |
3,979 | 62.50 |
|
Datasheet |
MxC® 200 | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 6V, 12V, 24V | 1A, 1A, 500mA | 48V | Buck | - | Board(s) | 2D-048-015A |
|
MXC 291C1-EB3P-12EVAL BOARD FOR 2D048015B |
1,500 | 62.50 |
|
Datasheet |
MxC® 200 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | - | 48V | Buck | - | Board(s) | 2D-048-015B |
|
EVAL-L5963EVAL BOARD FOR L5963 |
2,563 | 59.12 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V | 3A, 3A, 250mA | 3.5V ~ 26V | Buck | - | Board(s) | L5963 |
|

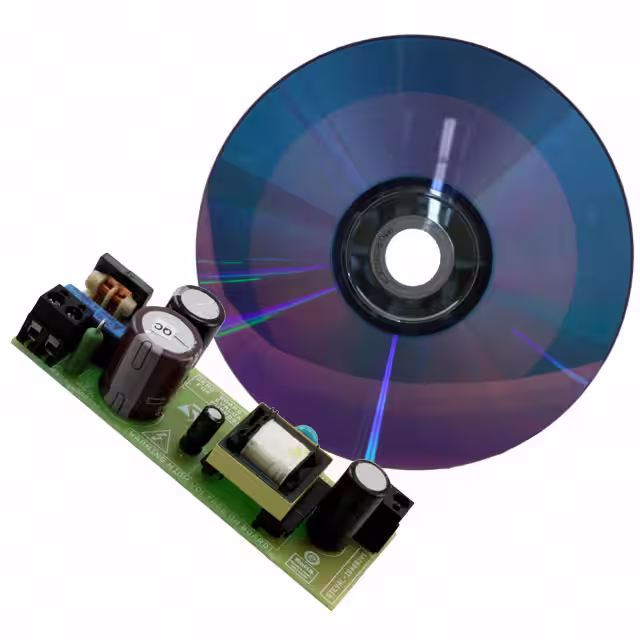

STEVAL-ISA081V1EVAL BOARD FOR VIPER26 |
3,317 | 60.00 |
|
Datasheet |
VIPER™ | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 12 W | 3.3V, 12V | 1A | 85 ~ 305 VAC | Buck | - | Board(s) | VIPer26 |
|

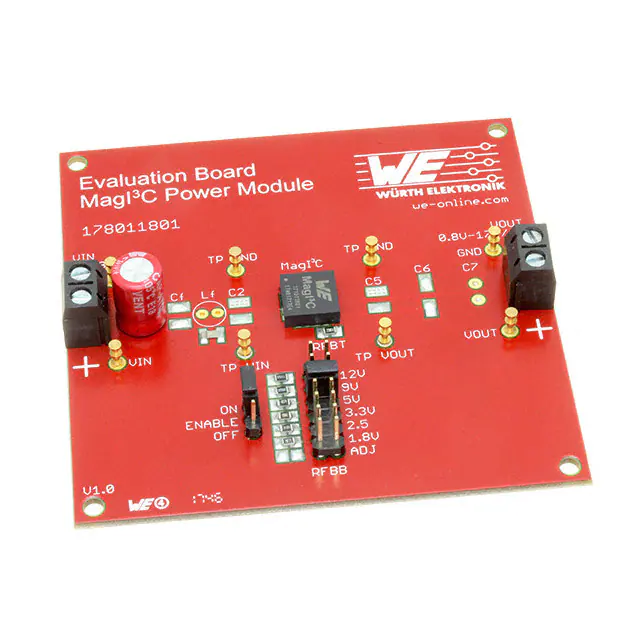

178011801EVAL BOARD FOR WPMDL1101801 |
3,895 | 62.15 |
|
Datasheet |
MagI3C | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 17V | 1A | 4V ~ 18V | Buck | 850kHz | Board(s) | WPMDL1101801 |
|
ISL8130EVAL3ZEVAL BOARD FOR ISL8130 |
4,526 | 61.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 10V | 2A | 5.6V ~ 16V | Boost, Buck, Flyback | - | Board(s) | ISL8130 |
|

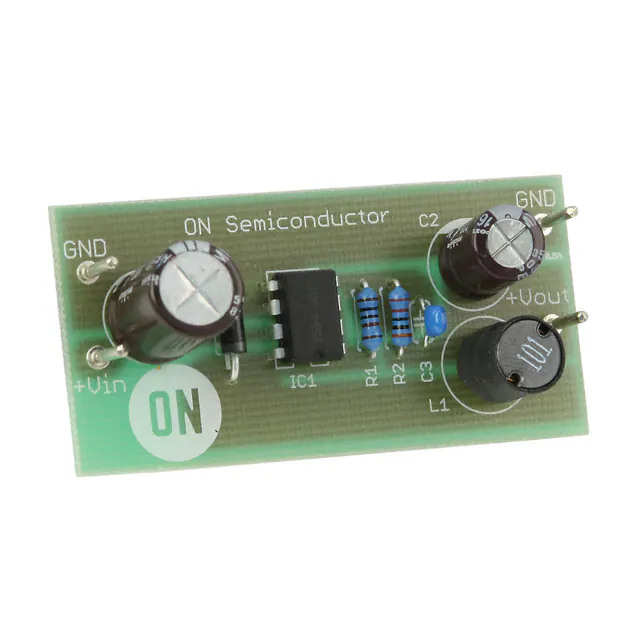

LM2594APDBCKGEVBEVAL BOARD FOR LM2594 |
4,656 | 62.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 4.5V ~ 40V | Buck | 150kHz | Board(s) | LM2594 |
