DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP5024CP-EVALZEVAL BOARD FOR ADP5024 |
4,219 | 52.42 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | - | 1.2A, 1.2A, 300mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5024 |
|

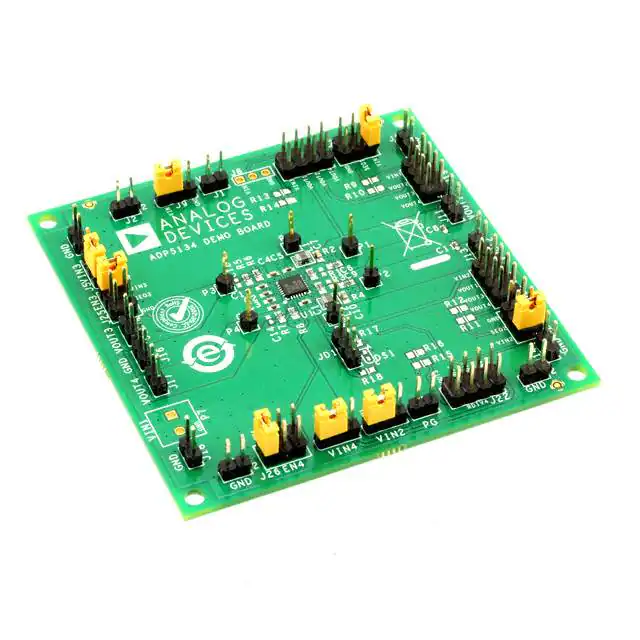

ADP5134CP-EVALZEVAL BOARD FOR ADP5134 |
3,850 | 52.42 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1.2A, 1.2A, 300mA, 300mA | 2.5V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5134 |
|

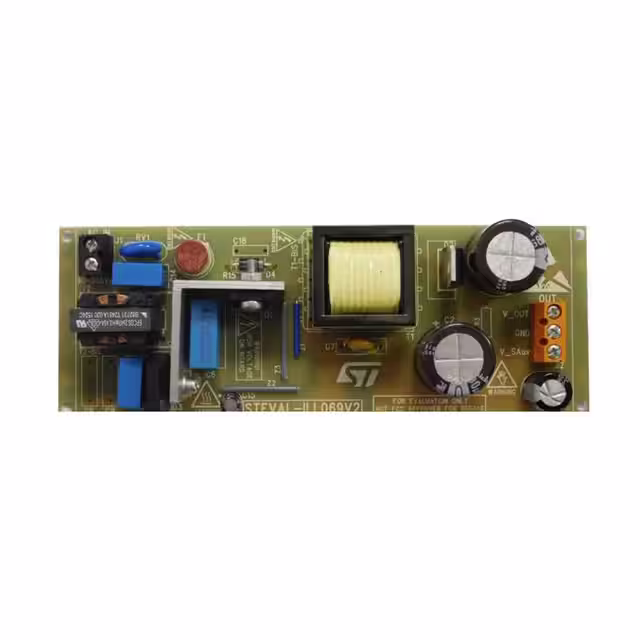

STEVAL-ILL069V2EVAL BOARD FOR HVLED001A |
2,292 | 52.50 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 35 W | 48V | 730mA | 90 ~ 305 VAC | Flyback | - | Board(s) | HVLED001A |
|
RPMH3.3-0.5-EVM-1RPMH3.3-0.5 EVALUATION MODULE |
1,596 | 53.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.3V ~ 65V | - | - | Board(s) | - |
|
|
RPMH5.0-0.5-EVM-1RPMH5.0-0.5 EVALUATION MODULE |
2,631 | 53.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 6V ~ 65V | - | - | Board(s) | - |
|
|
RPMH24-0.5-EVM-1RPMH24-0.5 EVALUATION MODULE |
3,430 | 54.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 500mA | 25.5V ~ 65V | - | - | Board(s) | - |
|
MEB-EH1EVAL BOARD FOR LTC3129 |
1,277 | 53.49 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3V | 200mA | 2.42V ~ 15V | Buck-Boost | 1.2MHz | Board(s) | LTC3129 |
|

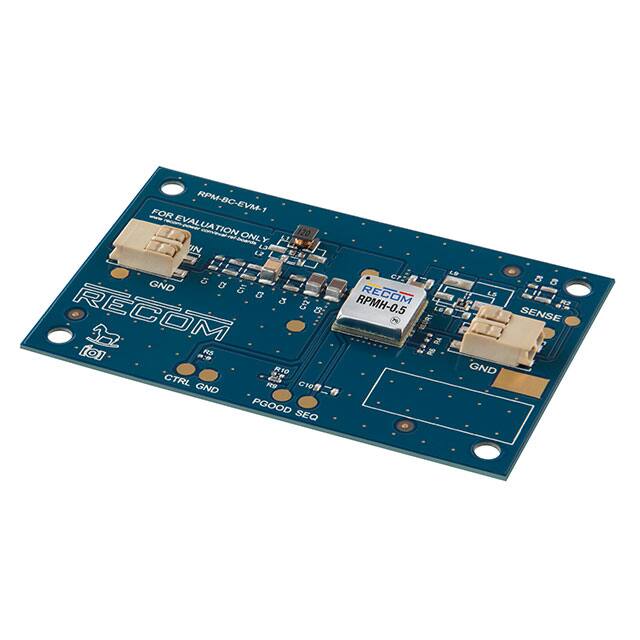

RPMH12-0.5-EVM-1RPMH12-0.5 EVALUATION MODULE |
1,496 | 55.52 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 500mA | 13.5V ~ 65V | - | - | Board(s) | - |
|

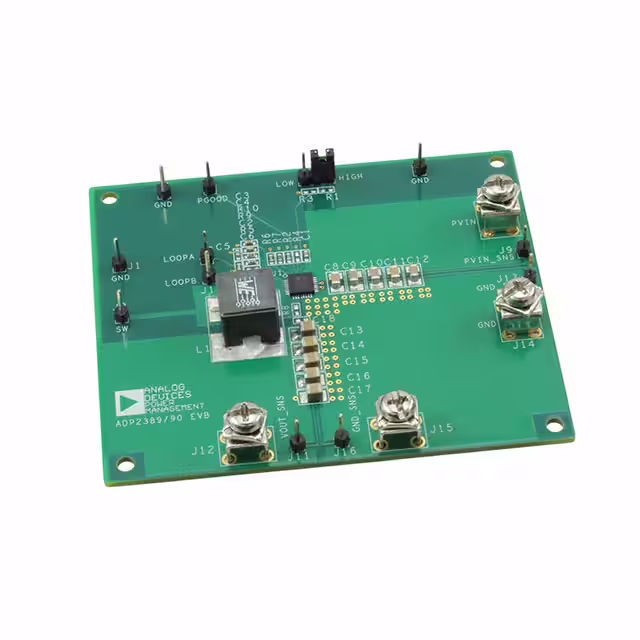

ADP2389-EVALZEVAL BOARD FOR ADP2389 |
2,646 | 55.18 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 12A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | ADP2389 |
|
NCV898031SEPGEVBEVAL BOARD FOR NCV898031 |
3,743 | 56.25 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 8.5 W | 7V | 1.22A | 6V ~ 40V | Buck-Boost | 2MHz | Board(s) | NCV898031 |
|

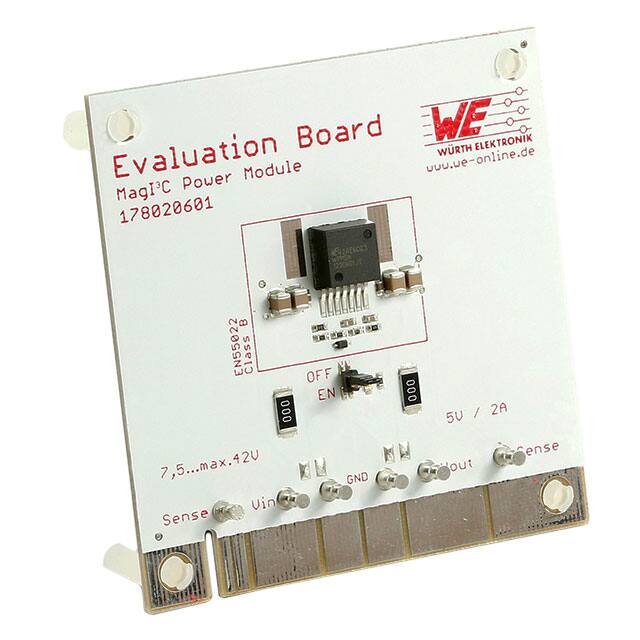

178020601EVAL BOARD FOR WPMDH1200601 |
3,363 | 57.46 |
|
Datasheet |
MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 6V | 2A | 6V ~ 42V | Buck | - | Board(s) | WPMDH1200601 |
|
178031801EVAL BOARD FOR WPMDL1301801 |
1,526 | 60.98 |
|
Datasheet |
MagI3C | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 17V | 3A | 4V ~ 18V | Buck | 850kHz | Board(s) | WPMDL1301801 |
|
REG710EVM-5EVAL BOARD FOR REG710 |
4,540 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 30mA | 2.7V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | REG710 |
|

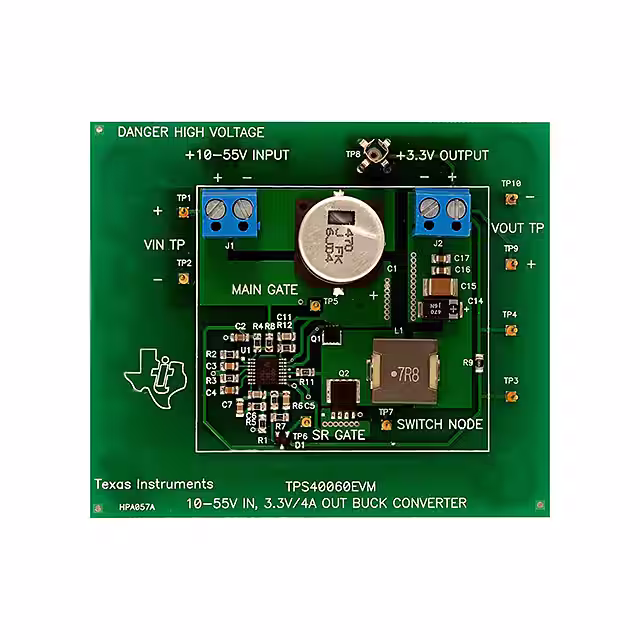

TPS40060EVMEVAL BOARD FOR TPS40060 |
1,124 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 10V ~ 55V | Buck | 250kHz | Board(s) | TPS40060 |
|

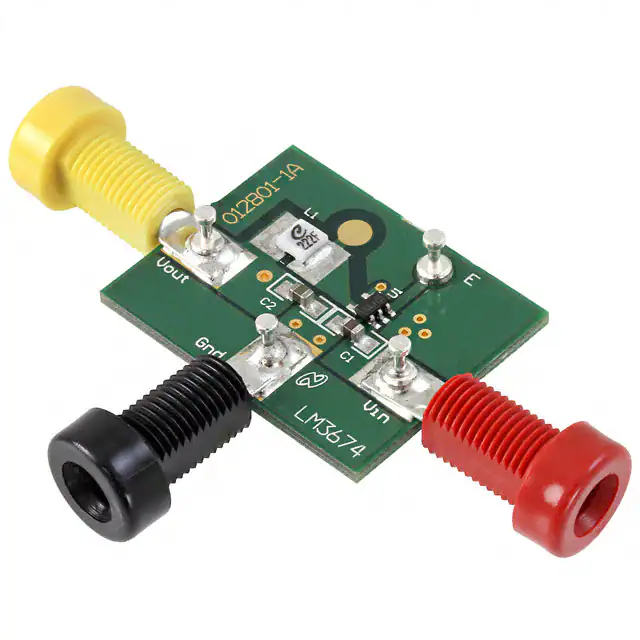

LM3674MF-1.8EVEVAL BOARD FOR LM3674 |
3,001 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LM3674 |
|

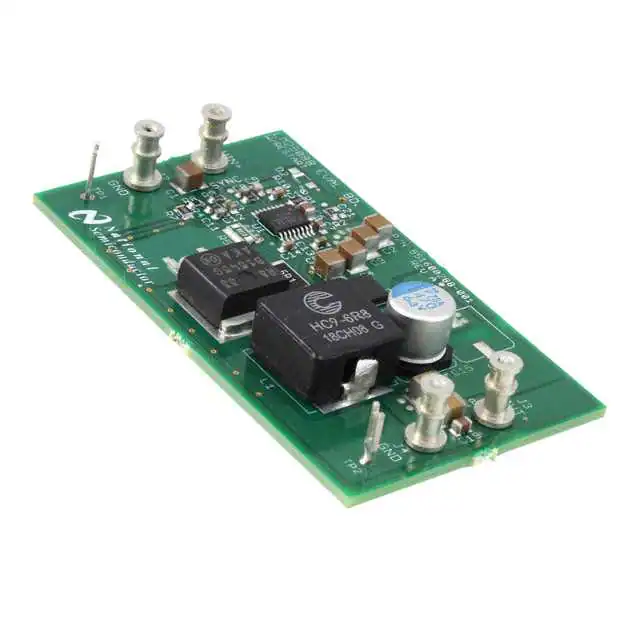

LM25088MH-2EVALEVAL BOARD FOR LM25088 |
2,633 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 5.5V ~ 36V | Buck | 250kHz | Board(s) | LM25088 |
|

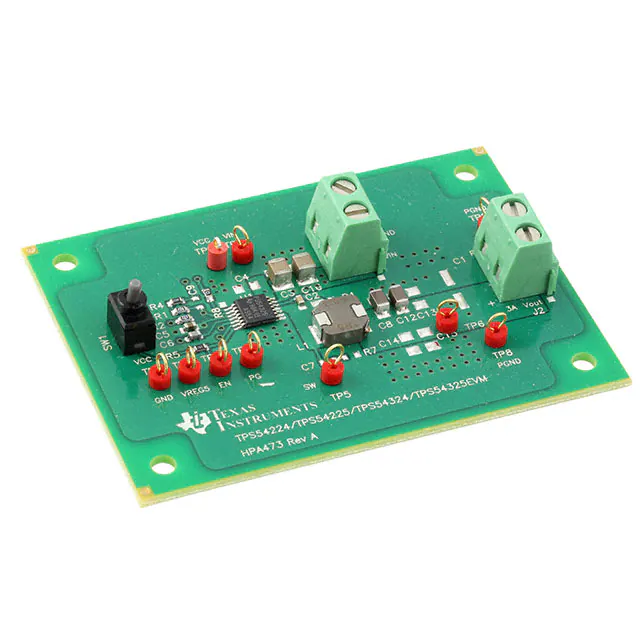

TPS54325EVMEVAL BOARD FOR TPS54325 |
3,160 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 5V ~ 17V | Buck | 700kHz | Board(s) | TPS54325 |
|

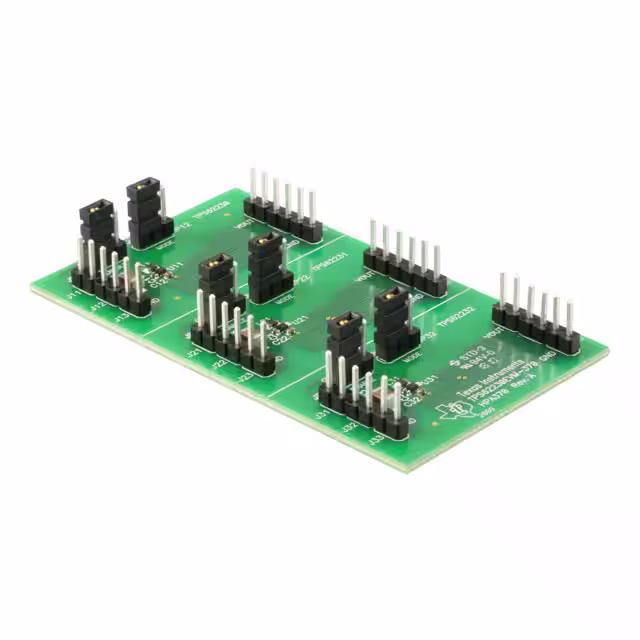

TPS62230EVM-370EVAL BOARD FOR TPS62230 TPS62231 |
2,905 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V | 500mA, 500mA, 500mA | 2.05V ~ 6V | Buck | 3MHz | Board(s) | TPS62230, TPS62231, TPS62232 |
|
TPS54225EVM-538EVAL BOARD FOR TPS54225 |
4,045 | 30.00 |
|
Datasheet |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 17V | Buck | 700kHz | Board(s) | TPS54225 |
|

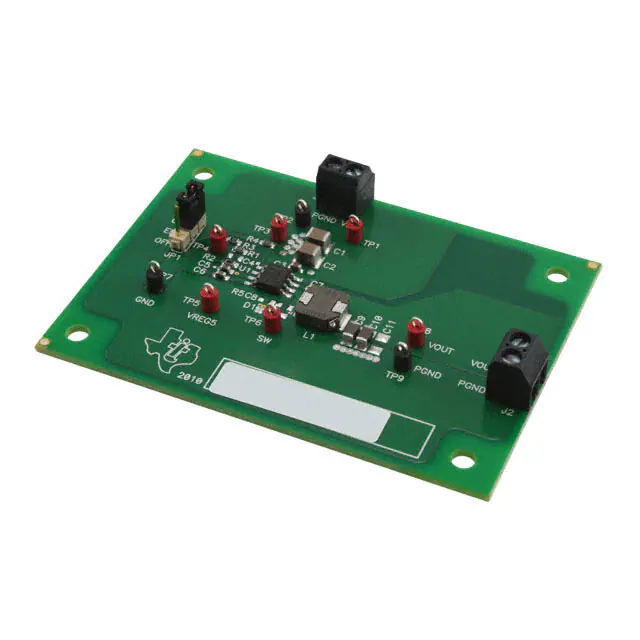

TPS54327EVM-686EVAL BOARD FOR TPS54327 |
2,510 | 58.80 |
|
Datasheet |
SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 675kHz | Board(s) | TPS54327 |
