DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

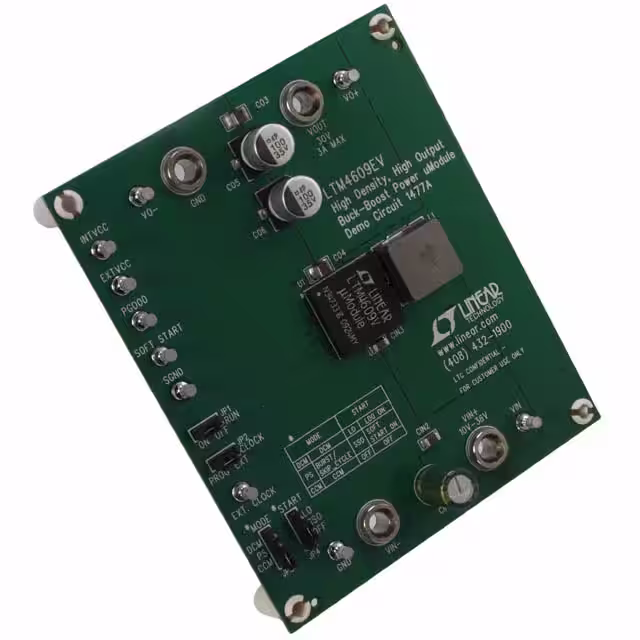

DC1477AEVAL BOARD FOR LTM4609 |
4,950 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 30V | 10A | 10V ~ 36V | Buck-Boost | 300kHz | Board(s) | LTM4609 |
|

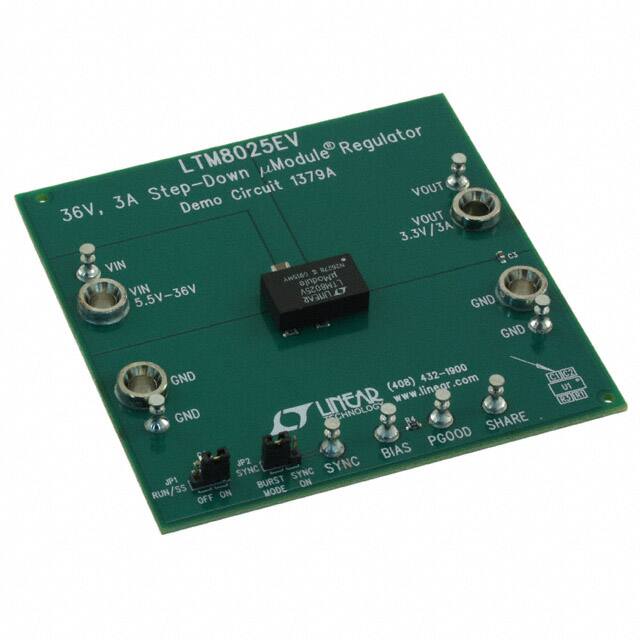

DC1379AEVAL BOARD FOR LTM8025 |
3,340 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5.5V ~ 36V | Buck | 250kHz ~ 2MHz | Board(s) | LTM8025 |
|
DC1198A-AEVAL BOARD FOR LTM4605 |
4,854 | 0.00 |
|
- |
µModule® | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 4.5V ~ 20V | Buck-Boost | 300kHz | Board(s) | LTM4605 |
|
DC1543AEVAL BOARD FOR LTM4641 |
1,247 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1V, 1.2V, 1.5V, 1.8V, 3.3V, 5V or 6V | 10A | 4.5V ~ 38V | Buck | - | Board(s) | LTM4641 |
|

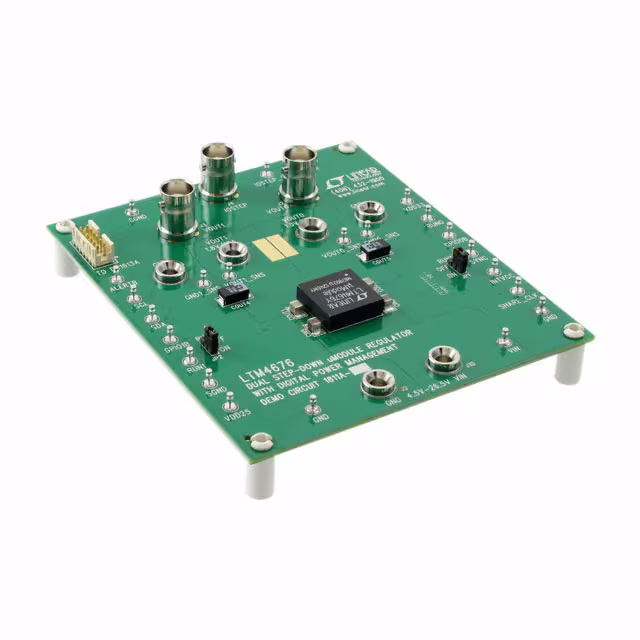

DC1811AEVAL BOARD FOR LTM4676 |
2,677 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 13A, 13A | 4.5V ~ 26.5V | Buck | 500kHz | Board(s) | LTM4676 |
|

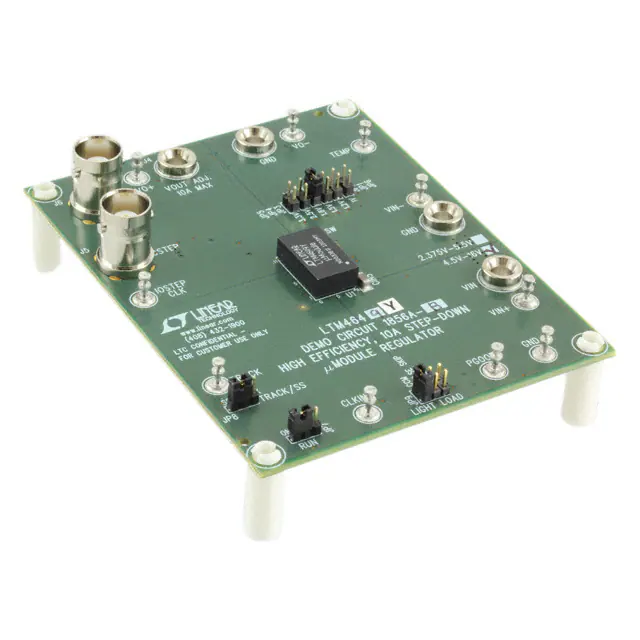

DC1856A-BEVAL BOARD FOR LTM4649 |
4,642 | 65.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 10A | 4.5V ~ 16V | Buck | 450kHz | Board(s) | LTM4649 |
|

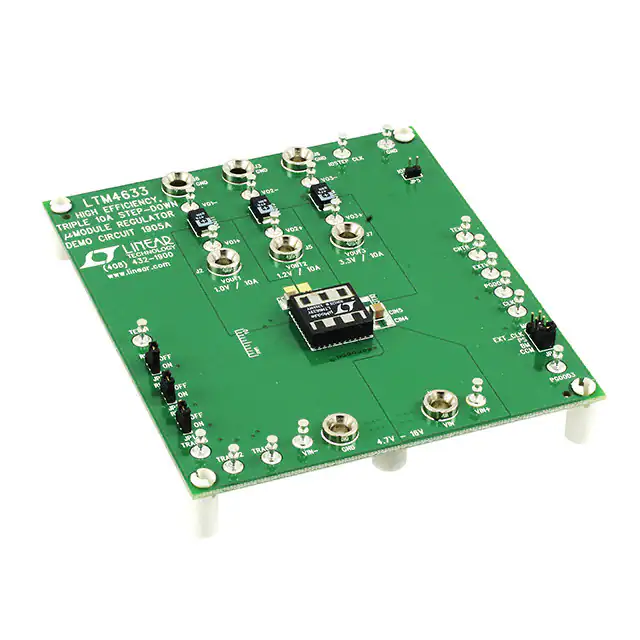

DC1905AEVAL BOARD FOR LTM4633 |
2,181 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1V, 1.2V, 3.3V | 10A, 10A, 10A | 4.7V ~ 16V | Buck | - | Board(s) | LTM4633 |
|

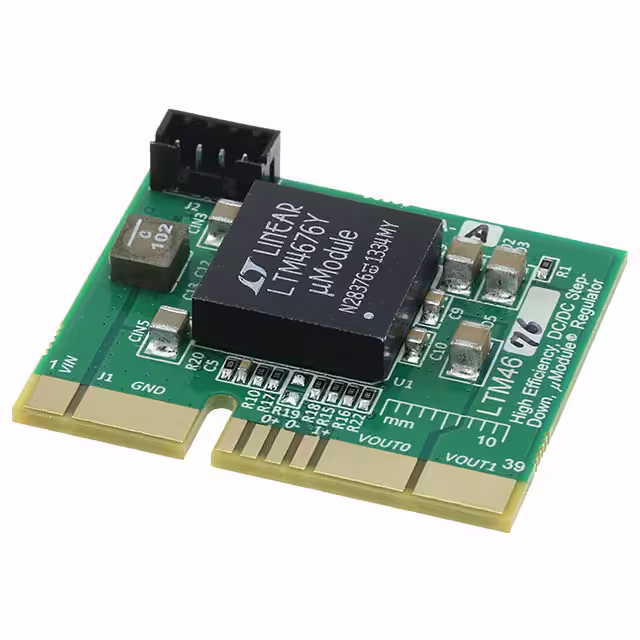

DC2269A-AEVAL BOARD FOR LTM4676 |
3,978 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 13A, 13A | 4.5V ~ 26.5V | Buck | 500kHz | Board(s) | LTM4676 |
|
ISL91107IIA-EVZEVAL BOARD FOR ISL91107 |
4,348 | 66.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | 2A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91107 |
|
|
ISL91127IIA-EVZEVAL BOARD FOR ISL91127 |
4,806 | 66.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1V ~ 5.2V | 2.1A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91127 |
|

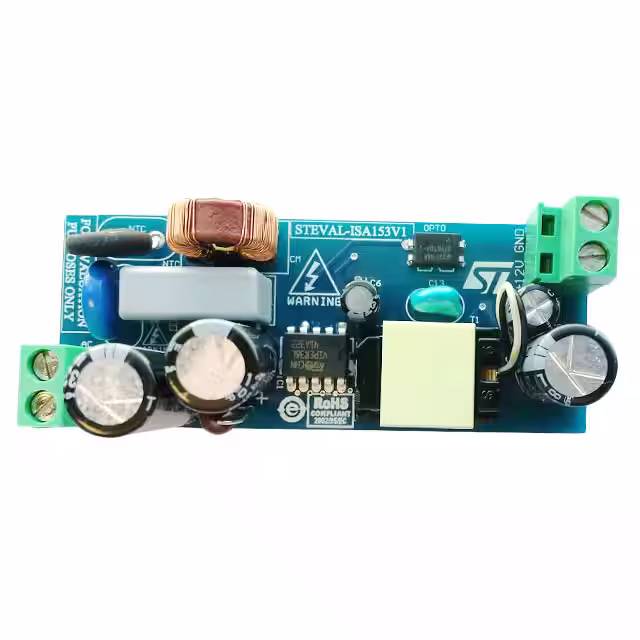

STEVAL-ISA153V1EVAL BOARD FOR VIPER38 |
1,989 | 65.00 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Secondary Side | 1 Isolated Output | 15 W | 12V | 1.25A | 90 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer38 |
|
|
ISL8107EVAL2ZEVAL BOARD FOR ISL8107 |
2,526 | 66.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 5A | 18V ~ 75V | Buck | 200kHz | Board(s) | ISL8107 |
|
|
ISL8130EVAL2ZEVAL BOARD FOR ISL8130 |
1,663 | 66.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 25A | 5.6V ~ 16V | Buck | 280kHz | Board(s) | ISL8130 |
|
|
ISL8026EVAL3ZEVAL BOARD FOR ISL8026 |
3,736 | 66.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8026 |
|
BD9D320EFJ-EVK-001EVAL BOARD FOR BD9D320 |
4,693 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5.08V ~ 18V | Buck | 700kHz | Board(s) | BD9D320 |
|

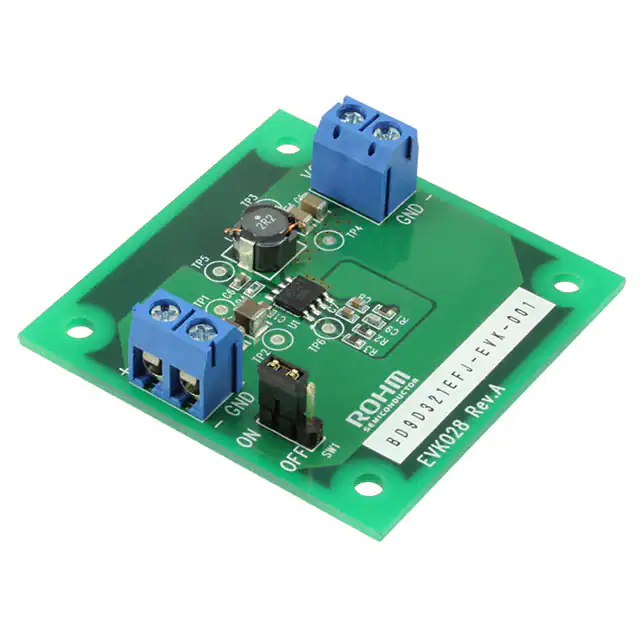

BD9D321EFJ-EVK-001EVAL BOARD FOR BD9D321 |
3,257 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5.08V ~ 18V | Buck | 700kHz | Board(s) | BD9D321 |
|

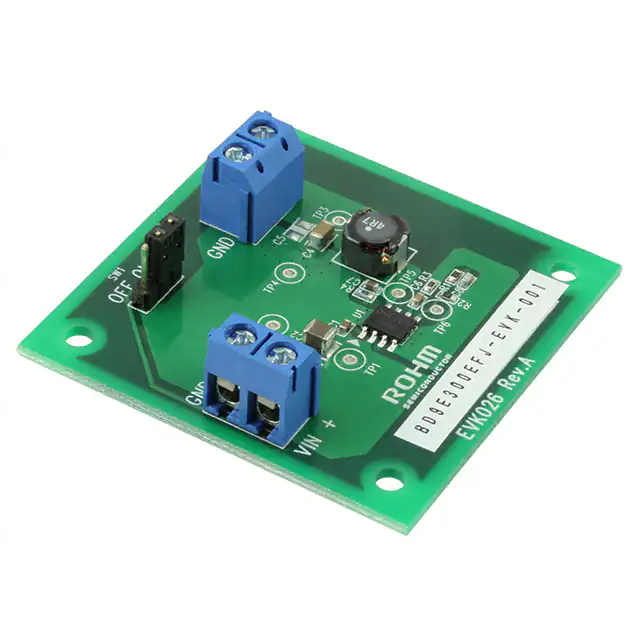

BD9E300EFJ-EVK-001EVAL BOARD FOR BD9E300 |
1,206 | 65.14 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 7.2V ~ 33V | Buck | 1MHz | Board(s) | BD9E300 |
|
BD9E301EFJ-EVK-001EVAL BOARD FOR BD9E301 |
3,258 | 65.14 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 7.2V ~ 36V | Buck | 570kHz | Board(s) | BD9E301 |
|
|
MAX1765EVKITEVAL BOARD FOR MAX1765 |
3,676 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 2.85V, 3.3V | 800mA, 500mA | 1.1V ~ 3.2V | Boost | 1MHz | Board(s) | MAX1765 |
|
MAX15066EVKIT+EVAL BOARD FOR MAX15066 |
3,605 | 61.21 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | MAX15066 |
