DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL8501EVAL1ZEVAL BOARD FOR ISL8501 |
3,421 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 1A, 500mA, 500mA | 4.5V ~ 25V | Buck | 500kHz | Board(s) | ISL8501 |
|
|
ISL6740EVAL2ZEVAL BOARD FOR ISL6740 |
1,466 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 36V ~ 75V | Buck | - | Board(s) | ISL6740 |
|
|
ISL85001EVAL1ZEVAL BOARD FOR ISL85001 |
4,068 | 62.50 |
|
Datasheet |
- | Box | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1A | 4.5V ~ 25V | Buck | 500kHz | Board(s) | ISL85001 |
|
|
ISL6744EVAL1ZEVAL BOARD FOR ISL6744 |
2,942 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 8A | 43.2V ~ 52.8V | Buck | 235kHz | Board(s) | ISL6744 |
|
|
ISL78010EVAL1ZEVAL BOARD FOR ISL78010 |
1,507 | 62.50 |
|
Datasheet |
- | Box | Last Time Buy | DC/DC, Step Up with LDO | 4 Non-Isolated Outputs | - | 2.5V, 12V, 20V, -8V | - | 3V ~ 5V | Boost | 1MHz | Board(s) | ISL78010 |
|
MYMGK1R806FRSR-EVMEVAL BOARD FOR MYMGK1R806FRSR |
1,709 | 62.50 |
|
Datasheet |
MGK | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1.8V | 6A | 4.5V ~ 5.5V | - | 250kHz | Board(s) | MYMGK1R806FRSR |
|
|
MYMGK00504ERSR-EVMEVAL BOARD FOR MYMGK00504ERSR |
3,025 | 62.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 7.2 W | 5V | 4A | 8V ~ 15V | Buck | 250kHz | Board(s) | - |
|
|
MYMGK1R804FRSR-EVMEVAL BOARD FOR MYMGK1R804FRSR |
4,998 | 62.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 7.2 W | 1.8V | 4A | 4.5V ~ 8V | Buck | 250kHz | Board(s) | - |
|
|
MYMGK1R812FRSR-EVMEVAL BOARD FOR MYMGK1R812FRSR |
2,915 | 62.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 21.6 W | 0.7V, 1.8V | 12A | 4.5V ~ 8V | Buck | 500kHz | Board(s) | MYMGK1R812FRSR |
|
|
MYMGK1R812ERSR-EVMEVAL BOARD FOR MYMGK1R812ERSR |
2,581 | 62.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 21.6 W | 0.7V, 1.8V | 12A | 8V ~ 15V | Buck | 500kHz | Board(s) | MYMGK1R812ERSR |
|

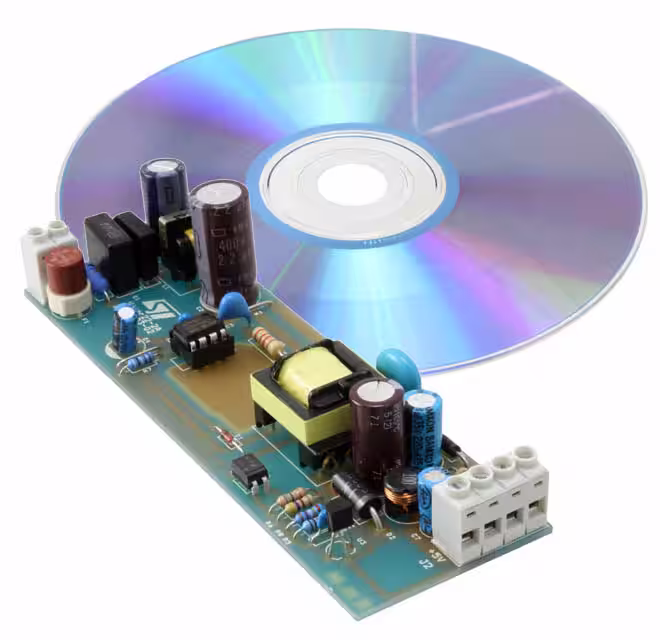

STEVAL-ISA004V1EVAL BOARD FOR VIPER22A |
3,163 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 10 W | 5V, 12V | 1A, 420mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer22A |
|

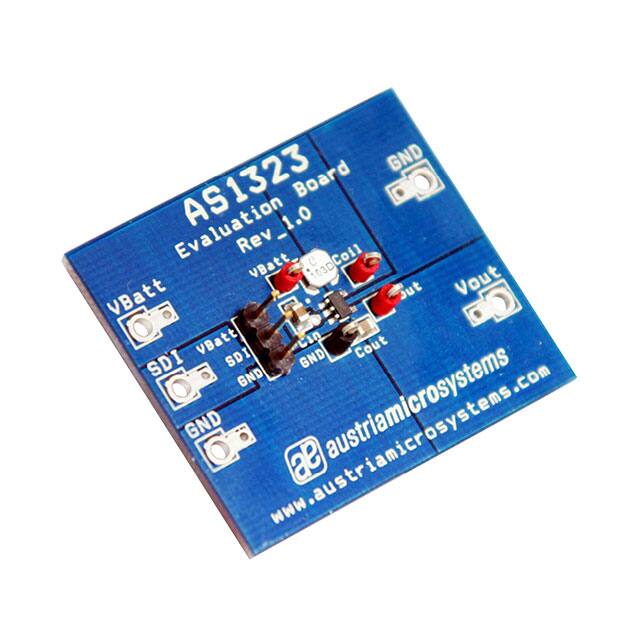

AS1323-TT-27_EK_STEVAL BOARD FOR AS132327 |
3,069 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.7V | 100mA | 0.7V ~ 2V | Boost | - | Board(s) | AS1323-27 |
|
|
AS1323-TT-30_EK_STEVAL BOARD FOR AS132330 |
4,859 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3V | 100mA | 0.7V ~ 2V | Boost | - | Board(s) | AS1323-30 |
|
|
AS1323-TT-33_EK_STEVAL BOARD FOR AS132333 |
2,086 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 100mA | 0.7V ~ 2V | Boost | - | Board(s) | AS1323-33 |
|
AS1302-WL_EK_STEVAL BOARD FOR AS1302 |
2,856 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 30mA | 2.9V ~ 5.15V | Boost | 1.2MHz | Board(s) | AS1302 |
|
|
ISL6439EVAL1EVAL BOARD FOR ISL6439 |
3,020 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 3.3V | 20A | 3.3V ~ 5V | Buck | 300kHz | Board(s) | ISL6439 |
|
|
ISL6526EVAL2EVAL BOARD FOR ISL6526 |
1,535 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 3.3V ~ 5V | Buck | 300kHz | Board(s) | ISL6526 |
|
|
ISL6527AEVAL2EVAL BOARD FOR ISL6527A |
1,616 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3V | 5A | 3.3V ~ 5V | Buck | 600kHz | Board(s) | ISL6527A |
|
|
ISL6527EVAL2EVAL BOARD FOR ISL6527 |
2,476 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3V | 5A | 3.3V ~ 5V | Buck | 300kHz | Board(s) | ISL6527 |
|
|
ISL6740EVAL1EVAL BOARD FOR ISL6740 |
2,531 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 48V | Buck | - | Board(s) | ISL6740 |
