DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

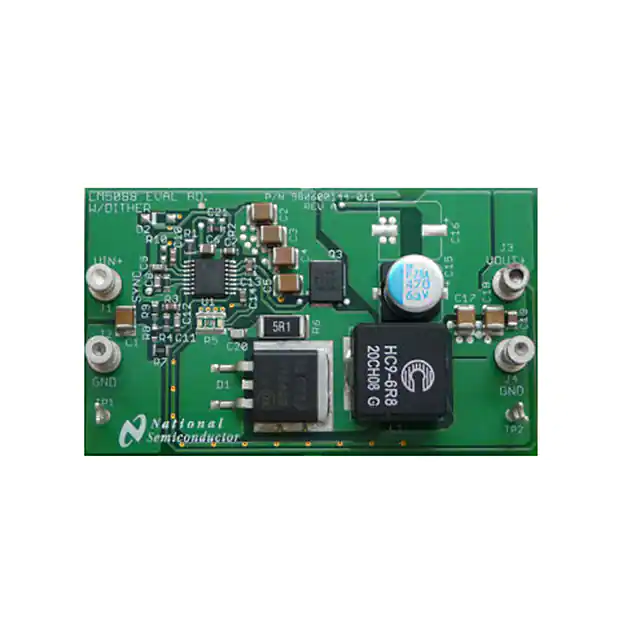

LM5088MH-1EVALEVAL BOARD FOR LM5088 |
4,832 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 5.5V ~ 55V | Buck | 250kHz | Board(s) | LM5088 |
|
MAX831EVKIT-SOEVAL BOARD FOR MAX831 |
1,426 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 8V ~ 30V | Buck | 100kHz | Board(s) | MAX831 |
|
MAX15041EVKIT+EVAL BOARD FOR MAX15041 |
3,631 | 63.86 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 28V | Buck | 350kHz | Board(s) | MAX15041 |
|
PMLKBUCKEVMBEVAL BOARD FOR LM3475 TPS54160 |
4,881 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 2A, 1.5A | 5V ~ 10V, 6V ~ 36V | Buck | - | Board(s) | LM3475, TPS54160 |
|
|
ISL85415EVAL2ZEVAL BOARD FOR ISL85415 |
4,511 | 65.00 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 500mA | 3V ~ 31V | Buck-Boost | 500kHz | Board(s) | ISL85415 |
|
|
ISL8026AEVAL3ZEVAL BOARD FOR ISL8026A |
2,911 | 65.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 2.5V ~ 5.5V | Buck | 2MHz | Board(s) | ISL8026A |
|

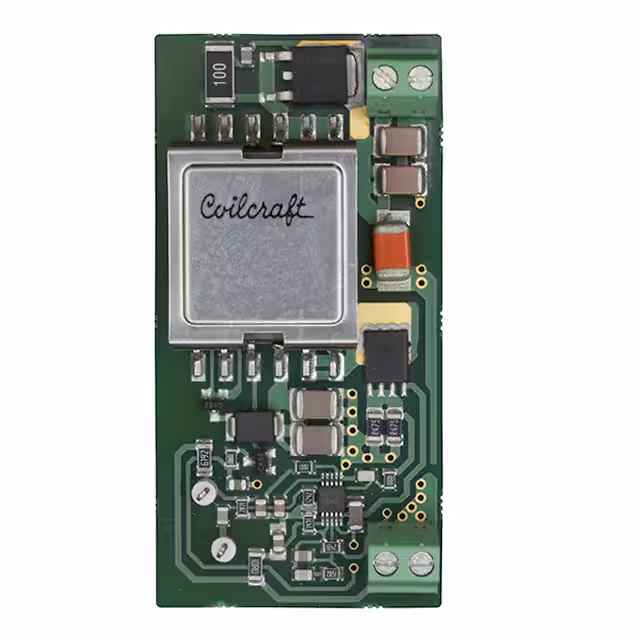

LM5020EVALEVAL BOARD FOR LM5020 |
4,023 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 4.5A | 30V ~ 75V | Flyback | - | Board(s) | LM5020 |
|

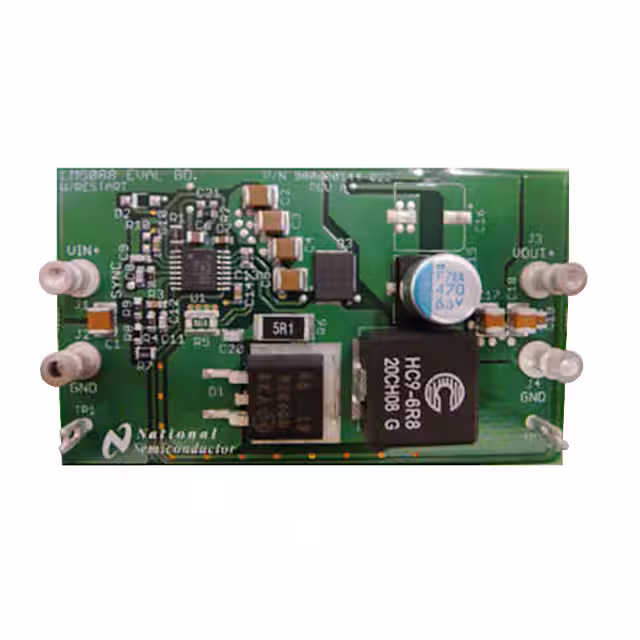

LM5088MH-2EVALEVAL BOARD FOR LM5088 |
2,381 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 5.5V ~ 55V | Buck | 250kHz | Board(s) | LM5088 |
|
|
ISL6273EVAL1EVAL BOARD FOR ISL6273 |
2,837 | 64.69 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V | 1.2A | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | ISL6273 |
|
|
ADP1870-1.0-EVALZEVAL BOARD FOR ADP1870 |
2,043 | 64.20 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 2.95V ~ 20V | Buck | 1MHz | Board(s) | ADP1870 |
|
|
ADP1871-0.6-EVALZEVAL BOARD FOR ADP1871 |
4,706 | 64.20 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 2.95V ~ 20V | Buck | 600kHz | Board(s) | ADP1871 |
|
ADP2380-EVALZEVAL BOARD FOR ADP2380 |
4,402 | 64.20 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4.5V ~ 20V | Buck | 500kHz | Board(s) | ADP2380 |
|
ADP1606-1.8-EVALZEVAL BOARD FOR ADP1606 |
2,891 | 64.20 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V | - | 0.8V ~ 1.8V | Boost | 2MHz | Board(s) | ADP1606 |
|

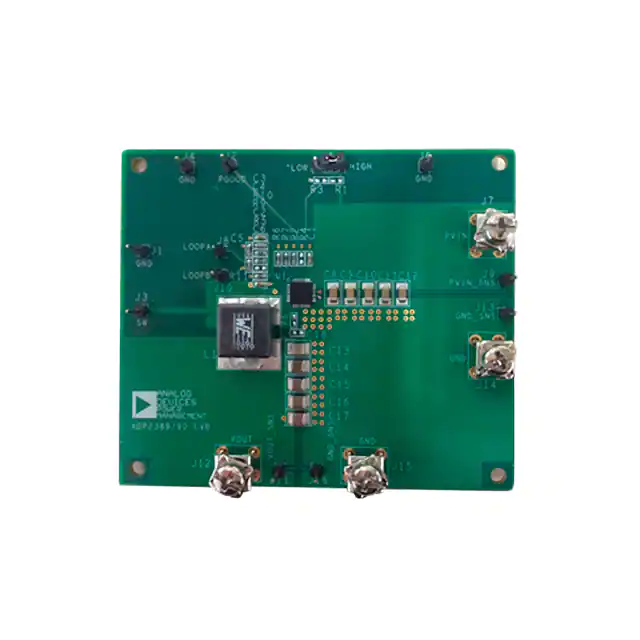

ADP2390-EVALZEVAL BOARD FOR ADP2390 |
4,823 | 69.96 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 18V | 12A | 4.5V ~ 18V | Buck | 200kHz ~ 2.2MHz | Board(s) | ADP2390 |
|
|
ISL9113ER7Z-EVZEVAL BOARD FOR ISL9113 |
4,250 | 86.42 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 500mA | 0.8V ~ 4.7V | Boost | - | Board(s) | ISL9113 |
|

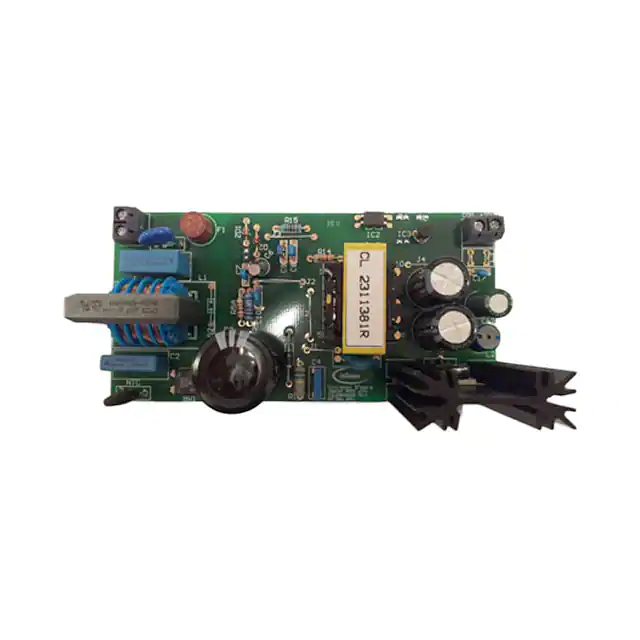

EVAL2QR0665G28W16VTOBO1EVAL BOARD FOR ICE2QR0665G |
3,697 | 64.71 |
|
Datasheet |
CoolSET®-Q1 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 28 W | 16V | 1.75A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE2QR0665G |
|

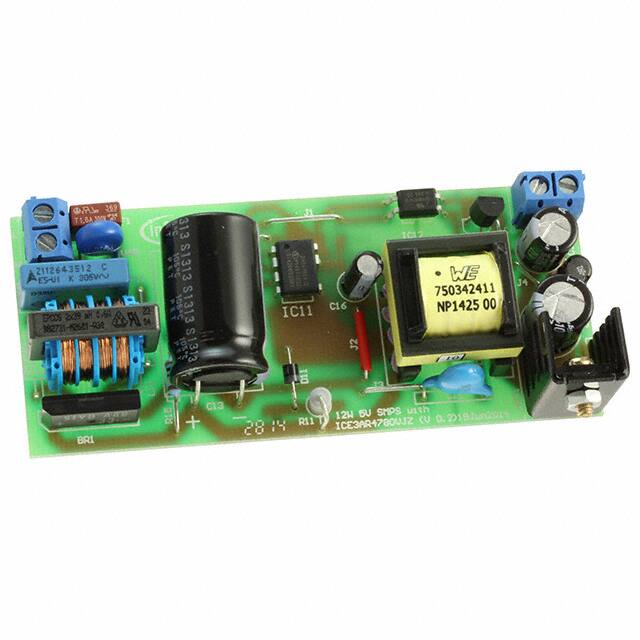

EVAL3AR4780VJZTOBO1EVAL BOARD FOR ICE3AR4780VJZ |
3,015 | 64.71 |
|
Datasheet |
CoolMOS™, CoolSET™F3R80 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | - | - | Flyback | 100kHz | Board(s) | ICE3AR4780VJZ |
|

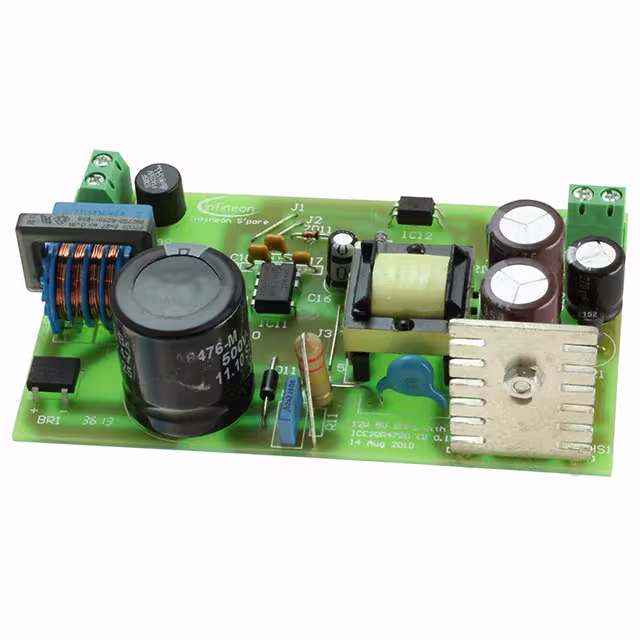

EVALQRCICE2QR4780ZTOBO1EVAL BOARD FOR ICE2QR4780Z |
2,984 | 64.71 |
|
Datasheet |
CoolMOS™, CoolSET™-Q1 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | - | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE2QR4780Z |
|

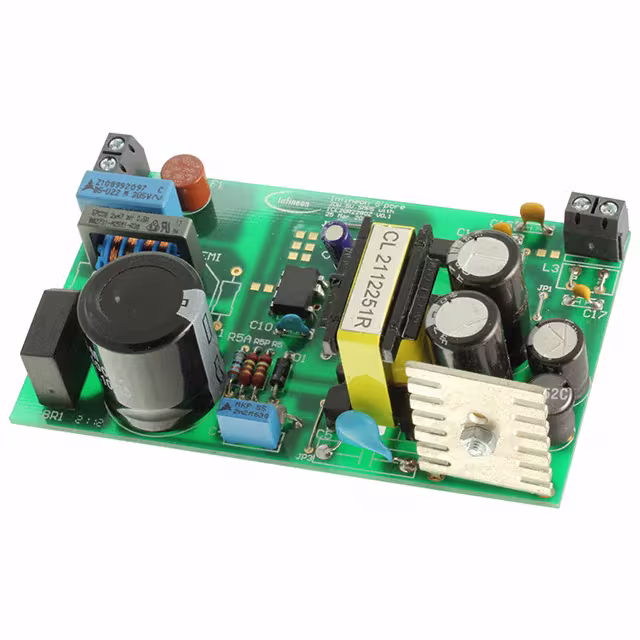

EVALQRCICE2QR2280ZTOBO1EVAL BOARD FOR ICE2QR2280Z |
3,577 | 64.71 |
|
Datasheet |
CoolMOS™, CoolSET™-Q1 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE2QR2280Z |
|
|
DC1386AEVAL BOARD FOR LTM8032 |
4,136 | 0.00 |
|
- |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 5.5V ~ 36V | Buck | 600kHz | Board(s) | LTM8032 |
