DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL8105BEVAL1ZEVAL BOARD FOR ISL8105B |
4,229 | 62.50 |
|
Datasheet |
- | Tube | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 15A | 9.6V ~ 14.4V | Buck | 300kHz | Board(s) | ISL8105B |
|
|
ISL8104EVAL1ZEVAL BOARD FOR ISL8104 |
4,551 | 62.50 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 20A | 8V ~ 14.4V | Buck | 300kHz | Board(s) | ISL8104 |
|
|
ISL8010EVAL1EVAL BOARD FOR ISL8010 |
1,071 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5.5V | 600mA | 2.5V ~ 5.5V | Buck | - | Board(s) | ISL8010 |
|
|
ISL9105EVAL1ZEVAL BOARD FOR ISL9105 |
2,701 | 63.19 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V | 600mA | 2.7V ~ 5.5V | Buck | 1.6MHz | Board(s) | ISL9105 |
|

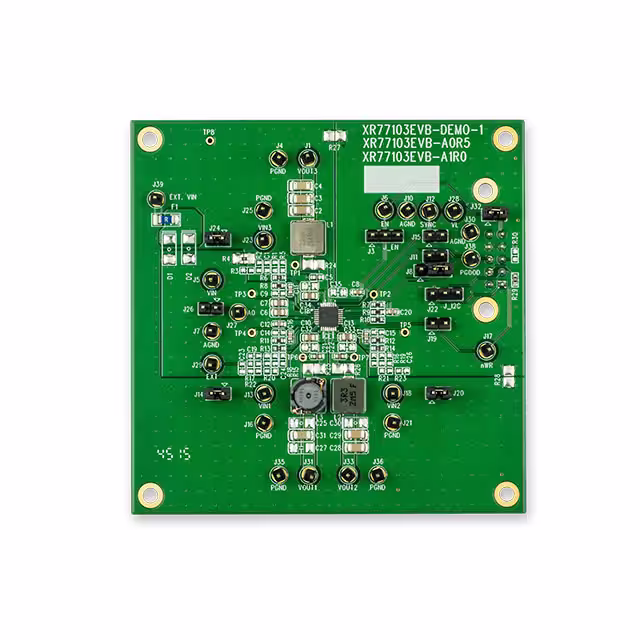

XR77103EVB-DEMO-1EVAL BOARD FOR XR77103 |
1,291 | 62.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.8V ~ 6V | - | 4.5V ~ 14V | Buck | - | Board(s) | XR77103 |
|
|
XRP7713EVB-DEMO-1EVAL BOARD FOR XRP7713 |
1,354 | 62.50 |
|
Datasheet |
- | Bulk | Last Time Buy | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.9V ~ 5.1V | 5A | 4.75V ~ 25V | Buck | 1.5MHz | Board(s) | XRP7713 |
|
|
XRP7740EVB-HCEVAL BOARD FOR XRP7740 |
1,896 | 62.50 |
|
Datasheet |
- | Bulk | Last Time Buy | DC/DC, Step Up or Down with LDO | 4 Non-Isolated Outputs | - | 0.9V ~ 5.1V | - | 6.5V ~ 20V | Buck | 1.5MHz | Board(s) | XRP7740 |
|
9397 750 16172EVAL BOARD FOR TEA1522 |
4,421 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 6 W | 5V | 1.2A | 80 ~ 276 VAC | Flyback | - | Board(s) | TEA1522 |
|
|
SP6121EBEVAL BOARD FOR SP6121 |
3,414 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 8A | 3V ~ 7V | Buck | 500kHz | Board(s) | SP6121 |
|
|
SP6125EBEVAL BOARD FOR SP6125 |
2,811 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 24V | Buck | 300kHz | Board(s) | SP6125 |
|
|
SP6126EBEVAL BOARD FOR SP6126 |
2,811 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 12V | Buck | 600kHz | Board(s) | SP6126 |
|
LV5068VGEVBEVAL BOARD FOR LV5068V |
2,625 | 62.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LV5068V |
|
|
FEB110EVAL BOARD FOR FAN4822 |
4,624 | 0.00 |
|
- |
- | - | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 500 W | 400V | 1.25A | 85 ~ 265 VAC | - | - | Board(s) | FAN4822 |
|
EVL6566B-65WEVAL BOARD FOR L6566B |
1,687 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 65 W | 12V | 5.4A | 90 ~ 265 VAC | Flyback | 80kHz | Board(s) | L6566B |
|

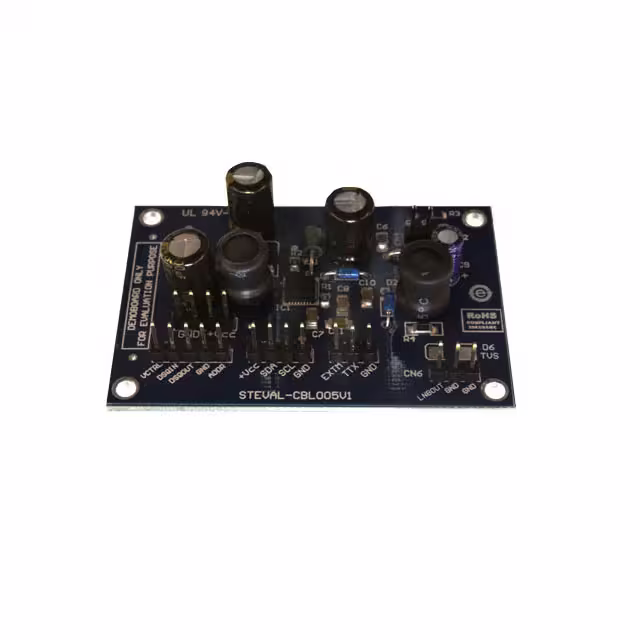

STEVAL-CBL005V1EVAL BOARD FOR LNBH23 |
1,562 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 15V | Boost | - | Board(s) | LNBH23 |
|

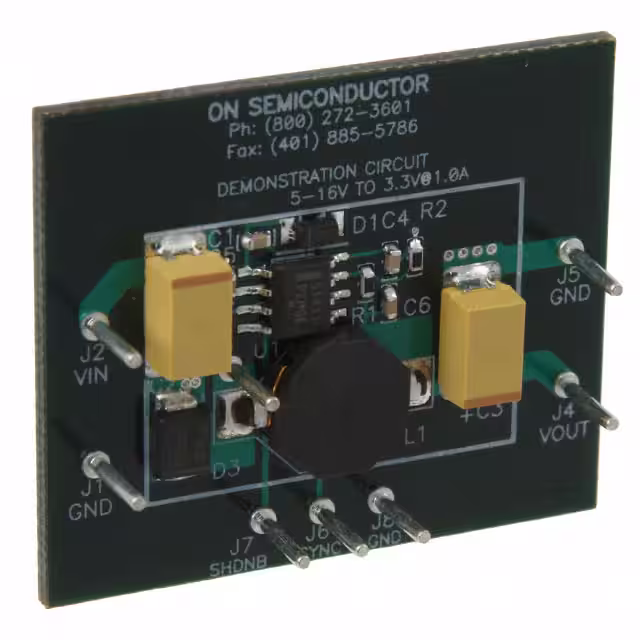

CS51411EVBEVAL BOARD FOR CS51411 |
1,753 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 16V | Buck | 260kHz | Board(s) | CS51411 |
|

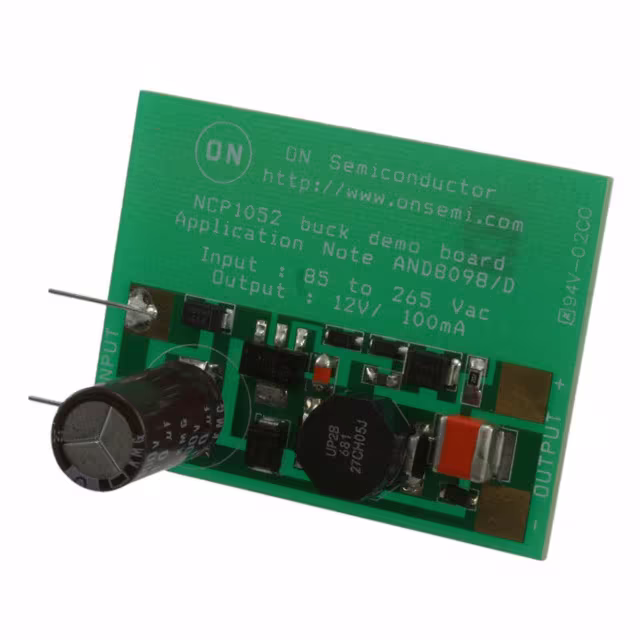

NCP1052GEVBEVAL BOARD FOR NCP1052 |
3,076 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 1.2 W | 120V | 100mA | 85 ~ 265 VAC | Buck-Boost | 136kHz | Board(s) | NCP1052 |
|

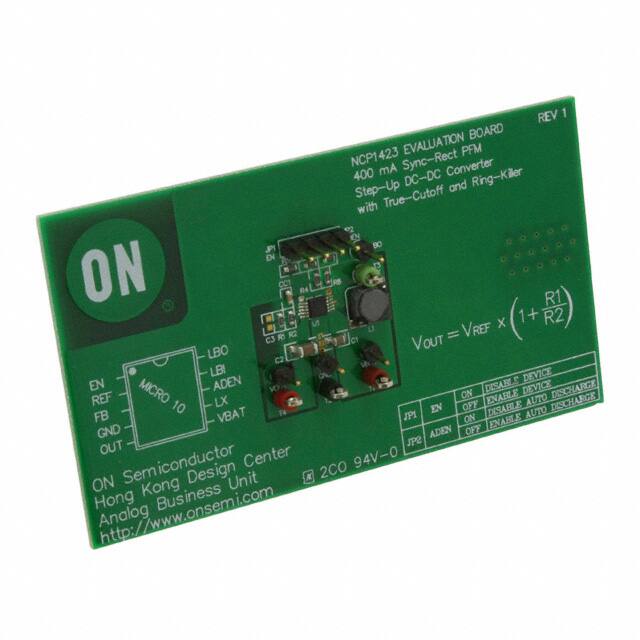

NCP1423EVBEVAL BOARD FOR NCP1423 |
1,122 | 62.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 400mA | 2.5V | Boost | 600kHz | Board(s) | NCP1423 |
|

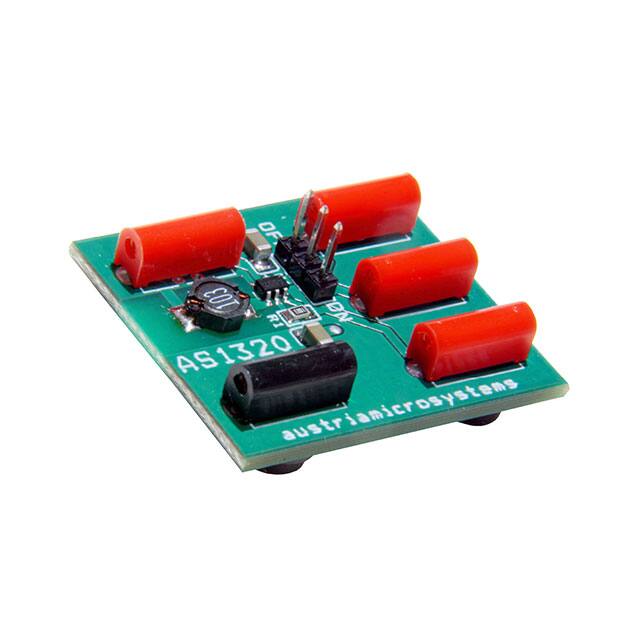

AS1320 DBEVAL BOARD FOR AS1320 |
3,381 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 200mA | 1.5V ~ 3.5V | Boost | - | Board(s) | AS1320 |
|

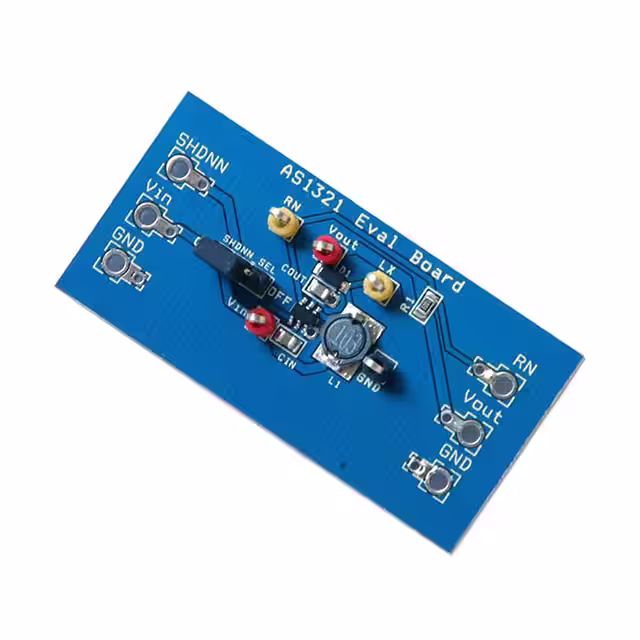

AS1321 DBEVAL BOARD FOR AS1321 |
4,541 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 130mA | 1.5V ~ 5V | Boost | - | Board(s) | AS1321 |
