DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3905SD-30EVEVAL BOARD FOR LP3905 |
3,044 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.2V, 1.875, 2.8V, 2.8V | 600mA, 600mA, 100mA, 100mA | 3V ~ 5.5V | Buck | 2MHz | Board(s) | LP3905 |
|
|
LM2773TLEVEVAL BOARD FOR LM2773 |
4,922 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V or 1.8V | 300mA | 2.7V ~ 5.5V | Buck | 1.15MHz | Board(s) | LM2773 |
|
LM5073HE-EVALEVAL BOARD FOR LM5073 |
2,480 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | 9.9 W | 3.3V | 3A | 40V ~ 57V | Flyback | 150kHz | Board(s) | LM5073 |
|

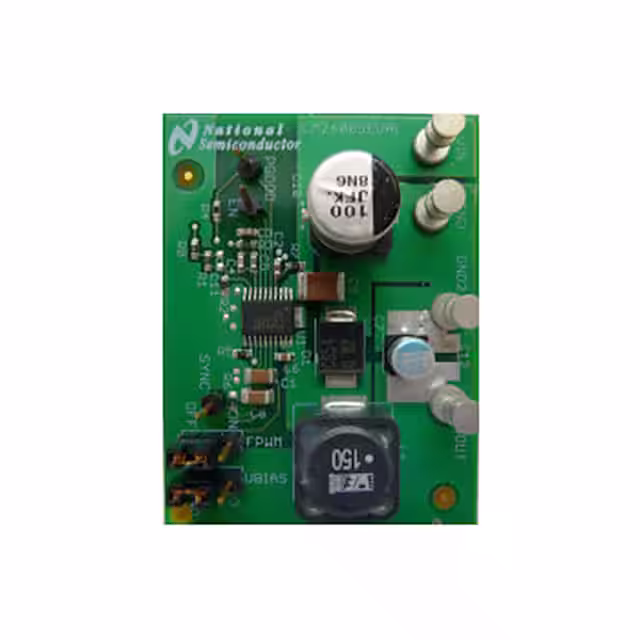

LM26003EVALEVAL BOARD FOR LM26003 |
4,631 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 38V | Buck | 300kHz | Board(s) | LM26003 |
|
|
ISL85413EVAL1ZEVAL BOARD FOR ISL85413 |
2,718 | 81.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.5V ~ 40V | Buck | 700kHz | Board(s) | ISL85413 |
|
|
ADP1828LC-EVALZEVAL BOARD FOR ADP1828 |
2,698 | 80.00 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 5.5V ~ 13.2V | Buck | 600kHz | Board(s) | ADP1828 |
|

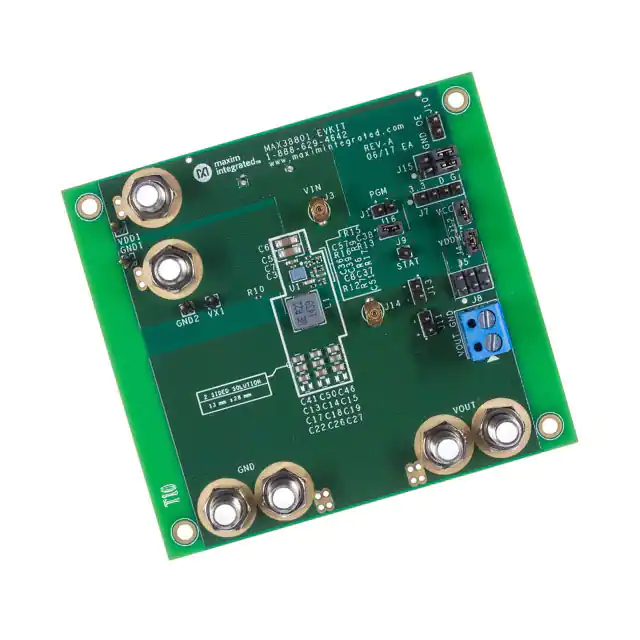

MAX38801EVKIT#EVAL BOARD FOR MAX38801 |
4,337 | 74.99 |
|
Datasheet |
Quick-PWM™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 15A | 6.5V ~ 14V | - | - | Board(s) | MAX38801 |
|
ADP2108-1.8-EVALZEVAL BOARD FOR ADP2108 |
4,590 | 72.74 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2108 |
|
|
ISL85418EVAL1ZEVAL BOARD FOR ISL85418 |
4,942 | 81.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85418 |
|
|
ISL85410EVAL1ZEVAL BOARD FOR ISL85410 |
1,939 | 81.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85410 |
|
|
ISL85415EVAL1ZEVAL BOARD FOR ISL85415 |
1,869 | 81.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85415 |
|

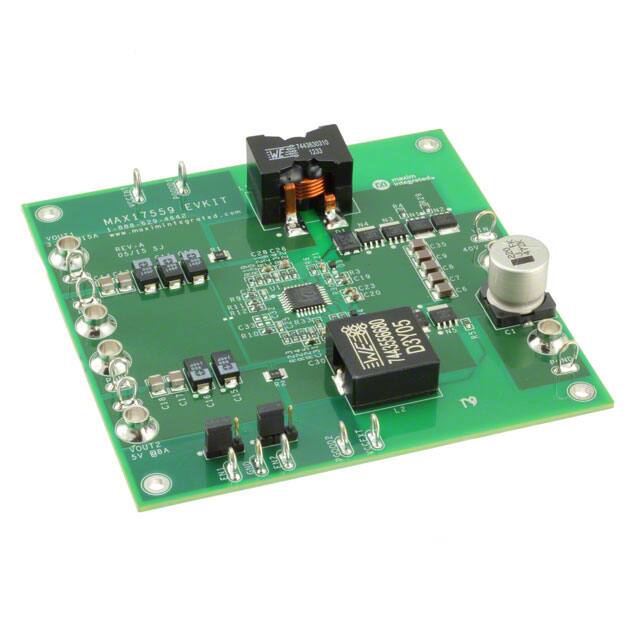

MAX17559EVKIT#EVAL BOARD FOR MAX17559 |
2,529 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 15A, 8A | 6V ~ 60V | Buck | 150kHz | Board(s) | MAX17559 |
|
|
XR77103-MOCA-EVK-1EVAL BOARD FOR XR77103MOCA |
2,037 | 81.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.9V, 1.8V, 3.3V | 3.2A, 2A, 2A | 4.5V ~ 14V | Buck | 560kHz | Board(s) | XR77103-MoCA |
|

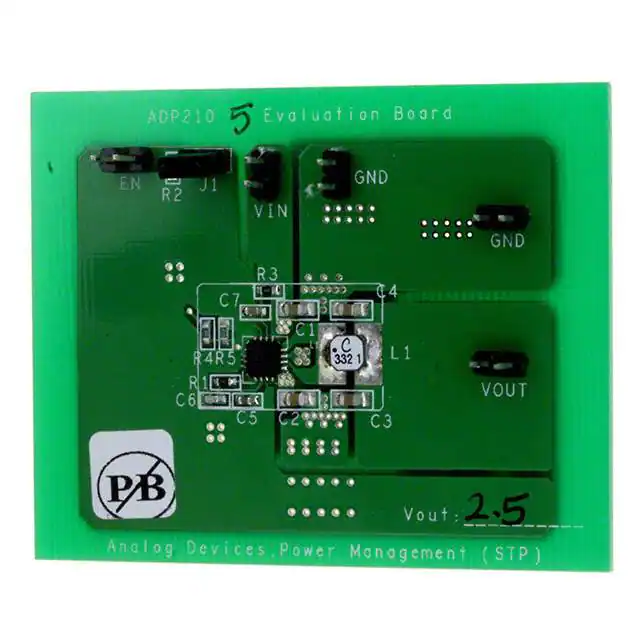

ADP2105-EVALZEVAL BOARD FOR ADP2105 |
1,598 | 73.60 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1A | 2.7V ~ 5.5V | Buck | 1.2MHz | Board(s) | ADP2105 |
|

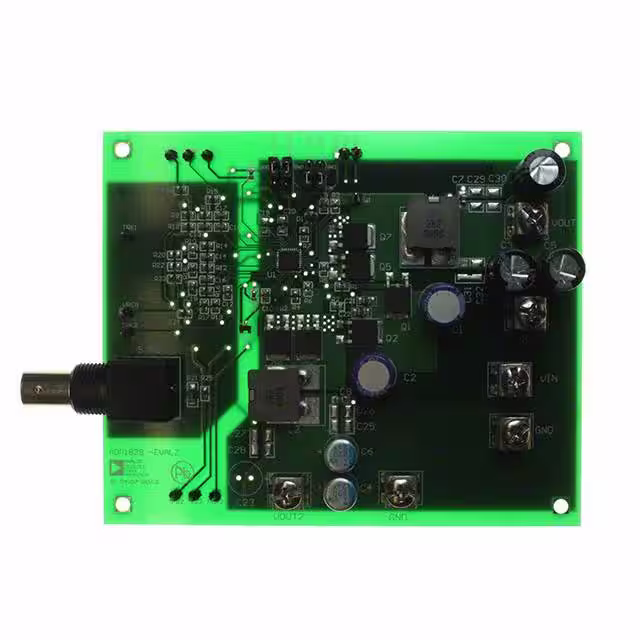

ADP1829-EVALZEVAL BOARD FOR ADP1829 |
4,881 | 73.60 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 15A, 15A | 5.5V ~ 18V | Buck | 300kHz | Board(s) | ADP1829 |
|

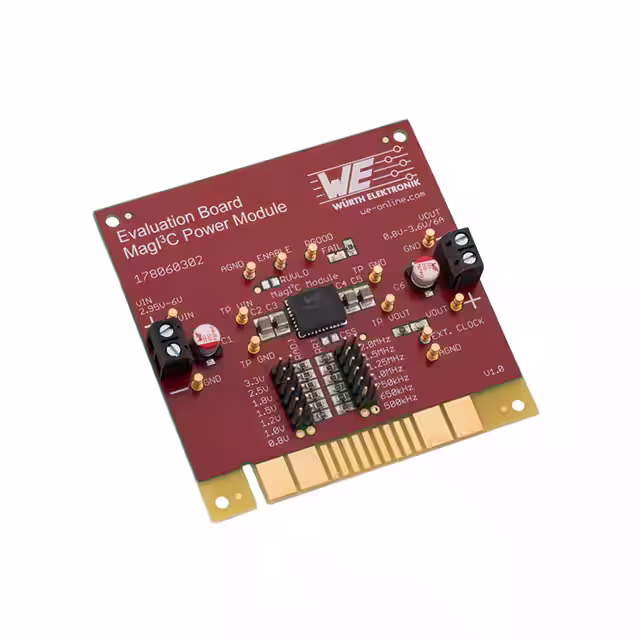

178060302EVAL BOARD FOR WPMDB1600362Q |
2,611 | 78.90 |
|
Datasheet |
MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 21.6 W | 0.8V ~ 3.6V | 6A | 2.95V ~ 6V | Buck | - | Board(s) | WPMDB1600362Q |
|

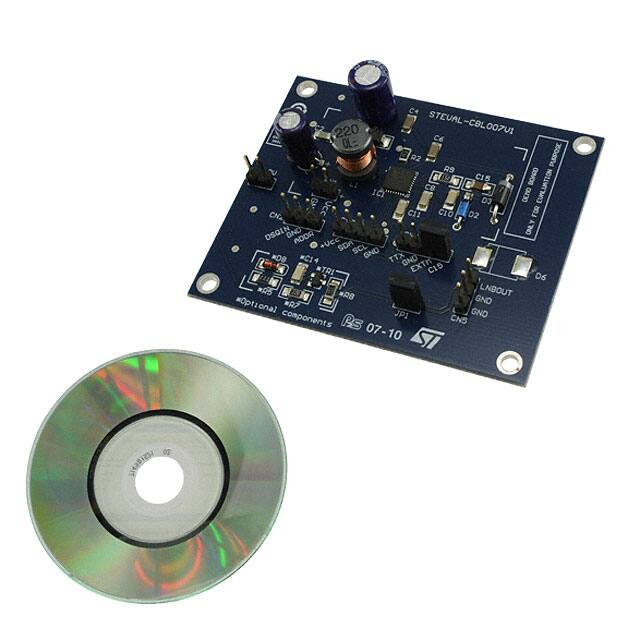

STEVAL-CBL007V1EVAL BOARD FOR LNBH23 |
1,413 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LNB | - | - | - | - | - | Boost | 220kHz | Board(s) | LNBH23 |
|

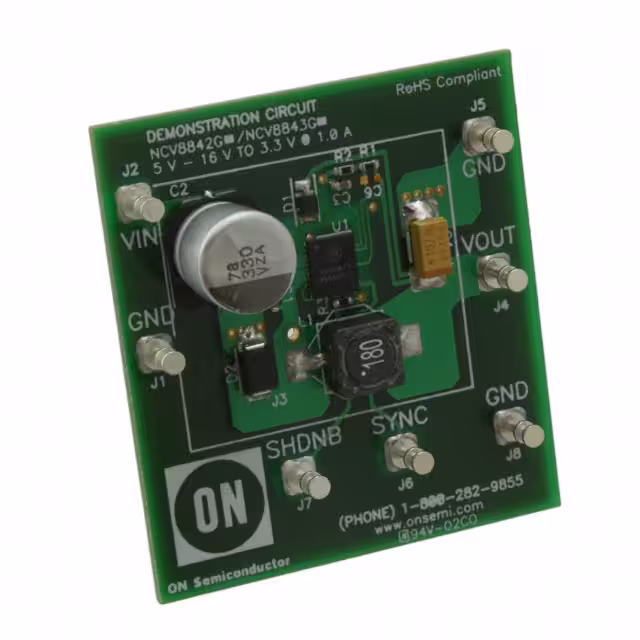

NCV8843MNR2GEVBEVAL BOARD FOR NCV8843 |
2,232 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 16V | Buck | 340kHz | Board(s) | NCV8843 |
|

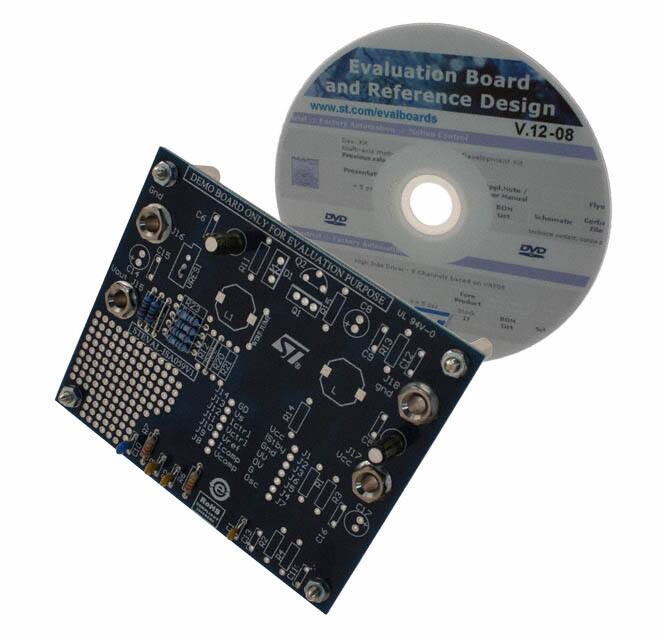

STEVAL-ISA059V1EVAL BOARD FOR TSM108 |
1,921 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | 800mA | 12V | Buck | - | Board(s) | TSM108 |
|
LM3668SD-4550EVEVAL BOARD FOR LM3668 |
4,326 | 77.22 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 4.5V or 5V | 1A | 2.5V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | LM3668 |
