DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC432AEVAL BOARD FOR LTC1879 |
2,610 | 88.28 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 1.2A | 2.65V ~ 10V | Buck | 550kHz | Board(s) | LTC1879 |
|
MAX15026BEVKIT+EVAL BOARD FOR MAX15026B |
3,625 | 82.64 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 10A | 5V ~ 16V | Buck | 600kHz | Board(s) | MAX15026B |
|
|
DC1043A-AEVAL BOARD FOR LTM4601 |
1,298 | 88.28 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 20A | 5V ~ 20V | Buck | 750kHz | Board(s) | LTM4601 |
|
|
DC1014AEVAL BOARD FOR LTC3822 |
2,614 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 2.75V ~ 4.5V | Buck | 300kHz, 550kHz, 750kHz | Board(s) | LTC3822 |
|
|
DC1021AEVAL BOARD FOR LTC3823 |
4,177 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 10A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTC3823 |
|
|
DC450AEVAL BOARD FOR LTC3717 |
4,043 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V | 12A | 5V ~ 20V | Buck | - | Board(s) | LTC3717 |
|
|
DC989B-BEVAL BOARD FOR LTC38721 |
2,683 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2A | 3V ~ 4.5V | Boost | 550kHz | Board(s) | LTC3872-1 |
|
EVKT-8869WEVAL BOARD FOR MP8869W |
3,932 | 95.00 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 3V ~ 18V | Buck | - | Board(s), Cable(s), Accessories | MP8869W |
|

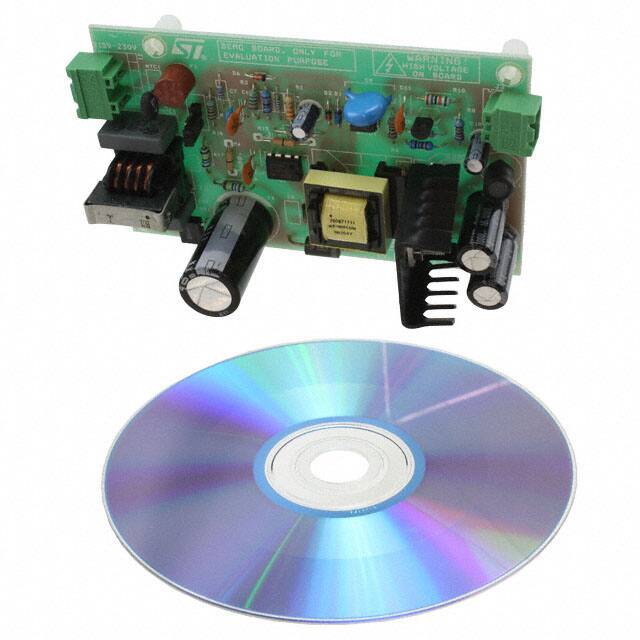

STEVAL-ISA103V1EVAL BOARD FOR VIPER27LN |
4,287 | 0.00 |
|
Datasheet |
VIPer™ plus | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | 2.4A | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPER27LN |
|

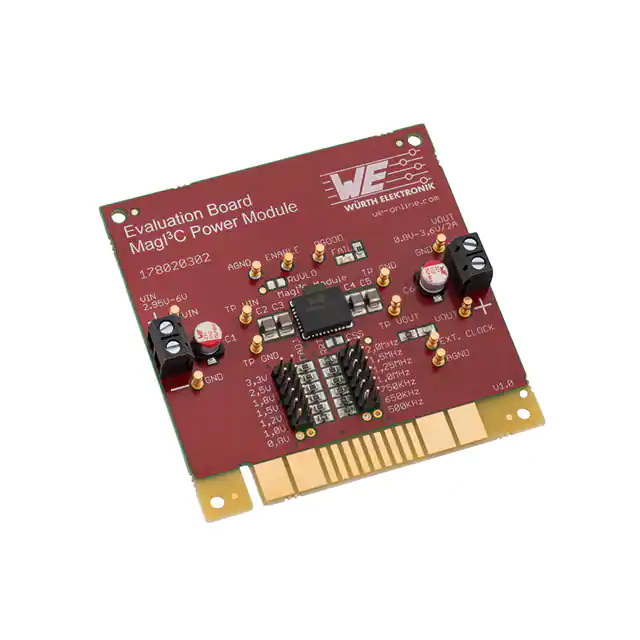

178020302EVAL BOARD FOR WPMDB1200362Q |
4,386 | 86.08 |
|
Datasheet |
MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 7.2 W | 0.8V ~ 3.6V | 2A | 2.95V ~ 6V | Buck | - | Board(s) | WPMDB1200362Q |
|
178040302EVAL BOARD FOR WPMDB1400362Q |
4,070 | 86.08 |
|
Datasheet |
MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 14.4 W | 0.8V ~ 3.6V | 4A | 2.95V ~ 6V | Buck | - | Board(s) | WPMDB1400362Q |
.jpg)
|
ISL8202MEVAL1ZEVAL BOARD FOR ISL8202M |
4,707 | 89.28 |
|
Datasheet |
- | Bulk | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.6V ~ 5.5V | Buck | 1.5MHz | Board(s) | ISL8202M |
|
ISL8205MEVAL1ZEVAL BOARD FOR ISL8205M |
2,738 | 89.28 |
|
Datasheet |
- | Bulk | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 5A | 2.6V ~ 5.5V | Buck | 1.6MHz | Board(s) | ISL8205M |
|
|
MAX15026CEVKIT+EVAL BOARD FOR MAX15026C |
2,192 | 102.47 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 10A | 5V ~ 16V | Buck | 600kHz | Board(s) | MAX15026C |
|
DT100107MIC33M650 6A STEP DOWN MODULE EV |
1,751 | 78.53 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 9 Non-Isolated Outputs | - | 0.6V, 0.8V, 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V | 6A | 2.4V ~ 5.5V | Buck | 2MHz | Board(s) | - |
|

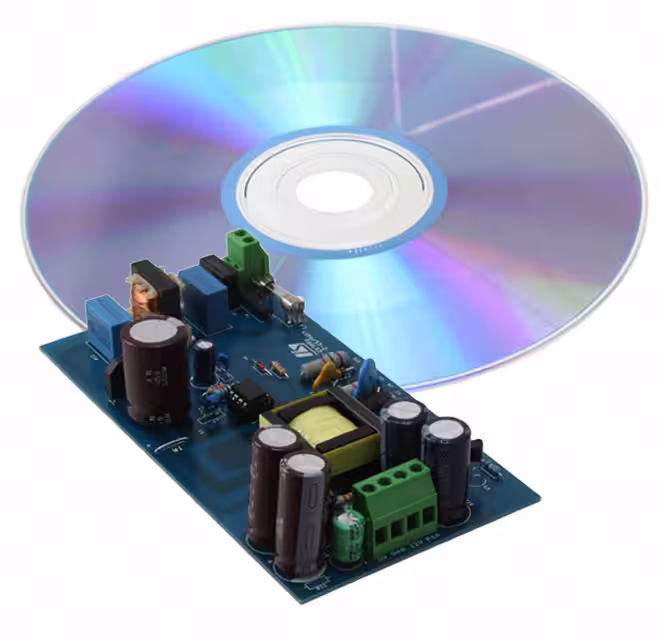

STEVAL-ISA013V1EVAL BOARD FOR VIPER53 |
1,181 | 0.00 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 24 W | 5V, 12V | 2.4A, 1A | 85 ~ 264 VAC | Flyback | 100kHz | Board(s) | VIPer53 |
|

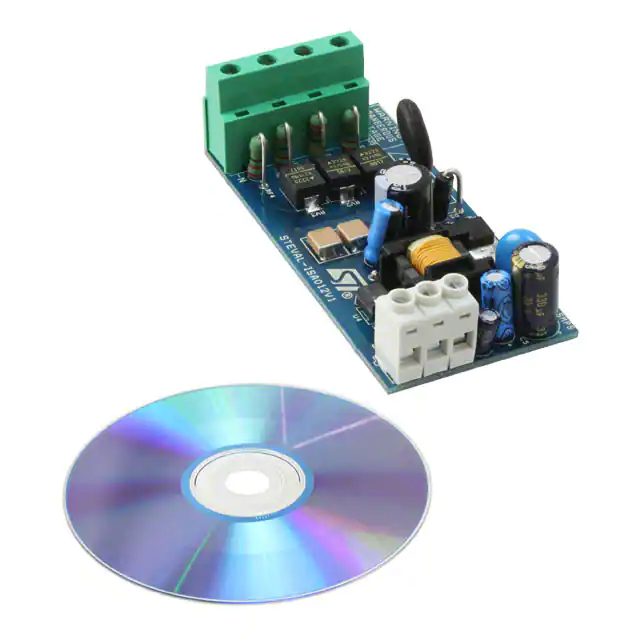

STEVAL-ISA012V1EVAL BOARD FOR VIPER12A |
3,653 | 0.00 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 550 mW | 3.3V, 5V | 100mA, 10mA | 90 ~ 450 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|
LM3481EVALEVAL BOARD FOR LM3481 |
1,723 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 3V ~ 11V | Boost | 300kHz | Board(s) | LM3481 |
|
|
LMR51606EVMEVAL BOARD FOR LMR51606 |
4,657 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4V ~ 65V | Buck | 1.1MHz | Board(s) | LMR51606 |
|
|
TPS51386EVMEVAL BOARD FOR TPS51386 |
1,116 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.1V | 8A | 6V ~ 24V | Buck | 600kHz | Board(s) | TPS51386 |
