DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

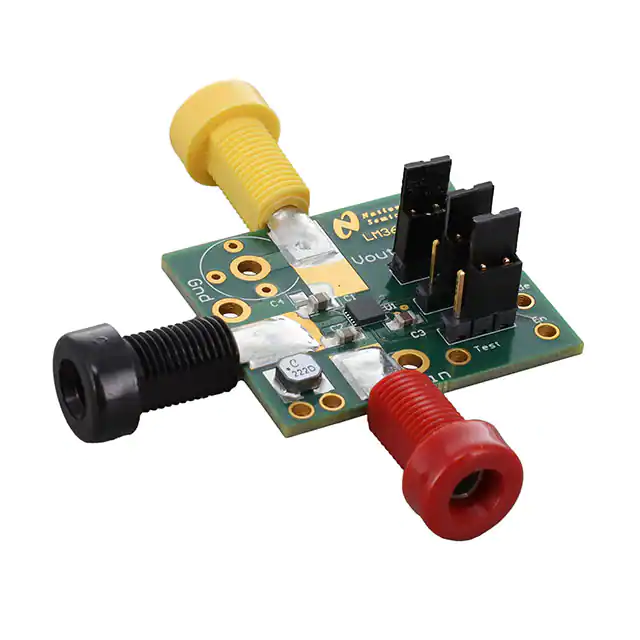

LM3668SD-3034EV/NOPBEVAL BOARD FOR LM3668 |
3,014 | 77.22 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3V or 3.4V | 1A | 2.5V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | LM3668 |
|

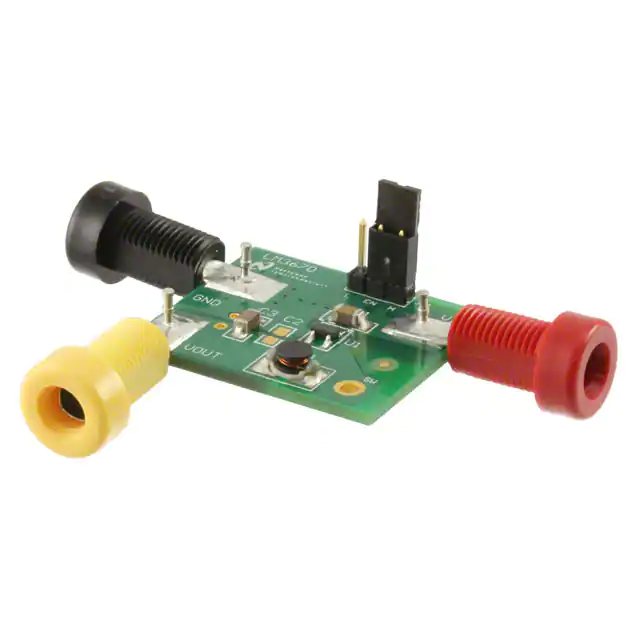

LM3670MF-1.2EVEVAL BOARD FOR LM3670 |
1,908 | 77.22 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 350mA | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LM3670 |
|

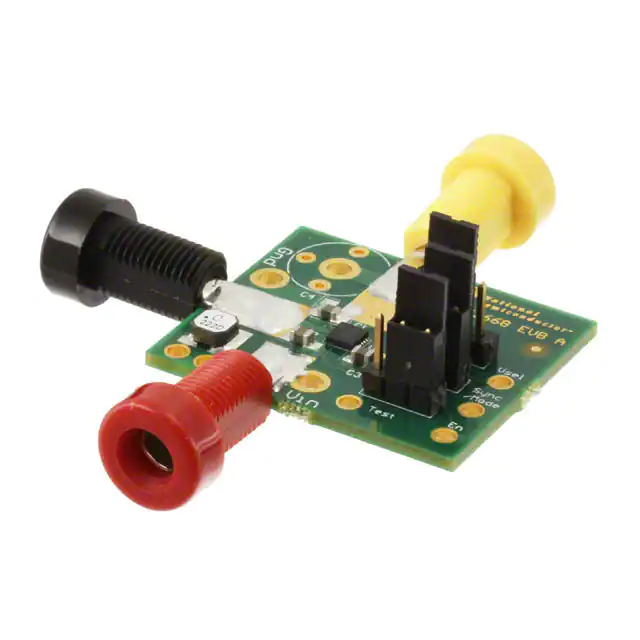

LM3668SD-2833EV/NOPBEVAL BOARD FOR LM3668 |
2,780 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.8V or 3.3V | 1A | 2.5V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | LM3668 |
|
ISL8013AEVAL2ZEVAL BOARD FOR ISL8013A |
3,176 | 82.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8013A |
|
|
ISL8014AEVAL2ZEVAL BOARD FOR ISL8014A |
2,541 | 82.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8014A |
|
LM2854-1000EVALEVAL BOARD FOR LM2854 |
2,176 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LM2854 |
|
|
MAX17543EVKITA#EVAL BOARD FOR MAX17543 |
2,259 | 76.52 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 5V ~ 42V | Buck | 450kHz | Board(s) | MAX17543 |
|
|
MAX17543EVKITB#EVAL BOARD FOR MAX17543 |
3,769 | 76.52 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 6.5V ~ 42V | Buck | 500kHz | Board(s) | MAX17543 |
|
|
MAX17545EVKITA#EVAL BOARD FOR MAX17545 |
3,067 | 76.52 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.7A | 4.5V ~ 42V | Buck | 450kHz | Board(s) | MAX17545 |
|

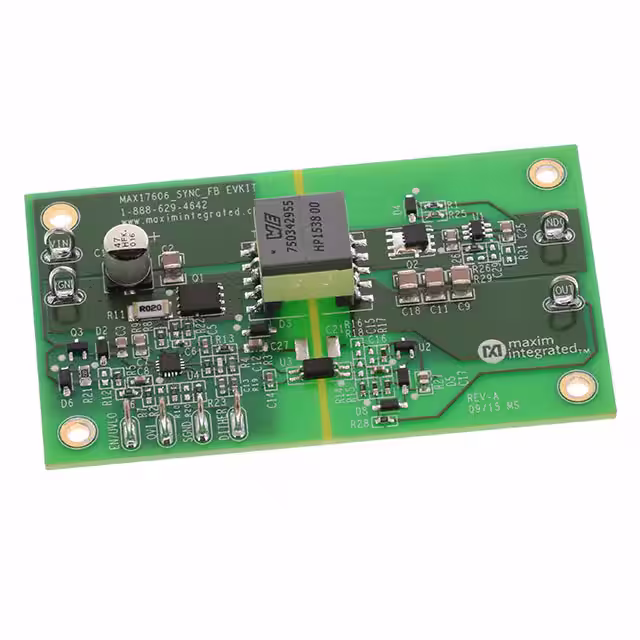

MAX17606SFBEVKIT#EVAL BOARD FOR MAX17606 |
3,028 | 76.52 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A | 18V ~ 36V | Flyback | 200kHz | Board(s) | MAX17606 |
|

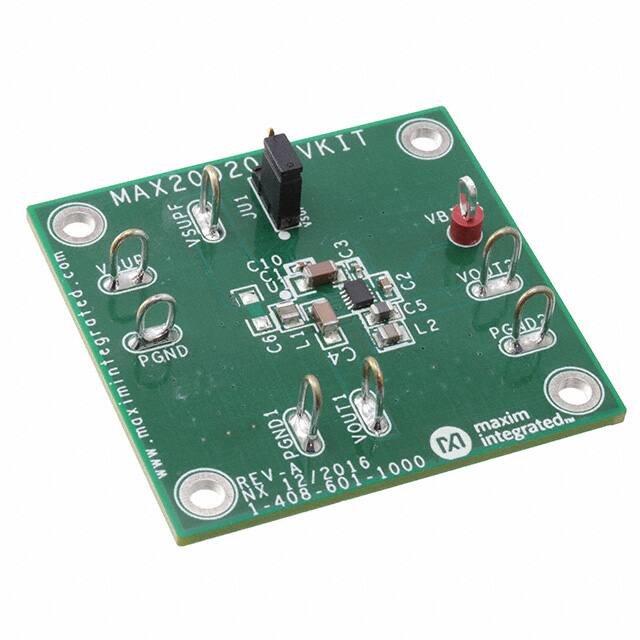

MAX20020EVKIT#EVAL BOARD FOR MAX20020 |
4,938 | 76.52 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 500mA, 500mA | 3.5V ~ 16V | Buck | 3.2MHz | Board(s) | MAX20020 |
|
MAX20019EVKIT#EVAL BOARD FOR MAX20019 |
2,609 | 76.52 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 500mA, 500mA | 3.5V ~ 16V | Buck | 3.2MHz | Board(s) | MAX20019 |
|
|
MAX1688EVKITEVAL BOARD FOR MAX1688 |
1,229 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.42A | 2.7V ~ 6V | Buck | 600kHz | Board(s) | MAX1688 |
|
|
LM3224MM-ADJEVEVAL BOARD FOR LM3224 |
1,320 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 650mA | 2.7V ~ 4.2V | Boost | 1.25MHz | Board(s) | LM3224 |
|
DC480A-BEVAL BOARD FOR LTC3405A1.5 |
1,912 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 300mA | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3405A-1.5 |
|
|
ISL8117DEMO4ZEVAL BOARD FOR ISL8117 |
4,600 | 82.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 6V ~ 60V | Buck | 300kHz | Board(s) | ISL8117 |
|
|
MAX17506EVKITA#EVAL BOARD FOR MAX17506 |
4,265 | 94.89 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 60V | Buck | 2.2MHz | Board(s) | MAX17506 |
|

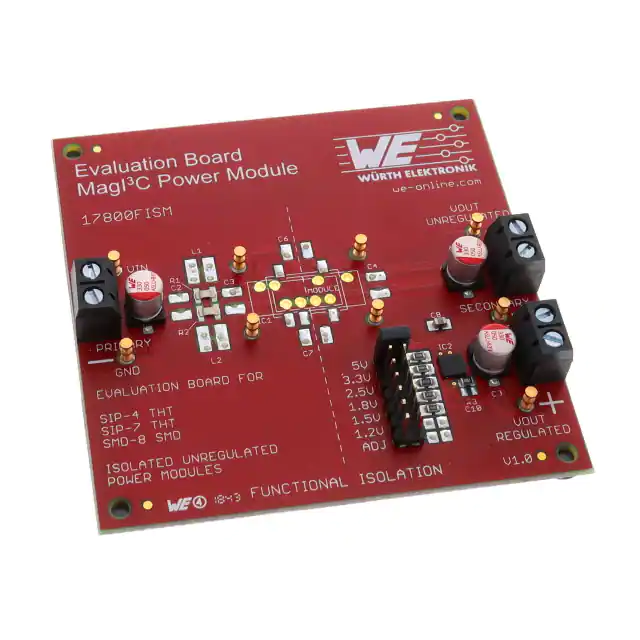

17800FISMEVAL BOARD FOR FISM |
2,526 | 84.77 |
|
Datasheet |
MagI3C | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Isolated Output | - | 5V ~ 15V | - | 3.3V ~ 12V | Boost, Buck | - | Board(s) | FISM |
|
|
ISL854102DEMO3ZEVAL BOARD FOR ISL854102 |
2,834 | 112.22 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 34V | 1.2A | 3V ~ 40V | Buck | 500kHz | Board(s) | ISL854102 |
|
|
LM2743EVALEVAL BOARD FOR LM2743 |
1,594 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3.5A | 8V ~ 14V | Buck | 1MHz | Board(s) | LM2743 |
