DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL8117A-LDEMO2ZEVAL BOARD FOR ISL8117A |
4,218 | 150.30 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 3A | 6.5V ~ 42V | Buck | 200kHz | Board(s) | ISL8117A |
|
|
ISL85033CRSHEVAL1ZEVAL BOARD FOR ISL85033 |
1,003 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 4.5V ~ 28V | Buck | 300kHz | Board(s) | ISL85033 |
|
|
LGA03C-EVAL-KITEVAL BOARD FOR LGA03C |
3,364 | 108.52 |
|
Datasheet |
LGAC | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.59V ~ 5.1V | 3A | 3V ~ 14V | Buck | 1MHz | Board(s) | LGA03C |
|
|
LGA06C-EVAL-KITEVAL BOARD FOR LGA06C |
4,811 | 108.52 |
|
Datasheet |
LGAC | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.59V ~ 5.1V | 6A | 3V ~ 14V | Buck | 1MHz | Board(s) | LGA06C |
|
|
LGA10C-EVAL-KITEVAL BOARD FOR LGA10C |
4,963 | 108.52 |
|
Datasheet |
LGAC | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.59V ~ 5.1V | 10A | 3V ~ 14V | Buck | 1MHz | Board(s) | LGA10C |
|
|
LGA20C-EVAL-KITEVAL BOARD FOR LGA20C |
1,381 | 108.52 |
|
Datasheet |
LGAC | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.59V ~ 5.1V | 20A | 4.5V ~ 14V | Buck | 800kHz | Board(s) | LGA20C |
|
|
MAX15022EVKIT+EVAL BOARD FOR MAX15022 |
3,019 | 106.44 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V, 3.3V | 4A, 2A, 500mA, 500mA | 4.5V ~ 5.5V | Buck | 2MHz | Board(s) | MAX15022 |
|

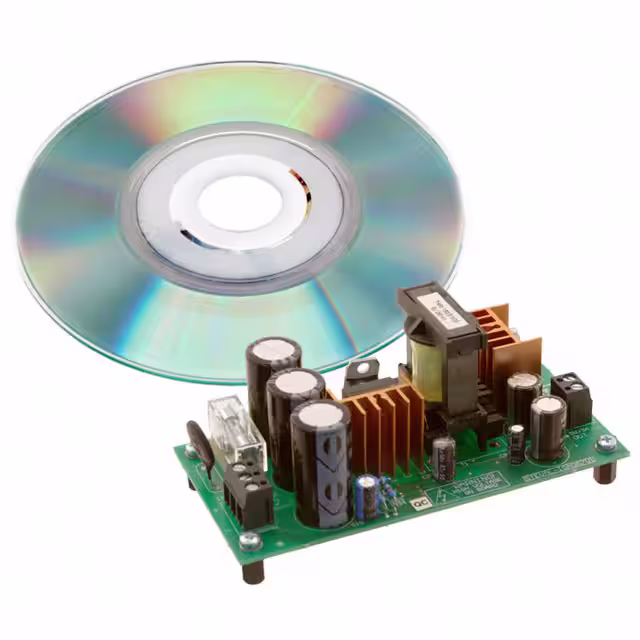

STEVAL-ISA057V1EVAL BOARD L6565 STC03DE220HV |
1,952 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 125V ~ 1250V | Buck | 30kHz | Board(s) | L6565, STC03DE220HV |
|
ARD00609EVAL BOARD FOR MCP19111 |
3,702 | 99.84 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 8V ~ 14V | Buck | 500kHz | Board(s) | MCP19111 |
|

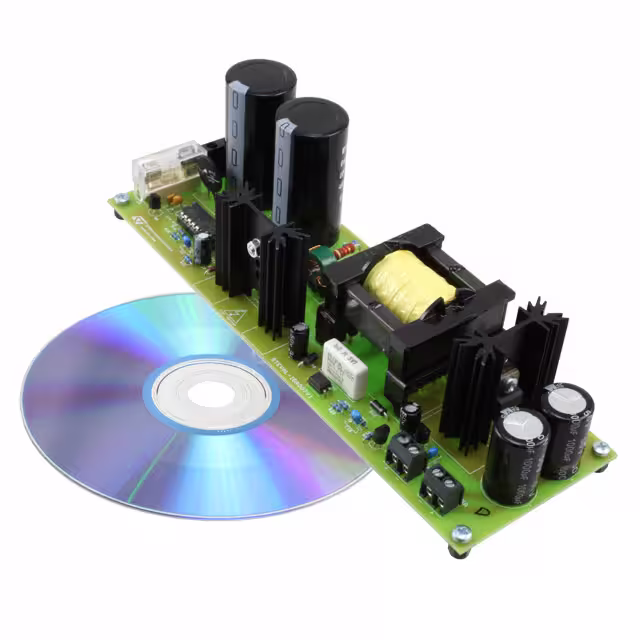

STEVAL-ISA007V1EVAL BOARD FOR L5991 STC08DE150 |
3,656 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 150 W | 5V, 24V | 6.25A, 75mA | - | Flyback | 90kHz | Board(s) | L5991, STC08DE150 |
|

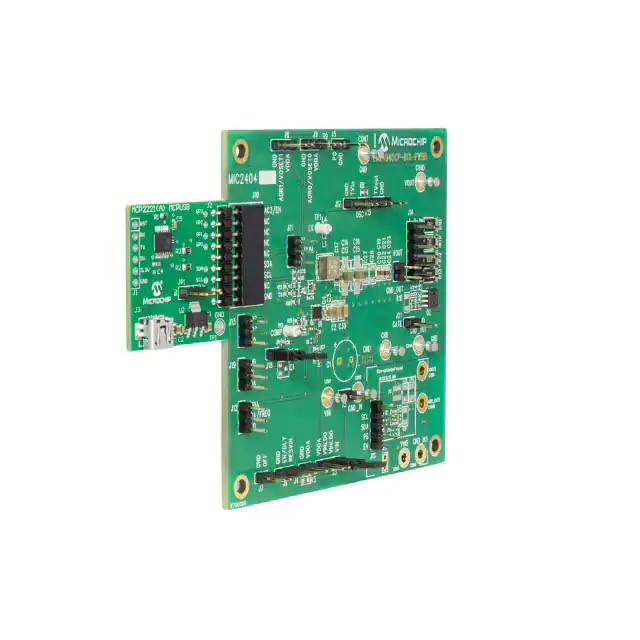

ADM00764EVAL BOARD FOR MIC2404X |
2,175 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.64V ~ 5.25V | 5A | 4.5V ~ 19V | Buck | - | Board(s), Cable(s) | MIC2404x |
|
|
MAX774EVKITEVAL BOARD MAX774 MAX775 MAX776 |
2,907 | 83.48 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 1A | 5V | Inverting | 300kHz | Board(s) | MAX774, MAX775, MAX776 |
|
|
MAX15035EVKIT+EVAL BOARD FOR MAX15035 |
3,009 | 109.28 |
|
- |
Quick-PWM™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 4.5V ~ 26V | Buck | - | Board(s) | MAX15035 |
|
|
ISL6522EVAL1EVAL BOARD FOR ISL6522 |
1,325 | 117.19 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | - | - | - | - | 10.8V ~ 13.2V | Buck | - | Board(s) | ISL6522 |
|
|
STR-FAN65008B-GEVBEVAL BOARD FOR FAN65008B |
4,598 | 130.68 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.57V ~ 5.25V | 10A | 4.5V ~ 65V | Buck | - | Board(s) | FAN65008B |
|
|
STR-FAN65005A-GEVBEVAL BOARD FOR FAN65005A |
2,015 | 130.68 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.57V ~ 5.25V | 8A | 4.5V ~ 65V | Buck | - | Board(s) | FAN65005A |
|
|
STR-FAN65004B-GEVBEVAL BOARD FOR FAN65004B |
3,280 | 130.68 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.57V ~ 5.25V | 6A | 4.5V ~ 65V | Buck | - | Board(s) | FAN65004B |
|
IS6607A EVALUATION MODULE KITEVAL BOARD FOR IS6607A |
1,359 | 125.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 20A | 3.5V ~ 16V | Buck | - | Board(s) | IS6607A |
|

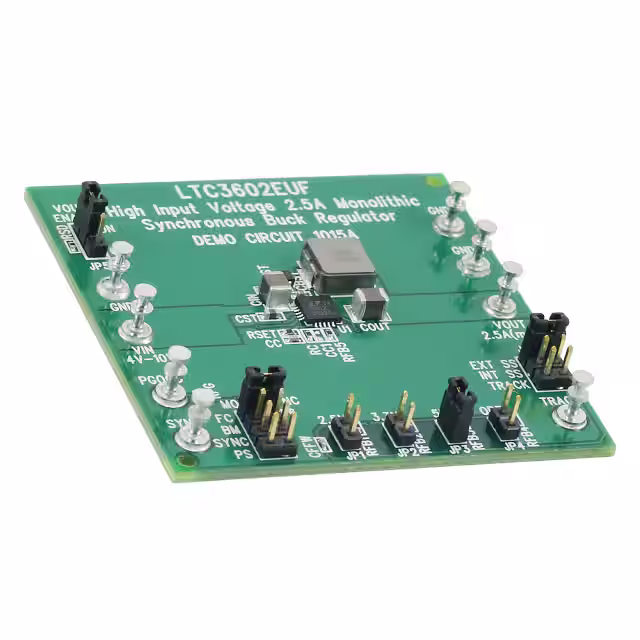

DC1015AEVAL BOARD FOR LTC3602 |
3,952 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V or 5V | 2.5A | 4.5V ~ 10V | Buck | 1MHz | Board(s) | LTC3602 |
|

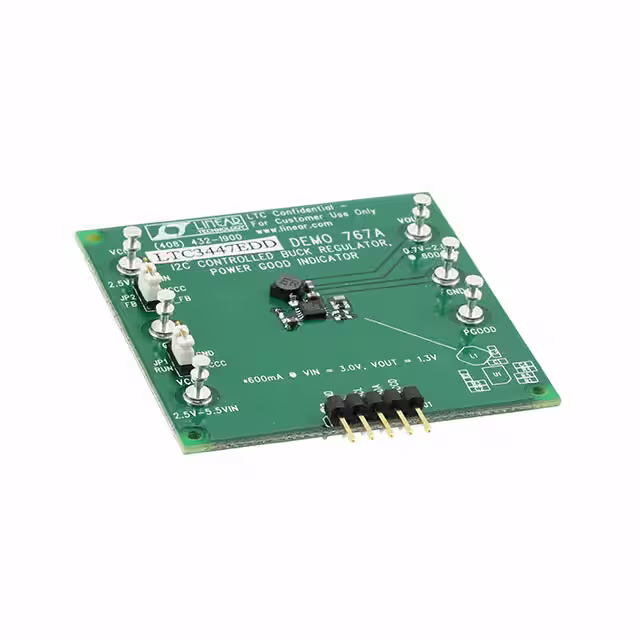

DC767AEVAL BOARD FOR LTC3447 |
2,686 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.35V | 600mA | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LTC3447 |
