DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1442AEVAL BOARD FOR LTC3603 |
4,574 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V or 5V | 2.5A | 4.5V ~ 15V | Buck | 1MHz | Board(s) | LTC3603 |
|
|
DC1489A-AEVAL BOARD FOR LTC3619 |
1,811 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 3.4V | 500mA, 400mA | 4.5V ~ 5.5V | Buck | - | Board(s) | LTC3619 |
|
|
DC1226AEVAL BOARD FOR LTC3529 |
2,337 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | - | 1.8V ~ 5.25V | Boost | 1.5MHz | Board(s) | LTC3529 |
|
|
DC1754AEVAL BOARD FOR LTC3104 |
1,249 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 300mA, 10mA | 2.5V ~ 15V | Buck | 1.2MHz | Board(s) | LTC3104 |
|
|
DC1277AEVAL BOARD FOR LTC3670 |
2,234 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 2.8V, 3.3V | 400mA, 150mA, 150mA | 2.5V ~ 5.5V | Buck | - | Board(s) | LTC3670 |
|
|
DC970A-AEVAL BOARD FOR LTC3541 |
2,425 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 500mA, 300mA | 3V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3541 |
|
|
DC970A-BEVAL BOARD FOR LTC35411 |
4,422 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 500mA, 300mA | 3V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3541-1 |
|
|
DC2004AEVAL BOARD FOR LTC3622EMSE |
1,836 | 117.70 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 1A, 1A | 2.7V ~ 17V | Buck | 1MHz | Board(s) | LTC3622EMSE |
|

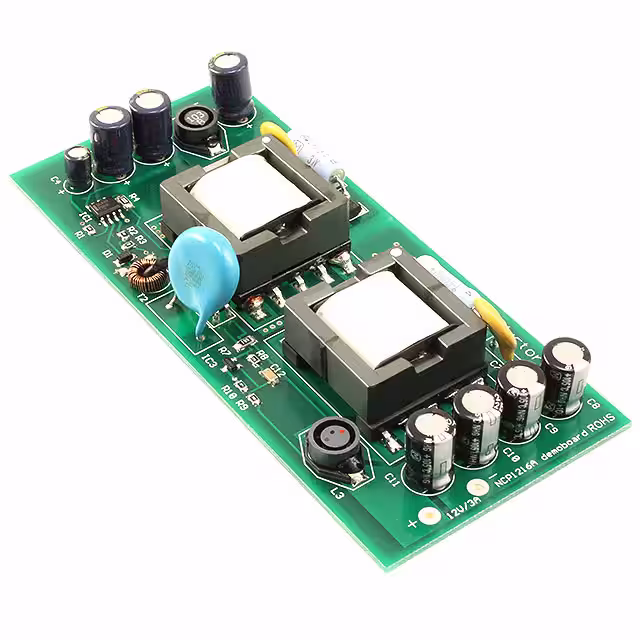

NCP1216AFORWGEVBEVAL BOARD FOR NCP1216A |
2,917 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 3A | 36V ~ 72V | Forward Converter | 100kHz | Board(s) | NCP1216A |
|
|
KIT34670EGEVBEEVAL BOARD FOR MC34670 |
4,074 | 118.79 |
|
Datasheet |
- | Box | Not For New Designs | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 5V | - | - | Buck | - | Board(s), Cable(s) | MC34670 |
|
|
ISL91128IIN-EVZEVAL BOARD FOR ISL91128IINZ |
2,622 | 157.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2.4A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91128IINZ |
|
IS66066 EVALUATION MODULE KITEVAL BOARD FOR IS66066 |
3,890 | 125.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 12A | 4.8V ~ 16V | Buck | - | Board(s) | IS66066 |
|
IS6605A EVALUATION MODULE KITEVAL BOARD FOR IS6605A |
2,581 | 125.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 6A | 4V ~ 16V | Buck | - | Board(s) | IS6605A |
|
ADM00804EVAL BOARD FOR MIC28514 |
4,238 | 105.46 |
|
Datasheet |
Hyper Speed Control® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 10V ~ 75V | Buck | 300kHz | Board(s) | MIC28514 |
|

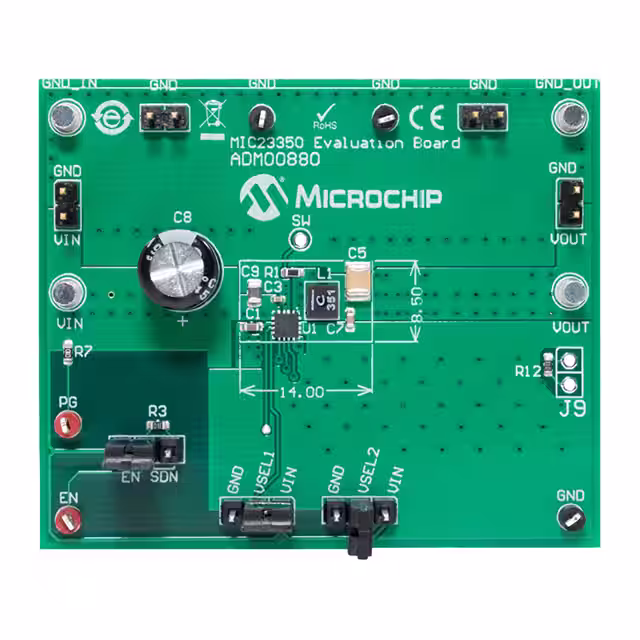

ADM00880EVAL BOARD FOR MIC23350 |
4,448 | 105.46 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.8V, 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 3A | 2.4V ~ 5.5V | Buck | - | Board(s) | MIC23350 |
|

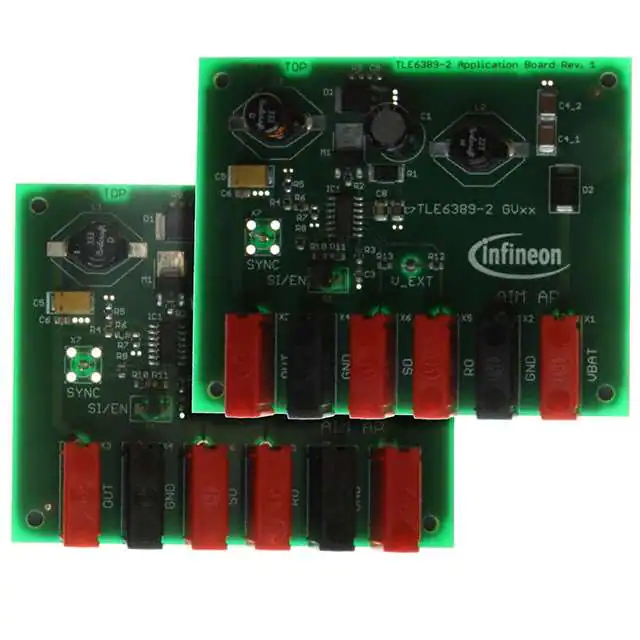

DEMOBOARD TLE 6389-2 GV50EVAL BOARD FOR TLE6389 |
4,524 | 122.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 5V ~ 60V | Buck | 360kHz | Board(s) | TLE6389 |
|
DEMOBOARD TLE 6389-2GVEVAL BOARD FOR TLE6389 |
4,277 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 7V ~ 15V | 2.5A | 5V ~ 60V | Buck | 360kHz | Board(s) | TLE6389 |
|

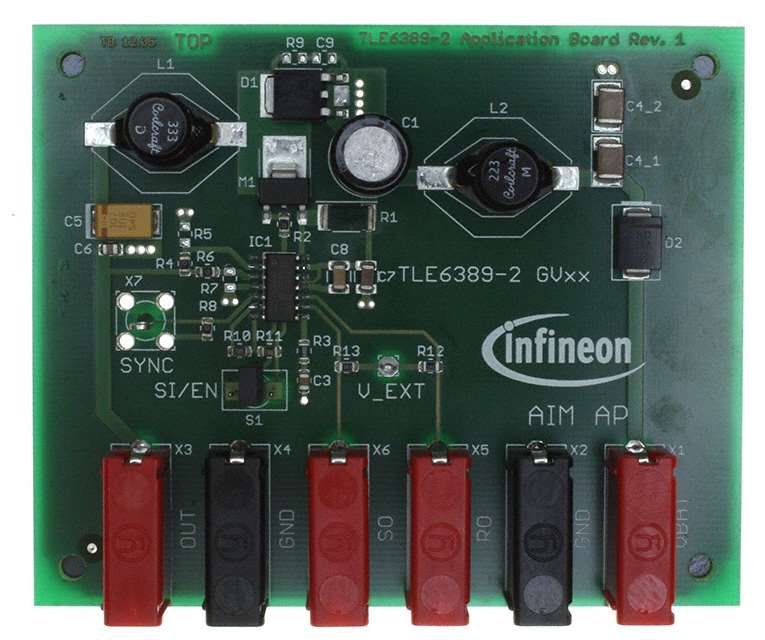

DEMOBOARD TLE 6389-3 GV50EVAL BOARD FOR TLE6389 |
2,815 | 122.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 5V ~ 60V | Buck | 360kHz | Board(s) | TLE6389 |
|
STEVAL-ISA019V3EVAL BOARD L6565 STC04IE170HP |
4,245 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 80 W | 24V | 3.3A | - | Flyback | 50kHz | Board(s) | L6565, STC04IE170HP |
|

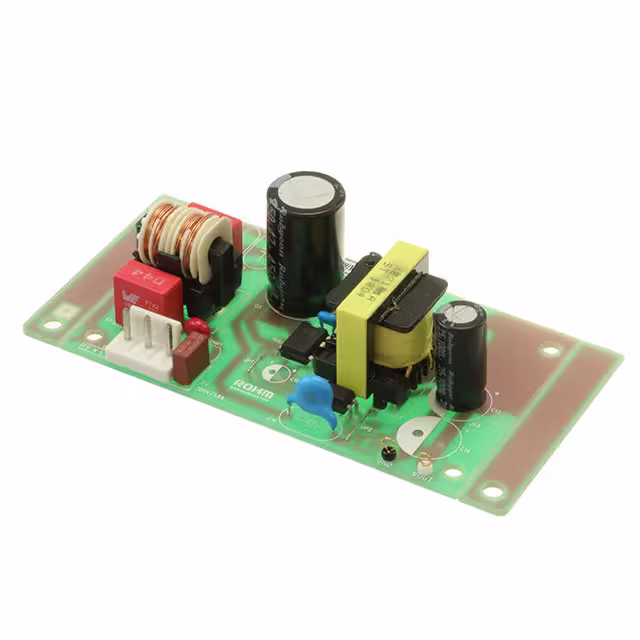

BM2P0161-EVK-003EVAL BOARD FOR BM2P0161 |
3,778 | 122.50 |
|
Datasheet |
- | Box | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 24 W | 12V | 2A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P0161 |
