DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC413AEVAL BOARD FOR LTC3404 |
1,158 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 200mA | 2.7V ~ 6V | Buck | - | Board(s) | LTC3404 |
|
|
DC092A-BEVAL BOARD FOR LTC15514.1 |
1,457 | 123.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | - | 4.5V ~ 6.5V | Inverting | 900kHz | Board(s) | LTC1551-4.1 |
|
|
DC323A-AEVAL BOARD FOR LTC17515 |
2,810 | 123.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 100mA | 2.7V ~ 5.5V | Boost | - | Board(s) | LTC1751-5 |
|
|
DC323A-BEVAL BOARD FOR LTC17513.3 |
4,678 | 123.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 80mA | 2V ~ 4.4V | Boost | - | Board(s) | LTC1751-3.3 |
|
|
DC323A-CEVAL BOARD FOR LTC1751 |
1,963 | 123.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | - | Boost | - | Board(s) | LTC1751 |
|

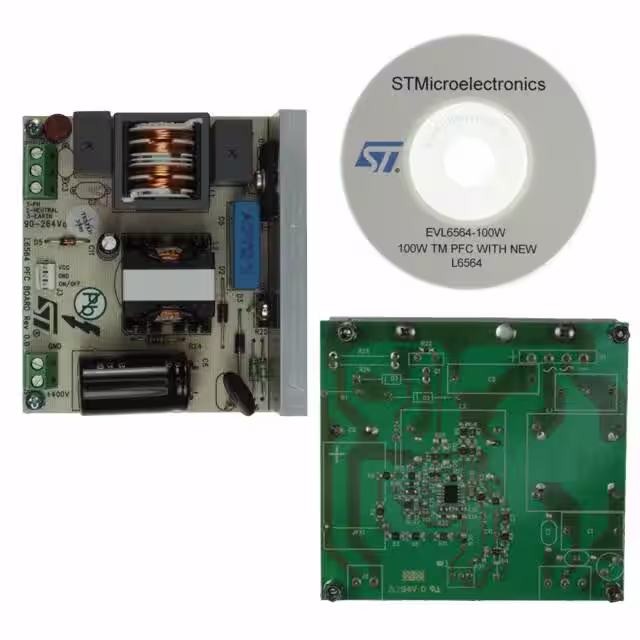

EVL6564-100WEVAL BOARD FOR L6564 |
2,779 | 144.12 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 100 W | 400V | - | 90 ~ 265 VAC | Boost | 40kHz | Board(s) | L6564 |
|
|
ISL8036CRSHEVAL1ZEVAL BOARD FOR ISL8036 |
3,008 | 123.44 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 6A | 2.85V ~ 6V | Buck | - | Board(s) | ISL8036 |
|
|
ISL8036DUALEVAL1ZEVAL BOARD FOR ISL8036 |
1,704 | 123.44 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 3A, 3A | 2.85V ~ 6V | Buck | - | Board(s) | ISL8036 |
|

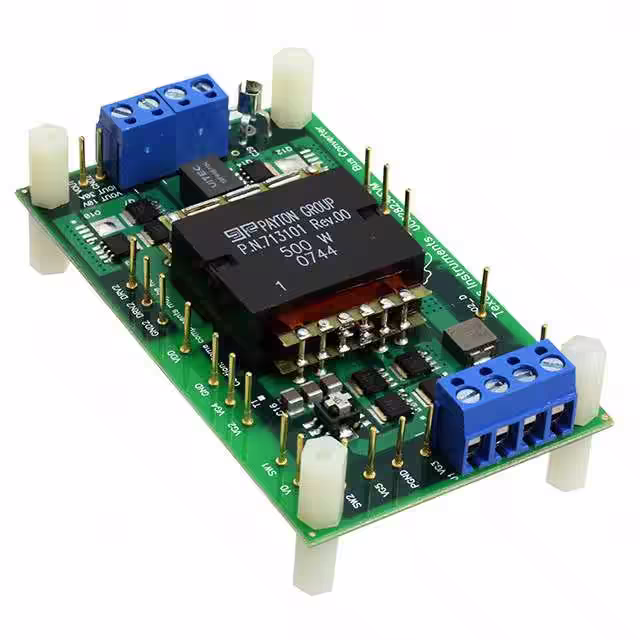

UCC28230EVMEVAL BOARD FOR UCC28230 |
2,393 | 115.83 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 9.5V | 30A | 43V ~ 53V | Flyback | - | Board(s) | UCC28230 |
|
UCC28600EVMEVAL BOARD FOR UCC28600 |
2,495 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 120 W | 19.4V | 6.2A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28600 |
|

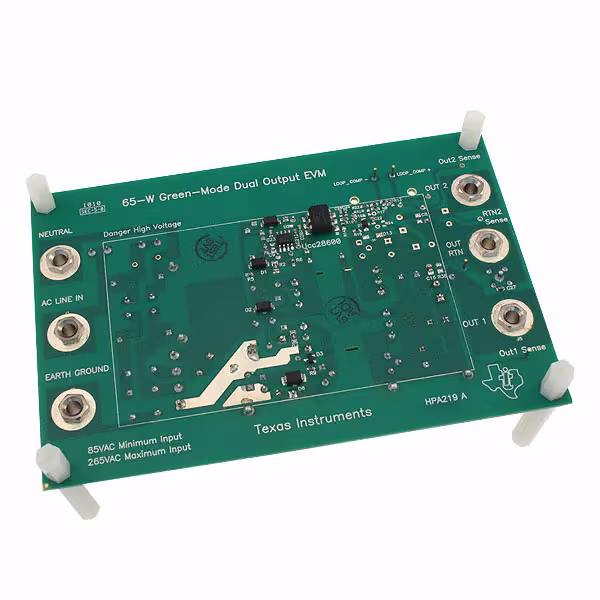

UCC28600EVM-65WEVAL BOARD FOR UCC28600 |
2,363 | 118.80 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 65 W | 18V | 3.6A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28600 |
|
AS3701B-WL-ES_EK_STEVAL BOARD FOR AS3701 |
3,332 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck | - | Board(s) | AS3701 |
|
|
MAX17500AEVKIT+EVAL BOARD FOR MAX17500A |
4,570 | 0.00 |
|
Datasheet |
- | - | Obsolete | DC/DC Converter | 2 Isolated Outputs | - | 5V, 15V | 1.5A, 100mA | ±36V ~ 72V | Flyback | 350kHz | Board(s) | MAX17500A |
|
|
MAX17502EVKIT+EVAL BOARD FOR MAX17502 |
3,853 | 0.00 |
|
- |
- | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | MAX17502 |
|
|
DC1749AEVAL BOARD FOR LT8610 |
4,559 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 3.8V ~ 42V | Buck | 700kHz | Board(s) | LT8610 |
|
DC230A-BEVAL BOARD FOR LT1533 |
2,233 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | 3.5 W | ±5V | 700mA | 10.8V ~ 14V | - | - | Board(s) | LT1533 |
|

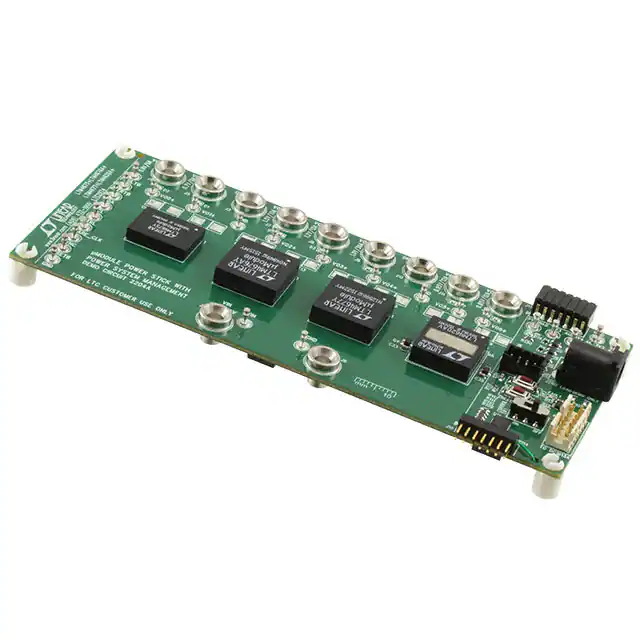

DC2204AEVAL BOARD FOR LTC2974 LTM4620A |
4,490 | 0.00 |
|
Datasheet |
µModule® | Tray | Obsolete | DC/DC Converter | 7 Non-Isolated Outputs | - | 0.7V, 0.85V, 0.9V, 0.95V, 1V, 1.2V, 1.5V | 36A, 13A, 13A, 13A, 13A, 9A, 9A | 4.5V ~ 15V | - | - | Board(s) | LTC2974, LTM4620A, LTM4675, LTM4676A, LTM4677 |
|

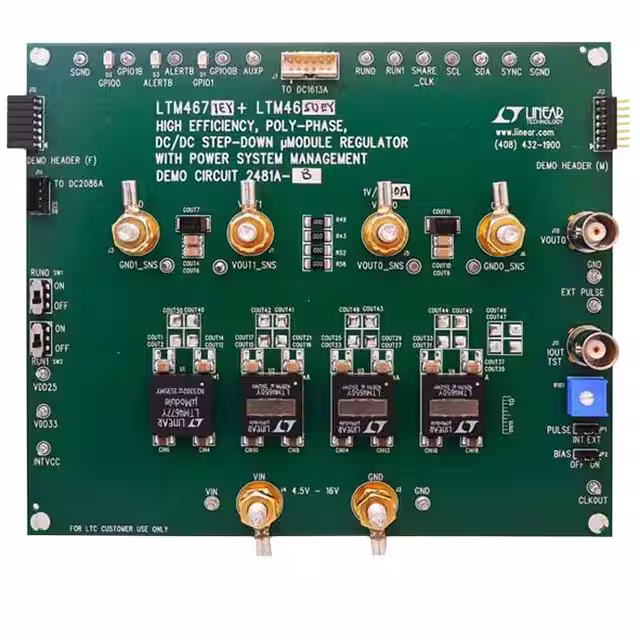

DC2481A-BEVAL BOARD FOR LTM4650 LTM4677 |
2,753 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 186A | 4.5V ~ 16V | Buck | 425kHz | Board(s) | LTM4650, LTM4677 |
|
|
ADPL20502EVKIT#EVAL BOARD FOR ADPL20502 |
3,297 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.3V ~ 5.5V | 1A | 0.6V ~ 5.5V | Boost | - | Board(s) | ADPL20502 |
|

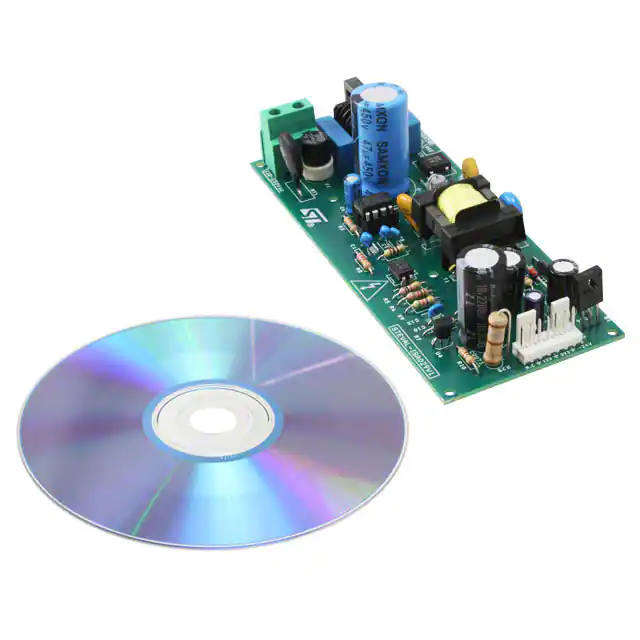

STEVAL-ISA029V1EVAL BOARD FOR VIPER53 |
3,223 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Primary Side | 3 Isolated Outputs | 13 W | 3.3V, 12V, -24V | 1A, 100mA, 40mA | 85 ~ 300 VAC | Flyback | 60kHz | Board(s) | VIPer53 |
