DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL_APXH003A0XEVALUATION BOARD |
1,462 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL_NSR/NSS006EVALUATION BOARD |
1,527 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL_PJT007EVAL BOARD FOR PJT007 |
2,250 | 0.00 |
|
Datasheet |
PicoDLynxII™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.51V ~ 5.5V | 7A | 4.5V ~ 14.4V | - | 500kHz | Board(s) | PJT007 |
|
|
EVAL_NAOS_SMT/SIPEVALUATION BOARD |
1,669 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL_APTH012A0X3-SRZEVAL BOARD FOR APTH012 |
4,596 | 0.00 |
|
- |
MicroTLynx™ | Bulk | Obsolete | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 3.63V | 12A | 2.4V ~ 5.5V | - | 600kHz | Board(s) | APTH012 |
|
|
EVAL_APXH020A0XEVALUATION BOARD |
4,975 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL_FKX003EVAL BOARD FOR FKX003 |
2,086 | 0.00 |
|
Datasheet |
FemtoDLynxII™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 3A | 4.5V ~ 14.4V | - | 600kHz | Board(s) | FKX003 |
|
|
EVAL_FKX006EVALUATION BOARD |
2,506 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL MDT040A0X3-SRPHZEVAL BOARD FOR MDT040 |
1,274 | 0.00 |
|
Datasheet |
MegaDLynx™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.45V ~ 2V | 40A | 4.5V ~ 14.4V | - | 400kHz | Board(s) | MDT040 |
|
|
EVAL_UDXS0606A0X3-SRZEVAL BOARD FOR UDXS0606 |
1,853 | 0.00 |
|
Datasheet |
MicroDLynx™ | Bulk | Active | DC/DC Converter | 2 Non-Isolated Outputs | - | 0.51V ~ 5.5V | 6A, 6A | 4.5V ~ 14.4V | - | 500kHz | Board(s) | UDXS0606 |
|
|
EVAL APTS050A0X3-SRPHZ PARALLELINGEVAL BOARD FOR APTS050 |
4,443 | 0.00 |
|
- |
PicoDLynx™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 2V | 50A | 4.5V ~ 14V | - | - | Board(s) | APTS050 |
|
|
ISL6440EVAL1ZEVAL BOARD FOR ISL6440 |
3,656 | 125.00 |
|
Datasheet |
- | Box | Last Time Buy | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 2A, 2A | 12V | Buck | 300kHz | Board(s) | ISL6440 |
|
|
UCC33420EVM-080EVAL BOARD FOR UCC33420Q1 |
3,951 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC Converter | 1 Isolated Output | 1.5 W | 5V | - | 4.5V ~ 5.5V | - | 76MHz | Board(s) | UCC33420-Q1 |
|

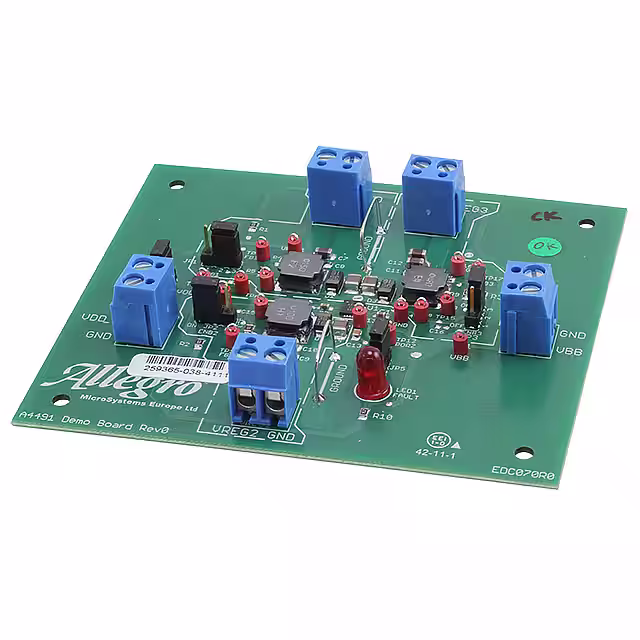

APEK4491EES-01-T-DKEVAL BOARD FOR A4491 |
4,000 | 125.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | - | - | 4.5V ~ 23V | Buck | 550kHz | Board(s) | A4491 |
|

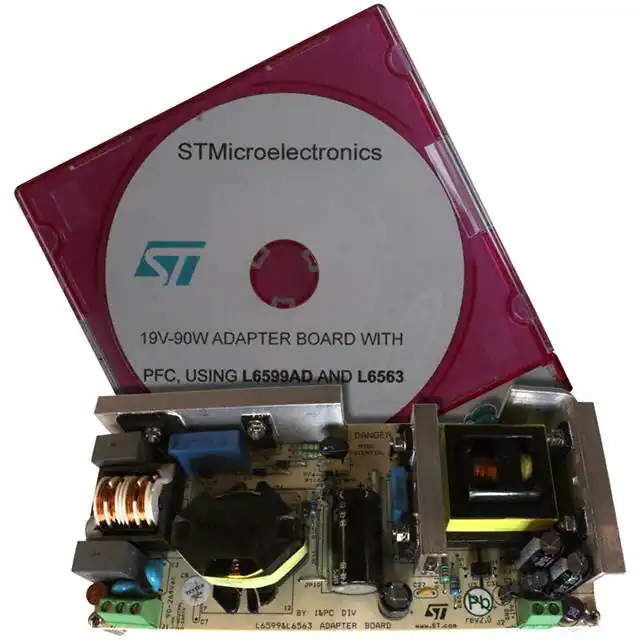

EVAL6599-90WEVAL BOARD FOR L6563 L6599 |
3,787 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 90 W | 19V | 4.7A | 90 ~ 264 VAC | Resonant | 90kHz | Board(s) | L6563, L6599 |
|

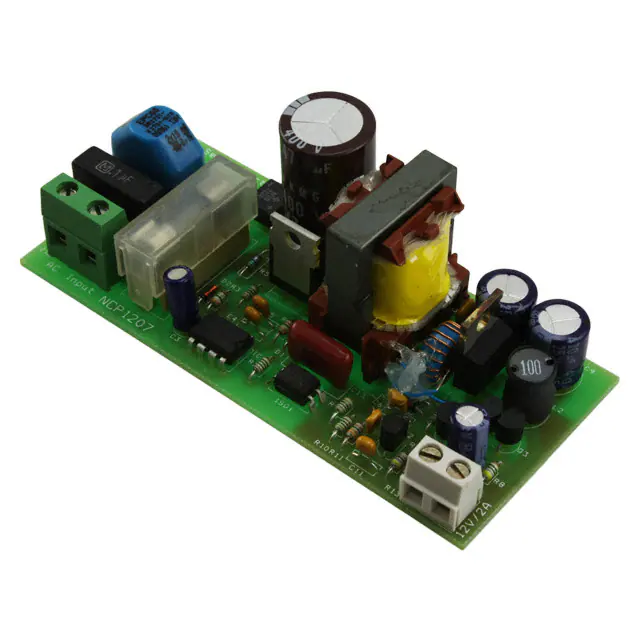

NCP1207AADAPGEVBEVAL BOARD FOR NCP1207 |
2,083 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 24 W | 12V | 2A | 180 ~ 240 VAC | Flyback | 70kHz | Board(s) | NCP1207 |
|

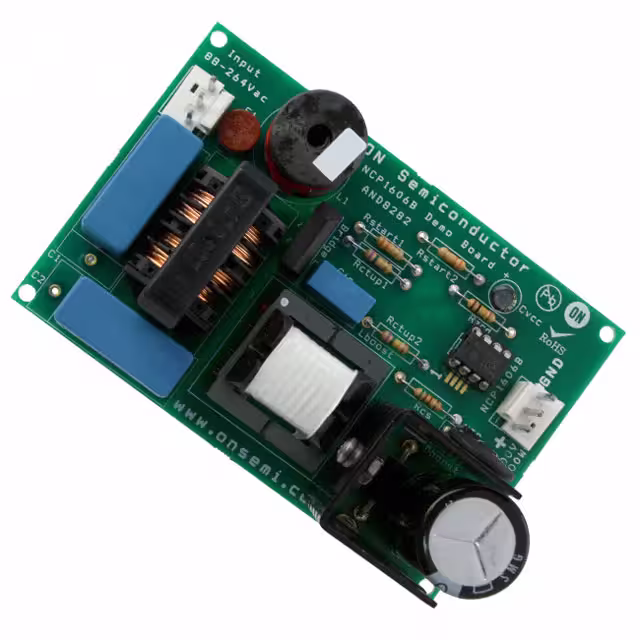

NCP1606BOOSTGEVBEVAL BOARD FOR NCP1606 |
2,052 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 100 W | 400V | 250mA | 88 ~ 264 VAC | Boost | 250kHz | Board(s) | NCP1606 |
|

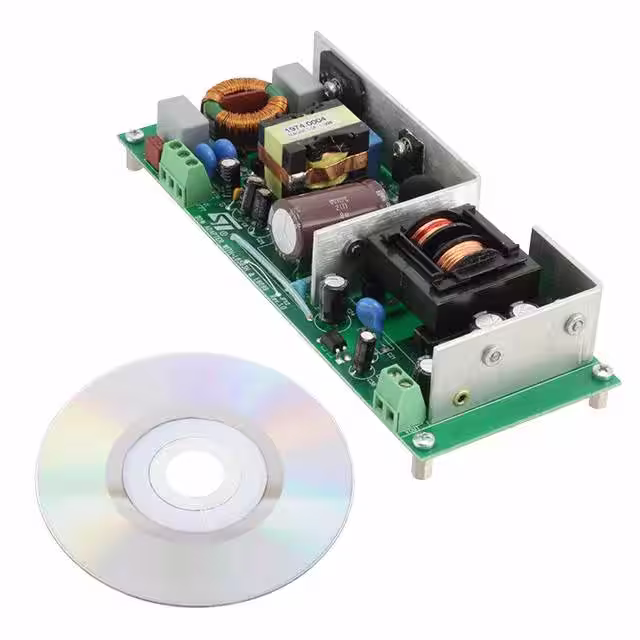

EVL6699-90WADPEVAL BOARD FOR L6563H L6699 |
3,015 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 90 W | 19V | 4.7A | 90 ~ 264 VAC | Resonant | - | Board(s) | L6563H, L6699 |
|
|
EVQ8875A-VE-00AEVAL BOARD FOR MPQ8875A |
3,920 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 11.5V | 5A | 4.5V ~ 36V | Buck-Boost | - | Board(s) | MPQ8875A |
|

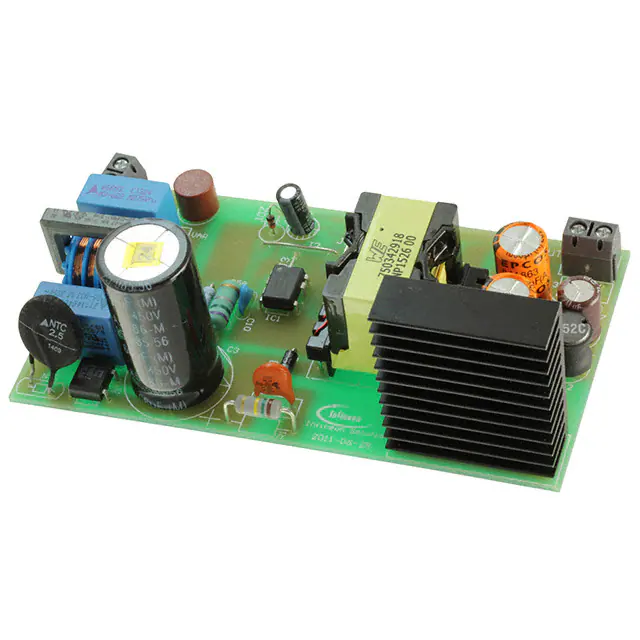

EVALQRCICE2QR0680ZTOBO1EVAL BOARD FOR ICE2QR0680Z |
3,822 | 137.50 |
|
Datasheet |
CoolMOS™, CoolSET™-Q1 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 40 W | 20V | - | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE2QR0680Z |
