DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1477BEVAL BOARD FOR LTM4609 |
2,368 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 30V | 10A | 10V ~ 36V | Buck-Boost | 300kHz | Board(s) | LTM4609 |
|

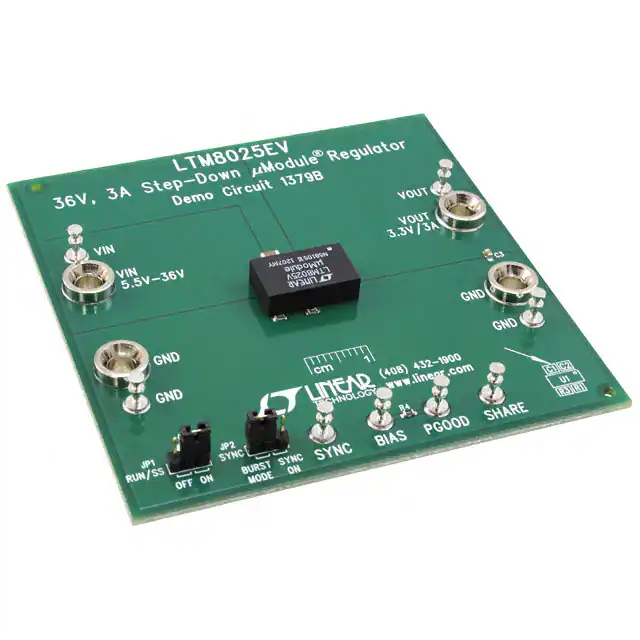

DC1379BEVAL BOARD FOR LTM8025 |
2,394 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5.5V ~ 36V | Buck | 250kHz ~ 2MHz | Board(s) | LTM8025 |
|

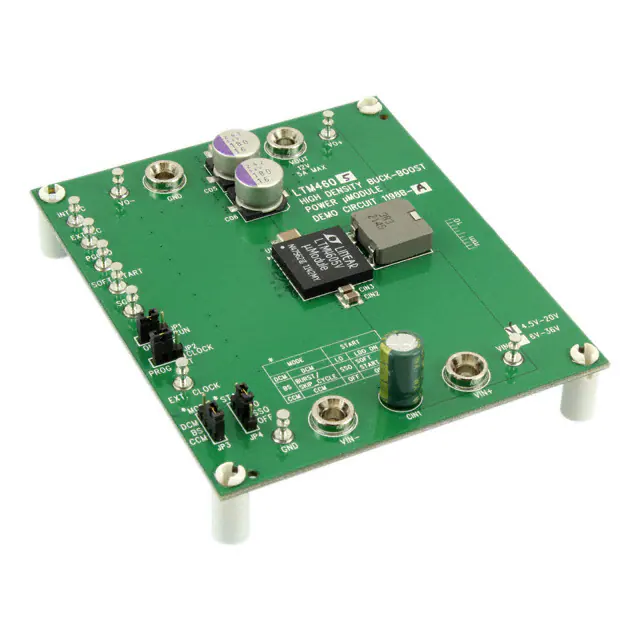

DC1198B-AEVAL BOARD FOR LTM4605 |
3,868 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 4.5V ~ 20V | Buck-Boost | 300kHz | Board(s) | LTM4605 |
|
DC1198B-BEVAL BOARD FOR LTM4607 |
3,157 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 6V ~ 36V | Buck-Boost | 300kHz | Board(s) | LTM4607 |
|

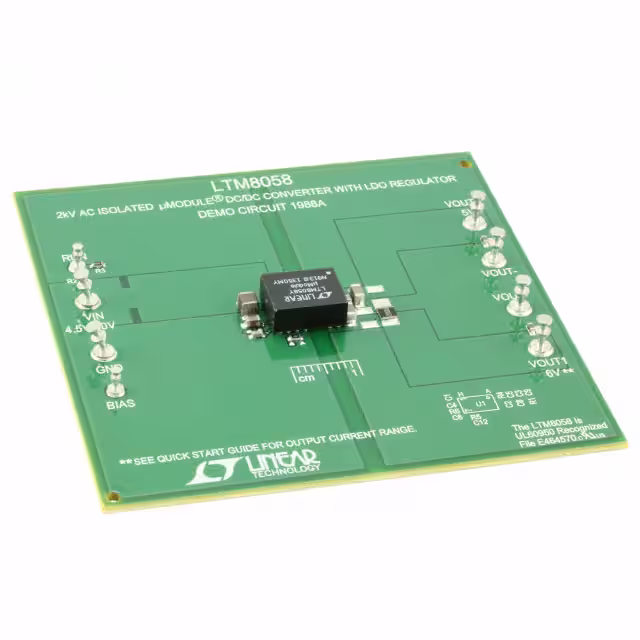

DC1988AEVAL BOARD FOR LTM8058 |
3,182 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC Converter | 2 Isolated Outputs | - | 5V, 6V | 100mA, 100mA | 4.5V ~ 30V | Flyback | - | Board(s) | LTM8058 |
|
DC2416AEVAL BOARD FOR LTM8003 |
1,440 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 6V ~ 40V | Buck | 2MHz | Board(s) | LTM8003 |
|
DC2527A-BEVAL BOARD FOR LTM4646 |
4,655 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 10A, 10A | 4.5V ~ 20V | Buck | 350kHz | Board(s) | LTM4646 |
|
DC2659AEVAL BOARD FOR LTM4671 |
1,956 | 76.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V, 1.2V, 2.5V, 3.3V | 12A, 12A, 5A, 5A | 3.6V ~ 20V | Buck | 600kHz, 1MHz | Board(s) | LTM4671 |
|
DC1663AEVAL BOARD FOR LTM4628 |
2,309 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 8A, 8A | 4.5V ~ 26.5V | Buck | 400kHz | Board(s) | LTM4628 |
|

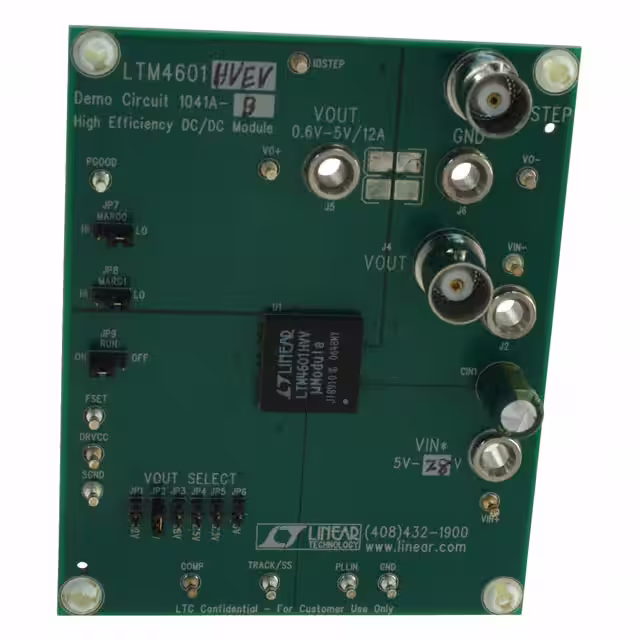

DC1041A-BEVAL BOARD FOR LTM4601HV |
2,858 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 12A | 4.5V ~ 28V | Buck | 800kHz | Board(s) | LTM4601HV |
|

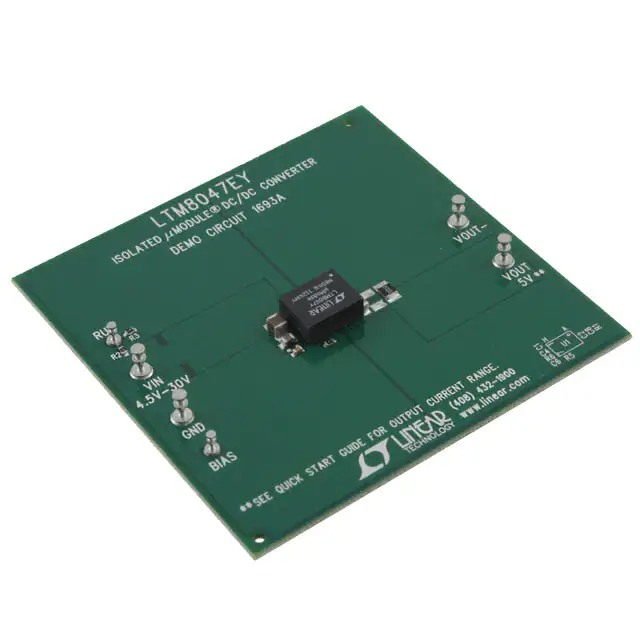

DC1693AEVAL BOARD FOR LTM8047 |
2,364 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 350mA | 4.5V ~ 30V | Buck | - | Board(s) | LTM8047 |
|
DC1696AEVAL BOARD FOR LTM8026 |
2,245 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 36V | Buck | 550kHz | Board(s) | LTM8026 |
|
DC1724AEVAL BOARD FOR LTM8029 |
3,135 | 76.50 |
|
Datasheet |
µModule® | Bag | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 5.6V ~ 36V | Buck | 600kHz | Board(s) | LTM8029 |
|

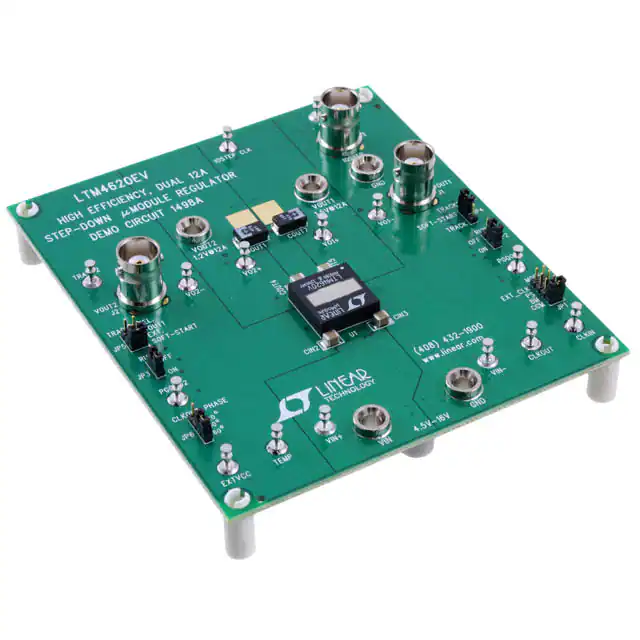

DC1498AEVAL BOARD FOR LTM4620 |
3,940 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 13A, 13A | 4.5V ~ 16V | Buck | 600kHz | Board(s) | LTM4620 |
|

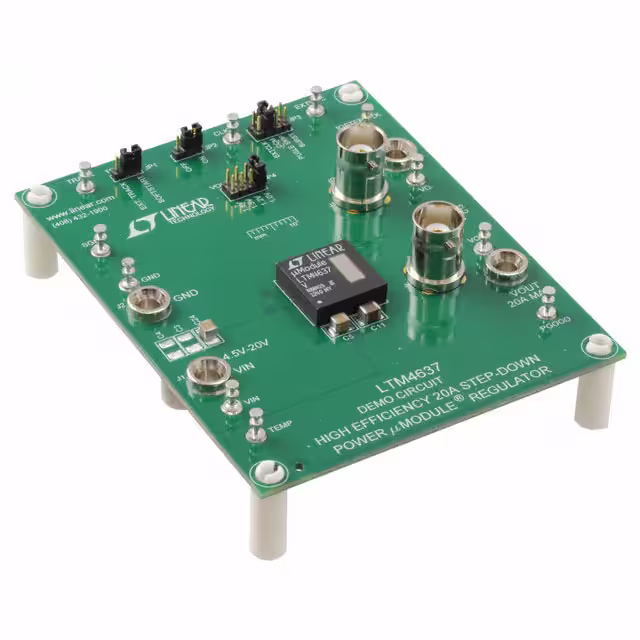

DC1872AEVAL BOARD FOR LTM4637 |
1,296 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V or 1.8V | 20A | 4.5V ~ 20V | Buck | 520kHz | Board(s) | LTM4637 |
|

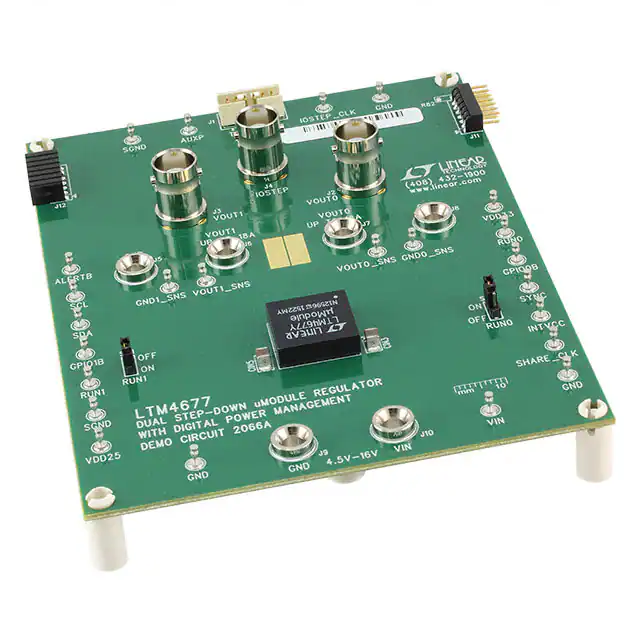

DC2066AEVAL BOARD FOR LTM4677 |
1,658 | 76.50 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 18A, 18A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4677 |
|

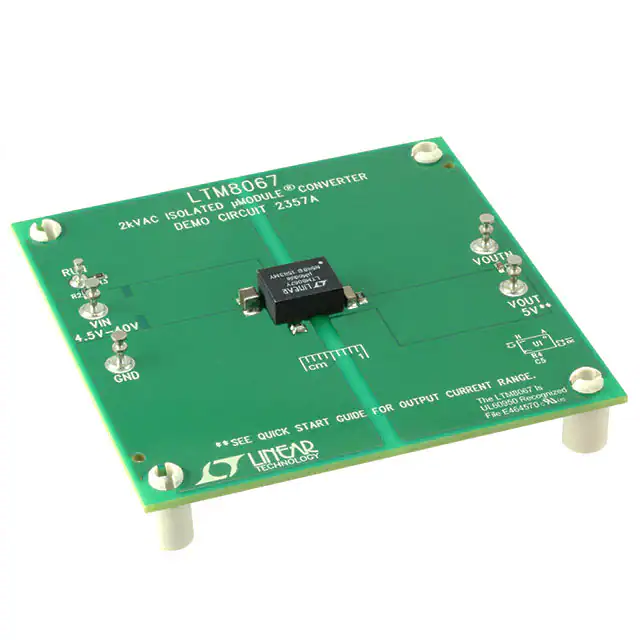

DC2357AEVAL BOARD FOR LTM8067 |
3,405 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 500mA | 4.5V ~ 40V | Flyback | - | Board(s) | LTM8067 |
|

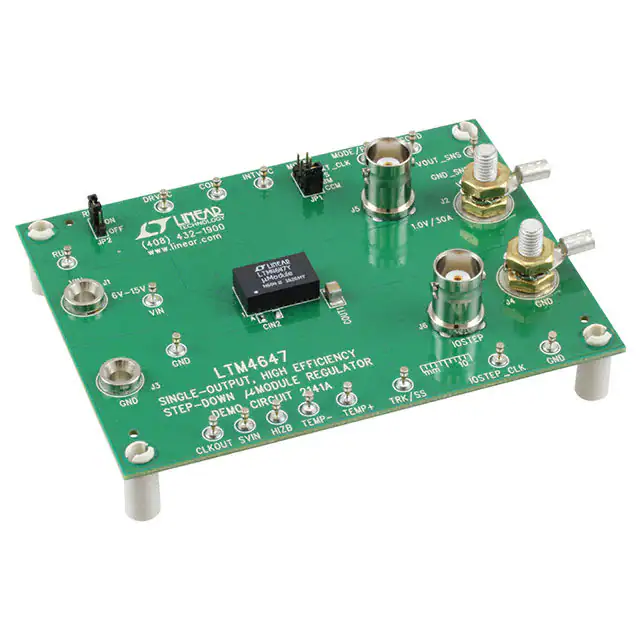

DC2141AEVAL BOARD FOR LTM4647 |
3,050 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 30A | 6V ~ 15V | Buck | 600kHz | Board(s) | LTM4647 |
|

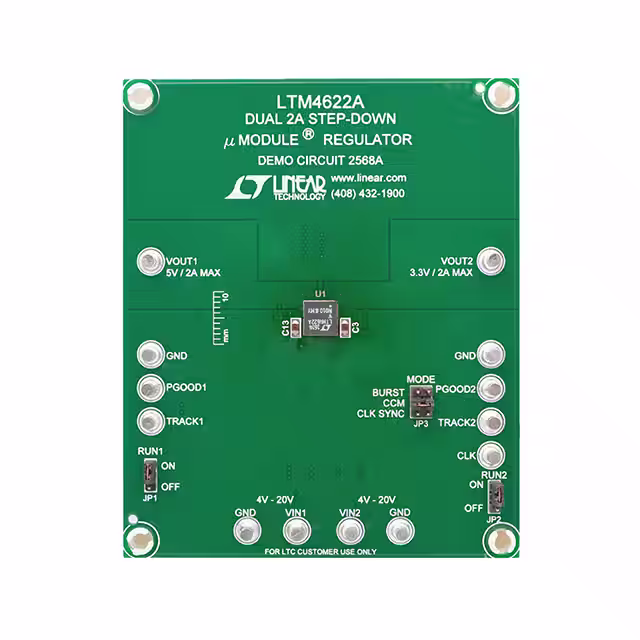

DC2568AEVAL BOARD FOR LTM4622A |
4,038 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 2A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4622A |
|

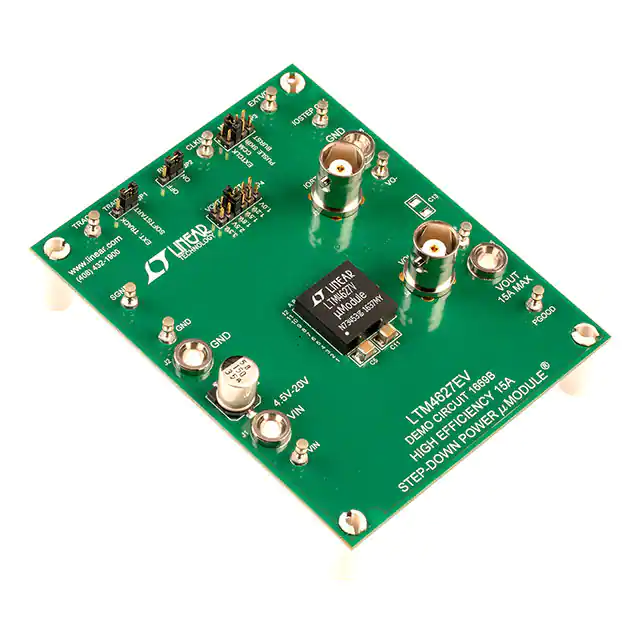

DC1669BEVAL BOARD FOR LTM4627EV |
2,040 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5V | 15A | 4.5V ~ 20V | Buck | 500kHz | Board(s) | LTM4627EV |
