DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2786AEVAL BOARD FOR LTC7800 |
2,544 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 4V ~ 60V | Buck | - | Board(s) | LTC7800 |
|

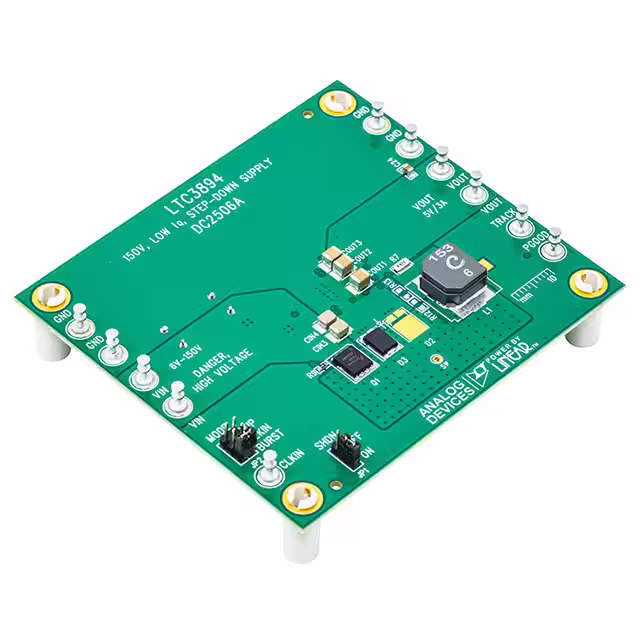

DC2506AEVAL BOARD FOR LTC3894 |
1,629 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 6V ~ 150V | Buck | 150kHz | Board(s) | LTC3894 |
|

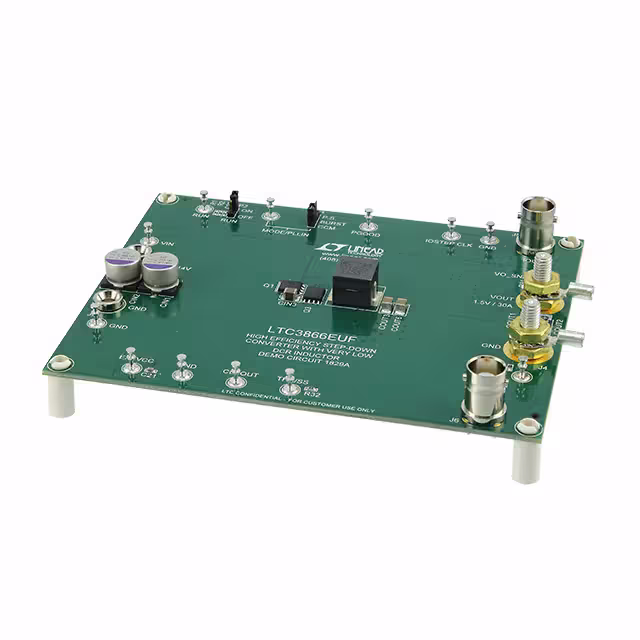

DC1829AEVAL BOARD FOR LTC3866 |
2,973 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 30A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3866 |
|
DC2297A-BEVAL BOARD FOR LT8570 LT85701 |
3,220 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V, 12V | 60mA, 125mA | 5V ~ 10V | Boost | 1.5MHz | Board(s) | LT8570, LT8570-1 |
|

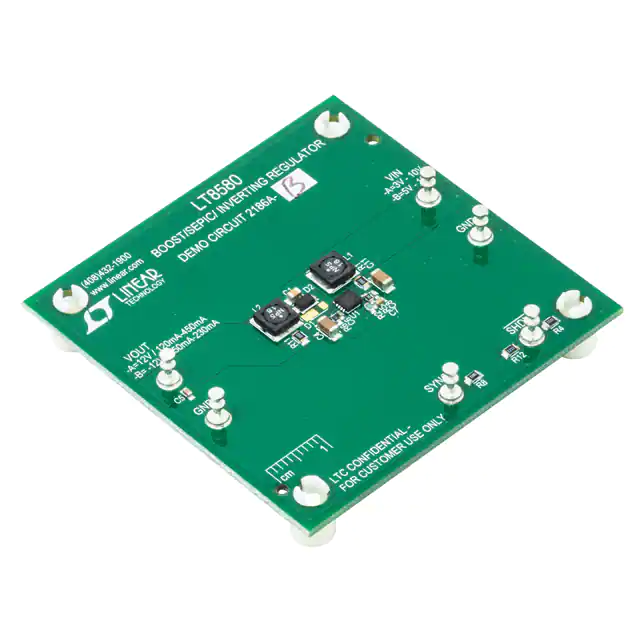

DC2186A-AEVAL BOARD FOR LT8580 |
2,181 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 120mA | 3V ~ 10V | Boost | 1.5MHz | Board(s) | LT8580 |
|

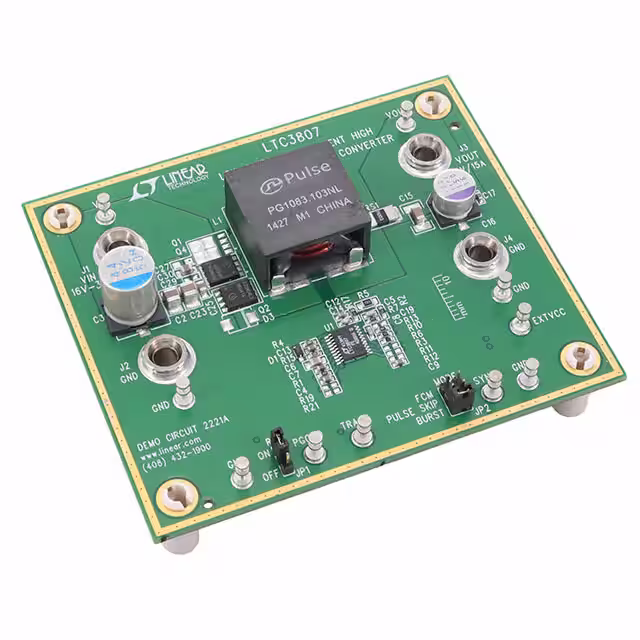

DC2221AEVAL BOARD FOR LTC3807EFE |
2,608 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 15A | 16V ~ 38V | Buck | 120kHz | Board(s) | LTC3807EFE |
|

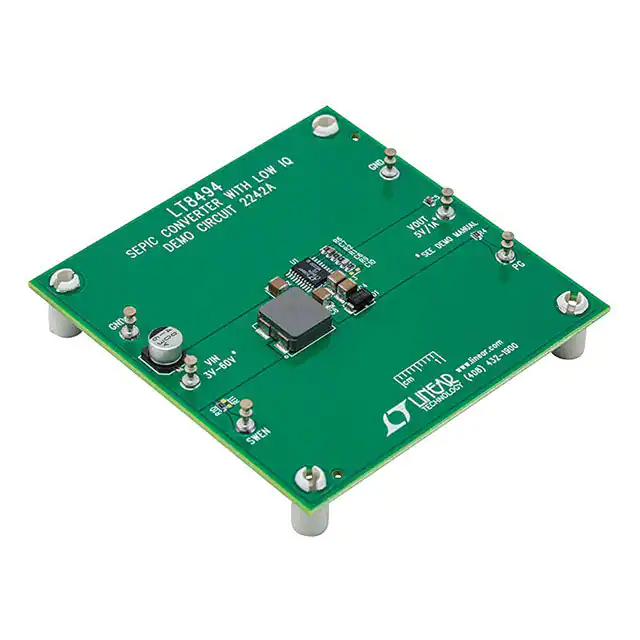

DC2242AEVAL BOARD FOR LT8494 |
4,125 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 3V ~ 60V | Boost | 450kHz | Board(s) | LT8494 |
|

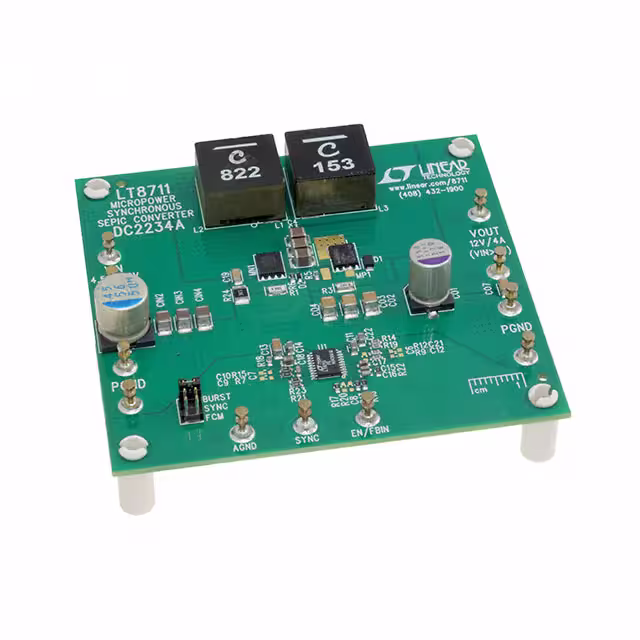

DC2234AEVAL BOARD FOR LT8711 |
4,820 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 4A | 4.5V ~ 40V | Boost, SEPIC | 200kHz | Board(s) | LT8711 |
|

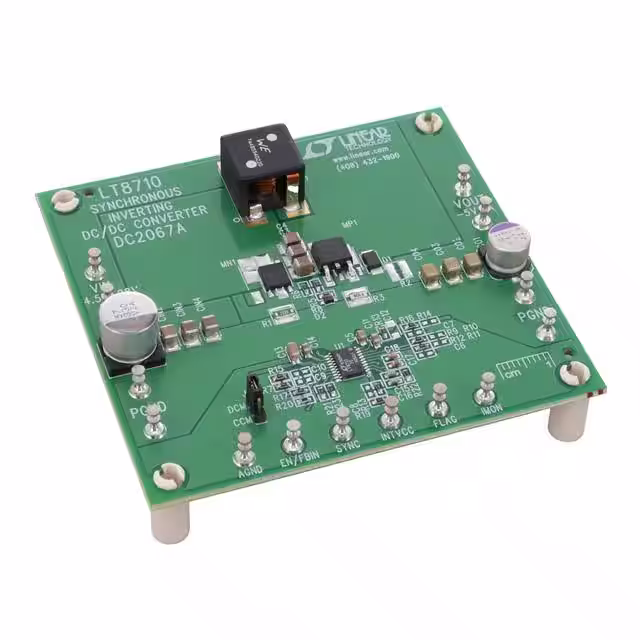

DC2067AEVAL BOARD FOR LT8710 |
4,245 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | -5V | 6A | 4.5V ~ 28V | Inverting | 300kHz | Board(s) | LT8710 |
|
EVAL-LT8357-AZEVAL BOARD FOR LT8357 |
2,212 | 160.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 2A, 1A | 4.5V ~ 20V | Boost | 200kHz | Board(s) | LT8357 |
|
|
EVAL-LT8333-AZEVAL BOARD FOR LT8333 |
1,682 | 160.50 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 12V | 1.25A, 1.1A, 1A | 3V ~ 26V | Boost, Inverting, SEPTIC | 2MHz | Board(s) | LT8333 |
|

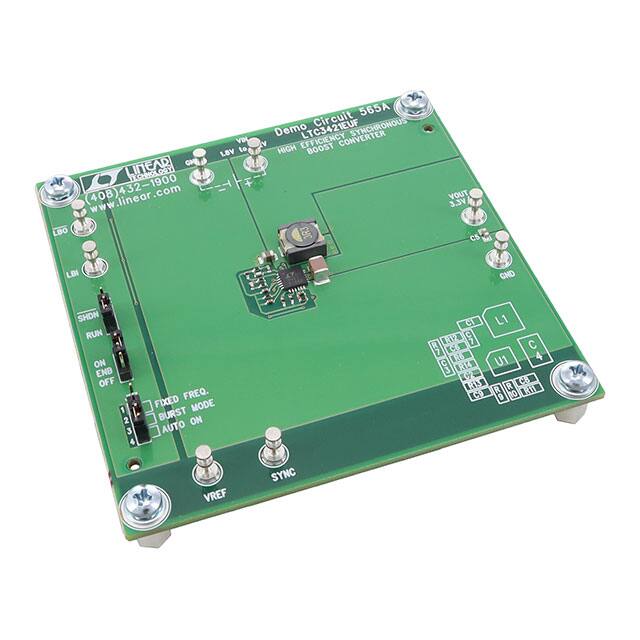

DC565AEVAL BOARD FOR LT3421 |
3,805 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 1A | 1.8V ~ 3.2V | Boost | 1MHz | Board(s) | LT3421 |
|

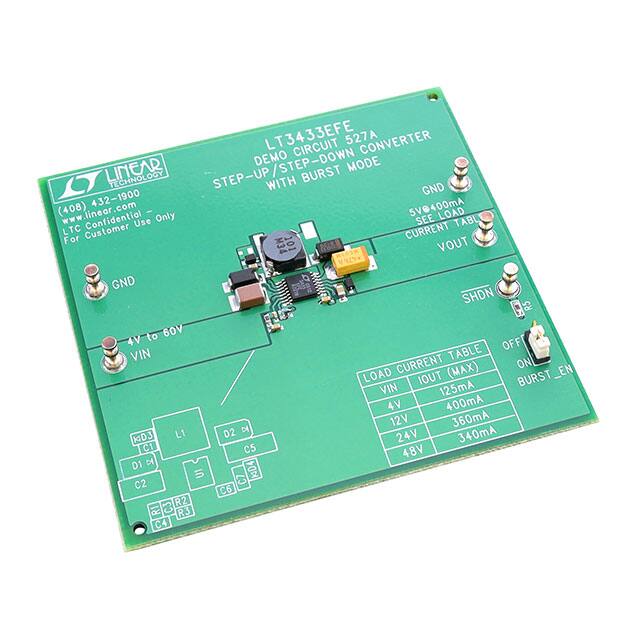

DC527AEVAL BOARD FOR LT3433 |
2,765 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 400mA | 4V ~ 60V | Buck | 200kHz | Board(s) | LT3433 |
|

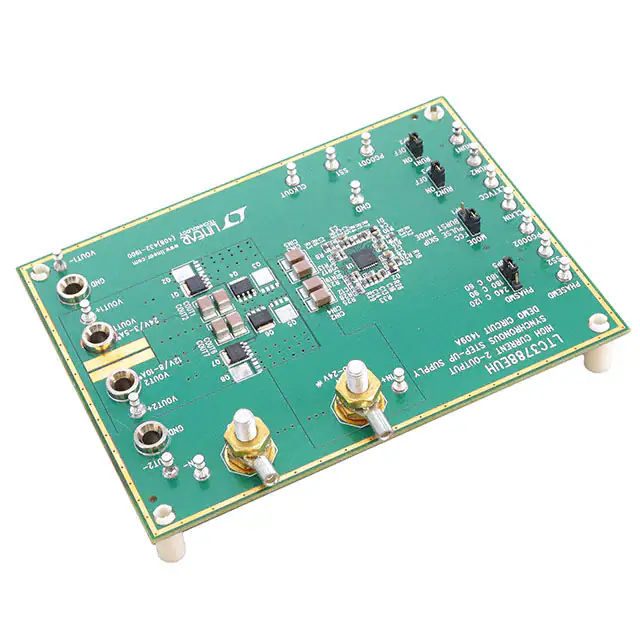

DC1409AEVAL BOARD FOR LTC3788 |
2,677 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 12V, 24V | 3A, 8A | 5V ~ 24V | Boost | 350kHz | Board(s) | LTC3788 |
|
DC1940AEVAL BOARD FOR LTC3891 |
3,341 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 15A | 16V ~ 60V | Buck | 125kHz | Board(s) | LTC3891 |
|

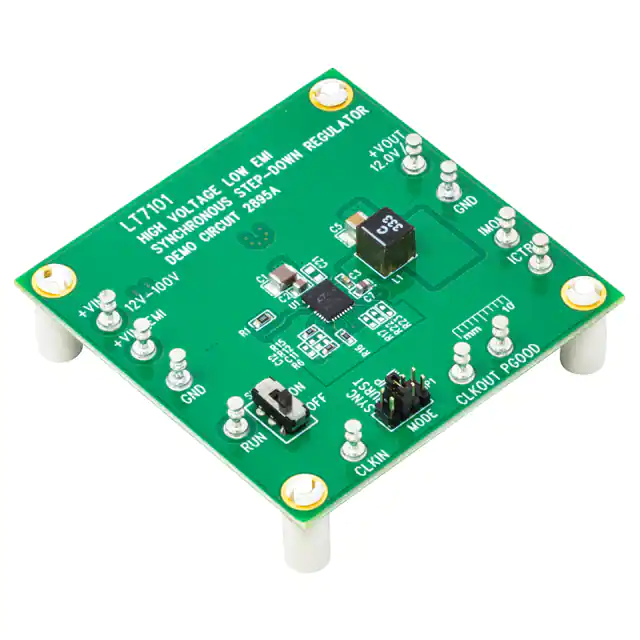

DC2895AEVAL BOARD FOR LT7101 |
3,674 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 1A | 12V ~ 100V | Buck | 400kHz | Board(s) | LT7101 |
|
DC1998AEVAL BOARD FOR LTC3892 |
1,648 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 8A, 5A | 6V ~ 60V | Buck | 200kHz | Board(s) | LTC3892 |
|

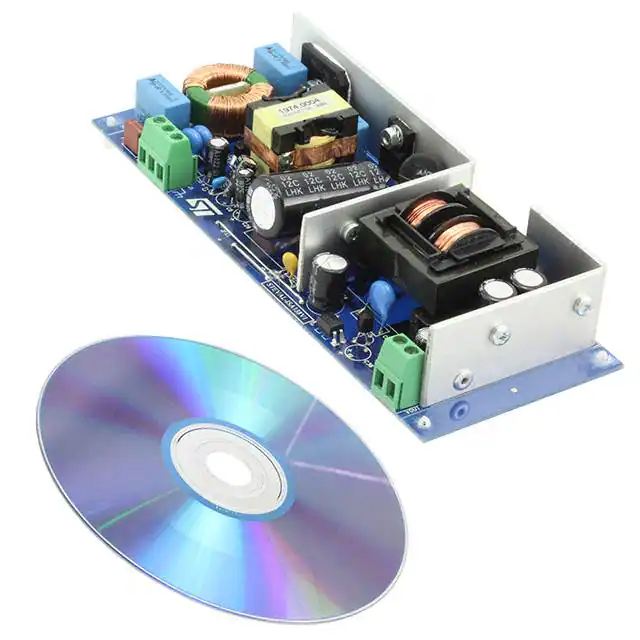

STEVAL-ISA138V1EVAL BOARD FOR L6563H L6699 |
3,345 | 165.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 90 W | 19V | 4.75A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563H, L6699 |
|

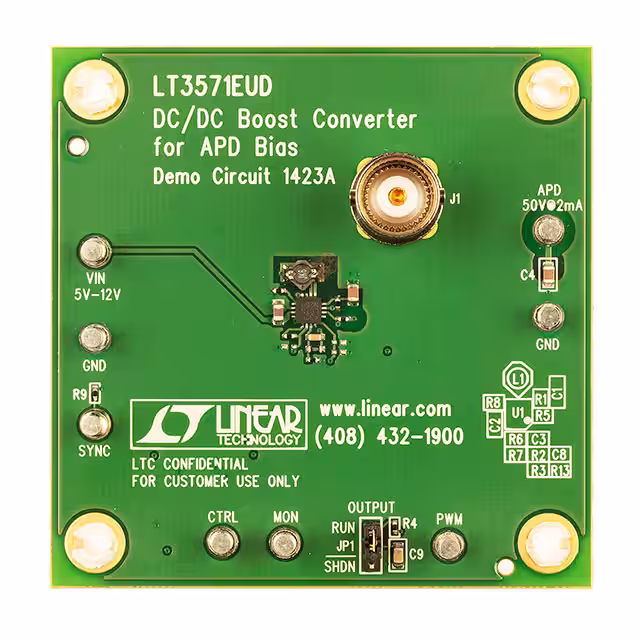

DC1423AEVAL BOARD FOR LT3571 |
4,659 | 167.19 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 50V | 2mA | 5V ~ 12V | Boost | 2MHz | Board(s) | LT3571 |
|
|
ISL78264EVAL1ZEVAL BOARD FOR ISL78264 |
2,959 | 174.38 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V ~ 5V, 0.8V ~ 32V | - | 3.75V ~ 42V | Buck | - | Board(s) | ISL78264 |
