DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

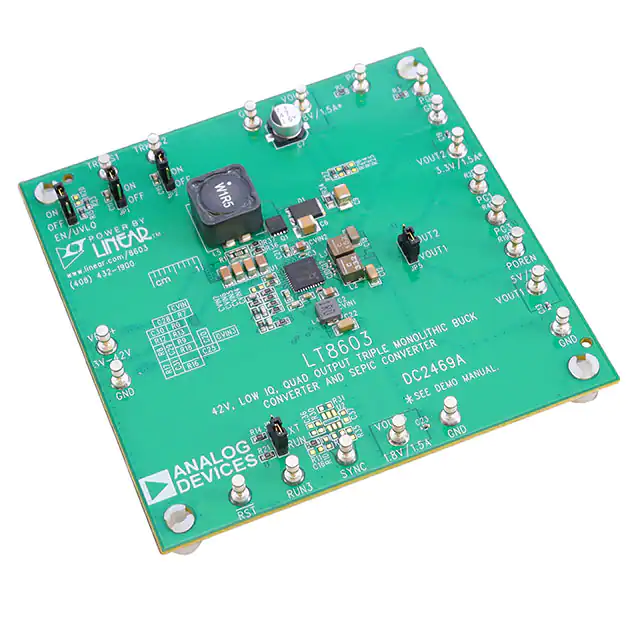

DC2469AEVAL BOARD FOR LT8603 |
2,540 | 125.06 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 4 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V, 8V | 2.5A, 1.8A, 1.5A. 1A | 3V ~ 42V | Boost, Buck | - | Board(s) | LT8603 |
|
DC2383A-AEVAL BOARD FOR LTC3644 |
1,070 | 125.06 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V | 5A, 3.75A, 2.5A, 1.25A | 2.7V ~ 17V | Buck | 1MHz | Board(s) | LTC3644 |
|

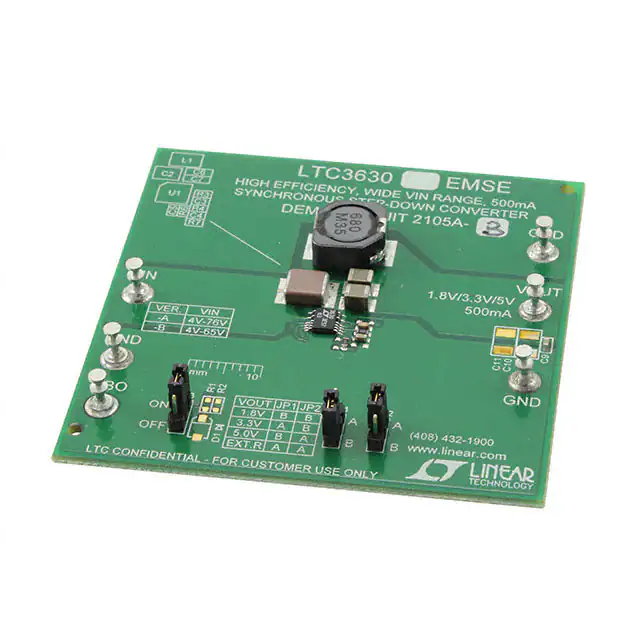

DC2105A-BEVAL BOARD FOR LTC3630 |
4,731 | 127.11 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 500mA | 4V ~ 65V | Buck | - | Board(s) | LTC3630 |
|

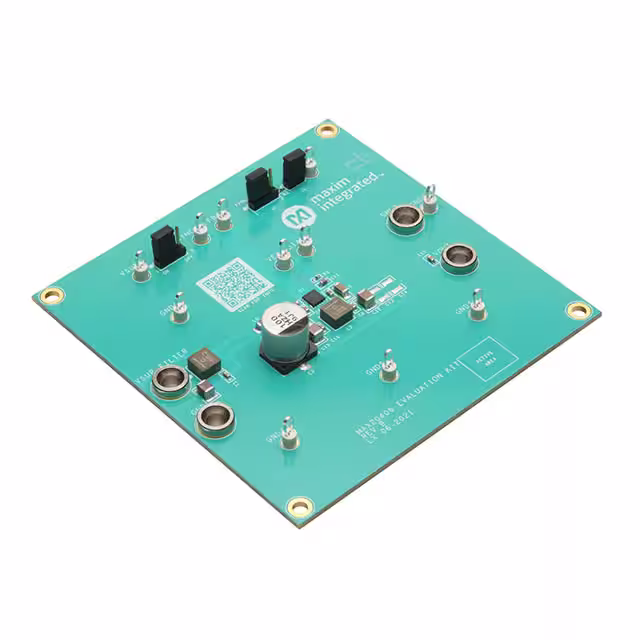

MAX20406EVKIT#EVAL BOARD FOR MAX20406 |
1,395 | 119.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | MAX20406 |
|

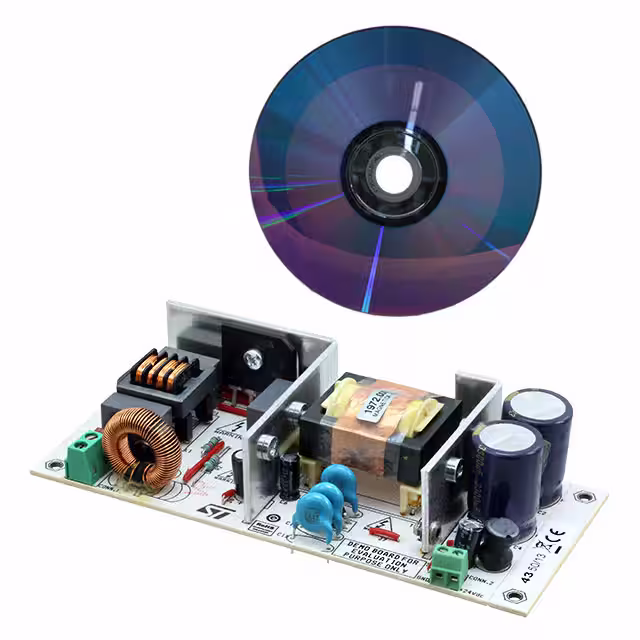

STEVAL-ISA142V1EVAL BOARD FOR L6564 |
2,014 | 127.50 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 50 W | 24V | 2.1A | 90 ~ 265 VAC | Flyback | 44kHz | Board(s) | L6564 |
|
DC2951AEVAL BOARD FOR LTC7806 |
2,980 | 128.40 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 10A | 6V ~ 36V | Boost | 350kHz | Board(s) | LTC7806 |
|

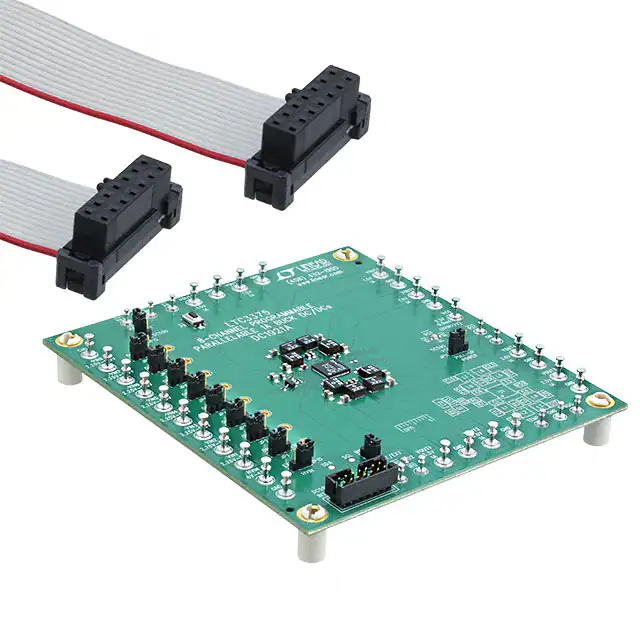

DC1921AEVAL BOARD FOR LTC3375 |
3,857 | 129.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 8 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3V, 3.3V | 1A, 1A, 1A, 1A, 1A, 1A, 1A, 1A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3375 |
|

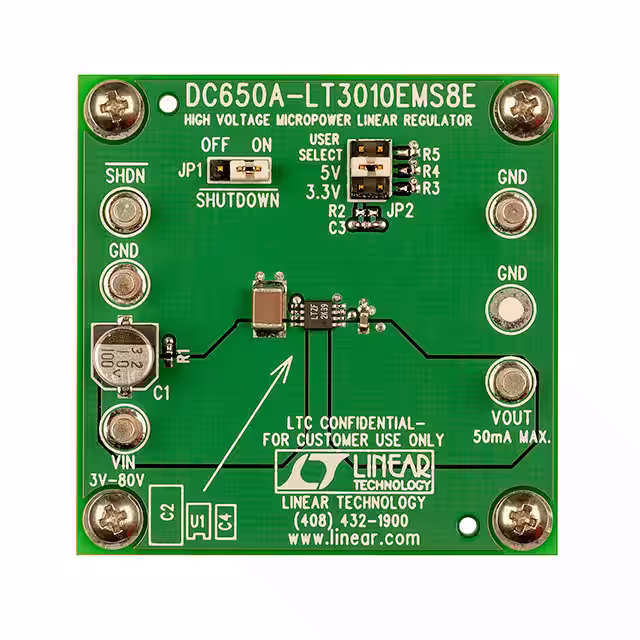

DC650AEVAL BOARD FOR LT3010 |
4,231 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.22V ~ 60V | 50mA | 3V ~ 80V | Buck | - | Board(s) | LT3010 |
|

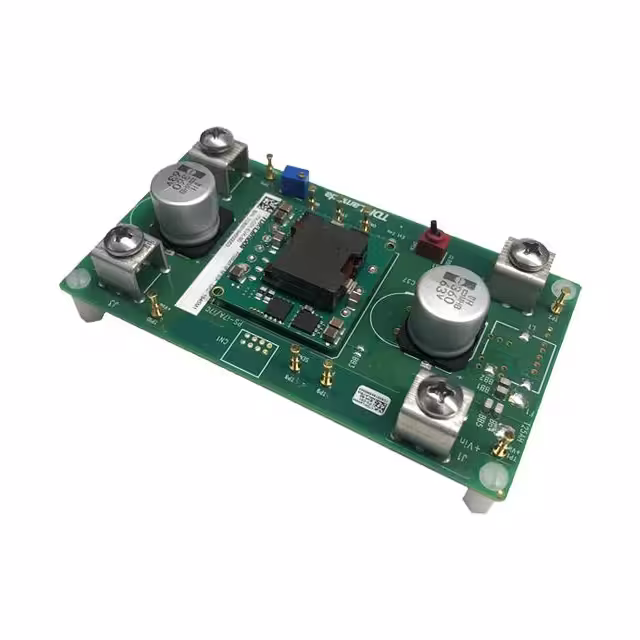

I7C20A-C03-EVK-S1EVAL BOARD FOR I7C2W020A050V |
3,131 | 138.47 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 8V ~ 24V | 20A | 9V ~ 36V | Buck-Boost | - | Board(s) | - |
|

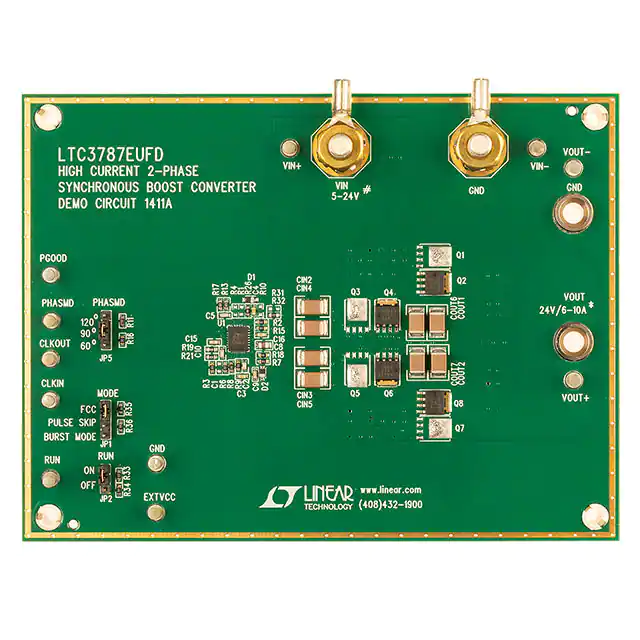

DC1411AEVAL BOARD FOR LTC3787 |
1,347 | 141.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 16A | 5V ~ 24V | Boost | 350kHz | Board(s) | LTC3787 |
|

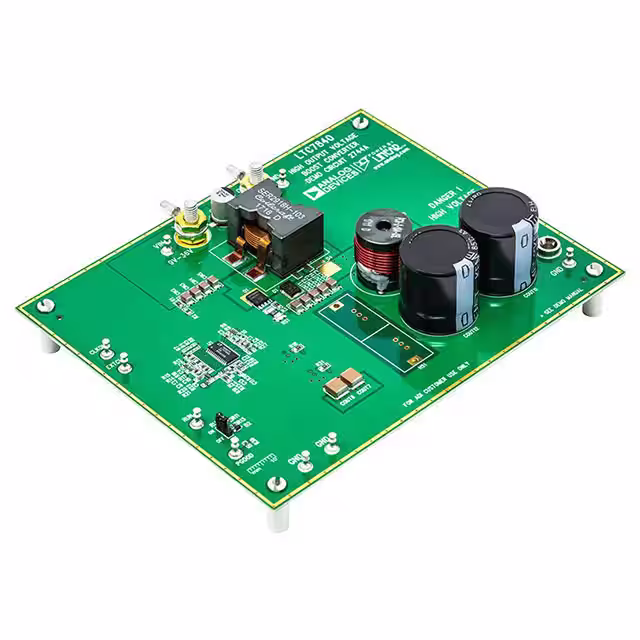

DC2744AEVAL BOARD FOR LTC7840 |
3,446 | 141.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 240V | 700mA | 9V ~ 36V | Boost | 150kHz | Board(s) | LTC7840 |
|

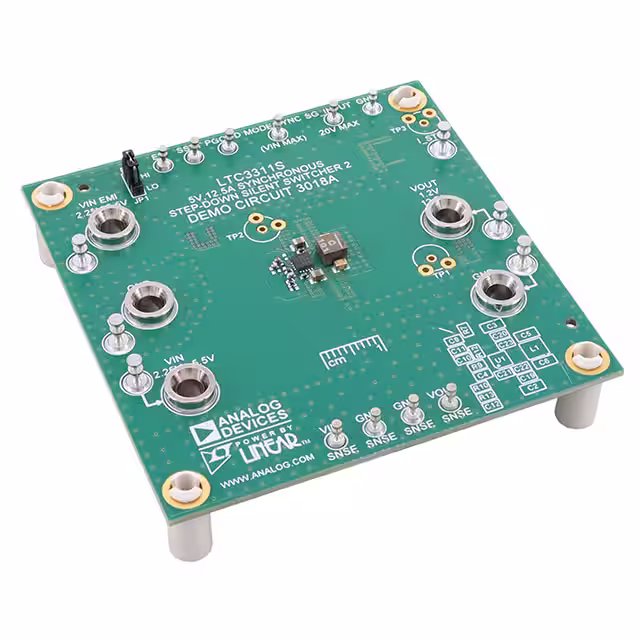

DC3018AEVAL BOARD FOR LTC3311S |
2,036 | 141.24 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.176V ~ 1.224V | 12.5A | 3V | Buck | 2.2MHz | Board(s) | LTC3311S |
|
DC242AEVAL BOARD FOR LT1777 |
2,844 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 500mA | 7.4V ~ 48V | Buck | 100kHz | Board(s) | LT1777 |
|

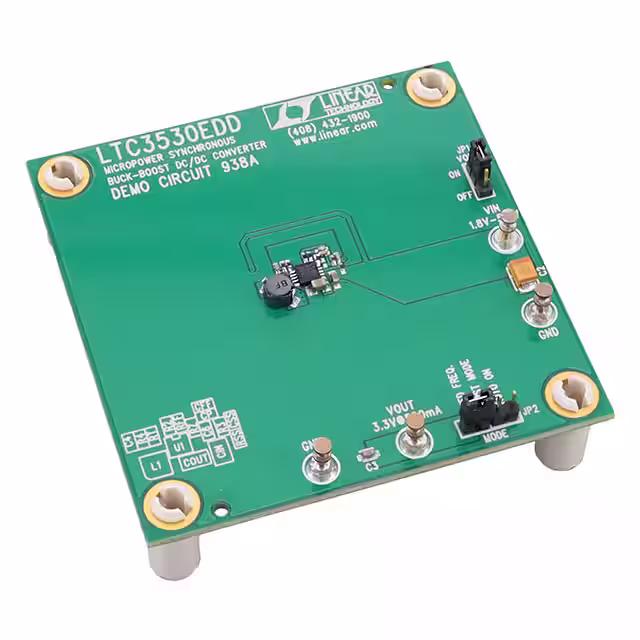

DC938AEVAL BOARD FOR LTC3530 |
4,576 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3530 |
|

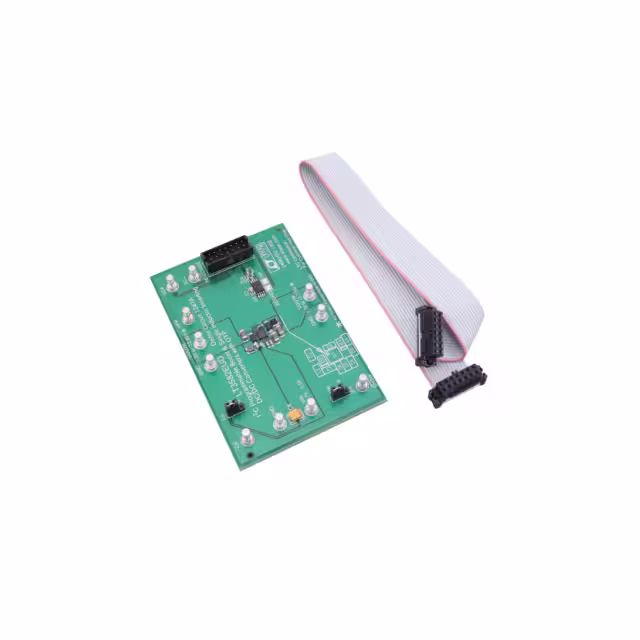

DC1247AEVAL BOARD FOR LT3582 |
3,083 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 1 Non-Isolated Output | - | 3.2V ~ 12.775V, -1.2V ~ -13.95V | - | 2.7V ~ 5.5V | Inverting | - | Board(s) | LT3582 |
|
DC1641AEVAL BOARD FOR LTC3786 |
4,775 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 5A | 5V ~ 24V | Boost | 350kHz | Board(s) | LTC3786 |
|

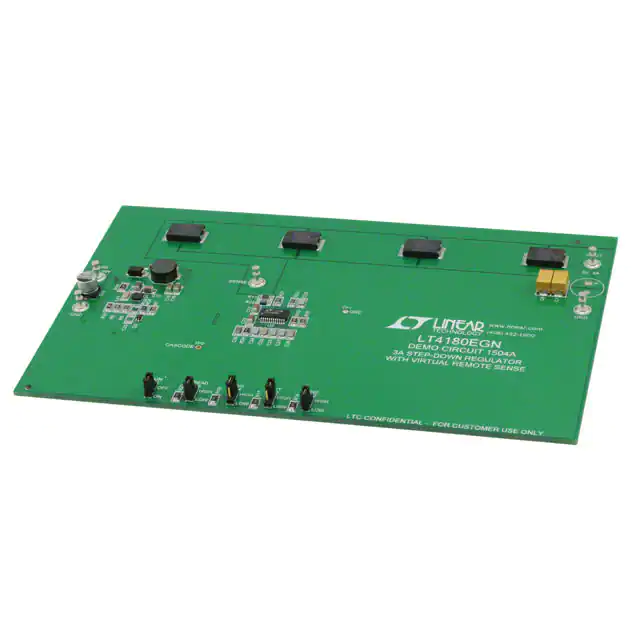

DC1504AEVAL BOARD FOR LT4180 |
2,165 | 147.12 |
|
Datasheet |
Virtual Remote Sense™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 8V ~ 36V | Buck | 500kHz | Board(s) | LT4180 |
|

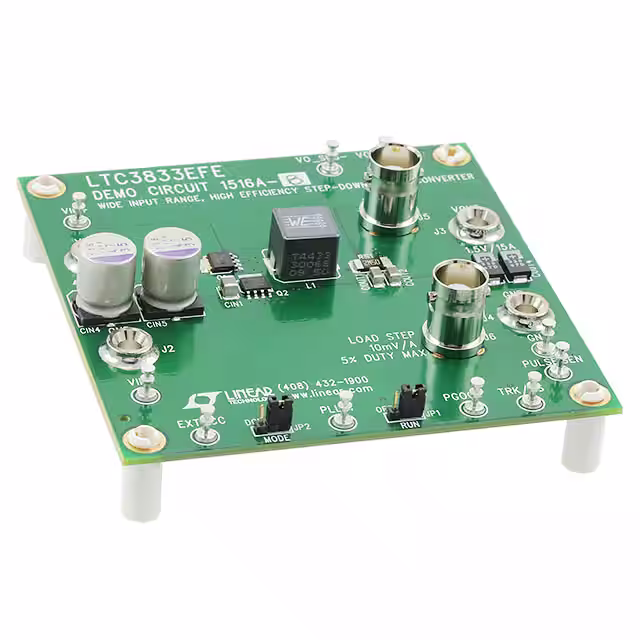

DC1516A-BEVAL BOARD FOR LTC3833 |
1,785 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 24V | Buck | 300kHz | Board(s) | LTC3833 |
|
DC613AEVAL BOARD FOR LT3435 |
1,428 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.75V ~ 28V | Buck | 500kHz | Board(s) | LT3435 |
|

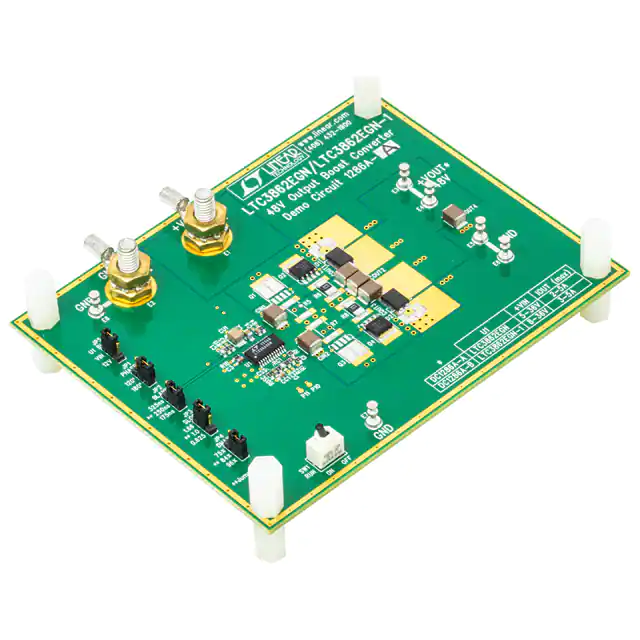

DC1286A-AEVAL BOARD FOR LTC3862 |
4,786 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 5A | 5V ~ 36V | Boost | 200kHz | Board(s) | LTC3862 |
