DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

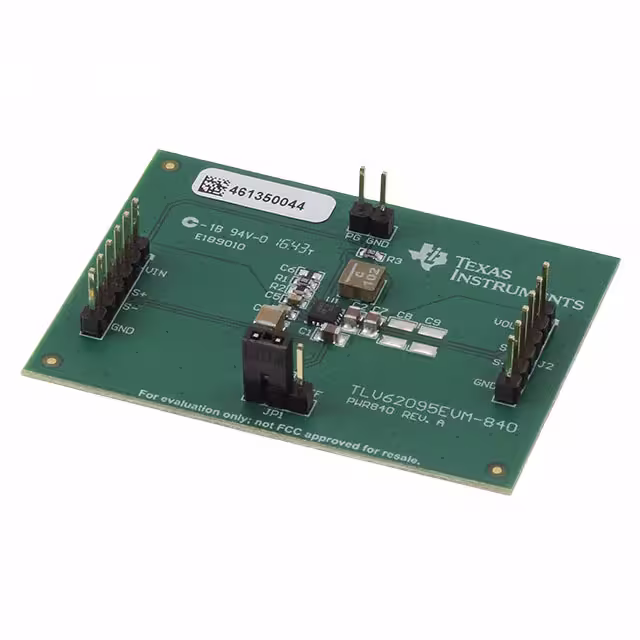

TLV62095EVM-840EVAL BOARD FOR TLV62095 |
2,761 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.5V ~ 5.5V | Buck | - | Board(s) | TLV62095 |
|
LM20333EVAL/NOPBEVAL BOARD FOR LM20333 |
4,355 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 25V | Buck | - | Board(s) | LM20333 |
|
TPS61120EVM-205EVAL BOARD FOR TPS61120 |
3,380 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 250mA, 200mA | 1.8V ~ 5.5V | Boost | - | Board(s) | TPS61120 |
|

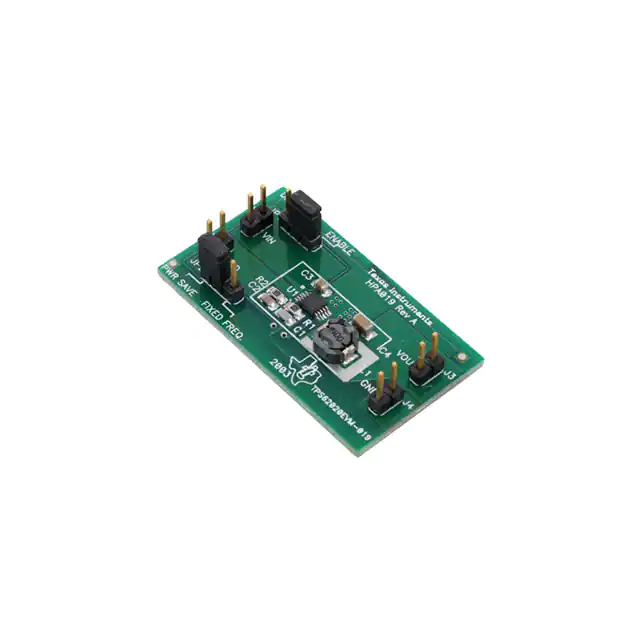

TPS62020EVM-019EVAL BOARD FOR TPS62020 |
2,707 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.5V ~ 6V | Buck | - | Board(s) | TPS62020 |
|

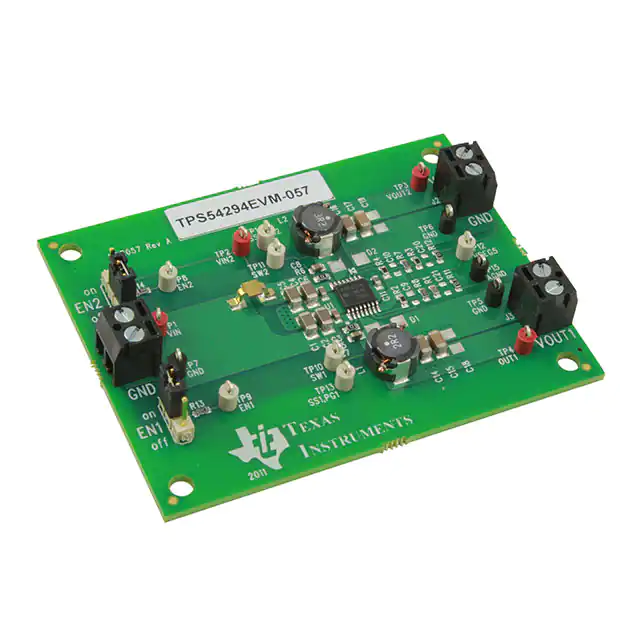

TPS54294EVM-057EVAL BOARD FOR TPS54294 |
2,395 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 2A, 2A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54294 |
|

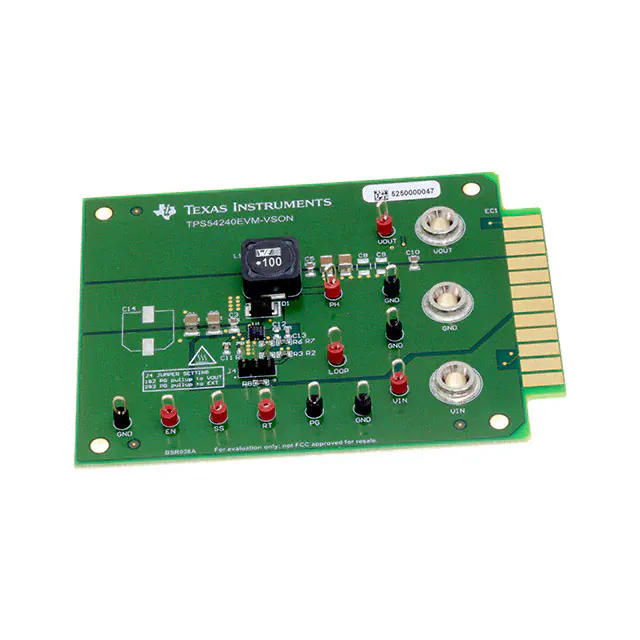

TPS54240EVM-VSONEVAL BOARD FOR TPS54240 |
1,246 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 7V ~ 24V | Buck | 500kHz | Board(s) | TPS54240 |
|

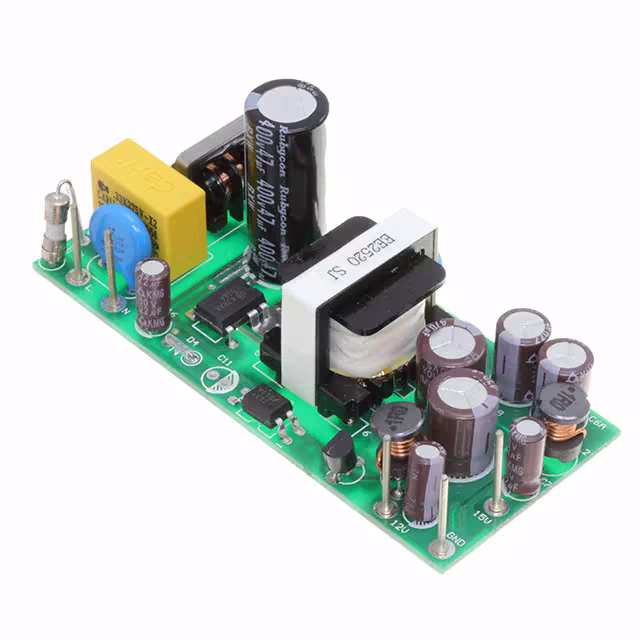

FSL538AFLYGEVBEVAL BOARD FOR FSL538A |
2,854 | 50.54 |
|
Datasheet |
SENSEFET® | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 15 W | 12V, 15V | 1A, 150mA | 90 ~ 265 VAC | Flyback | - | Board(s) | FSL538A |
|
FSL538HFLYGEVBEVAL BOARD FOR FSL538H |
3,428 | 50.54 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 21 W | - | 660mA | 15V ~ 17V | Flyback | 130kHz | Board(s) | FSL538H |
|

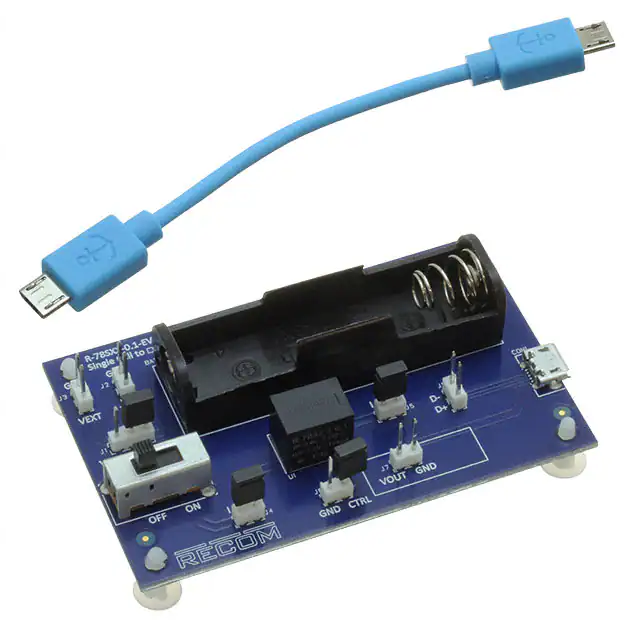

R-78S3.3-0.1-EVM-1EVAL BOARD FOR R78S |
2,275 | 52.00 |
|
Datasheet |
R-78S | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 100mA | 0.65V ~ 3.15V | Boost | 1.2MHz | Board(s) | R-78S |
|

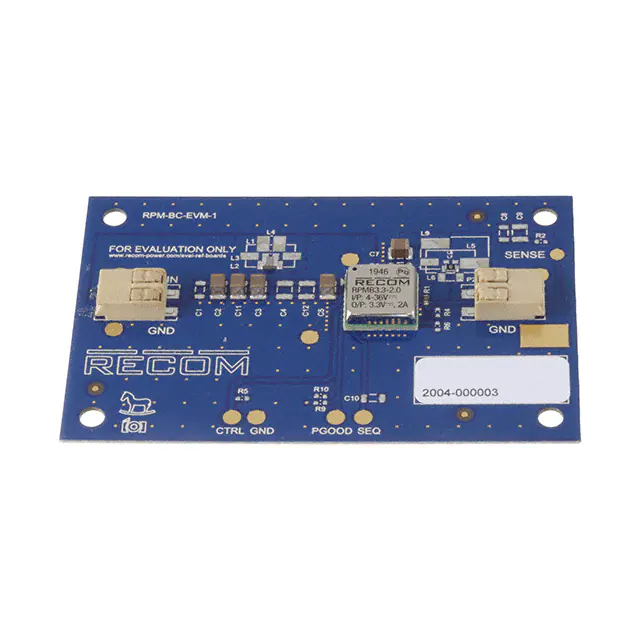

RPMB3.3-2.0-EVM-1RPMB3.3-2.0 EVALUATION MODULE |
4,818 | 52.37 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4V ~ 36V | - | - | Board(s) | - |
|
RPMB3.3-3.0-EVM-1EVAL BOARD FOR RPMB3.33.0 |
4,401 | 52.85 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 36V | Buck | 1.4MHz | Board(s) | RPMB3.3-3.0 |
|
RPMB5.0-3.0-EVM-1EVAL BOARD FOR RPMB5.03.0EVM1 |
2,723 | 52.85 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 5.5V ~ 36V | Buck | 1.4MHz | Board(s) | RPMB5.0-3.0-EVM-1 |
|

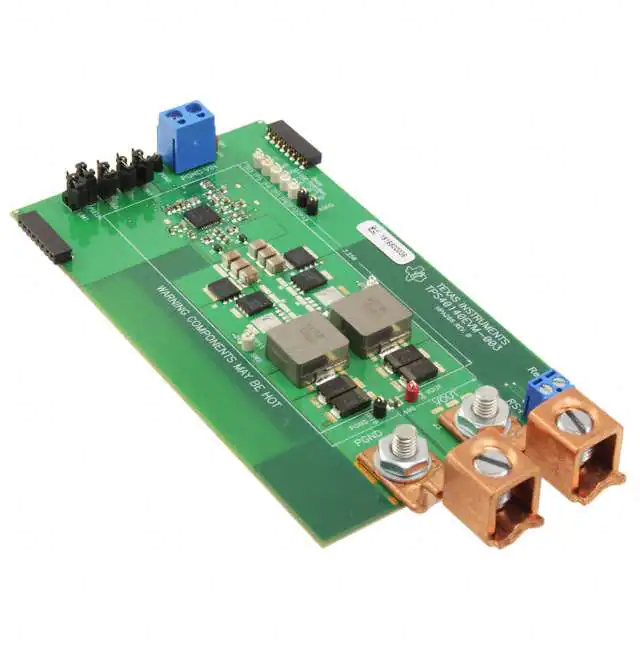

TPS40140EVM-003EVAL BOARD FOR TPS40140 |
2,085 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 32A | 10.8V ~ 13.2V | Buck | 500kHz | Board(s) | TPS40140 |
|

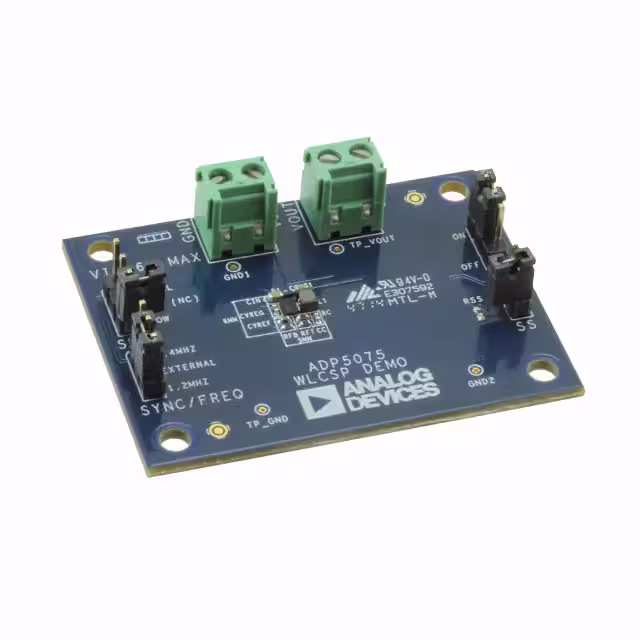

ADP5075CB-EVALZEVAL BOARD FOR ADP5075 |
2,405 | 54.08 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | 800mA | 2.85V ~ 15V | Inverting | - | Board(s) | ADP5075 |
|
RPMH3.3-1.5-EVM-1RPMH3.3-1.5 EVALUATION MODULE |
4,329 | 54.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 5V ~ 60V | - | - | Board(s) | - |
|
|
RPMH24-1.5-EVM-1RPMH24-1.5 EVALUATION MODULE |
4,702 | 54.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 1.5A | 26V ~ 60V | - | - | Board(s) | - |
|
|
RPMH12-1.5-EVM-1RPMH12-1.5 EVALUATION MODULE |
4,864 | 54.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 1.5A | 14V ~ 60V | - | - | Board(s) | - |
|
|
RPMH5.0-1.5-EVM-1RPMH5.0-1.5 EVALUATION MODULE |
3,412 | 54.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 7V ~ 60V | - | - | Board(s) | - |
|

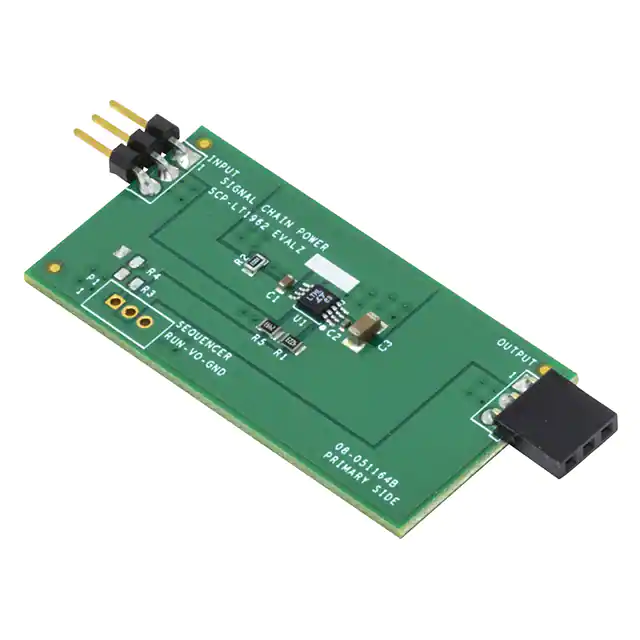

SCP-LT1962-EVALZEVAL BOARD FOR LT1962 |
1,067 | 53.50 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 19.57V | 300mA | 20V | Buck | - | Board(s) | LT1962 |
|
ADM00829EVAL BOARD FOR MIC23159 |
3,892 | 48.23 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 1.5V or 1.8V | 2A | 2.7V ~ 5.5V | Buck | - | Board(s) | MIC23159 |
