DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

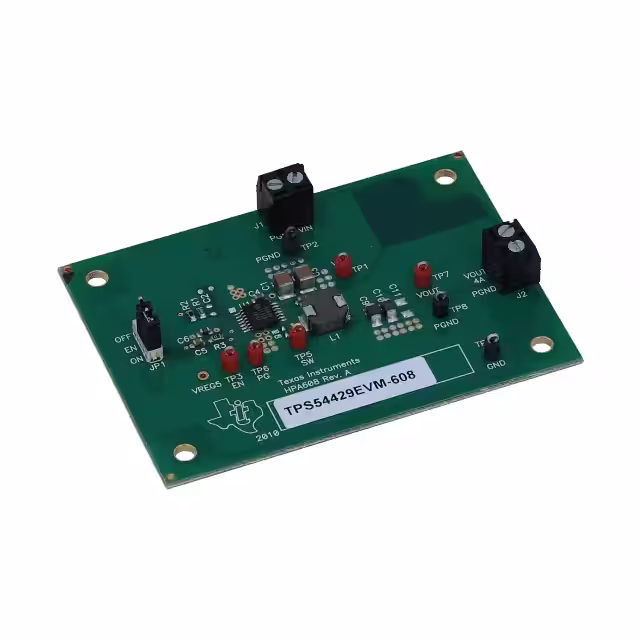

TPS54429EVM-608EVAL BOARD FOR TPS54429 |
2,438 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4.5A | 7V ~ 18V | Buck | 700kHz | Board(s) | TPS54429 |
|
TPS54428EVM-052EVAL BOARD FOR TPS54428 |
4,397 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54428 |
|
EVQ2177-LE-00AEVAL BOARD FOR MPQ2177 |
2,081 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A | 2.5V ~ 5.5V | Buck | 2.4MHz | Board(s) | MPQ2177 |
|
|
EVQ2178A-LE-00AEVAL BOARD FOR MPQ2178AAEC1 |
2,657 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.5V ~ 5.5V | Buck | 2.4MHz | Board(s) | MPQ2178A-AEC1 |
|
|
EVQ4316-R-01AEVAL BOARD FOR MPQ4316AEC1 |
1,615 | 50.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 3.3V ~ 45V | Buck | 410kHz | Board(s) | MPQ4316-AEC1 |
|
TPS65001EVM-453EVAL BOARD FOR TPS65001 |
2,707 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.8V | 600mA, 300mA, 300mA | 3.3V ~ 6V | Buck | 2.25MHz | Board(s) | TPS65001 |
|

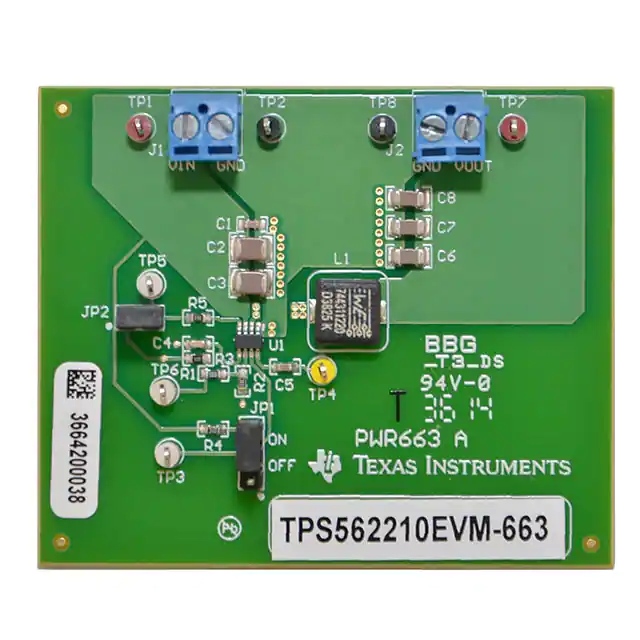

TPS562210EVM-663EVAL BOARD FOR TPS562210 |
4,789 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS562210 |
|
LM2832YMY EVALEVAL BOARD FOR LM2832 |
4,478 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3.6V ~ 5.5V | Buck | 550kHz | Board(s) | LM2832 |
|

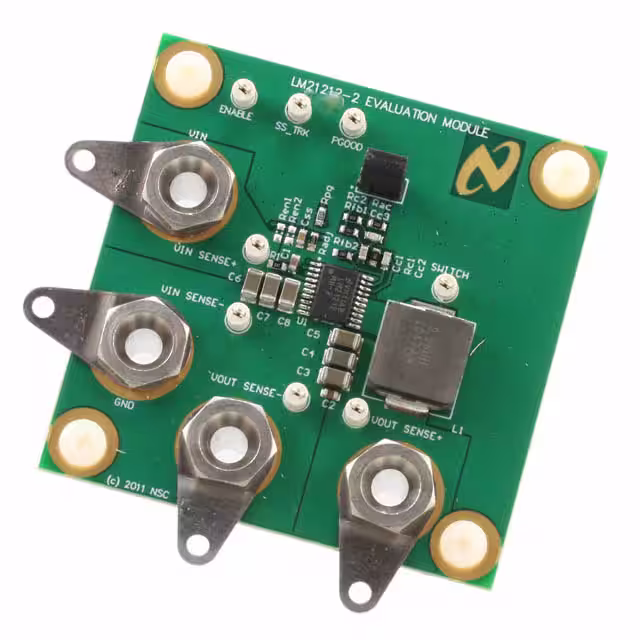

LM21212-2EVM/NOPBEVAL BOARD FOR LM212122 |
1,358 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 2.95V ~ 5.5V | Buck | 300kHz ~ 1.55MHz | Board(s) | LM21212-2 |
|

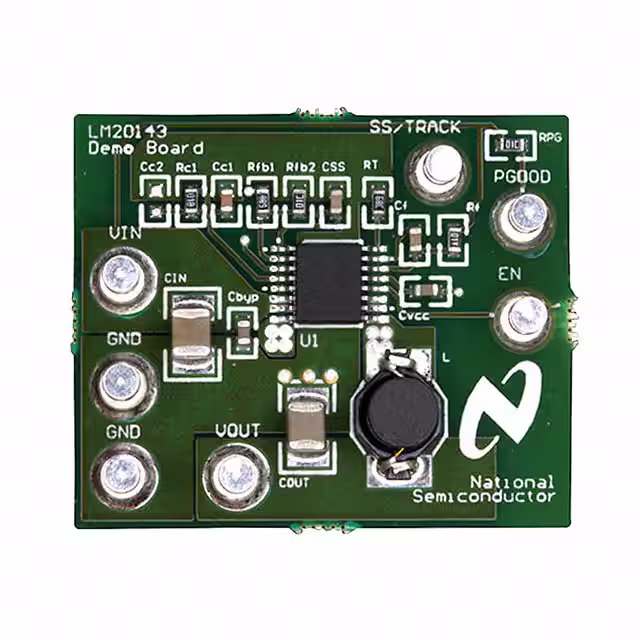

LM20143EVALEVAL BOARD FOR LM20143 |
4,982 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.95V ~ 5.5V | Buck | 1.5MHz | Board(s) | LM20143 |
|
|
EVQ4314-R-01AEVAL BOARD FOR MPQ4314AEC1 |
4,771 | 50.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 3.3V ~ 45V | Buck | 410kHz | Board(s) | MPQ4314-AEC1 |
|
|
EVQ2178-LE-00AEVAL BOARD FOR MPQ2178AEC1 |
3,769 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.5V ~ 5.5V | Buck | 2.4MHz | Board(s) | MPQ2178-AEC1 |
|
|
EV2167B-D-00AEVAL BOARD FOR MPQ2167BAEC1 |
1,876 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 6V | Buck | 1.9MHz | Board(s) | MPQ2167B-AEC1 |
|

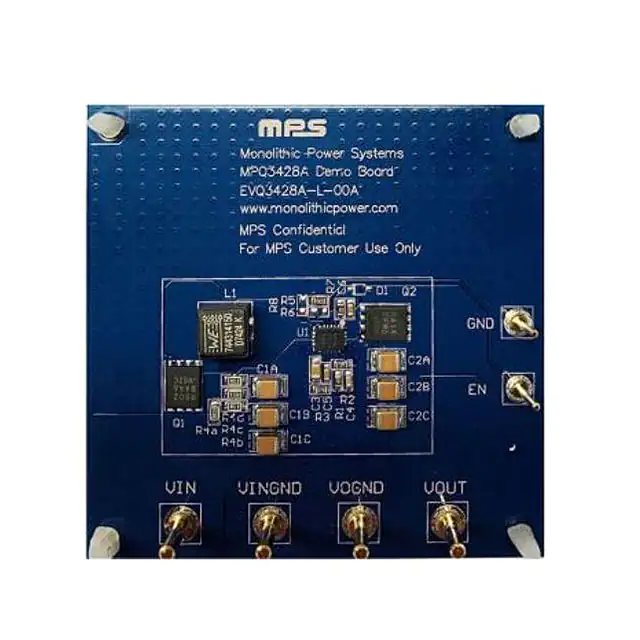

EVQ3428A-L-00AEVAL BOARD FOR MPQ3428A |
1,254 | 50.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 3V ~ 20V | Boost | 600kHz | Board(s) | MPQ3428A |
|
EVBL2171-J-00AEVAL BOARD FOR MP2171 MPQ2171 |
2,826 | 50.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 1.25 W | 1.2V | 1A | 2.5V ~ 5.5V | Buck | 2.6MHz | Board(s) | MP2171, MPQ2171 |
|
|
EVBL9841-L-00AEVAL BOARD FOR MP9841 MPQ9841 |
3,065 | 50.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3.3V ~ 36V | Buck | - | Board(s) | MP9841, MPQ9841 |
|

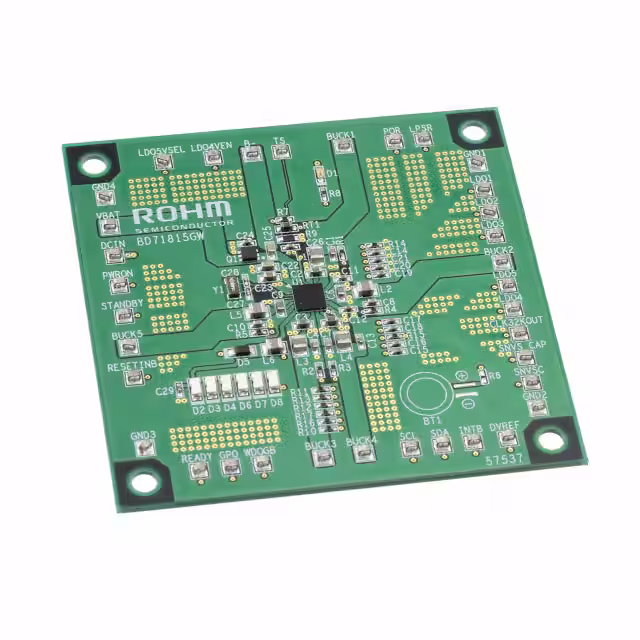

BD71815AGW-EVK-101EVAL BOARD FOR BD71815A |
4,601 | 50.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 13 Non-Isolated Outputs | - | - | - | 3.5V ~ 28V | Buck | - | Board(s) | BD71815A |
|

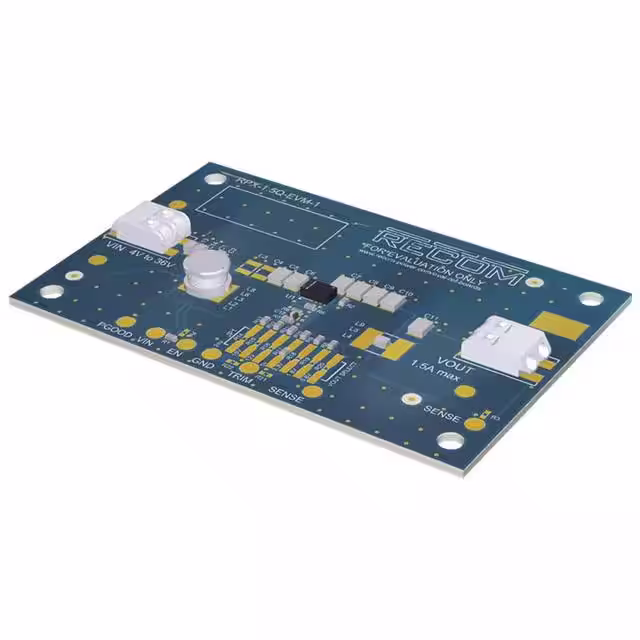

RPX-0.5Q-EVM-1EVAL BOARD FOR RPX0.5Q |
1,861 | 51.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.8V, 3.3V, 5V, 12V, 15V or 24V | 500mA | 4V ~ 36V | Buck | - | Board(s) | RPX-0.5Q |
|

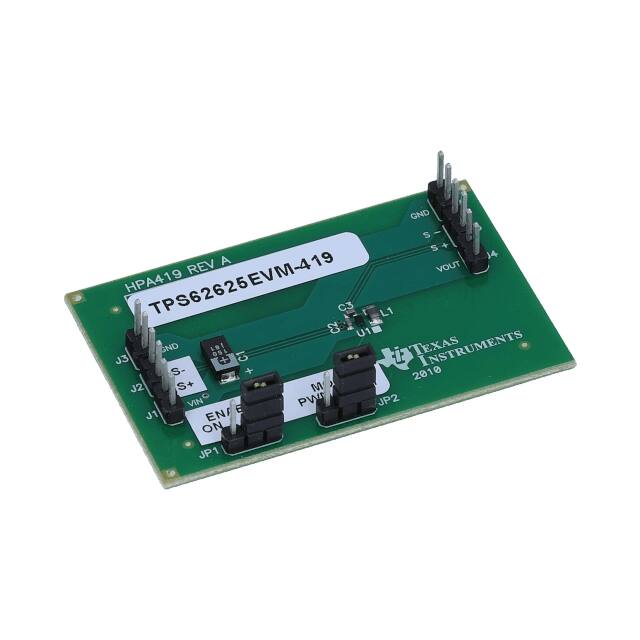

TPS62625EVM-419EVAL BOARD FOR TPS62625 |
1,671 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | TPS62625 |
|

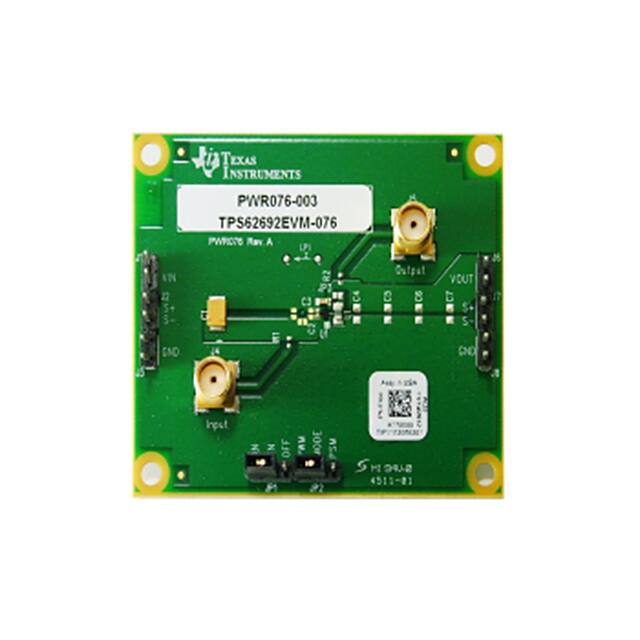

TPS62692EVM-076EVAL BOARD FOR TPS62692 |
2,166 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.85V | 800mA | 2.3V ~ 4.8V | Buck | 3MHz | Board(s) | TPS62692 |
