DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2652A-AEVAL BOARD FOR LTC3888 |
4,758 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1V | 120A, 120A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3888 |
|

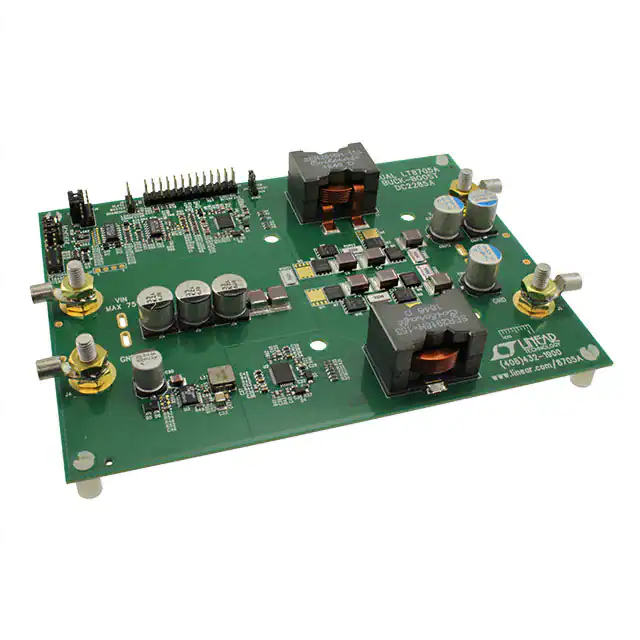

DC2285AEVAL BOARD FOR LT8705A |
2,799 | 315.48 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 20A | 36V ~ 75V | Buck-Boost | 120kHz | Board(s) | LT8705A |
|

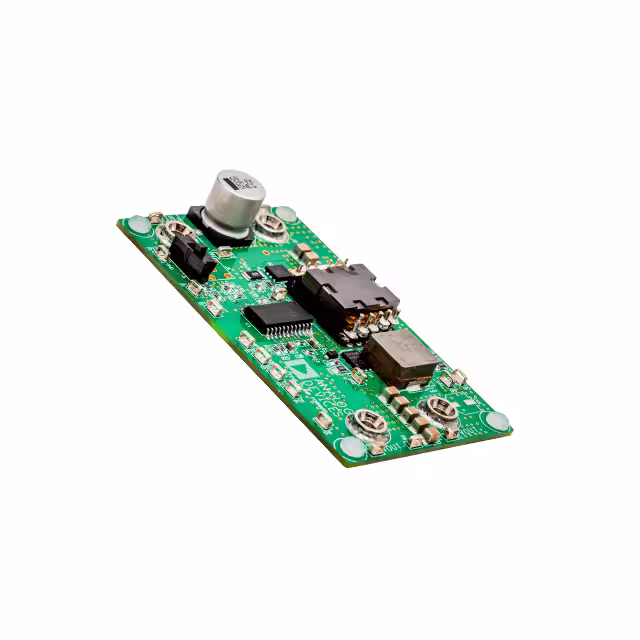

ADP1074-EVALZEVAL BOARD FOR ADP1074 |
2,921 | 317.80 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 1 Isolated Output | - | 12.1V | 6A | 36V ~ 60V | Forward Converter | 291kHz | Board(s) | ADP1074 |
|
ROA1283836EVAL BOARD FOR BMR450 BMR451 |
4,706 | 5.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | Partially Populated Board(s) | BMR450, BMR451, BMR462, BMR463, BMR464 |
|
EVL400W-EUPL7EVAL BOARD L4984D L6699D SRK2001 |
2,960 | 329.31 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 400 W | 12V | 33A | 90 ~ 264 VAC | - | - | Board(s) | L4984D, L6699D, SRK2001 |
|

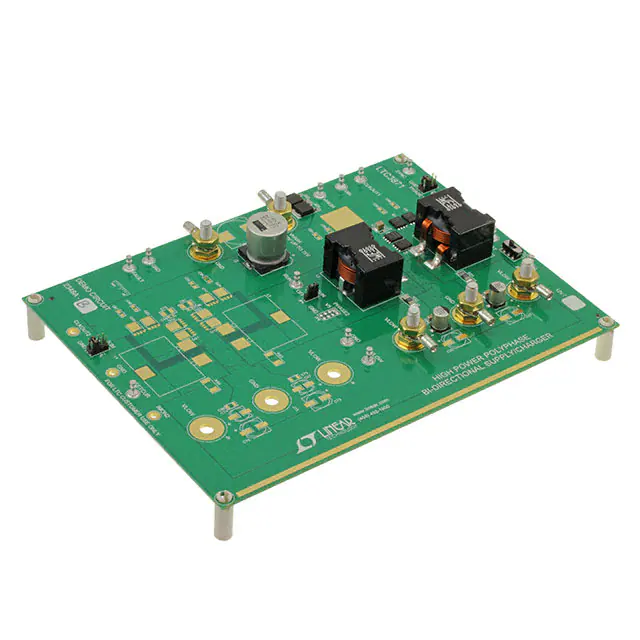

DC2348A-BEVAL BOARD FOR LTC3871 |
2,993 | 338.98 |
|
Datasheet |
- | Box | Active | DC/DC, Bidirectional | 1 Non-Isolated Output | - | 12V or 48V | 30A or 7.5A | 10V ~ 13V or 30V ~ 75V | Boost, Buck | 110kHz | Board(s) | LTC3871 |
|

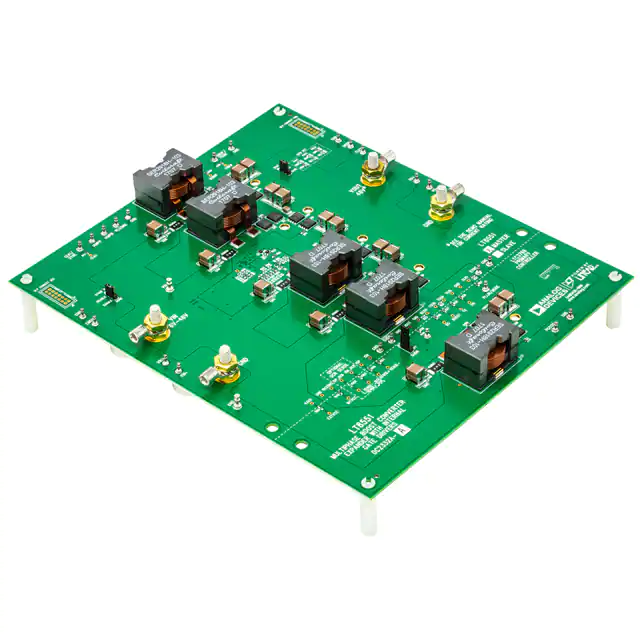

DC2332A-AEVAL BOARD FOR LT8551 |
1,202 | 338.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 1.2 kW | 48V | 25A | 6V ~ 46V | Boost | 350kHz | Board(s) | LT8551 |
|

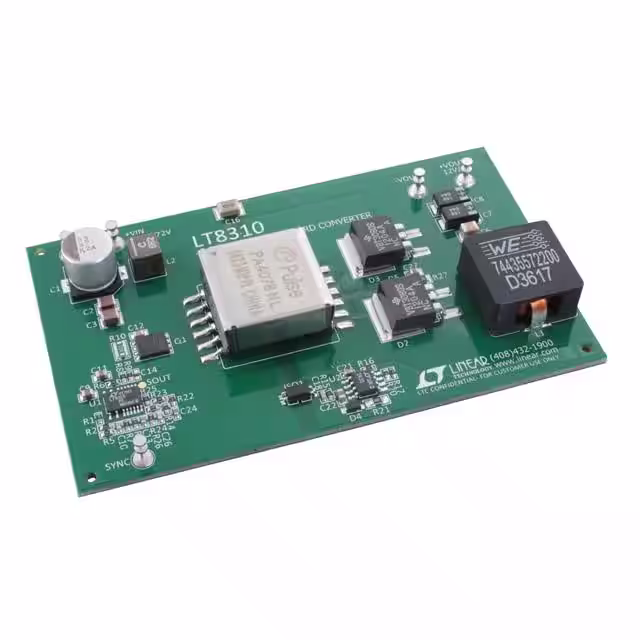

DC1963AEVAL BOARD FOR LT8310 |
4,255 | 353.10 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 6A | 36V ~ 72V | Forward Converter | 250kHz | Board(s) | LT8310 |
|

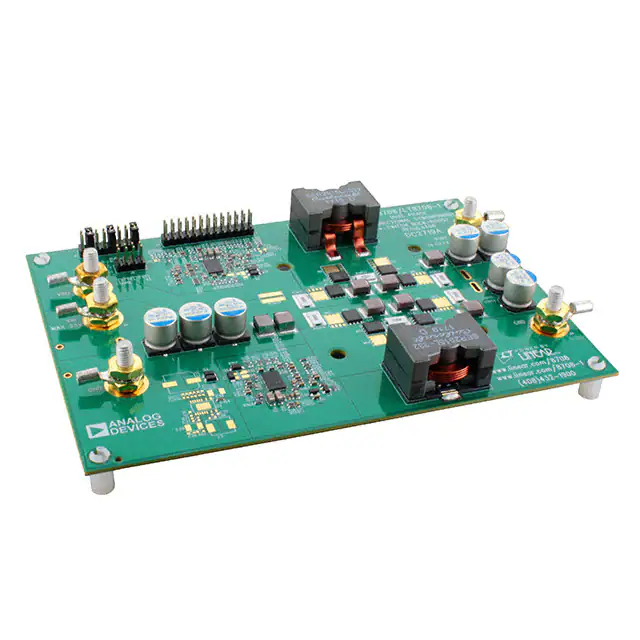

DC2719AEVAL BOARD FOR LT8708 LT87081 |
2,228 | 353.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 14.5V | - | 10.5V ~ 25V | Buck-Boost | 120kHz | Board(s) | LT8708, LT8708-1 |
|
DC1032AEVAL BOARD FOR LTC3725 LTC3726 |
4,035 | 353.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 12A | 36V ~ 72V | Forward Converter | 300kHz | Board(s) | LTC3725, LTC3726 |
|
|
DC2896A-BEVAL BOARD FOR LT8551 |
3,566 | 367.22 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | 1.44 kW | 48V | 30A | 10V ~ 46V | Boost | - | Board(s) | LT8551 |
|

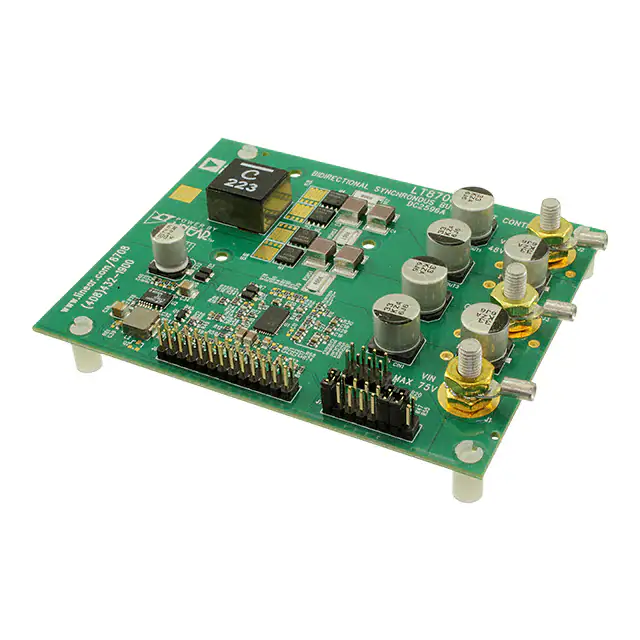

DC2596AEVAL BOARD FOR LT8708 |
2,265 | 385.20 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 6A | 36V ~ 75V | Buck-Boost | 200kHz | Board(s) | LT8708 |
|
EVLMG1-250WLLCEVAL BOARD FOR MASTERGAN1 |
2,158 | 400.75 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 1 Isolated Output | 250 W | 24V | 10.4A | 360V ~ 440V | Resonant | - | Board(s) | MasterGaN1 |
|
DC2348A-AEVAL BOARD FOR LTC3871 |
1,254 | 406.78 |
|
Datasheet |
- | Box | Active | DC/DC, Bidirectional | 1 Non-Isolated Output | - | 12V or 48V | 60A or 15A | 10V ~ 13V or 30V ~ 75V | Boost, Buck | 110kHz | Board(s) | LTC3871 |
|

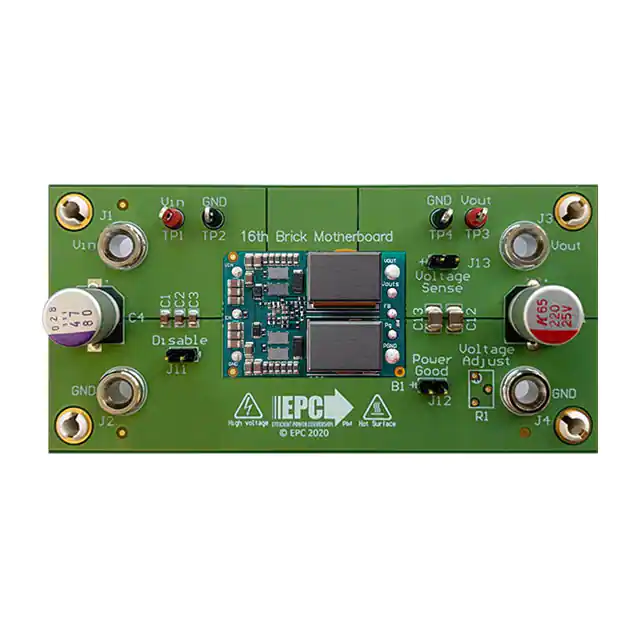

EPC9157KITEVAL BOARD FOR EPC2218 |
1,892 | 480.00 |
|
Datasheet |
eGaN® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 300 W | 12V | 25A | 18V ~ 60V | Buck | 500kHz | Board(s) | EPC2218 |
|
ROA170111EVAL BOARD FOR BMR469 |
1,290 | 504.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | - | - | 0.6V ~ 5V | - | 7.5V ~ 14V | Buck | - | Partially Populated Board(s) | BMR469 |
|
|
DC2886AEVAL BOARD FOR LTC7060 LTC7871 |
1,344 | 508.46 |
|
Datasheet |
- | Bulk | Active | DC/DC, Bidirectional | 1 Non-Isolated Output | - | 14V or 48V | 180A or 51A | 10V ~ 14V or 30V ~ 70V | Boost, Buck | 150kHz | Board(s) | LTC7060, LTC7871 |
.jpg)
|

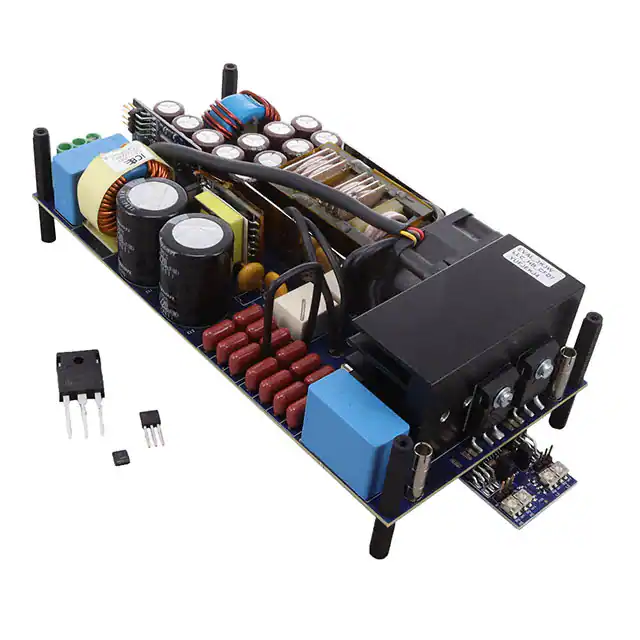

EVAL3K3WLLCHBCFD7TOBO1EVAL BOARD FOR ICE5QSAG XMC4200 |
2,178 | 531.30 |
|
Datasheet |
CoolMOS™, CoolSiC™, EiceDRIVER™, OptiMOS™ 5 | Box | Active | DC/DC Converter | 1 Isolated Output | 3.3 kW | 43.5V ~ 59.5V | - | 350V ~ 415V | Flyback | - | Board(s) | ICE5QSAG, XMC4200 |
|

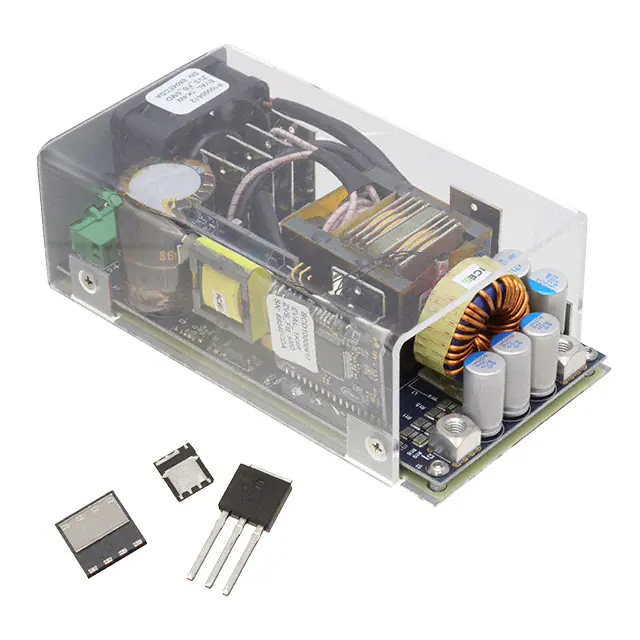

EVAL1K4WZVSFBSMDTOBO1EVAL BOARD IFX91041EJV33 XMC4200 |
4,292 | 531.30 |
|
Datasheet |
CoolMOS™, CoolSET™ | Box | Active | DC/DC, Step Down | 1 Isolated Output | 1.4 kW | 12V | - | 400V | Buck | 100kHz | Board(s) | IFX91041EJV33, XMC4200 |
|
|
EVAL500W5GPSUTOBO1EVAL BOARD ICE1HS01G ICE3PCS01G |
1,025 | 531.30 |
|
Datasheet |
CoolMOS™ | Bulk | Active | AC/DC Converter | 2 Isolated Outputs | 500 W | 12V | 42A | 100 ~ 240 VAC | Boost | - | Board(s) | ICE1HS01G, ICE3PCS01G |
