DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

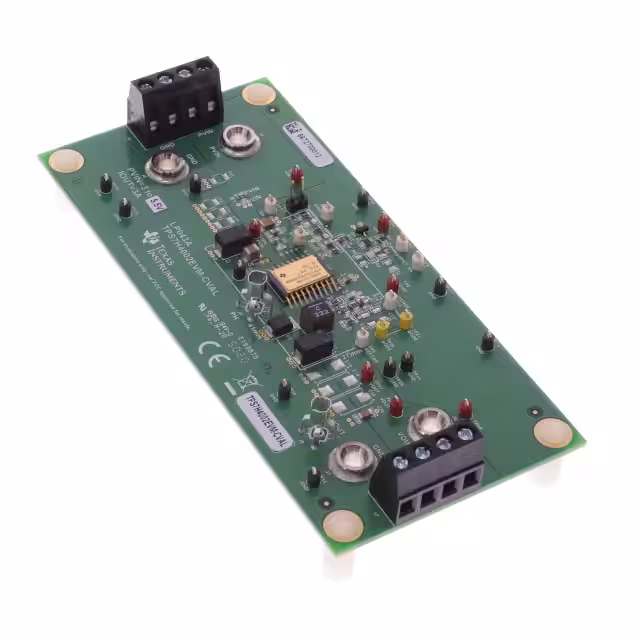

TPS7H4002EVM-CVALEVAL BOARD FOR TPS7H4002SP |
3,081 | 598.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 3A | 3V ~ 5.5V | Buck | 500kHz | Board(s) | TPS7H4002-SP |
|

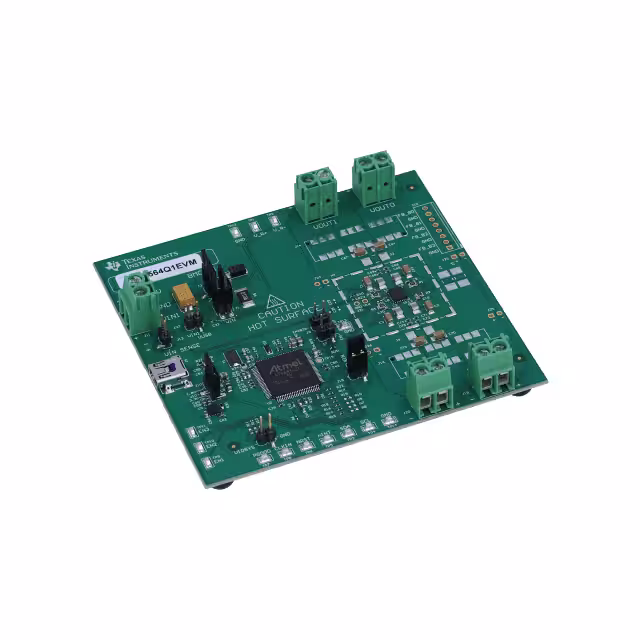

LP87564Q1EVMEVAL BOARD FOR LP87564 |
2,390 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.6V ~ 3.36V | 16A | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LP87564 |
|
LP87561Q1EVMEVAL BOARD FOR LP87561 |
3,771 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.6V ~ 3.36V | 16A | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LP87561 |
|
DC3082A-BEVAL BOARD FOR LTM4681 |
4,826 | 256.80 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | LTM4681 |
|

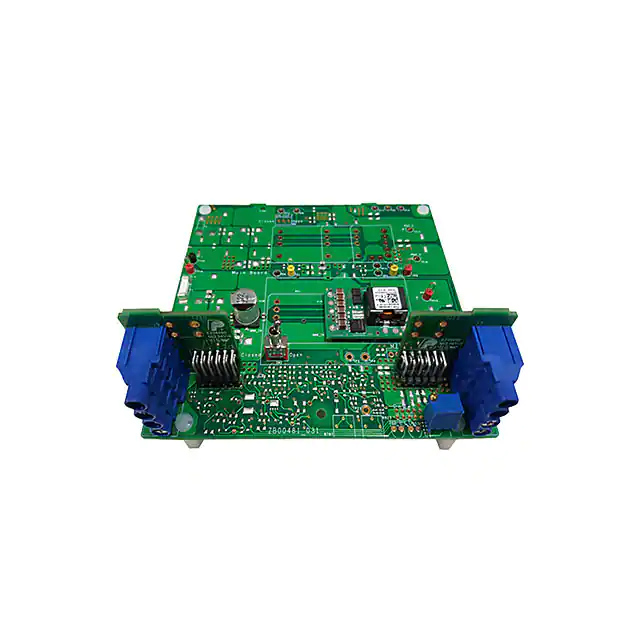

I6A20A-001-EVK-S1PXEVAL BOARD FOR I6A4W |
3,745 | 243.71 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC Converter | 1 Non-Isolated Output | 250 W | 3.3V ~ 15V | 20A | 9V ~ 53V | - | - | Board(s) | i6A4W |
|
|
DC2784B-BEVAL BOARD FOR LTM4700 |
2,685 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 300A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4700 |
|

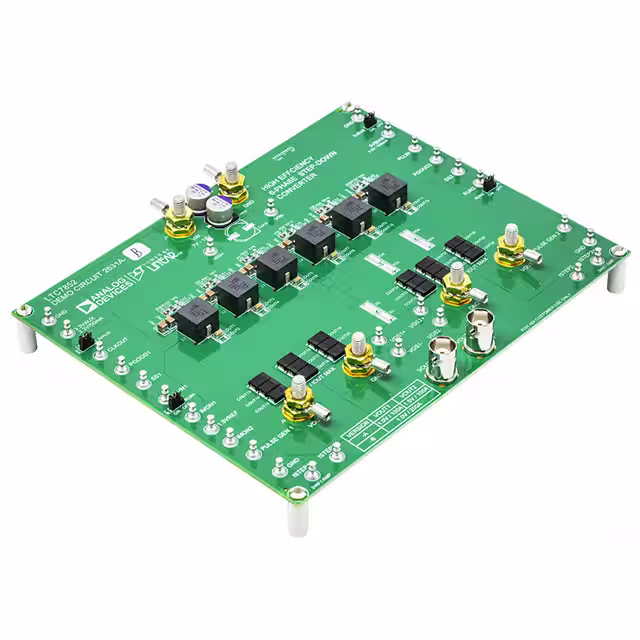

DC2631A-BEVAL BOARD FOR LTC7852 |
3,671 | 264.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 7V ~ 14V | Buck | 400kHz | Board(s) | LTC7852 |
|

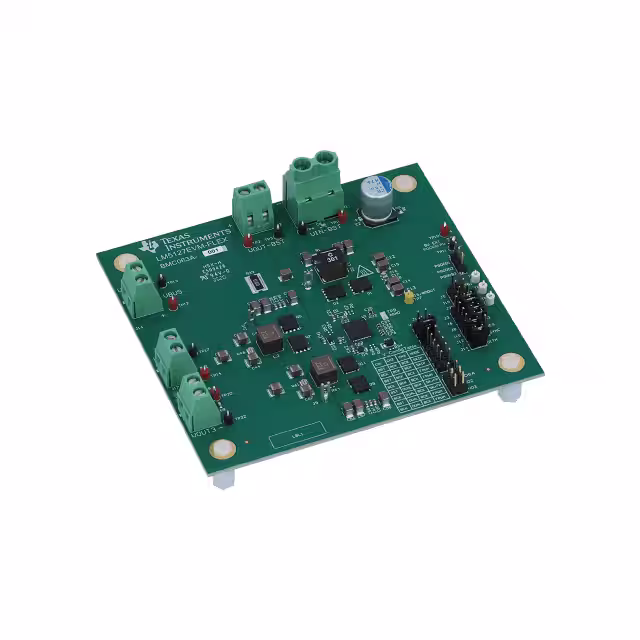

LM5127EVM-FLEXEVAL BOARD FOR LM5127Q1 |
1,115 | 270.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 7A, 5A | 3V ~ 42V | Buck-Boost | 440kHz | Board(s) | LM5127-Q1 |
|
DC541AEVAL BOARD FOR LTC37231 |
4,518 | 264.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 2.5V, 3.3V | 40A, 10A | 36V ~ 72V | - | 180kHz | Board(s) | LTC3723-1 |
|

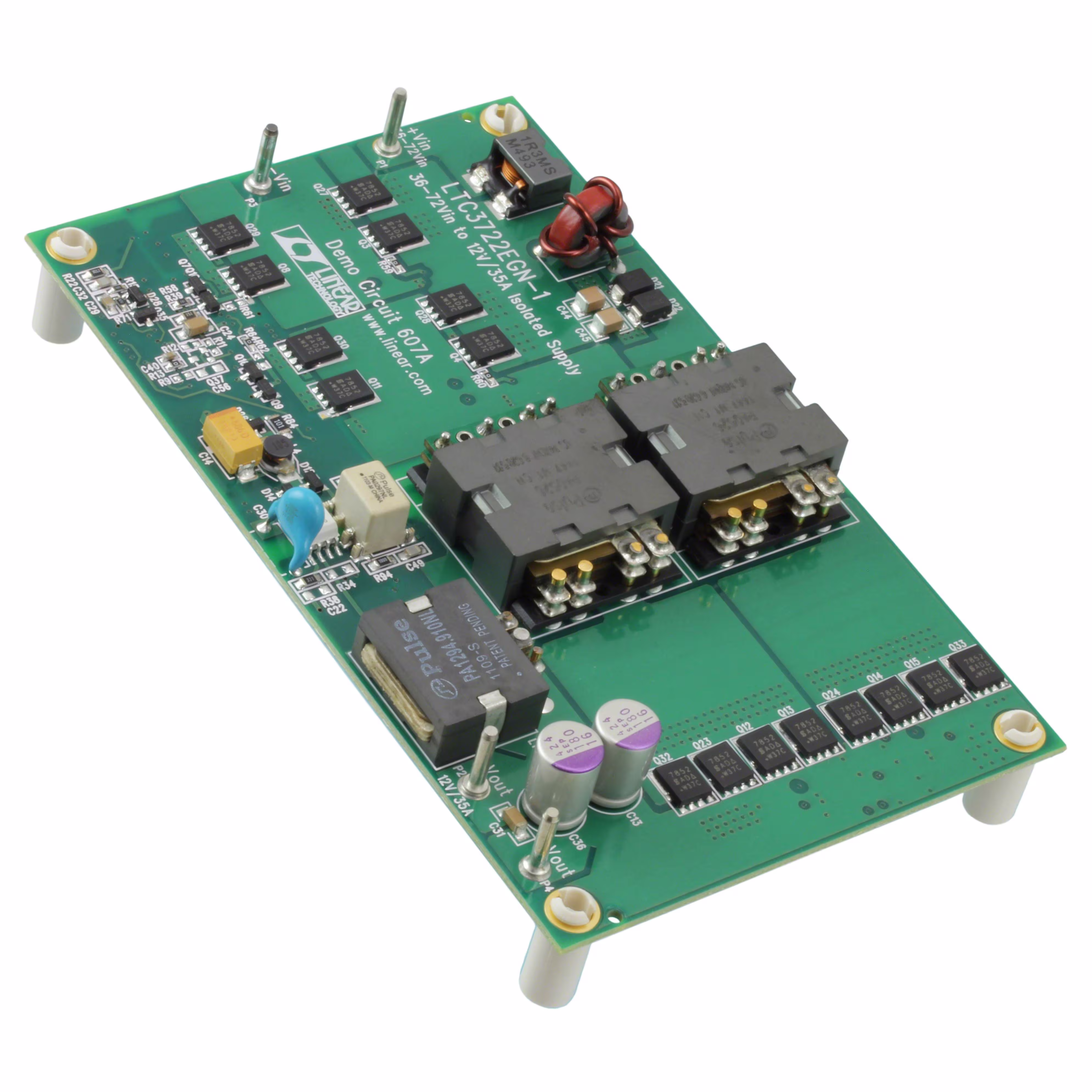

DC607AEVAL BOARD FOR LT1431 LTC3722 |
1,605 | 264.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 35A | 36V ~ 72V | Full-Bridge | 205kHz | Board(s) | LT1431, LTC3722, LTC3901, LTC4440 |
|
EVLSTNRG011-150EVAL BOARD FOR STNRG011 |
2,248 | 302.27 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 150 W | 12V | - | 90 ~ 264 VAC | Resonant | - | Board(s) | STNRG011 |
|

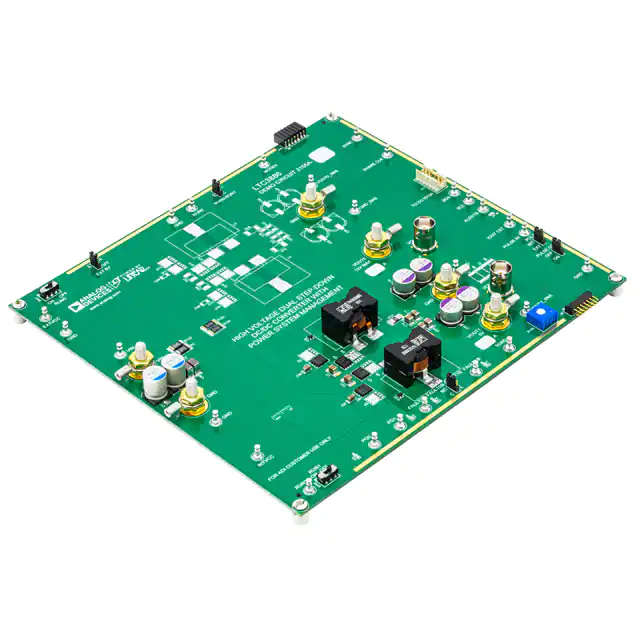

DC2155A-AEVAL BOARD FOR LTC3886 |
4,685 | 294.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 12A, 12A | 18V ~ 54V | Buck | 150kHz | Board(s) | LTC3886 |
|

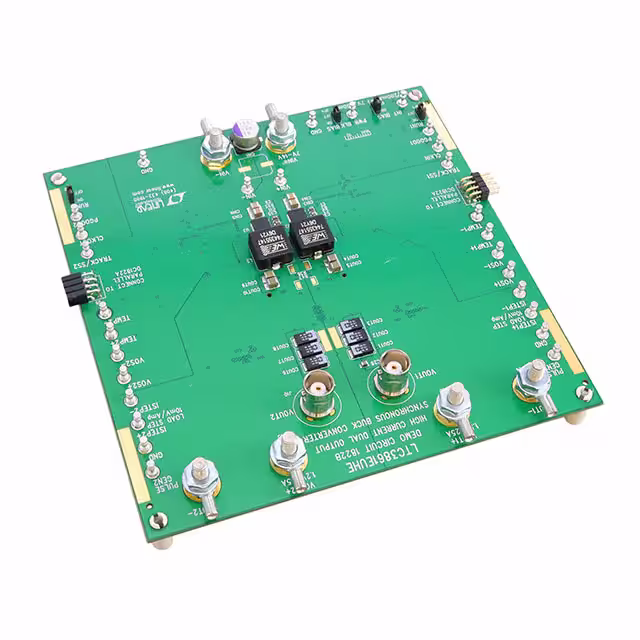

DC1822BEVAL BOARD FOR LTC3861 |
3,683 | 294.25 |
|
Datasheet |
PolyPhase® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 25A, 25A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3861 |
|
|
DC2155A-BEVAL BOARD FOR LTC3870 LTC3880 |
2,875 | 294.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 48A | 18V ~ 54V | Buck | 150kHz | Board(s) | LTC3870, LTC3880 |
|
|
DC3064AEVAL BOARD FOR LTM4650A1 |
4,326 | 301.31 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.1V | 200A | 4.5V ~ 16V | - | 780kHz | Board(s) | LTM4650A-1 |
|
|
EV71S00AEVAL BOARD FOR MIC21LV32 |
2,233 | 260.10 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.82V | 50A | 4.5V ~ 36V | Buck | - | Board(s) | MIC21LV32 |
|

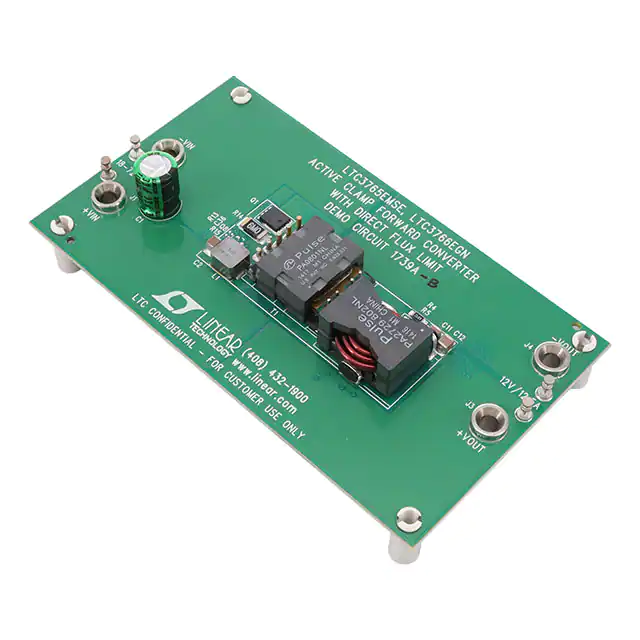

DC1739A-BEVAL BOARD FOR LTC3765 LTC3766 |
3,362 | 305.08 |
|
Datasheet |
Direct Flux Limit™, PolyPhase® | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 12.5A | 18V ~ 72V | Forward Converter | 240Hz | Board(s) | LTC3765, LTC3766 |
|

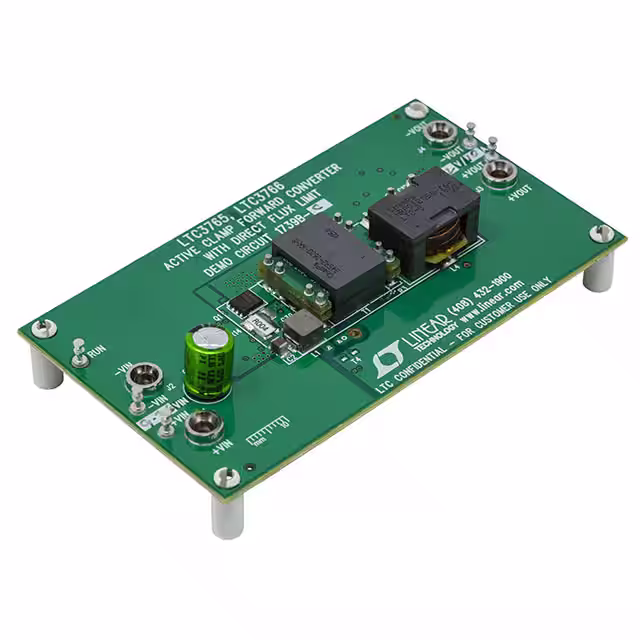

DC1739B-CEVAL BOARD FOR LTC3765 LTC3766 |
2,366 | 305.08 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 120 W | 12V | 10A | 9V ~ 36V | Forward Converter | 240kHz | Board(s) | LTC3765, LTC3766 |
|

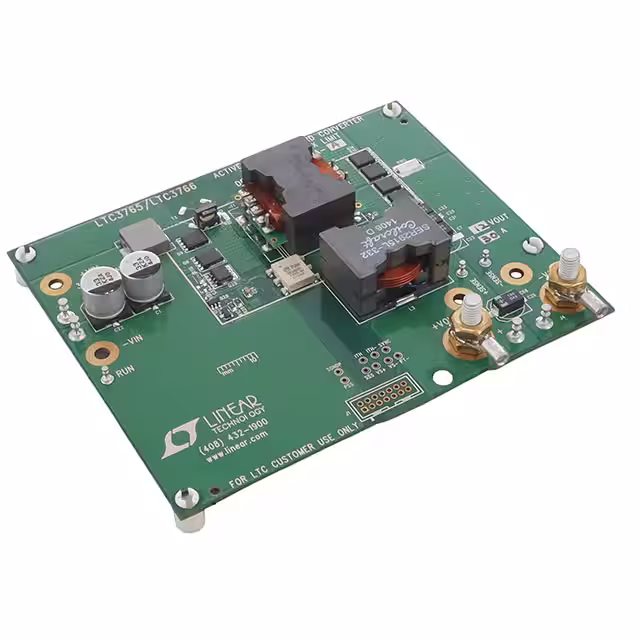

DC2199A-AEVAL BOARD FOR LTC3765 LTC3766 |
2,204 | 305.08 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 360 W | 12V | 30A | 36V ~ 60V | Forward Converter | 200kHz | Board(s) | LTC3765, LTC3766 |
|

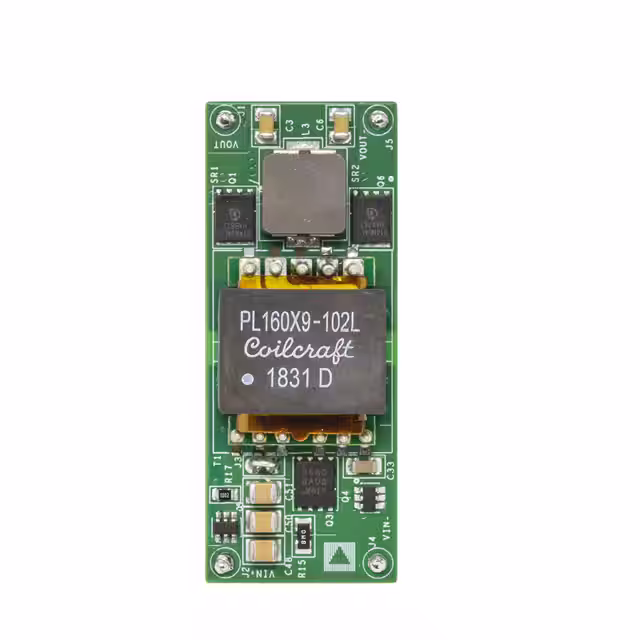

ADP1074LGA-EVALZEVAL BOARD FOR ADP1074 |
4,923 | 310.73 |
|
Datasheet |
iCoupler® | Box | Active | DC/DC Converter | 1 Isolated Output | - | - | - | 4.7V ~ 60V | Forward Converter | - | Board(s) | ADP1074 |
