Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

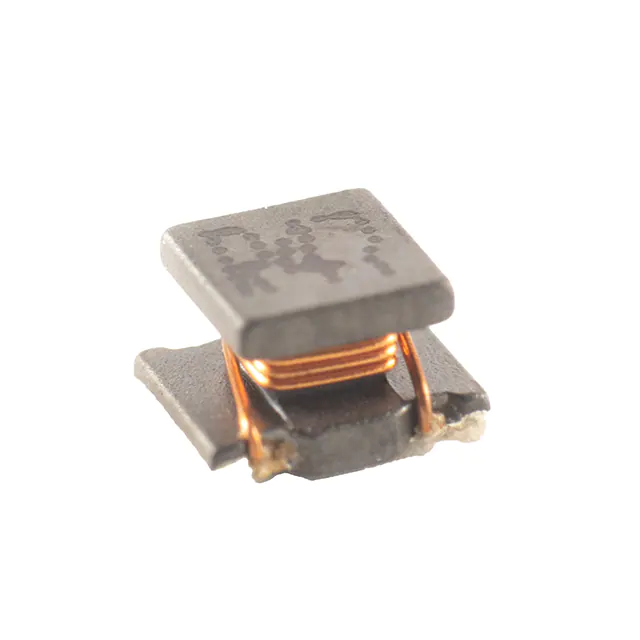

LRC20L-2R2M-RC2.2uH +/-20% Lo-Res Chip |
2,154 | 0.98 |
|
Datasheet |
LRC20L | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 790 mA | - | Unshielded | 97mOhm Max | - | 64MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.087" (2.21mm) |
|

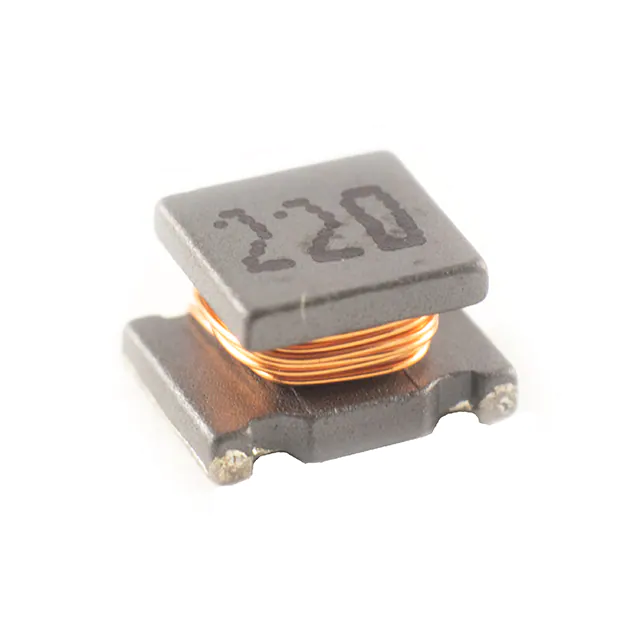

LRC30-100K-RC10uH +/-10% Low Resistance Chip |
4,005 | 0.98 |
|
Datasheet |
LRC30 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 650 mA | - | Unshielded | 240mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.79mm) |
|

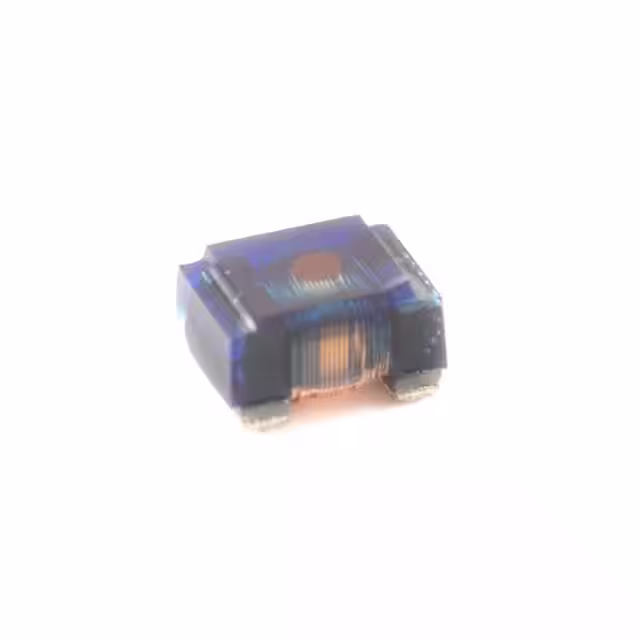

LD05-101M-RC100uH +/-20% 0805 Ferrite Core |
4,561 | 0.98 |
|
Datasheet |
LD05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | - | 70mA | Unshielded | 9Ohm Max | 18 @ 7.96MHz | 9MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|

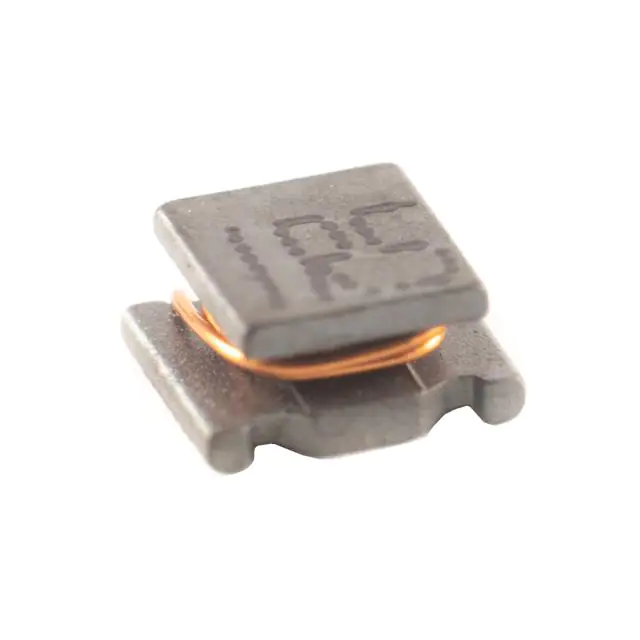

LRC27HC-1R5T-RC1.5uH +/-30% Hi-Current Inductor |
1,790 | 0.98 |
|
Datasheet |
LRC27HC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 1.75 A | 1.75A | Unshielded | 57mOhm | - | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|

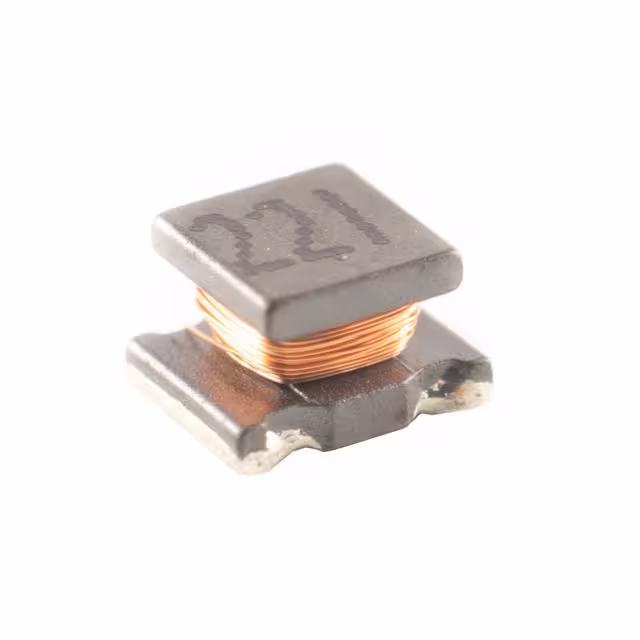

LRHQ20-221K-RC220uH +/-10% Lo-Res Hi-Q Chip |
2,267 | 0.98 |
|
Datasheet |
LRHQ20 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±10% | 65 mA | - | Unshielded | 11.8Ohm Max | 40 @ 796kHz | 5.5MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
RDC30-221K-RC220uH +/-10% Radial Drum Core |
4,966 | 7.55 |
|
Datasheet |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 220 µH | ±10% | 5.5 A | 8.7A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

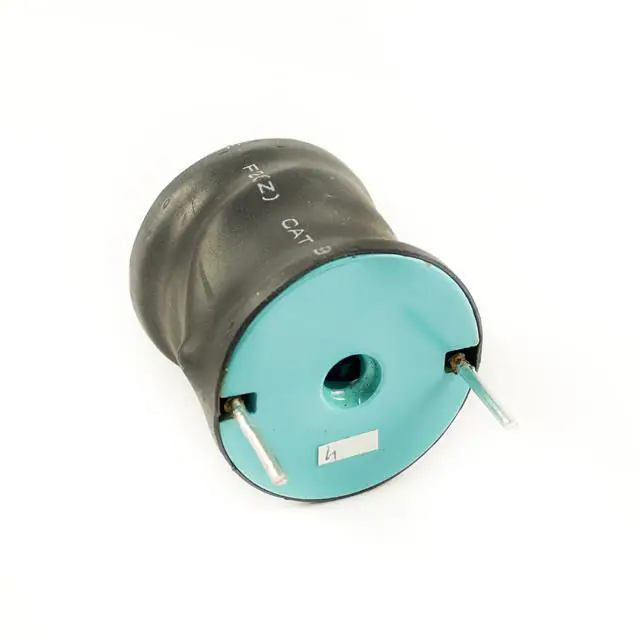

RDC50-101K-RC100uH +/-10% Radial Drum Core |
1,029 | 9.90 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 100 µH | ±10% | 21 A | 19A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-123K-RC12000uH +/-10% Radial Drum Core |
1,248 | 9.90 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 12 mH | ±10% | 2 A | 1.7A | Unshielded | 1.92Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-391K-RC390uH +/-10% Radial Drum Core |
2,155 | 9.90 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 390 µH | ±10% | 11.4 A | 9.7A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-182K-RC1800uH +/-10% Radial Drum Core |
2,030 | 9.90 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 1.8 mH | ±10% | 5.5 A | 4.5A | Unshielded | 302mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-331K-RC330uH +/-10% Radial Drum Core |
2,684 | 9.90 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 330 µH | ±10% | 13.5 A | 10A | Unshielded | 49mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-392K-RC3900uH +/-10% Radial Drum Core |
2,332 | 9.90 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 3.9 mH | ±10% | 4 A | 3A | Unshielded | 699mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-561K-RC560uH +/-10% Radial Drum Core |
2,609 | 9.90 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 560 µH | ±10% | 9 A | 8.1A | Unshielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-681K-RC680uH +/-10% Radial Drum Core |
1,051 | 9.90 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 680 µH | ±10% | 9 A | 7.4A | Unshielded | 115mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
HTC100-151M-RC150uH +/-20% H.M. Toroidal Choke |
4,426 | 2.50 |
|
Datasheet |
TC100 | Horizontal, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 150 µH | ±20% | 1.5 A | 1.4A | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.560" Dia (14.22mm) | 0.240" (6.10mm) |
|
MCHC40-330K-RC33uH +/-10% 2220 Molded Chip |
1,979 | 0.98 |
|
Datasheet |
MCHC40 | Nonstandard | Tray | Active | Molded | - | 33 µH | ±10% | - | 400mA | Unshielded | 620mOhm Max | 10 @ 2.52MHz | 10.5MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-332K-RC3300uH +/-10% 2220 Molded Chip |
3,619 | 0.98 |
|
Datasheet |
MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 mH | ±10% | - | 40mA | Unshielded | 60Ohm Max | 20 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-472K-RC4700uH +/-10% 2220 Molded Chip |
3,157 | 0.98 |
|
Datasheet |
MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 mH | ±10% | - | 36mA | Unshielded | 78Ohm Max | 20 @ 252kHz | 900kHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|

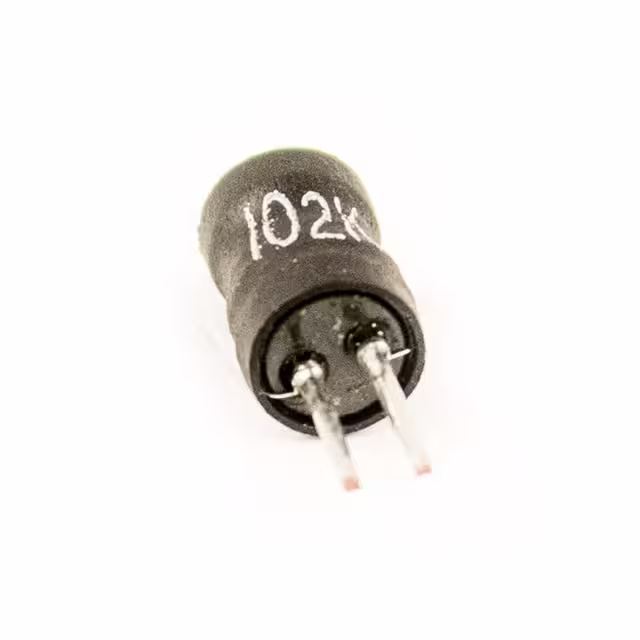

RB05-102K-RC1000uH +/-10% Radial Leaded Ind. |
3,927 | 2.25 |
|
Datasheet |
RB05 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 210 mA | 160mA | Unshielded | 6Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | Radial | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|

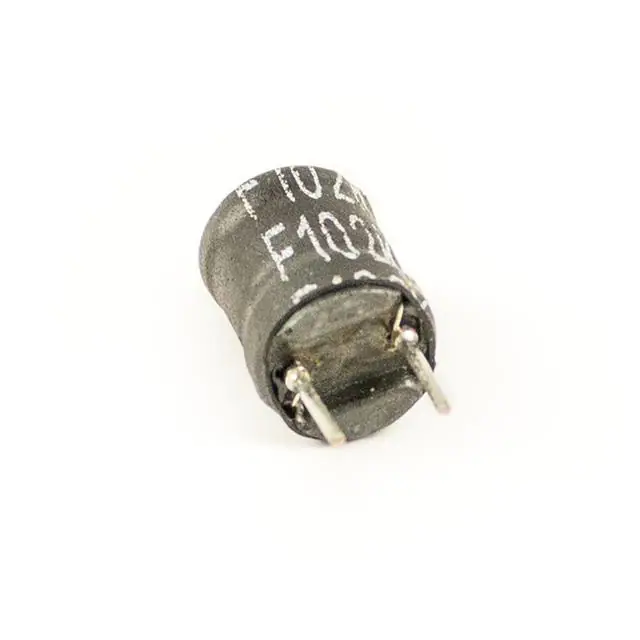

RB0810-560K-RC56uH +/-10% Radial Bobbin Ind. |
1,165 | 0.98 |
|
Datasheet |
RB0810 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±10% | 2.7 A | 1.8A | Unshielded | 120mOhm Max | - | 8.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
