Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS03-R10J-RC.10uH +/-5% Ferrite Core Chip |
2,578 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 nH | ±5% | - | 1.5A | Unshielded | 130mOhm Max | 17 @ 7.9MHz | 1.65GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R39J-RC.39uH +/-5% Ferrite Core Chip |
1,894 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 390 nH | ±5% | - | 1.2A | Unshielded | 510mOhm Max | 17 @ 7.9MHz | 810MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R27J-RC.27uH +/-5% Ferrite Core Chip |
4,738 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 270 nH | ±5% | - | 1.05A | Unshielded | 300mOhm Max | 17 @ 7.9MHz | 1.05GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R33J-RC.33uH +/-5% Ferrite Core Chip |
1,009 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 nH | ±5% | - | 1.2A | Unshielded | 460mOhm Max | 17 @ 7.9MHz | 850MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R24J-RC.24uH +/-5% Ferrite Core Chip |
1,833 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 240 nH | ±5% | - | 1.3A | Unshielded | 190mOhm Max | 17 @ 7.9MHz | 1.05GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R56J-RC.56uH +/-5% Ferrite Core Chip |
1,135 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 nH | ±5% | - | 850mA | Unshielded | 440mOhm Max | 17 @ 7.9MHz | 600MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R68J-RC.68uH +/-5% Ferrite Core Chip |
3,180 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 nH | ±5% | - | 850mA | Unshielded | 520mOhm Max | 17 @ 7.9MHz | 600MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R82J-RC.82uH +/-5% Ferrite Core Chip |
3,492 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 820 nH | ±5% | - | 750mA | Unshielded | 690mOhm Max | 17 @ 7.9MHz | 480MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-1R2J-RC1.2uH +/-5% Ferrite Core Chip |
2,924 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±5% | - | 550mA | Unshielded | 870mOhm Max | 17 @ 7.9MHz | 270MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-1R8J-RC1.8uH +/-5% Ferrite Core Chip |
3,141 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.8 µH | ±5% | - | 520mA | Unshielded | 1.1Ohm Max | 17 @ 7.9MHz | 230MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-1R0J-RC1.0uH +/-5% Ferrite Core Chip |
1,936 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±5% | - | 600mA | Unshielded | 810mOhm Max | 18 @ 7.9MHz | 310MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-100J-RC10uH +/-5% Ferrite Core Chip |
3,257 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±5% | - | 300mA | Unshielded | 4.8Ohm Max | 19 @ 7.9MHz | 40MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-2R2J-RC2.2uH +/-5% Ferrite Core Chip |
1,478 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±5% | - | 500mA | Unshielded | 1.2Ohm Max | 17 @ 7.9MHz | 140MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-2R7J-RC2.7uH +/-5% Ferrite Core Chip |
4,619 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.7 µH | ±5% | - | 480mA | Unshielded | 1.5Ohm Max | 17 @ 7.9MHz | 105MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-47NJ-RC.047uH +/-5% Ferrite Core Chip |
1,659 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 nH | ±5% | - | 1.5A | Unshielded | 75mOhm Max | 17 @ 7.9MHz | 1.7GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|

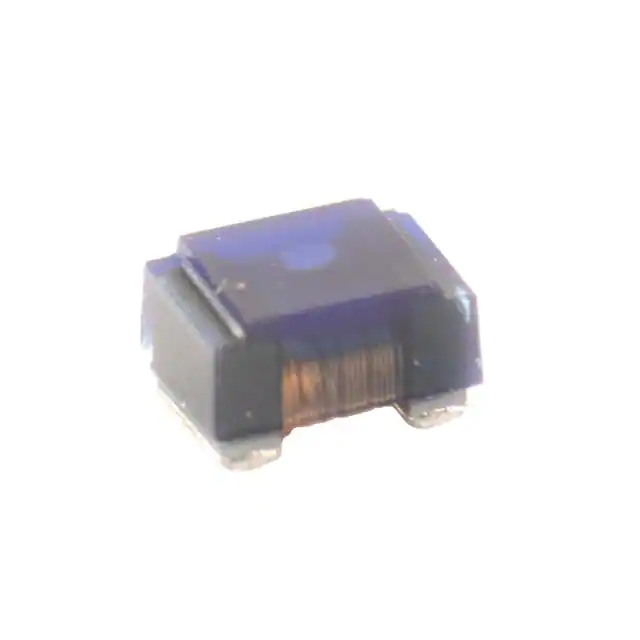

LS05-150J-RC15uH +/-5% Ferrite Core Chip |
1,442 | 0.98 |
|
Datasheet |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±5% | - | 350mA | Unshielded | 3.55Ohm Max | 16 @ 2.5MHz | 35MHz | - | -25°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
LS05-3R9J-RC3.9uH +/-5% Ferrite Core Chip |
1,232 | 0.98 |
|
Datasheet |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±5% | - | 600mA | Unshielded | 1.5Ohm Max | 23 @ 7.9MHz | 90MHz | - | -25°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
LS05-1R0J-RC1.0uH +/-5% Ferrite Core Chip |
4,837 | 0.98 |
|
Datasheet |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±5% | - | 700mA | Unshielded | 690mOhm Max | 20 @ 7.9MHz | 400MHz | - | -25°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
LS05-5R6J-RC5.6uH +/-5% Ferrite Core Chip |
3,486 | 0.98 |
|
Datasheet |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±5% | - | 500mA | Unshielded | 1.7Ohm Max | 20 @ 7.9MHz | 65MHz | - | -25°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
LRC20-1R0M-RC1.0uH +/-20% Low Resistance Chip |
1,923 | 0.98 |
|
Datasheet |
LRC20 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 1 A | - | Unshielded | 120mOhm Max | - | 96MHz | - | -25°C ~ 125°C | 1 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.087" (2.21mm) |
