Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

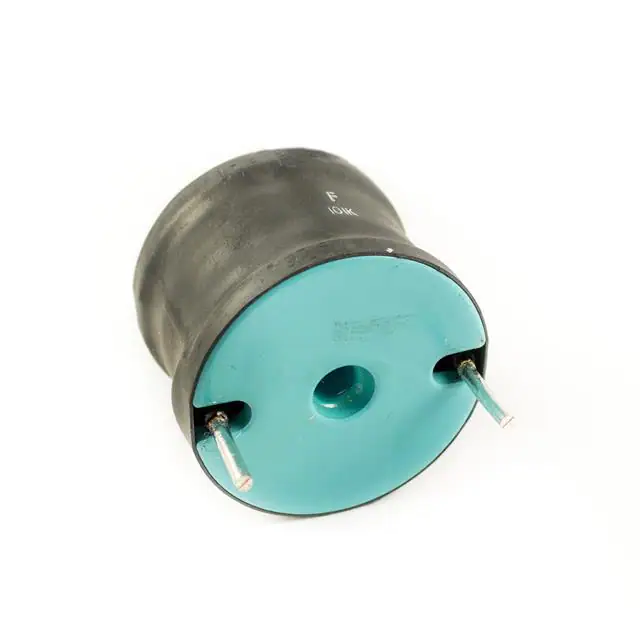

RDC60-471K-RC470uH +/-10% Radial Drum Core |
4,048 | 14.50 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 470 µH | ±10% | 13.5 A | 12.5A | Unshielded | 61mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-681K-RC680uH +/-10% Radial Drum Core |
1,478 | 14.50 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 680 µH | ±10% | 11.4 A | 10.3A | Unshielded | 94mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|

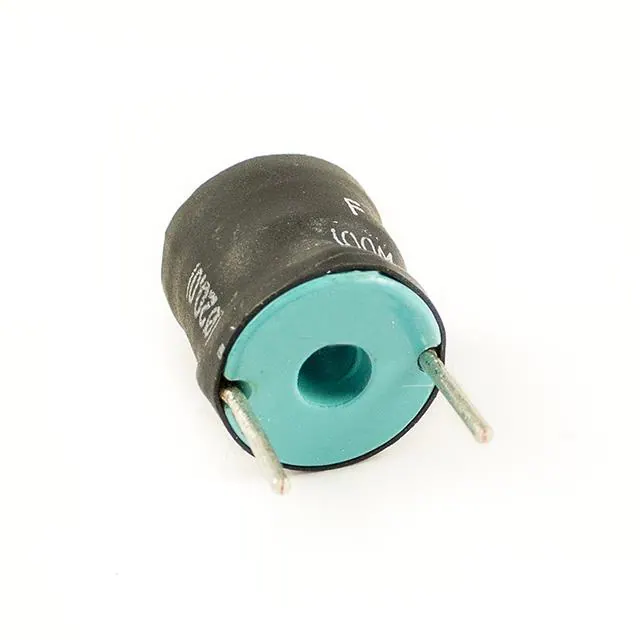

RDC20-330K-RC33uH +/-10% Radial Drum Core |
2,246 | 6.50 |
|
Datasheet |
RDC20 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 33 µH | ±10% | 5.5 A | 18.6A | Unshielded | 29mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|
|
RDC20-222K-RC2200uH +/-10% Radial Drum Core |
1,798 | 6.50 |
|
Datasheet |
RDC20 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 2.2 mH | ±10% | 800 mA | 2A | Unshielded | 1.54Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|
|
RDC20-121K-RC120uH +/- 10% Radial Drum Core |
1,251 | 6.50 |
|
Datasheet |
RDC20 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 120 µH | ±10% | 4 A | 9.4A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|

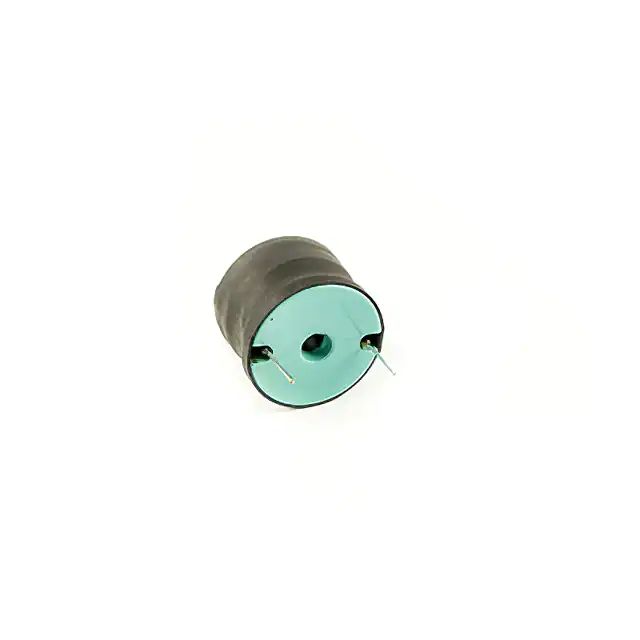

RDC30-390K-RC39uH +/-10% Radial Drum Core |
3,862 | 7.55 |
|
Datasheet |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 39 µH | ±10% | 11.4 A | 19.1A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
RDC30-502K-RC5000uH +/-10% Radial Drum Core |
2,558 | 7.55 |
|
Datasheet |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 5 mH | ±10% | - | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
RDC30-4R7M-RC4.7uH +/-10% Radial Drum Core |
4,202 | 7.55 |
|
Datasheet |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 4.7 µH | ±20% | 21 A | 54A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
SMAC30-10G-RC43nH +/-2% SMD Air Core Induct. |
4,339 | 0.98 |
|
Datasheet |
SMAC30 | Nonstandard | Tape & Reel (TR) | Active | - | Air | 43 nH | ±2% | 4 A | - | Unshielded | 7.9mOhm Max | 106 @ 150MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
SMAC25-47G-RC47nH +/-2% SMD Air Core Induct. |
4,090 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±2% | 3 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
CC10-800NG-RC80nH +/-2% Ceramic Core Chip |
2,434 | 0.98 |
|
Datasheet |
CC10 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 800 nH | ±2% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.087" (2.20mm) |
|
CC03-100NJ-RC100nH +/-5% Ceramic Core Chip |
2,901 | 0.98 |
|
Datasheet |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 100 nH | ±5% | - | 400mA | Unshielded | 780mOhm Max | 34 @ 150MHz | 1.4GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
|
CC03-220NJ-RC220nH +/-5% Ceramic Core Chip |
2,204 | 0.98 |
|
Datasheet |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±5% | - | 200mA | Unshielded | 2.02Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
|
CC03-27NJ-RC27nH +/-5% Ceramic Core Chip |
1,315 | 0.98 |
|
Datasheet |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | - | 600mA | Unshielded | 140mOhm Max | 40 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
PC1005-391K-RC390uH +/-10% Power Chip Inductor |
2,965 | 0.98 |
|
Datasheet |
PC1005 | Nonstandard | Tape & Reel (TR) | Active | - | - | 390 µH | ±10% | 480 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|

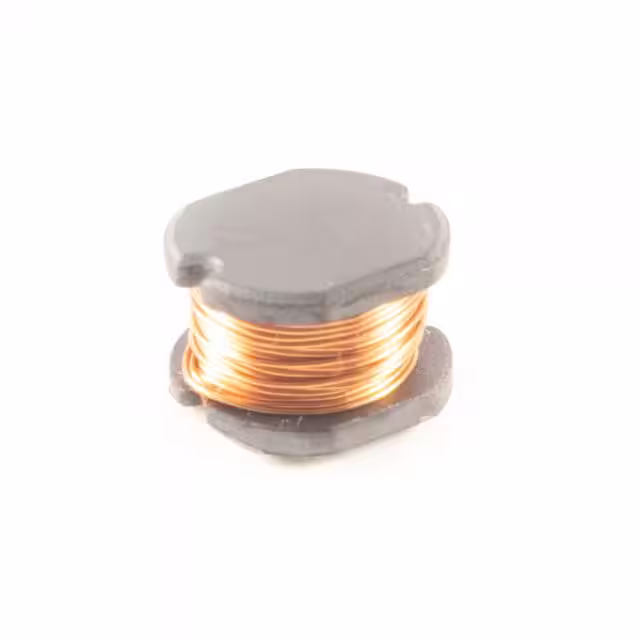

PC1006-531K-RC530uH +/-10% Power Chip Inductor |
1,882 | 0.98 |
|
Datasheet |
PC1006 | Nonstandard | Tape & Reel (TR) | Active | - | - | 530 µH | ±10% | - | 620mA | Unshielded | 1.7Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.272" (6.90mm) |
|
|
CC03-390NJ-RC390nH +/-5% Ceramic Core Chip |
3,514 | 0.98 |
|
Datasheet |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±5% | - | 100mA | Unshielded | 3.6Ohm Max | 24 @ 100MHz | 700MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
|
CC03-3N9S-RC3.9nH +/-0.3nH Ceramic Core Chip |
2,926 | 0.98 |
|
Datasheet |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 nH | ±0.3nH | - | 700mA | Unshielded | 70mOhm Max | 22 @ 250MHz | 6.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
CC05-390NJ-RC390nH +/-5% Ceramic Core Chip |
3,088 | 0.98 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±5% | - | 290mA | Unshielded | 1.5Ohm Max | 48 @ 250MHz | 560MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
CC05-33NJ-RC33nH +/-5% Ceramic Core Chip |
1,660 | 0.98 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±5% | - | 500mA | Unshielded | 270mOhm Max | 60 @ 500MHz | 2.05GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
