Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS03-R12J-RC.12uH +/-5% Ferrite Core Chip |
1,269 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±5% | - | 1.5A | Unshielded | 150mOhm Max | 17 @ 7.9MHz | 1.35GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-72NJ-RC.072uH +/-5% Ferrite Core Chip |
1,595 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 72 nH | ±5% | - | 1.5A | Unshielded | 120mOhm Max | 17 @ 7.9MHz | 1.7GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|

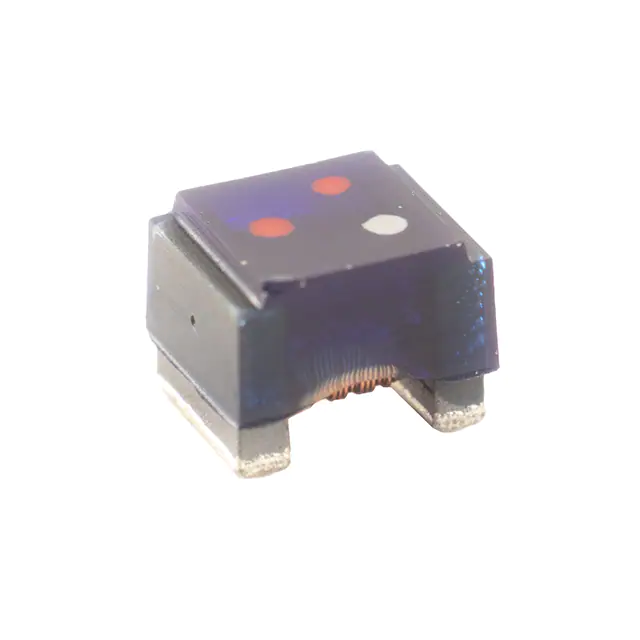

LS10-4R7J-RC4.7uH +/-5% Ferrite Core Chip |
3,171 | 0.98 |
|
Datasheet |
LS10 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±5% | 800 mA | - | Unshielded | 1.35Ohm Max | 37 @ 7.9MHz | 130MHz | - | -25°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1210 | 0.118" L x 0.098" W (2.99mm x 2.50mm) | 0.087" (2.20mm) |
|
LT20-4R7J-RC4.7uH +/-5% L.P. Ferrite Chip |
2,069 | 0.98 |
|
Datasheet |
LT20 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±5% | - | 880mA | Unshielded | 1.48Ohm Max | 20 @ 7.96MHz | 155MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1210 | 0.148" L x 0.122" W (3.75mm x 3.10mm) | 0.041" (1.05mm) |
|
PCSLF1275-220M-RC22uH +/-20% Power Chip Inductor |
3,832 | 0.98 |
|
Datasheet |
PCSLF1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 4 A | 4A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
SPM5015T-R47M-CA02FIXED IND 470NH 9A 0.0121OHM SMD |
3,955 | 0.00 |
|
Datasheet |
SPM-CA02 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 9 A | 12A | Shielded | 12.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|

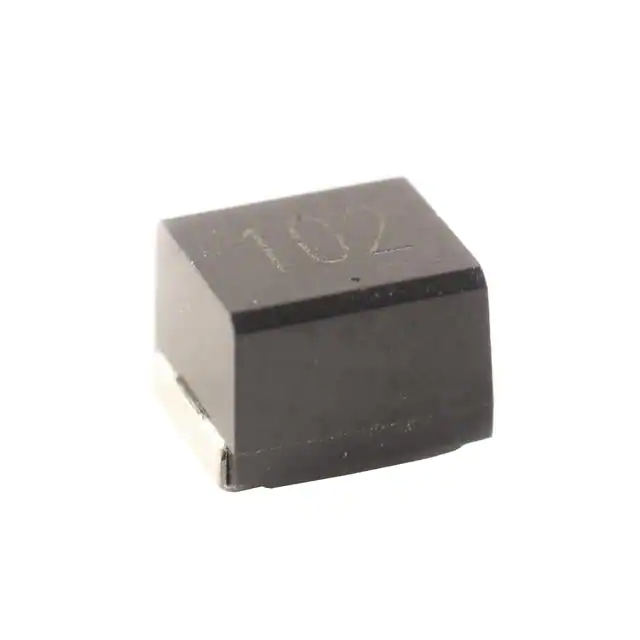

MCHC40-102J-RC1000UH 5% Molded Chip Inductor |
3,278 | 0.98 |
|
Datasheet |
MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 mH | ±5% | - | 85mA | Unshielded | 15Ohm Max | 20 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-103K-RC10mH 10% Molded Chip Inductor |
3,527 | 0.98 |
|
Datasheet |
MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 mH | ±10% | - | 25mA | Unshielded | 150Ohm Max | 20 @ 79.6kHz | 500kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|

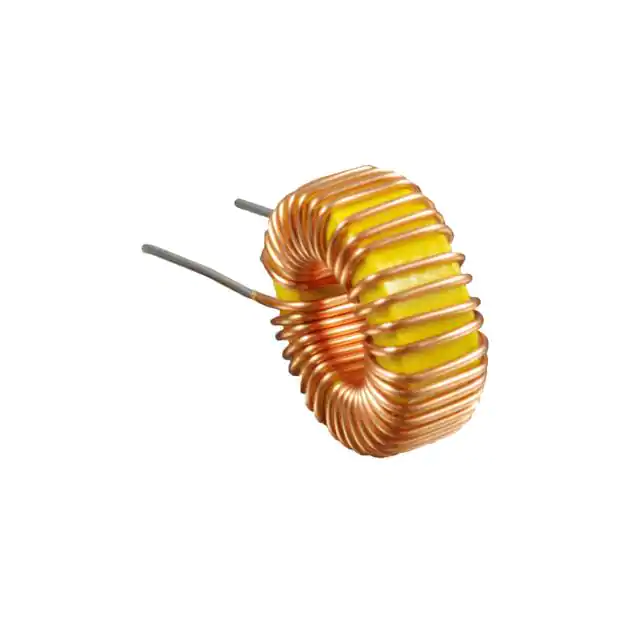

VTC230-101L-RC100uH +/-15% V.M. Toroidal Choke |
2,803 | 4.50 |
|
Datasheet |
TC230 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
|
VTC100-220K-RC22uH +/-10% V.M. Toroidal Choke |
2,431 | 2.75 |
|
Datasheet |
TC100 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 22 µH | ±10% | 3.5 A | 3.9A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.600" Dia (15.24mm) | - |
|
|
VTC230HT-2R7L-RC2.7uH +/-15% V.M. Toroidal Choke |
2,749 | 4.25 |
|
Datasheet |
TC230HT | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 2.7 µH | ±15% | 31.6 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
MLPC12-2R2M-RC2.2uH +/-20% Multilayer Pwr Chip |
1,452 | 0.98 |
|
Datasheet |
MLPC12 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

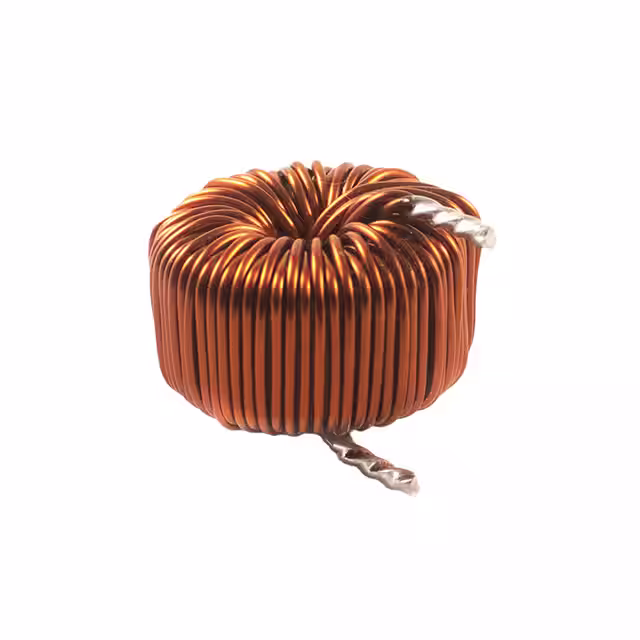

VTC3221-500-20A50uH @ 20A Vert. Mount Toroid |
2,011 | 7.75 |
|
Datasheet |
VTC3221-500-20A | Vertical, No Base, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 58.75 µH | ±12% | 20 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.827" (21.00mm) |
|

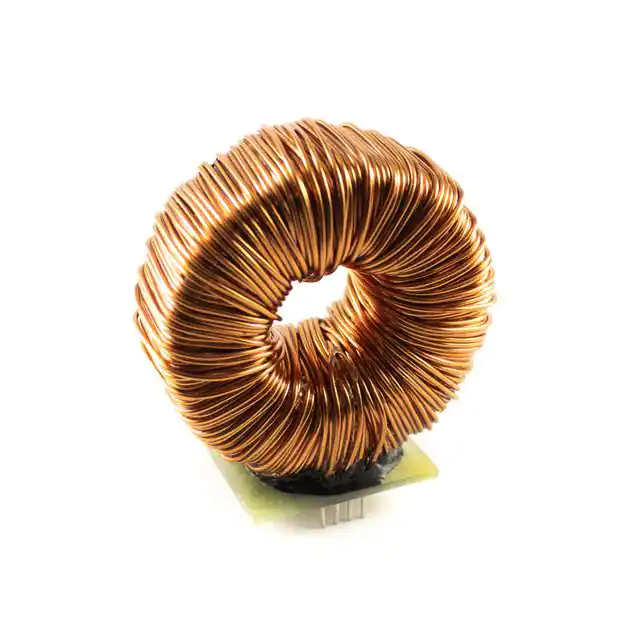

VTCB5427-431-10A570uh @ 16.5A Vert. Mount Toroid |
4,703 | 22.50 |
|
Datasheet |
VTCB5427-431-10A | Vertical, 8 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 570 µH | ±15% | 16.5 A | - | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 125°C | 10 kHz | - | Through Hole | Vertical, 8 PC Pin | 2.126" L x 1.102" W (54.00mm x 28.00mm) | 2.146" (54.50mm) |
|
|
L8040C3R6NDWDTL8040C3R6NDWDT |
4,480 | 0.31 |
|
Datasheet |
L-DWD | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | - | Shielded | 15mOhm Max | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
L8040C101MDWDTL8040C101MDWDT |
3,292 | 0.31 |
|
Datasheet |
L-DWD | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1 A | - | Shielded | 290mOhm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
L0806C101MDWSTL0806C101MDWST |
2,021 | 0.11 |
|
Datasheet |
L-DWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 170 mA | 70mA | Unshielded | 4.5Ohm | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0805R220MPWRTL0805R220MPWRT |
3,228 | 0.07 |
|
Datasheet |
L-PWR | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 100 mA | - | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
L0806C101KDWSTL0806C101KDWST |
1,080 | 0.11 |
|
Datasheet |
L-DWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±10% | 170 mA | 700mA | Unshielded | 4.5Ohm | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L8040C220MDWDTL8040C220MDWDT |
2,714 | 0.31 |
|
Datasheet |
L-DWD | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | - | Shielded | 66mOhm Max | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
