Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV74HCT04ADGIC INVERTER 6CH 1-INP 14SOIC |
3,812 | 0.00 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 15ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
|
NLV74HCT14ADGIC INVERT SCHMITT 6CH 1IN 14SOIC |
1,510 | 0.00 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 32ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
SN74LVC1G14DRY2IC INVERT SCHMITT 1CH 1-INP 6SON |
3,117 | 0.00 |
|
Datasheet |
74LVC | 6-UFDFN | Bulk | Obsolete | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V | 6.5ns @ 2.5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SN74LVC1G14DSF2IC INVERT SCHMITT 1CH 1-INP 6SON |
2,052 | 0.00 |
|
Datasheet |
74LVC | 6-XFDFN | Bulk | Obsolete | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V | 6.5ns @ 2.5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-SON (1x1) |
|
74AXP1G11GMHIC GATE AND 1CH 3-INP 6XSON |
3,910 | 0.12 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 3 | - | 0.7V ~ 2.75V | 600 nA | 8mA, 8mA | - | - | 3.2ns @ 2.5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74AXP1G11GSHIC GATE AND 1CH 3-INP 6XSON |
4,395 | 0.13 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 3 | - | 0.7V ~ 2.75V | 600 nA | 8mA, 8mA | - | - | 3.2ns @ 2.5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
|
74AXP1G86GMHIC GATE XOR 1CH 2-INP 6XSON |
1,247 | 0.12 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 0.7V ~ 2.75V | 600 nA | 8mA, 8mA | - | - | 3.8ns @ 2.5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
MCW100E101IC GATE OR/NOR QUAD |
4,050 | 0.00 |
|
- |
* | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74HCT00DIC GATE NAND 4CH 2-INP 14SOIC |
3,507 | 0.00 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 17ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74HCT02DIC GATE NOR 4CH 2-INP 14SOIC |
4,388 | 0.00 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 16ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74HCT08DIC GATE AND 4CH 2-INP 14SOIC |
2,419 | 0.00 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
NC7S32M5X_F080IC GATE OR 1CH 2-INP SOT23-5 |
1,932 | 0.00 |
|
- |
7S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | OR Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V | 1.5V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

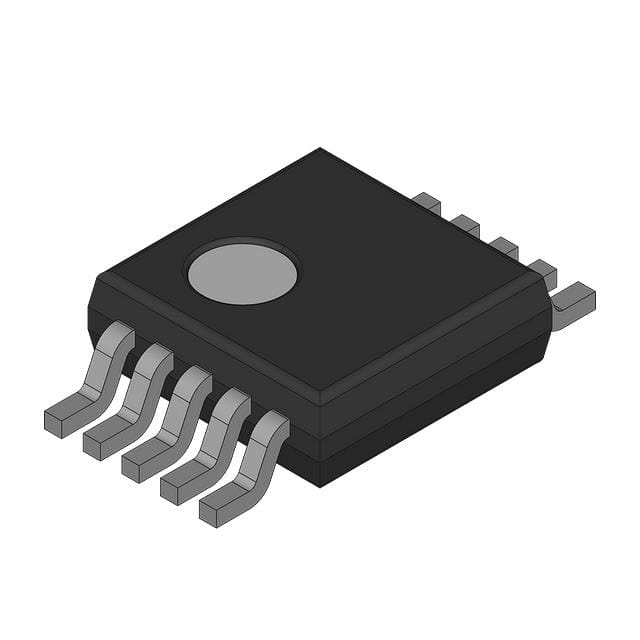

74AXP2T08DPJIC GATE AND 2CH 2-INP 10TSSOP |
1,404 | 0.65 |
|
Datasheet |
74AXP | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 2 | 2 | Schmitt Trigger | 0.7V ~ 2.75V | 500 nA | 12mA, 12mA | 0.35V ~ 0.8V | 1.05V ~ 3.7V | 6.5ns @ 5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 10-TSSOP |
|
|
NC7S08M5X_F40IC GATE AND 1CH 2-INP |
4,226 | 0.00 |
|
- |
7S | - | Bulk | Obsolete | AND Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V | 1.5V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | - | - |
|
|
NC7SZ04M5X_F40IC INVERTER 1CH 1-INP SOT23-5 |
3,916 | 0.00 |
|
- |
7SZ | SC-74A, SOT-753 | Bulk | Obsolete | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NC7SZ32M5X_F40IC GATE OR 1CH 2-INP SC74A |
1,903 | 0.00 |
|
- |
7SZ | SC-74A, SOT-753 | Bulk | Obsolete | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-74A |
|
|
CC01366AC2TR/NOPBIC GATE MTL CMOS 44-PLCC |
4,767 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CC01366AC2TRIC GATE MTL CMOS 44-PLCC |
1,128 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2170345IC MCU NOR 48FBGA |
2,337 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74AC14CWIC INVERT SCHMITT 6CH 6IN DIE |
3,302 | 0.00 |
|
- |
74AC | Die | Tube | Obsolete | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | Die |
