Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74ACT04CWIC INVERTER 6CH 1IN DIE |
4,499 | 0.00 |
|
- |
74ACT | Die | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | Die |
|
|
MC74VHC1G86MU1TCGIC GATE XOR 1CH 2-INP 6UDFN |
3,592 | 0.00 |
|
Datasheet |
74HC | 6-UFDFN | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
|
NL17SZ11MU1TCGIC GATE AND 1CH 3-INP 6UDFN |
3,460 | 0.00 |
|
Datasheet |
17SZ | 6-UFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
|
NL17SZ32MU1TCGIC GATE OR 1CH 2-INP 6UDFN |
1,527 | 0.00 |
|
Datasheet |
17SZ | 6-UFDFN | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
|
NLX2G32DMUTCGIC GATE OR 2CH 2-INP 8UDFN |
4,253 | 0.00 |
|
Datasheet |
- | 8-UFDFN | Tape & Reel (TR) | Obsolete | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-UDFN (1.95x1) |
|
|
SC14011BDR2GIC PLL CLOCK DRIVER |
3,688 | 1.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CD74HC4075E-NGIC GATE OR 3CH 3-INP 14DIP |
4,678 | 0.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Active | OR Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD74HC00EIC GATE NAND 4CH 2-INP 14DIP |
3,328 | 1.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD74HC14EIC INVERT SCHMITT 6CH 1INP 14DIP |
1,605 | 1.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 23ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
BU4S71-TRIC GATE OR 1CH 2-INP SMP5 |
1,040 | 0.00 |
|
Datasheet |
4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | OR Gate | 1 | 2 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 2.75V ~ 8.25V | 30ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4SU69-TRIC INVERTER 1CH 1-INP SMP5 |
3,389 | 0.00 |
|
Datasheet |
4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1V ~ 3V | 4V ~ 12V | 25ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4S584-TRIC INVERT SCHMITT 1CH 1-INP SMP5 |
4,825 | 0.00 |
|
Datasheet |
4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | Schmitt Trigger | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 50ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4S81-TRIC GATE AND 1CH 2-INP SMP5 |
4,960 | 0.00 |
|
Datasheet |
4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 2 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 2.75V ~ 8.25V | 30ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
74AUP1G32GW-Q100/HIC GATE OR 1CH 2-INP 5TSSOP |
1,322 | 0.00 |
|
Datasheet |
74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | OR Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|

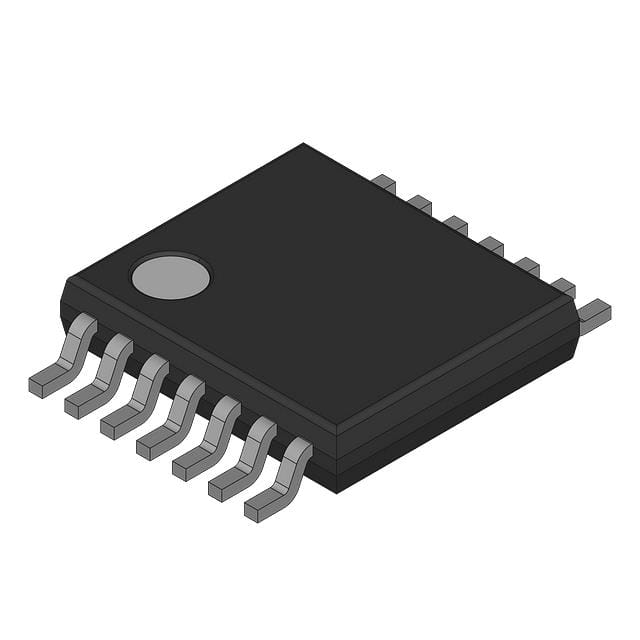

74LVC14APW/S505118IC INVERTER |
2,732 | 0.08 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Inverter | - | - | Schmitt Trigger | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC14APW/C2118IC INVERTER 6CH 6-INP 14TSSOP |
4,694 | 0.08 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Inverter | 6 | 6 | Schmitt Trigger | 3.6V | 40 µA | 24mA, 24mA | 0.75V ~ 1.5V | 1V ~ 2V | 8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
DM7430NIC GATE NAND 1CH 8-INP 14DIP |
2,275 | 0.51 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 1 | 8 | - | 4.75V ~ 5.25V | 6 mA | 400µA, 16mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
DM7432NIC GATE OR 4CH 2-INP 14DIP |
4,295 | 0.34 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | OR Gate | 4 | 2 | - | 4.75V ~ 5.25V | 38 mA | 800µA, 16mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|

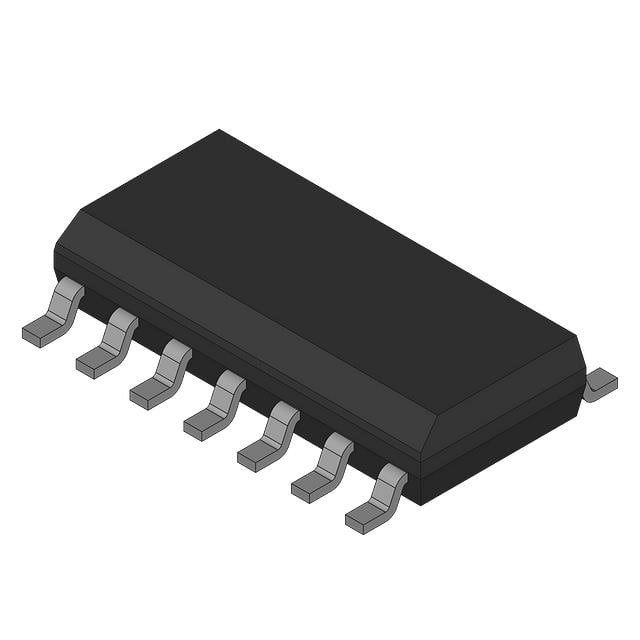

74HC86D/S400118IC GATE XOR 4CH 2-INP 14SO |
1,649 | 0.07 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 20ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
54H11FMIC GATE AND 3CH 3-INP 14CFP |
2,363 | 6.62 |
|
Datasheet |
54H | 14-CFlatPack | Bulk | Active | AND Gate | 3 | 3 | - | 4.5V ~ 5.5V | 48 mA | - | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
